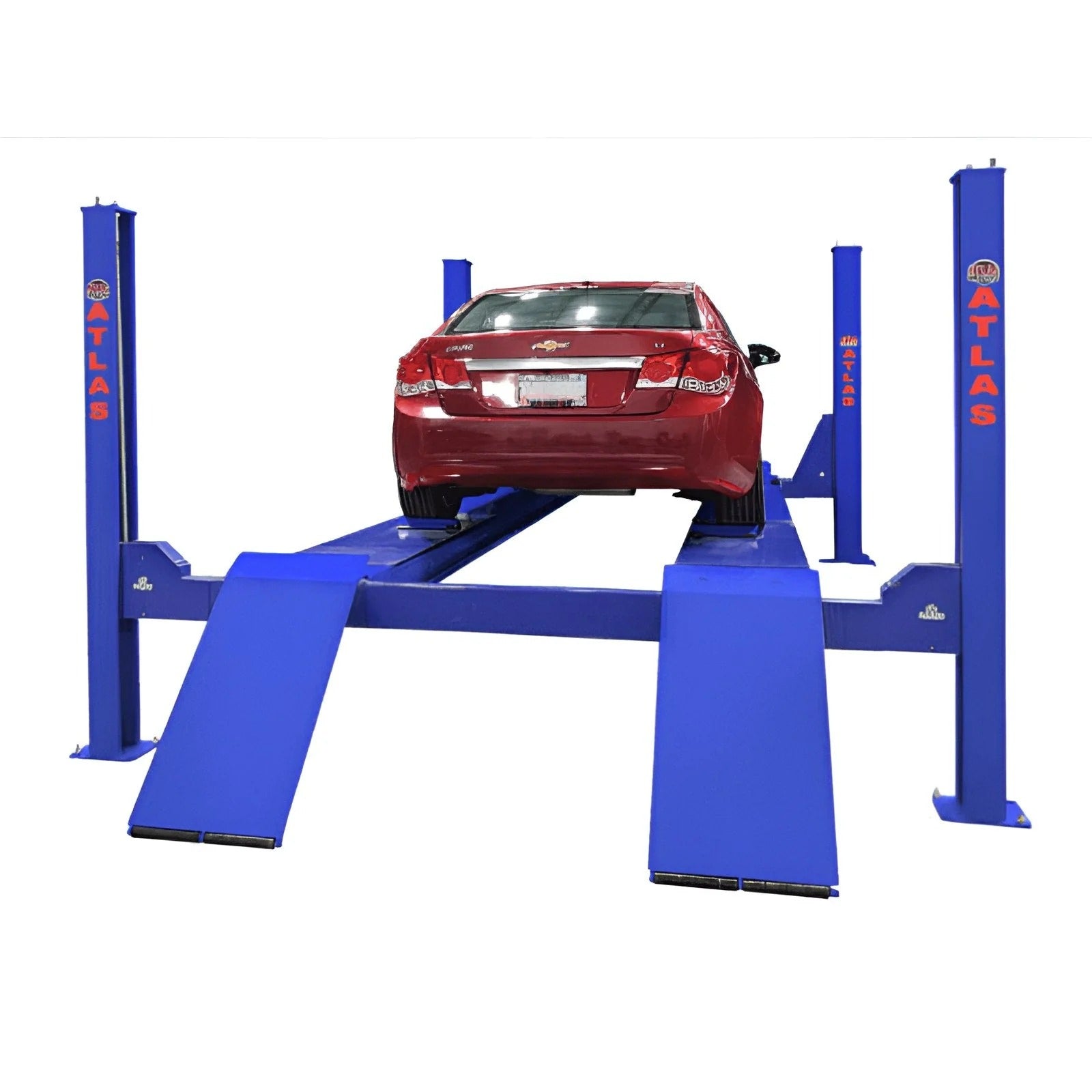

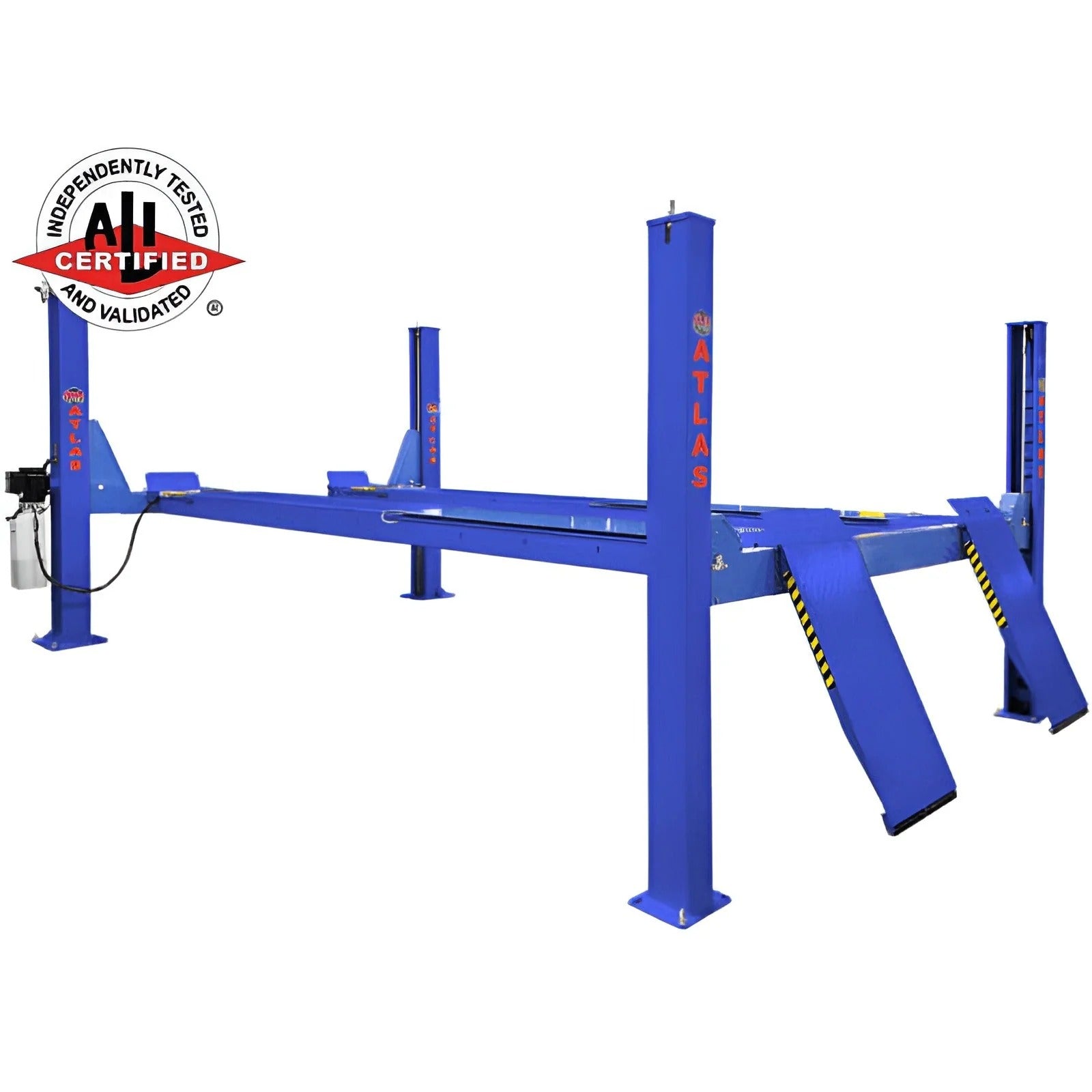

Atlas Platinum 14,000 lb ALI Certified 4-Post Alignment Lift – Commercial Grade
SKU: ATEAP-PVL14OF-EXT
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas Platinum PVL14OF-EXT 14,000 lb alignment lift is a commercial-grade solution built for professional shops that require precision, durability, and full-service capability. Designed with an open-front configuration and extra-long runways, this lift provides improved access and flexibility when working on a wide range of vehicles, including cars, trucks, vans, and commercial units.

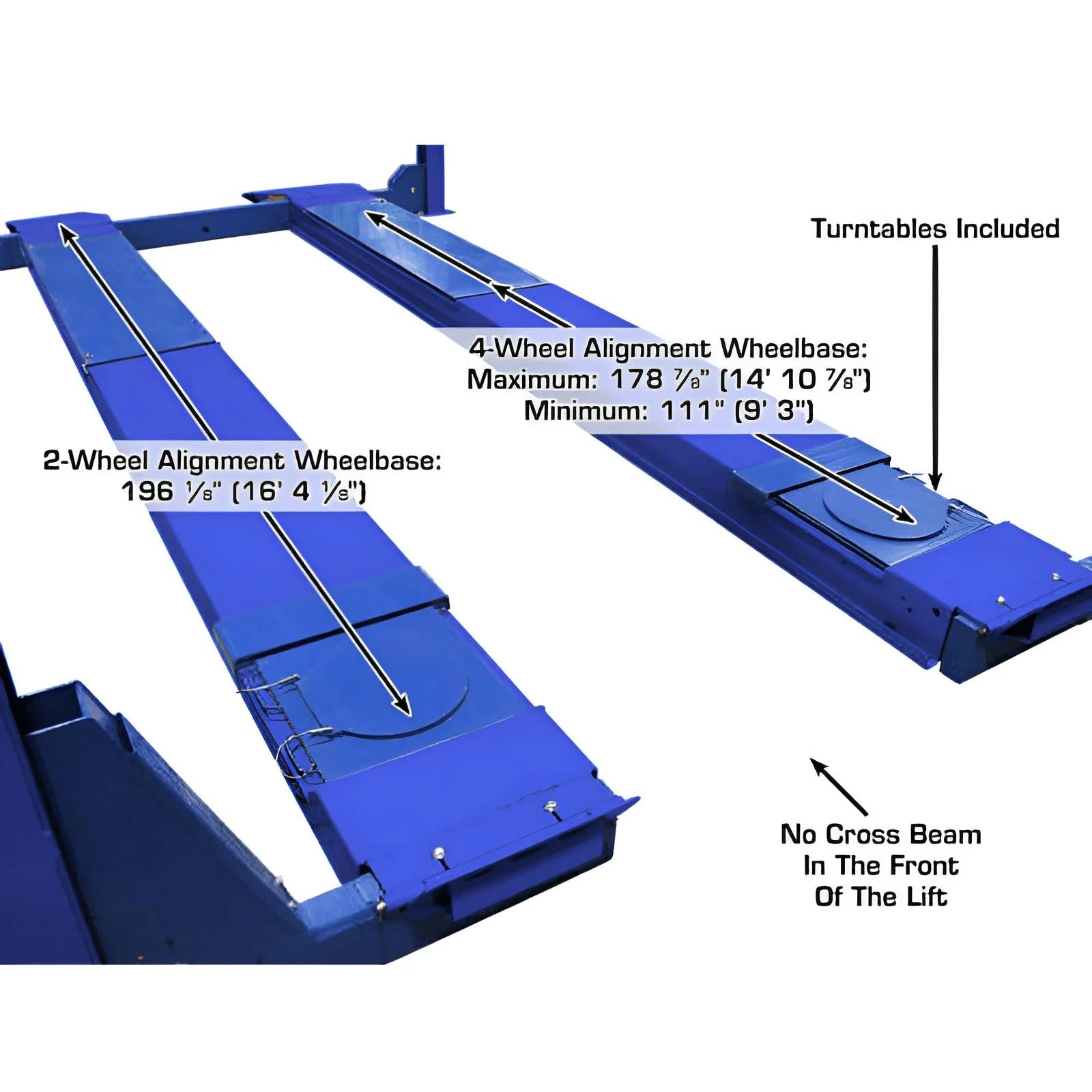

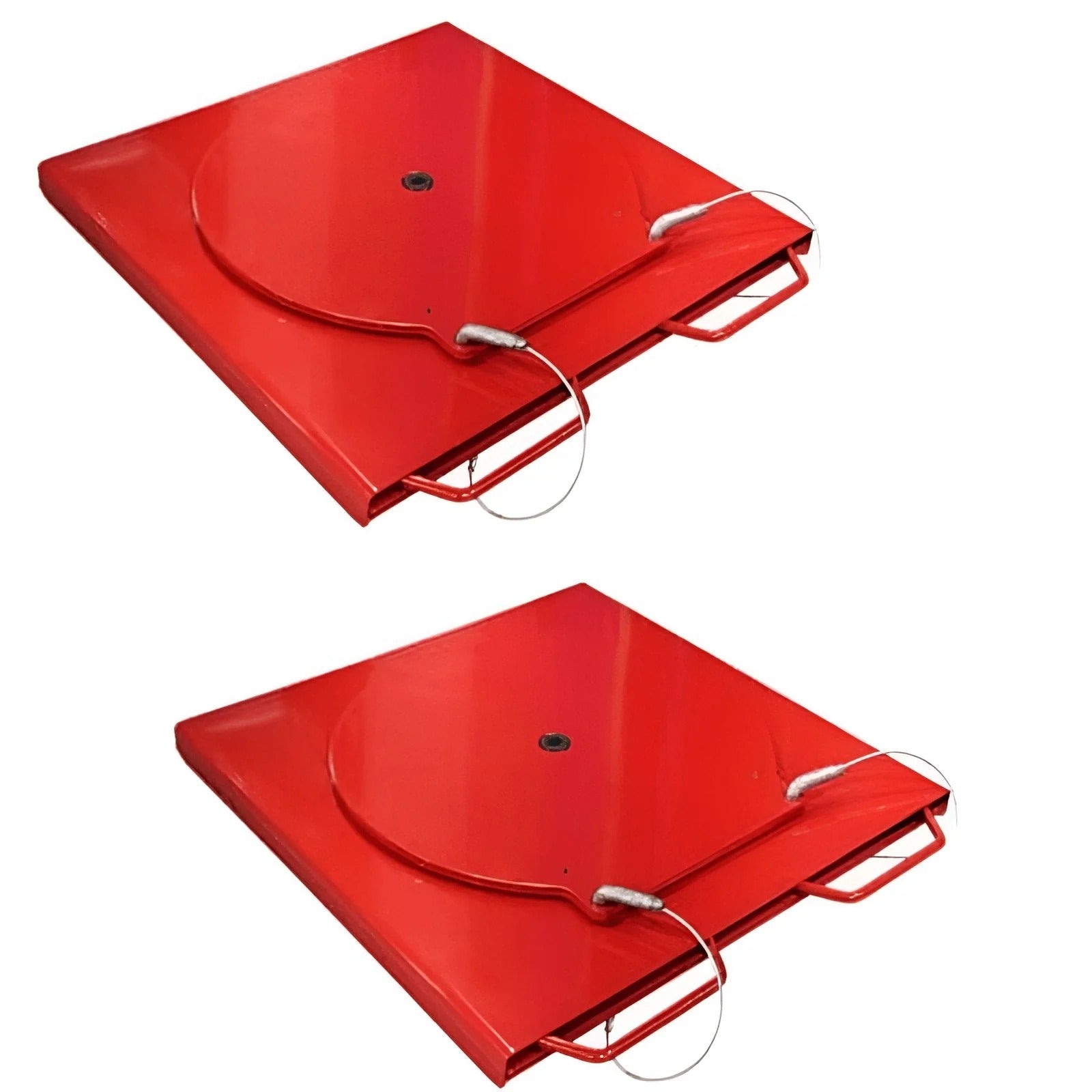

Equipped with built-in slip plates and heavy-duty turntables, this lift is ready for accurate wheel alignment work right out of the box.
Built for Professional Alignment Work
The open-front design allows technicians better access to the underside of the vehicle, making alignment adjustments easier and more efficient. The extended runway length supports longer wheelbase vehicles, while the integrated alignment components eliminate the need for additional setup.
Powered by a high-strength cable system and an oversized hydraulic cylinder located beneath the runway, this lift delivers smoother lifting and improved leveling compared to traditional chain-driven systems.
Key Features
- 14,000 lb Capacity for cars, trucks, and commercial vehicles

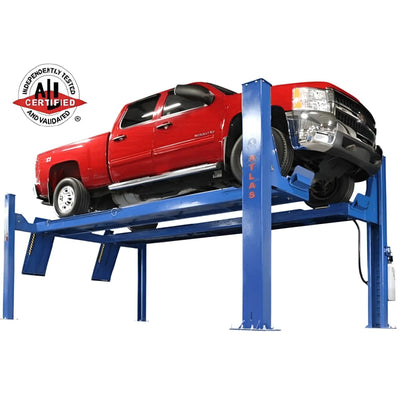

- ALI Certified for verified safety and performance
- Alignment-Ready with built-in slip plates and turntables
- Open Front Design for improved undercarriage access
- Extra Long Runways for extended wheelbase vehicles
- Heavy-Duty Commercial Grade Construction

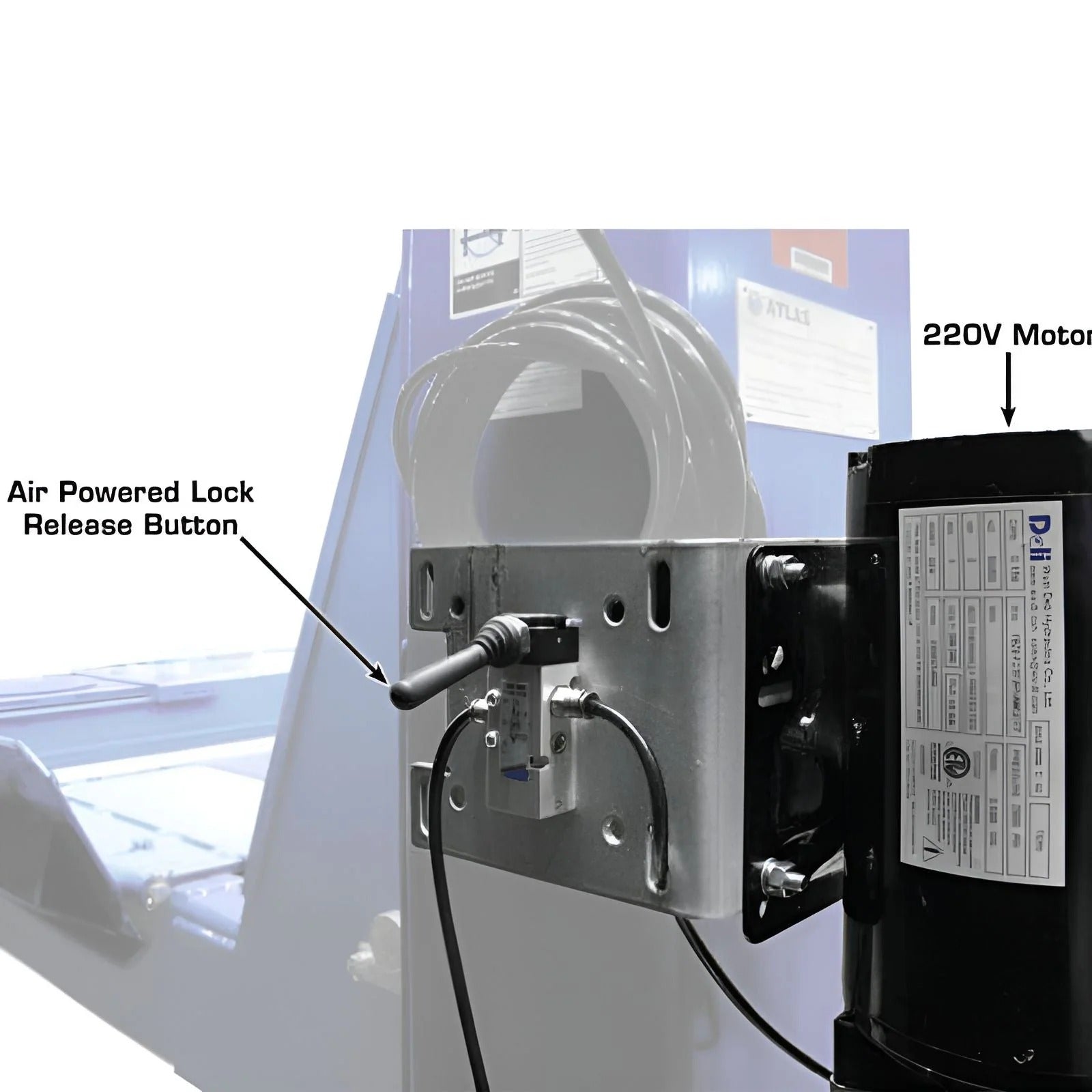

- Air-Operated Single Point Lock Release (external air required)

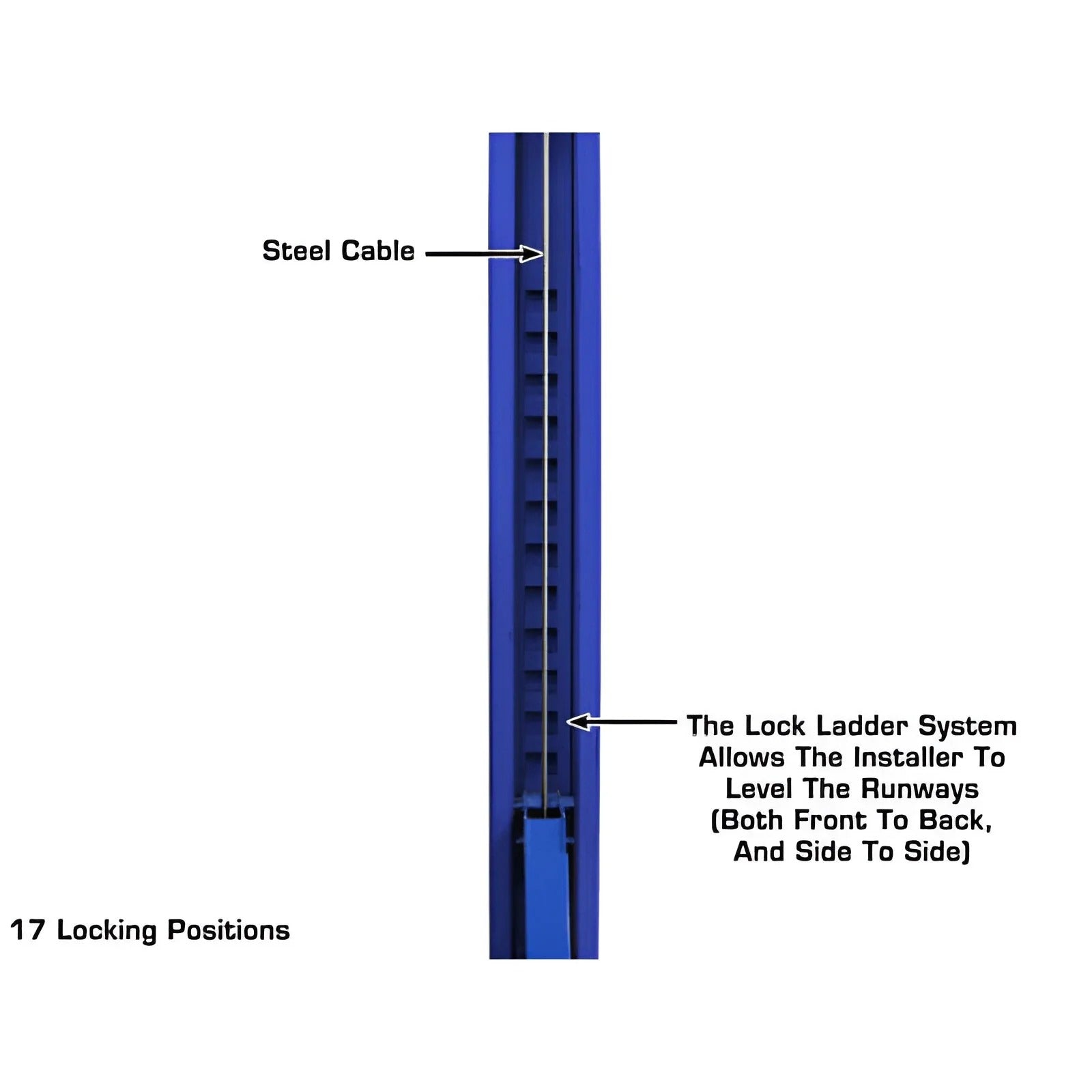

- Adjustable Lock Ladder Design with multiple height positions
- Double Lock Safety System
- Premium Powder-Coated Finish
- Steel Approach Ramps Included
- Compatible with rolling bridge jacks (sold separately)
- Freight Prepaid (FPD)
Premium Power & Performance

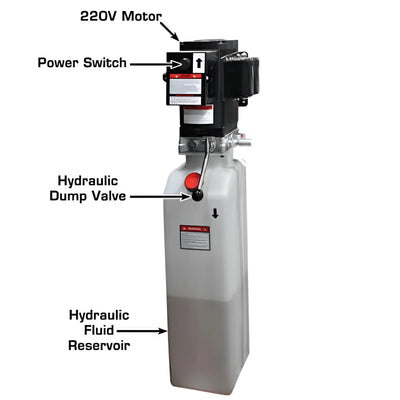

This lift is equipped with the ALLY Hydraulic AL3000 power unit, engineered for consistent torque and reduced heat generation during operation. Built with higher-quality internal components, this system improves efficiency and reliability while maintaining smooth lifting performance.
The power unit is certified for electrical compliance in both the United States and Canada and includes an extended warranty for added peace of mind.
Ideal for Commercial Shops
The Atlas Platinum PVL14OF-EXT is designed for professional environments where alignment work, heavy vehicle handling, and reliability are critical. Its advanced features and durable construction make it a strong choice for high-volume service centers.
Reliable & Long-Term Value
Backed by a 5-year structural warranty, 2-year hydraulic coverage, and a 2-year power unit warranty, this lift is built to deliver dependable performance over time. With its combination of strength, precision, and professional-grade features, it's a complete alignment solution for serious shops.
| Specifications | Details |
|---|---|
| Capacity | 14,000 lb. |

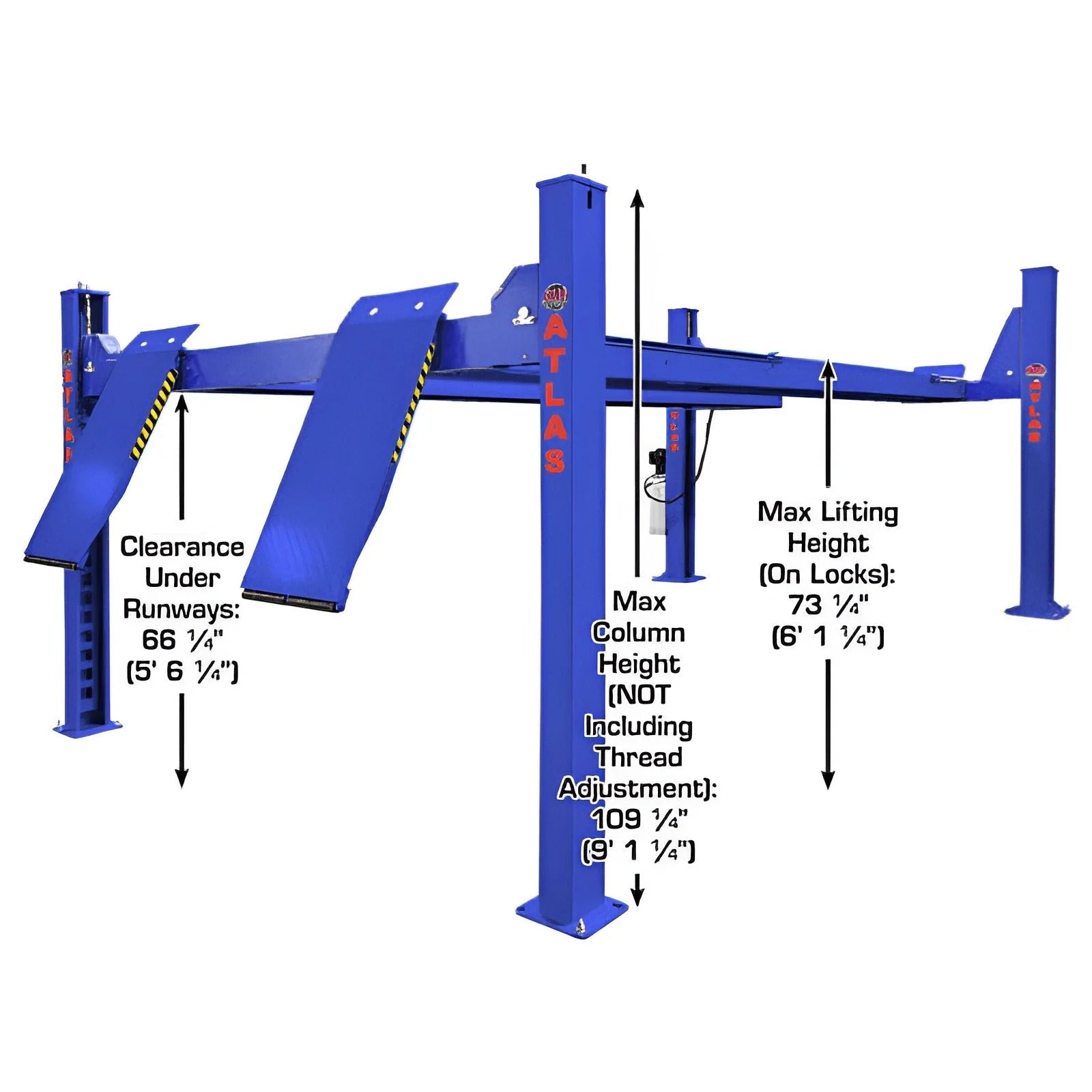

| Lifting Height | 73 1/4" (6' 1 1/4") |
| Overall Width Of Columns (Without Motor) | 140 1/8" (11' 8 1/8") |
| Overall Width Of Columns (With Motor) | 148 3/4" (12' 4 3/4") |
| Overall Length With Approach Ramp | 272 1/8" (22' 8 1/8") |
| Length Between Columns | 207" (17' 3") |
| Runway Length | 223 1/2" (18' 7 1/2") |

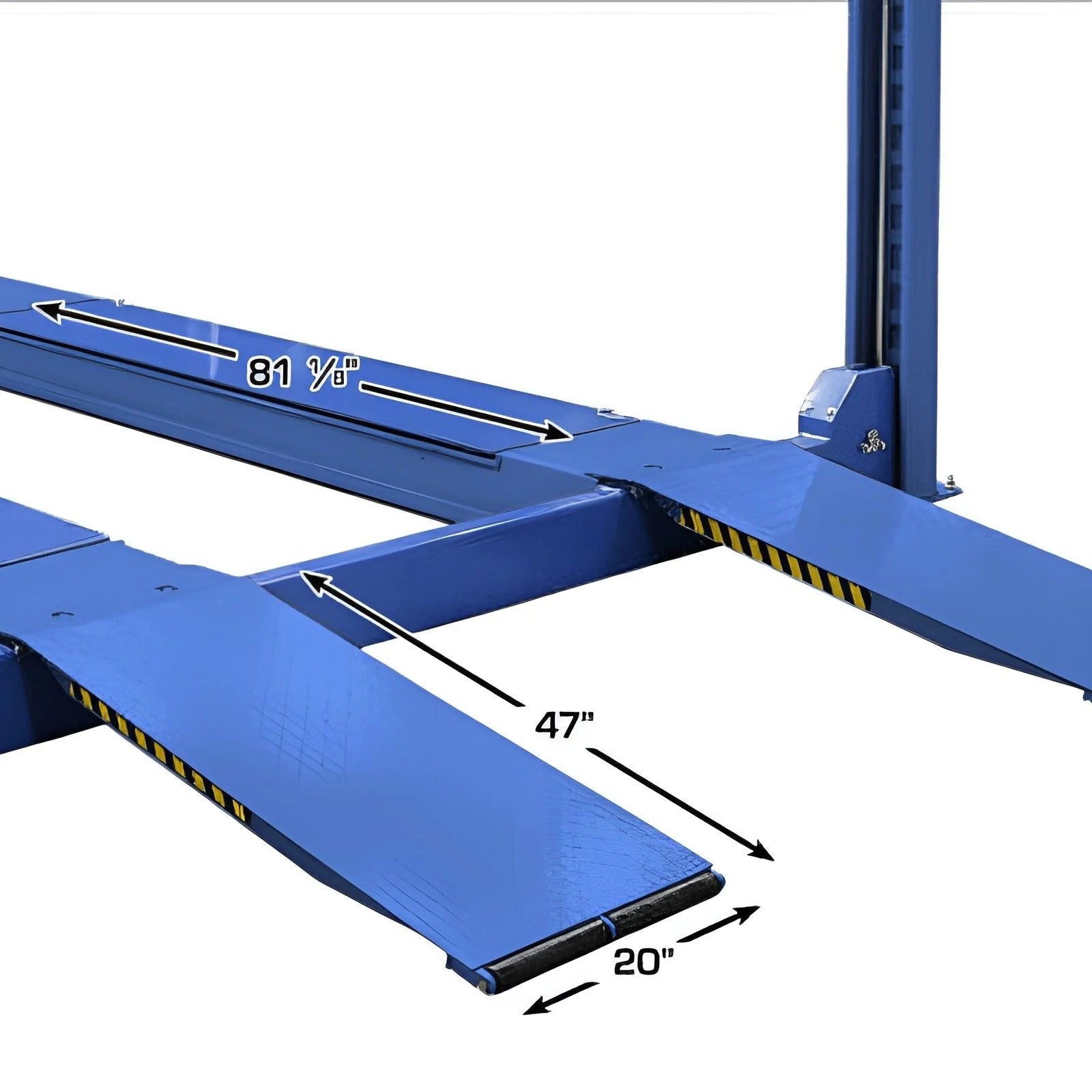

| Runway Width | 20" |
| Thickness Of Runway | 7" |

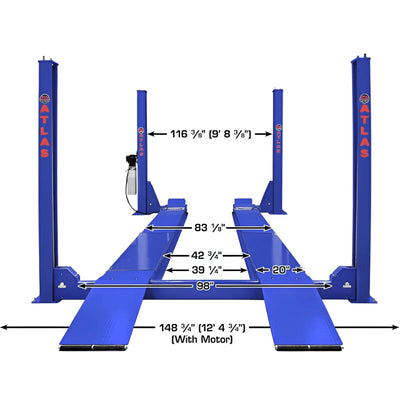

| Width Between Runways | 42 3/4" (w/ Rail 39 1/4") |
| Outside Runway To Outside Runway | 83 1/8" (6' 11 1/8") |
| Clearance Under Runways | 66 1/4" (5' 6 1/4") |
| Clearance Between Columns | 116 3/8" (9' 8 3/8") |

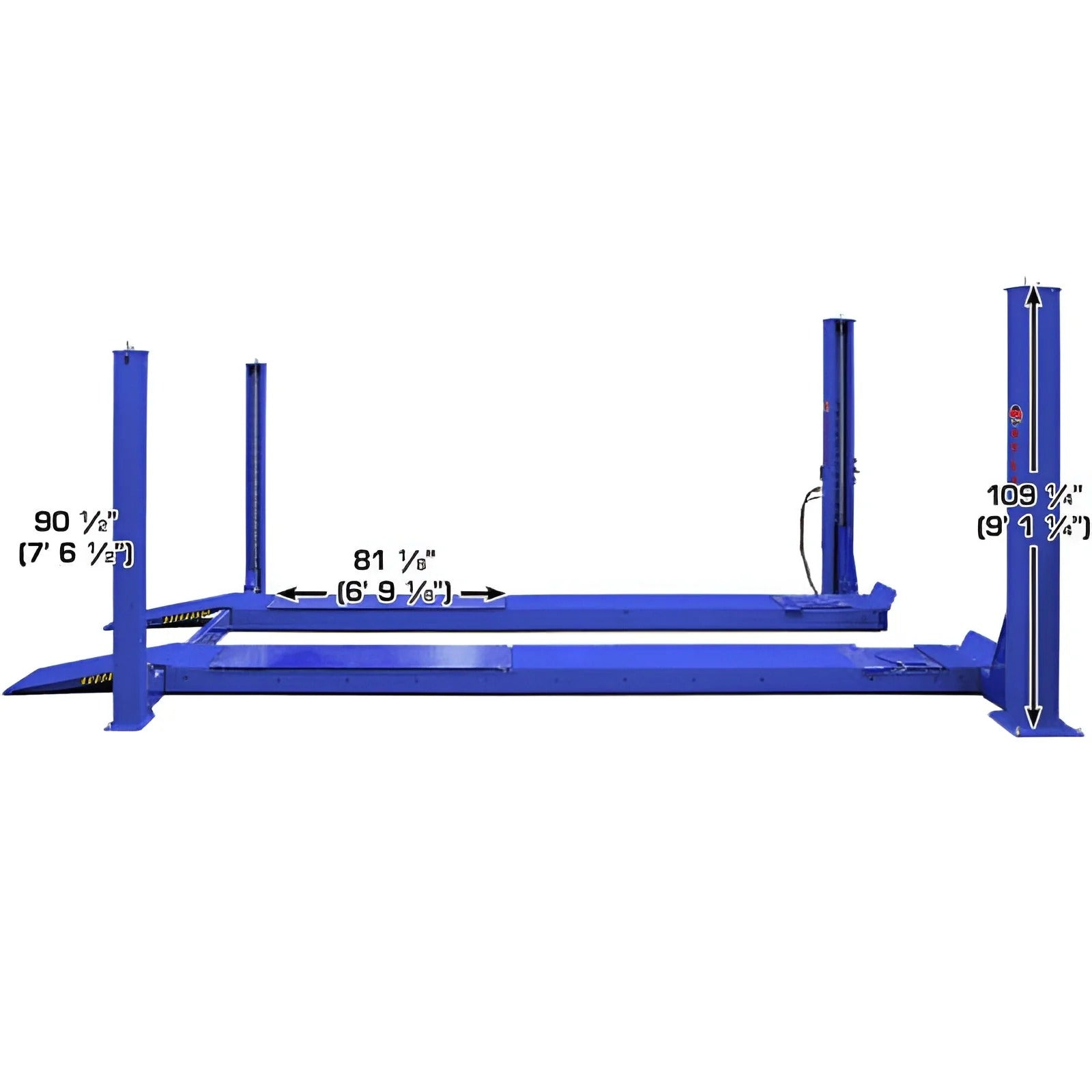

| Height Of Columns | 92 1/2" (7' 8 1/2") Rear / 109 1/4" (9' 1 1/4") Front |
| Maximum Wheel Base | 203" (16' 11") |
| Drive Thru | 94 1/2" (7' 10 1/2") |
| Air Requirement | 85–115 PSI (External Air Supply Required) |
| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

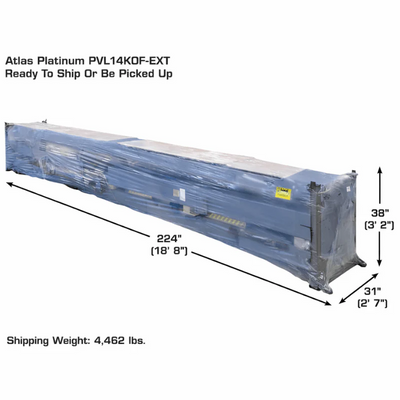

| Shipping Weight | 4,462 lbs. |
| Concrete Requirement | Minimum 6" concrete with 3,000 PSI rating |
