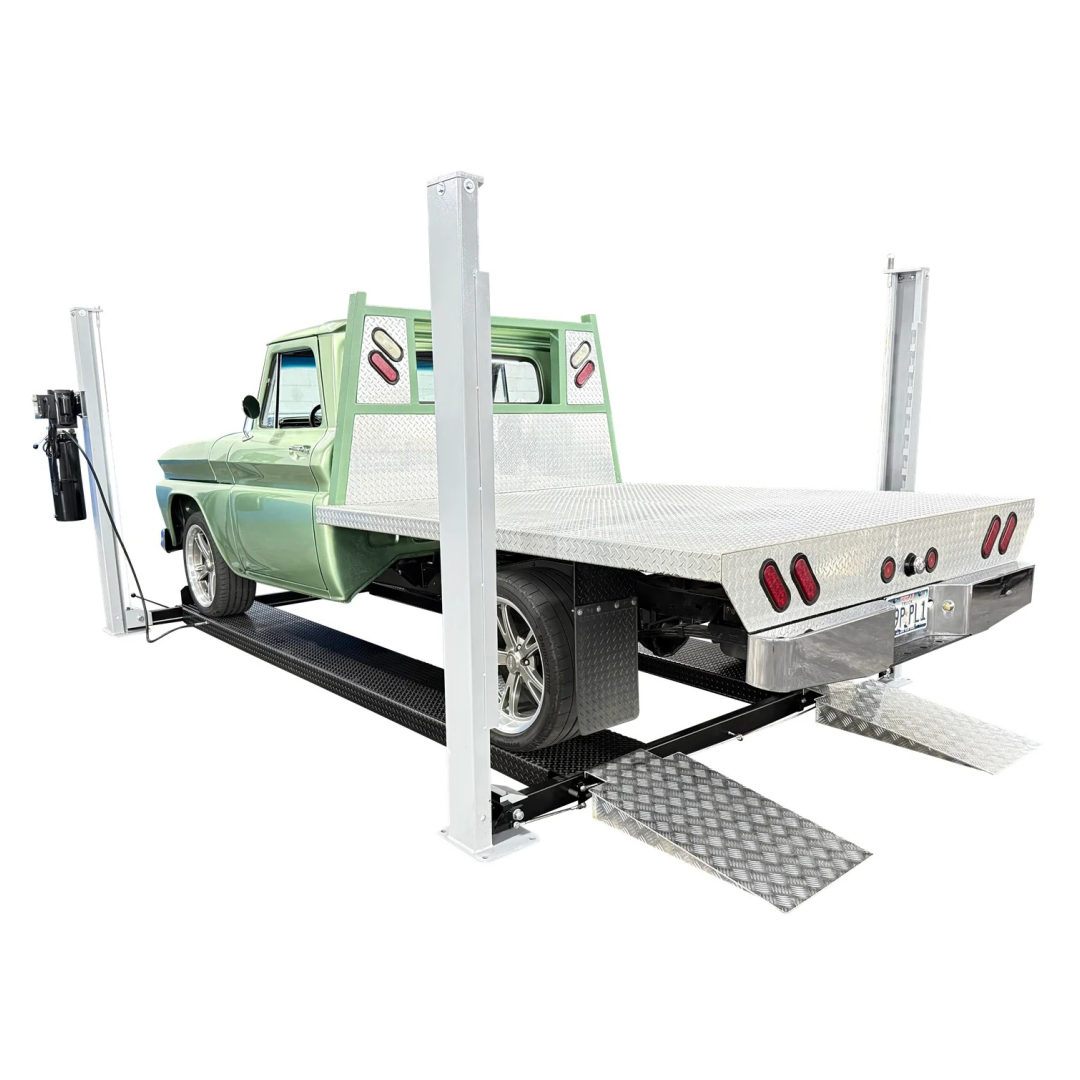

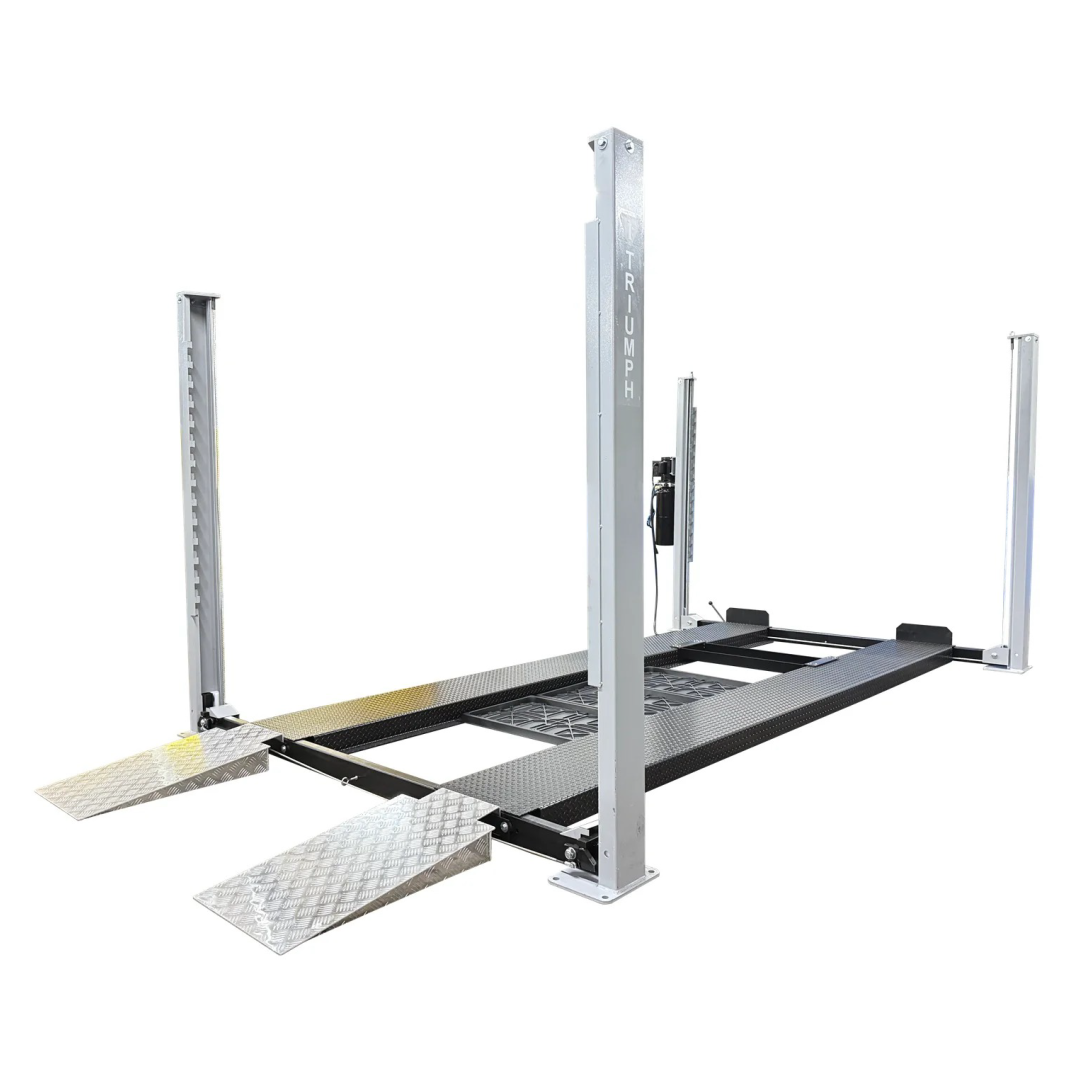

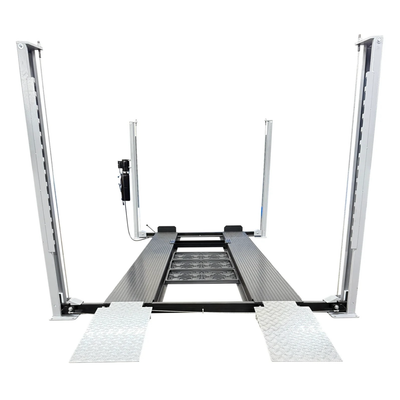

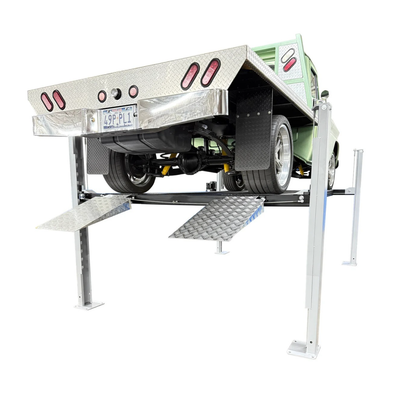

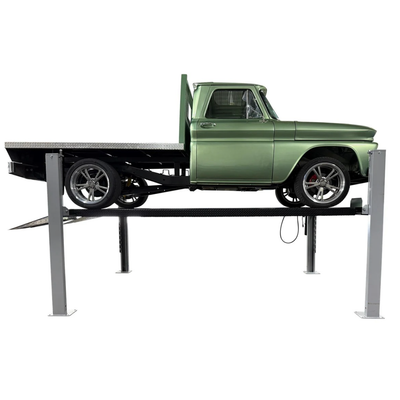

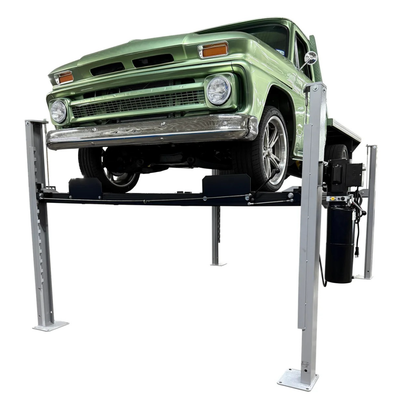

Triumph USA8000 4-Post Service and Storage Lift 8,000 lb Capacity
SKU: USA8000
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Triumph USA8000 is a versatile four-post lift designed for both vehicle storage and light service work. With an 8,000 lb capacity, it's ideal for storing cars while still giving you the ability to perform maintenance when needed. Built with a portable design, this lift includes a caster kit for mobility, along with drip trays and a jack tray to expand its functionality — making it a practical solution for garages that need flexibility.
Key Features & Benefits
- 8,000 lb lifting capacity for cars and light trucks
- Designed for both storage and service use
- Caster kit included for easy mobility

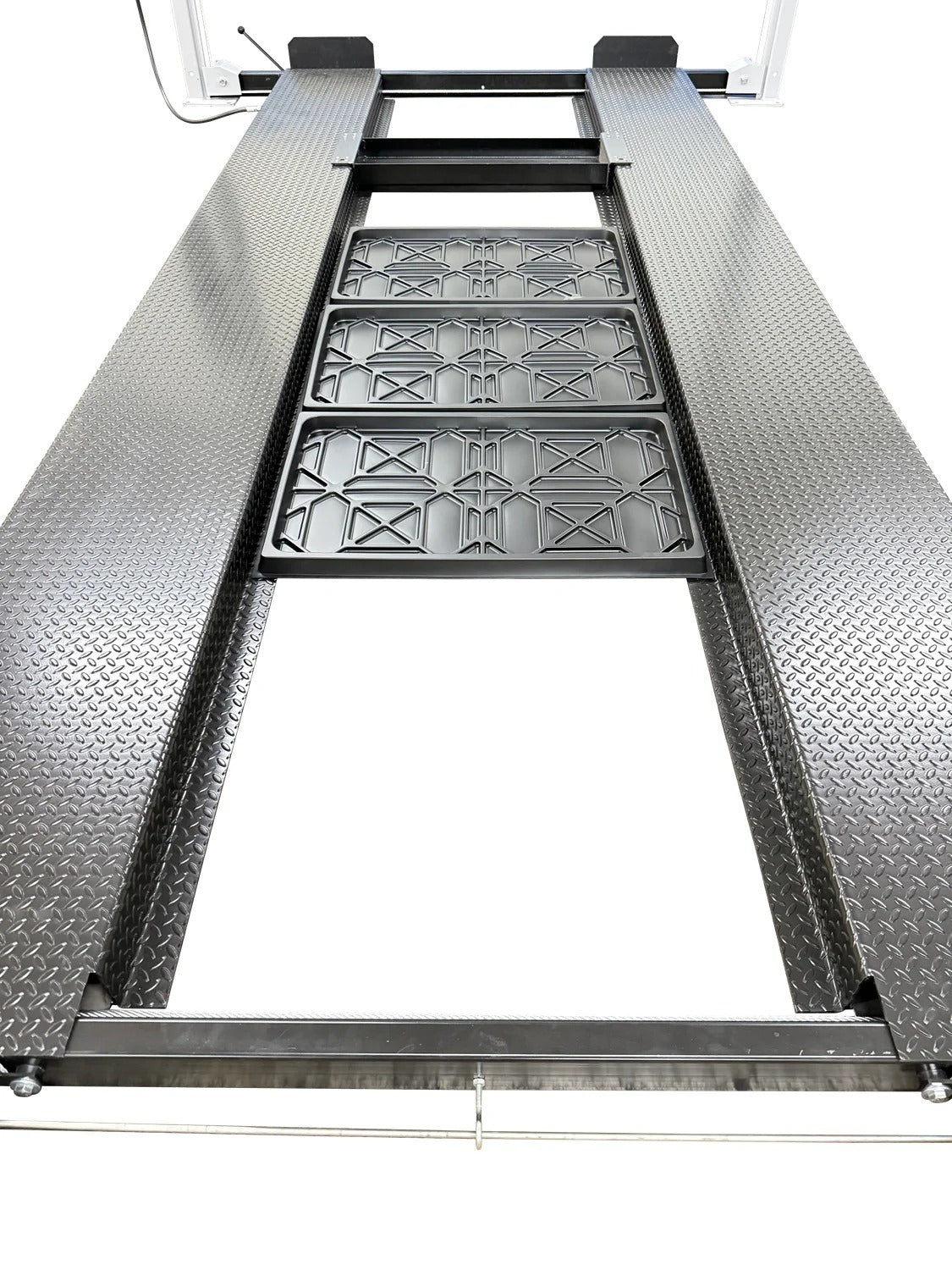

- Three drip trays help protect the vehicle below
- Jack tray included for lifting one end of the vehicle
- 14 locking positions for flexible working heights
- Single-point lock release for simplified operation
- 110V operation for easy installation
- Proven design used for long-term reliability
Performance & Design
The USA8000 is built to provide stable vehicle storage with added service capability. Its four-post structure offers excellent support, while the included accessories make it more than just a parking lift. The low-profile design allows for easier vehicle loading, and the multiple locking positions give you flexibility whether you're storing or working on a vehicle.
Installation Requirements
- 110V power required
- Level concrete surface recommended
- No permanent anchoring required
- Indoor use
Ideal Applications
- Home garages
- Vehicle storage solutions
- Light-duty service work
- Shops needing portable lift options
Why Choose the USA8000
The USA8000 combines storage convenience with service flexibility, giving you the ability to safely store vehicles while still performing maintenance when needed — all in a portable, easy-to-use system.
What's Included
- Four-post lift system
- Caster kit
- Three drip trays
- Jack tray

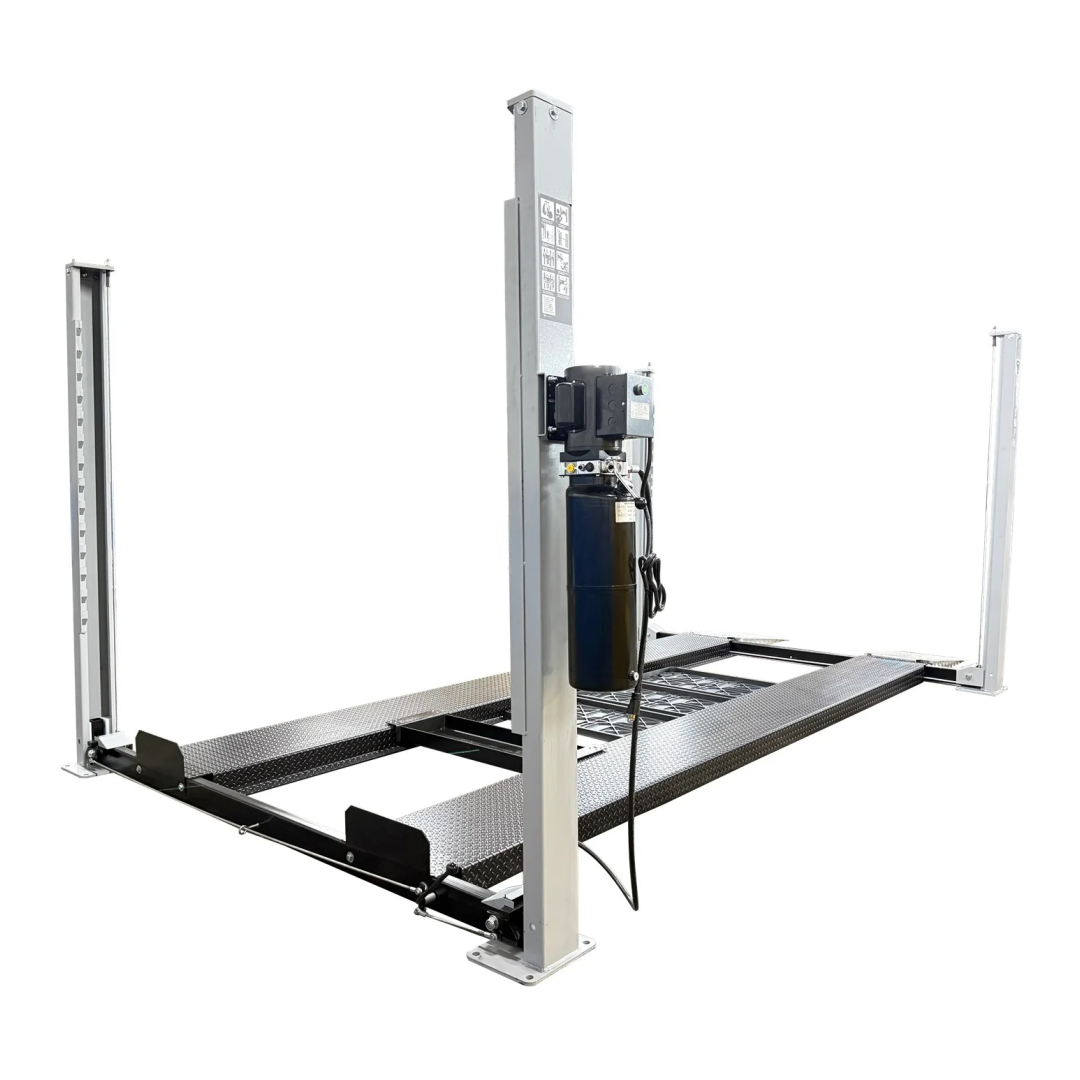

- Power unit
- Safety lock system
| Specifications | Details |
|---|---|
| Model | USA8000 |
| Type | Four-Post Service and Storage Lift |
| Lifting Capacity | 8,000 lbs |
| Overall Height | 82" |
| Overall Length (without ramps) | 175" |
| Overall Length (with ramps) | 207" |
| Overall Width | 112" |
| Overall Width (with power unit) | 124" |
| Lift Height | 73" |
| Height Under Runway | 69" |
| Runway Length | 165" |
| Runway Width | 19" |
| Distance Between Runways | 37" |
| Drive-Thru Width | 102.5" |
| Lowered Height | 5" |
| Locking Positions | 14 |
| Base Plate Size | 12" x 10" |
| Lock Release | Single Point |
| Lift Time | ~40 seconds |
| Voltage | 110V |
| Shipping Weight | 1,600 lbs |
