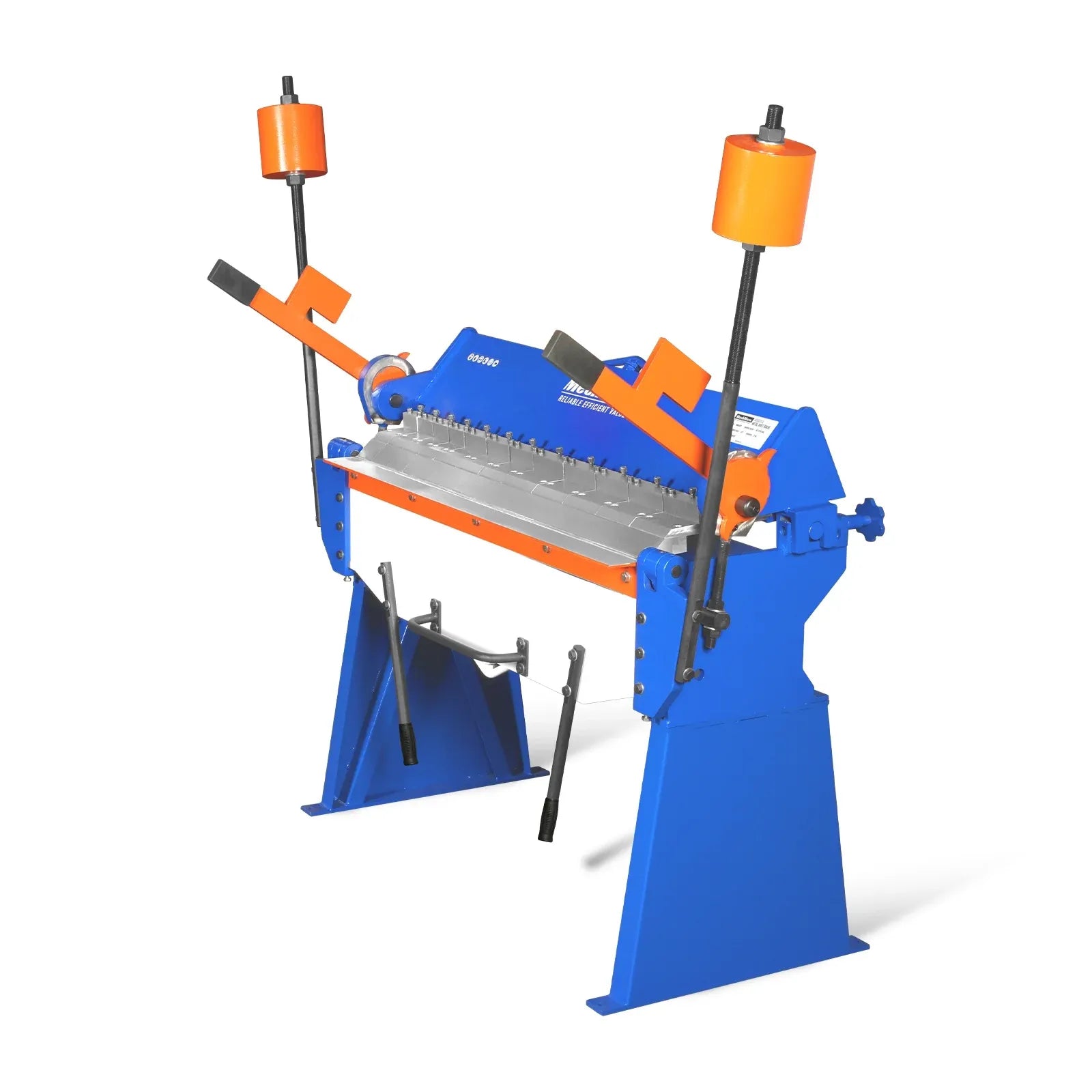

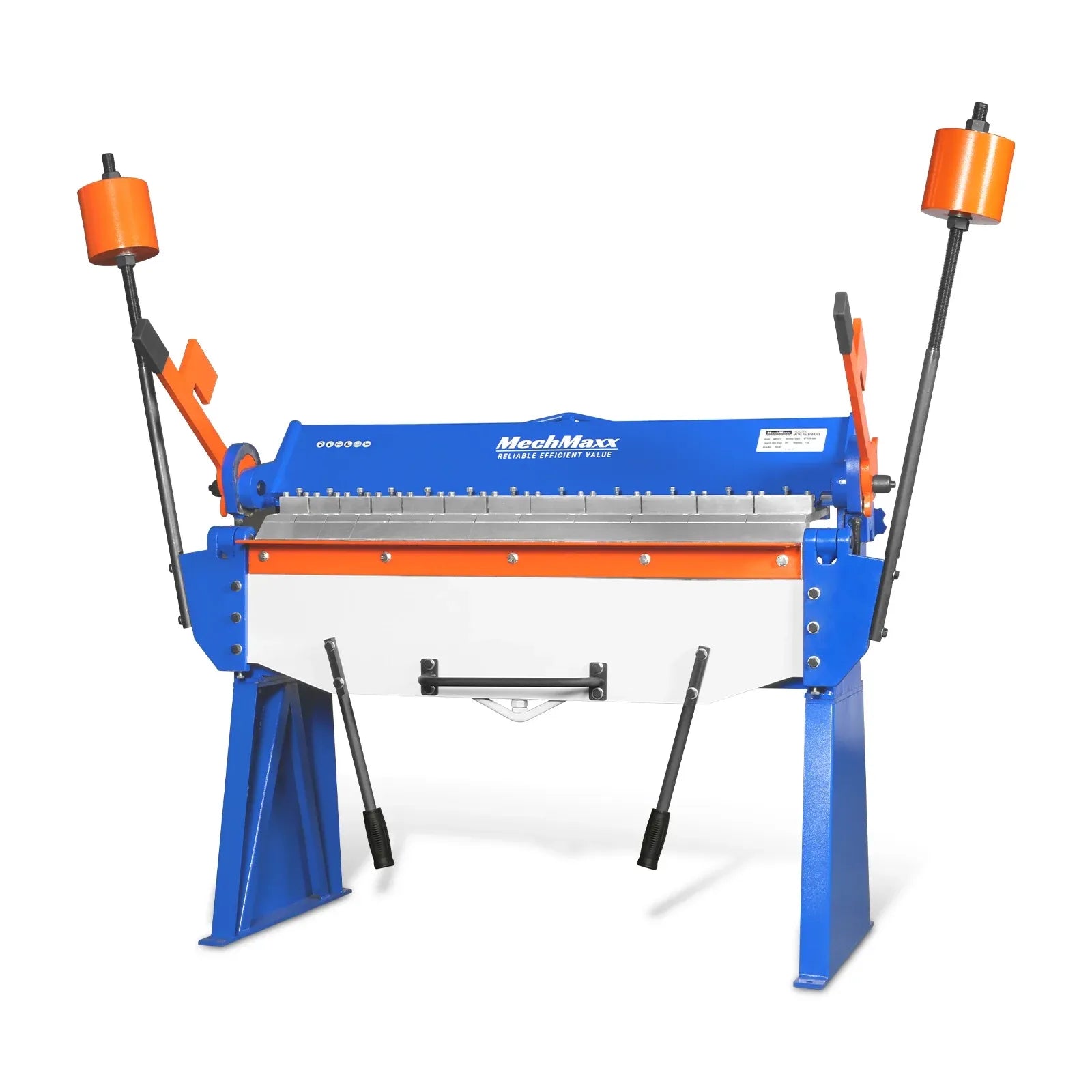

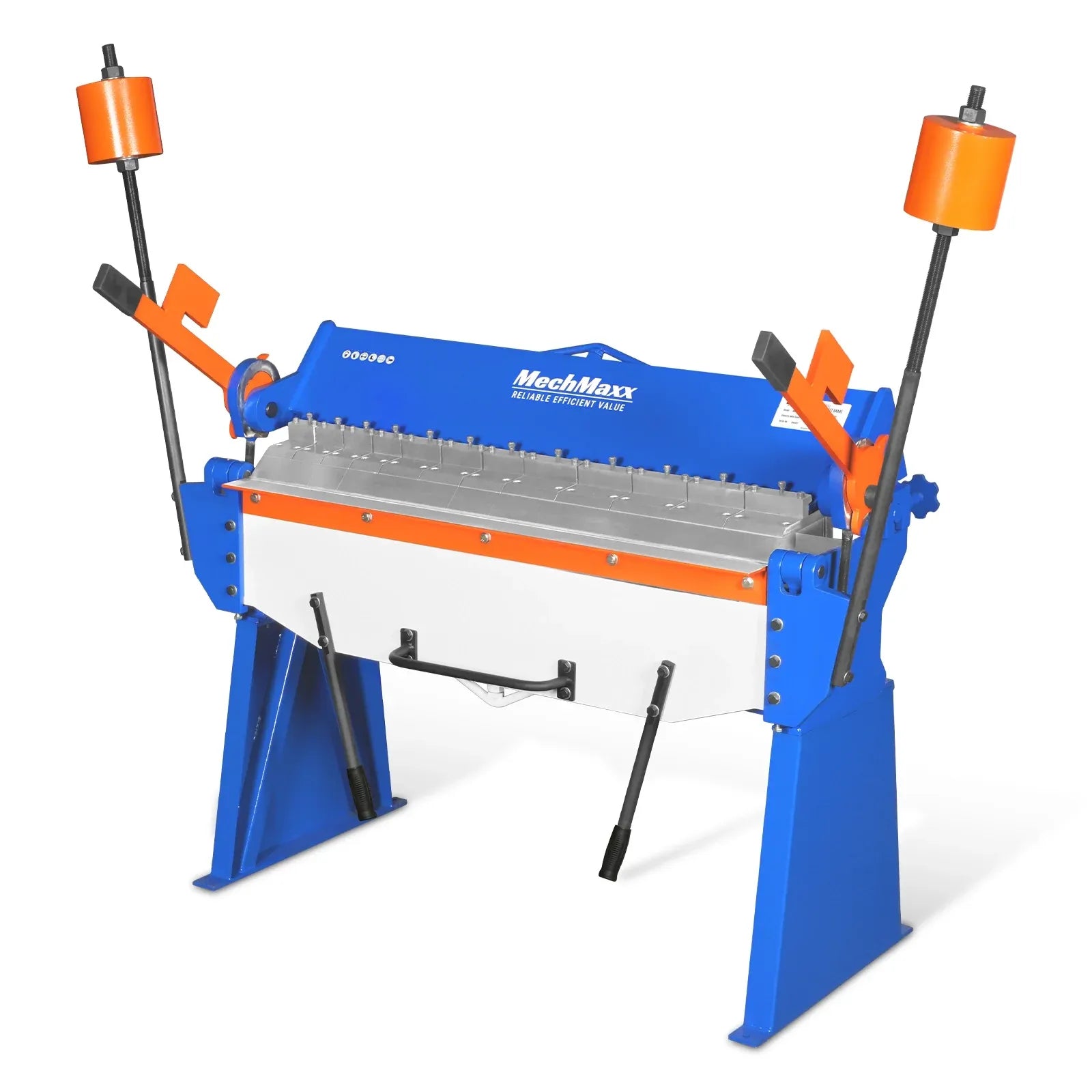

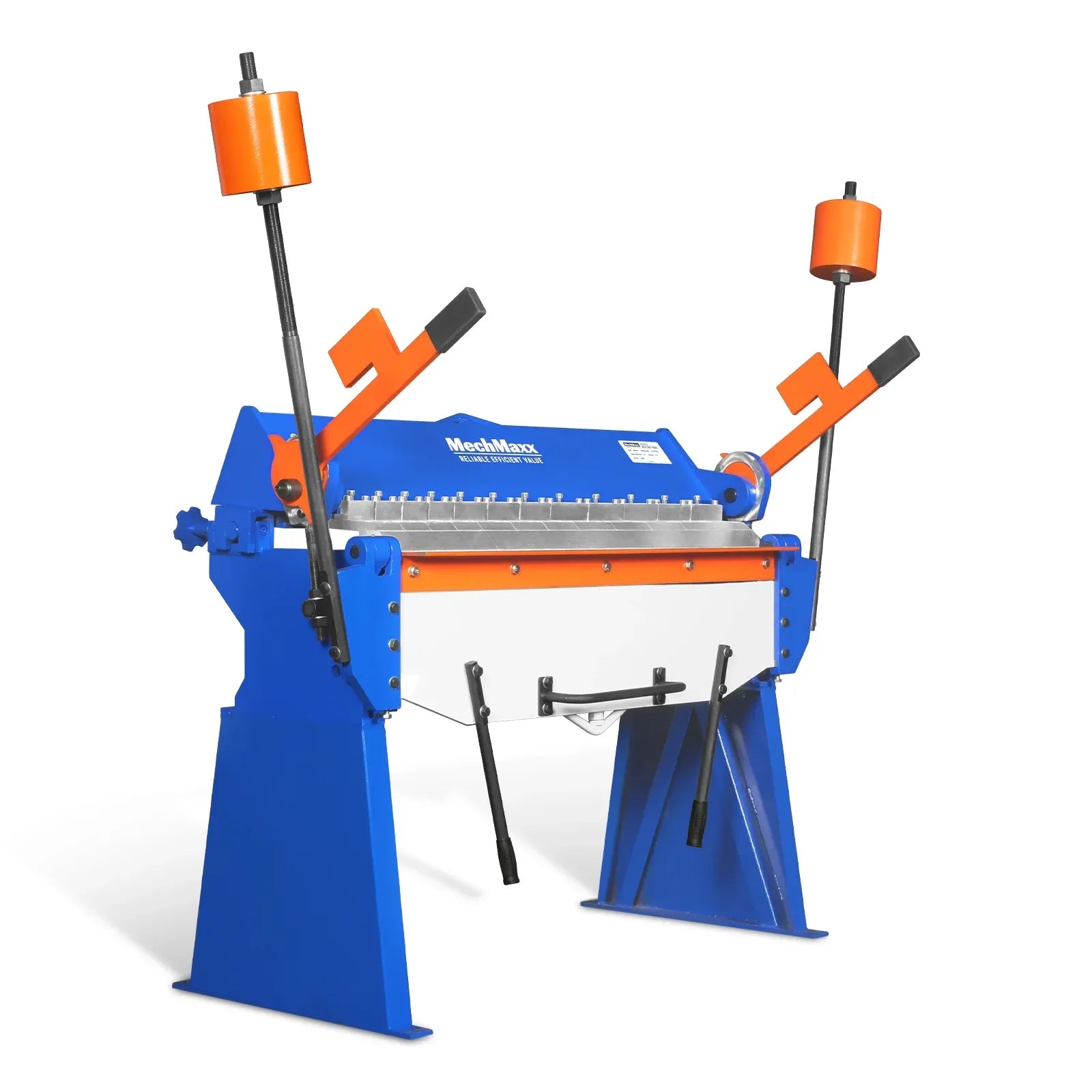

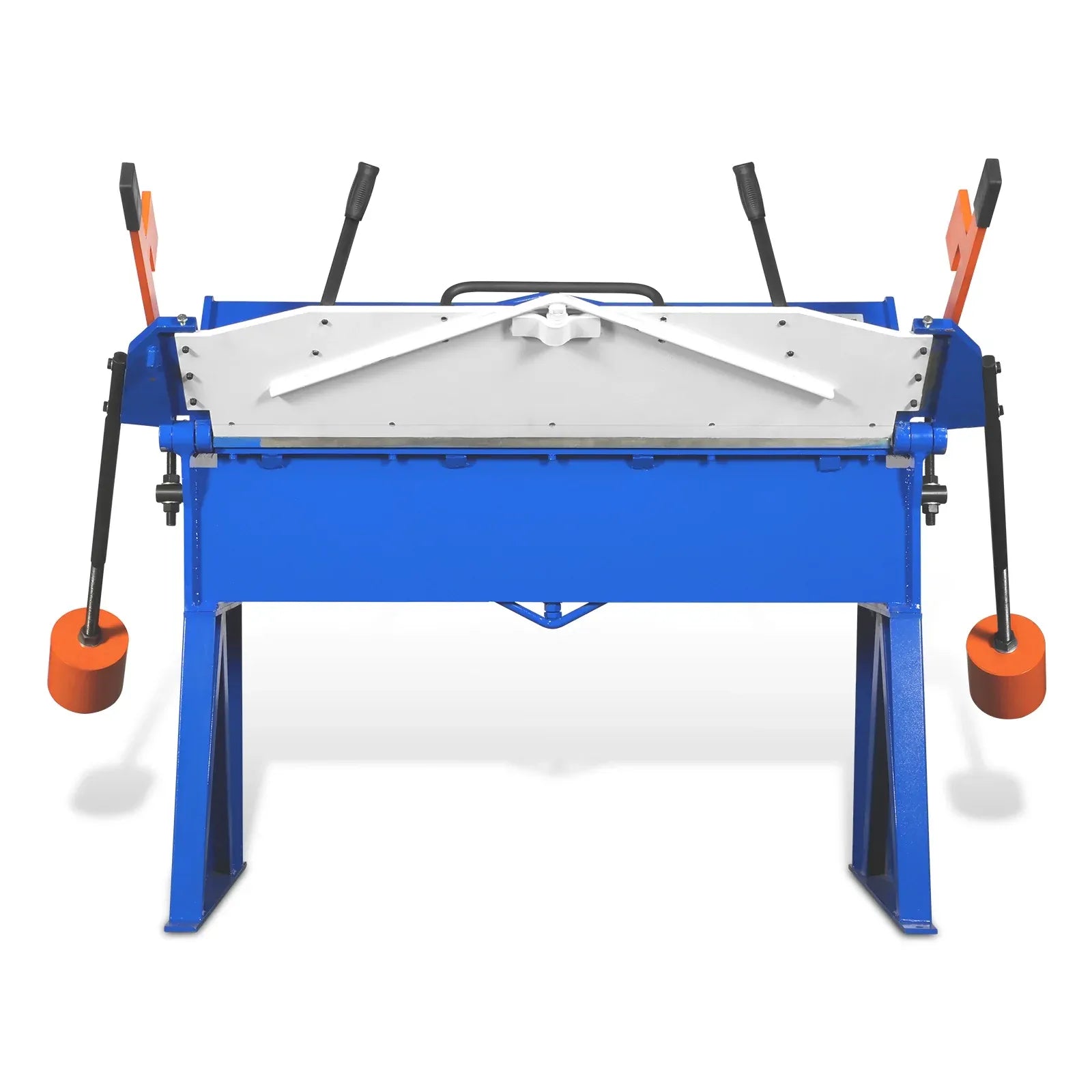

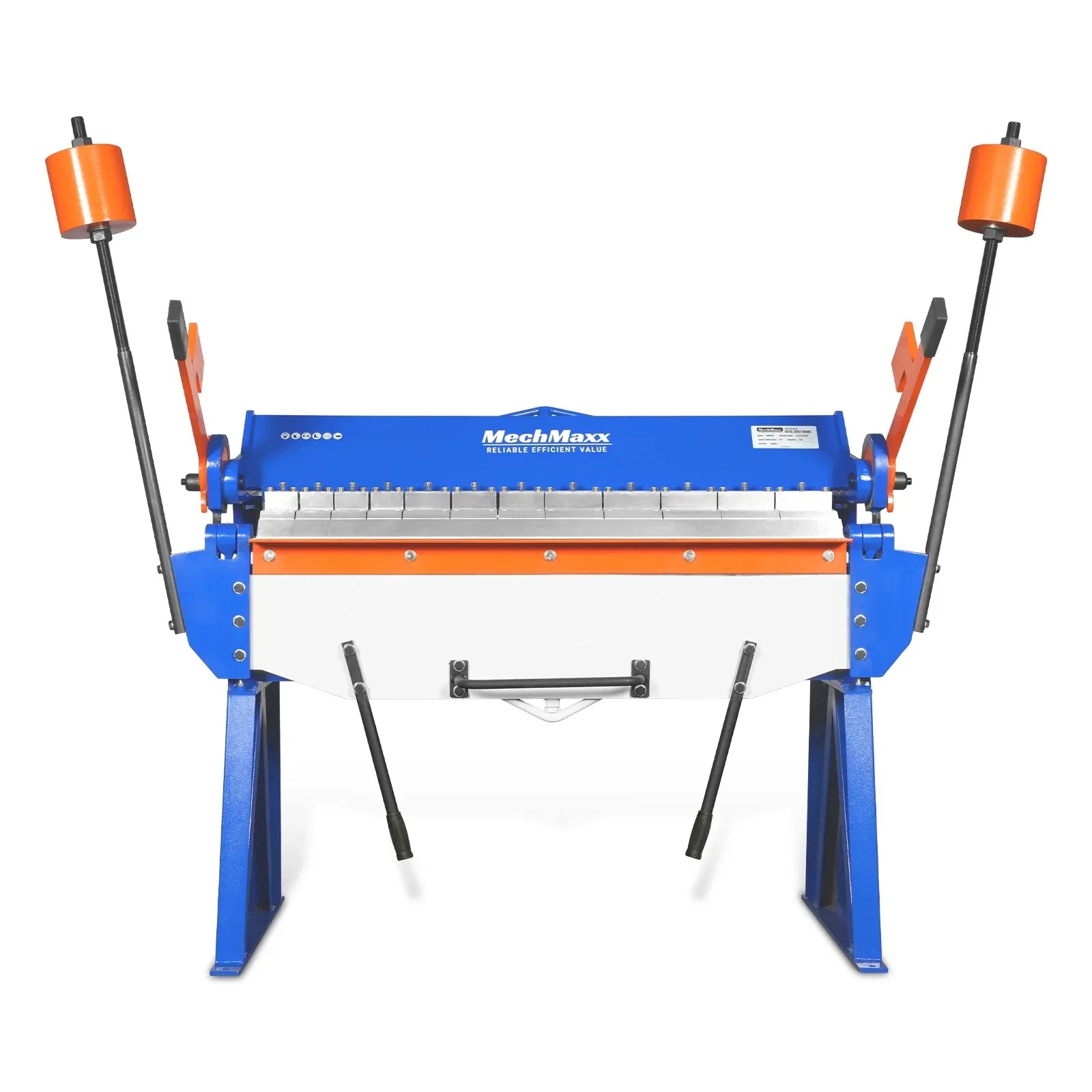

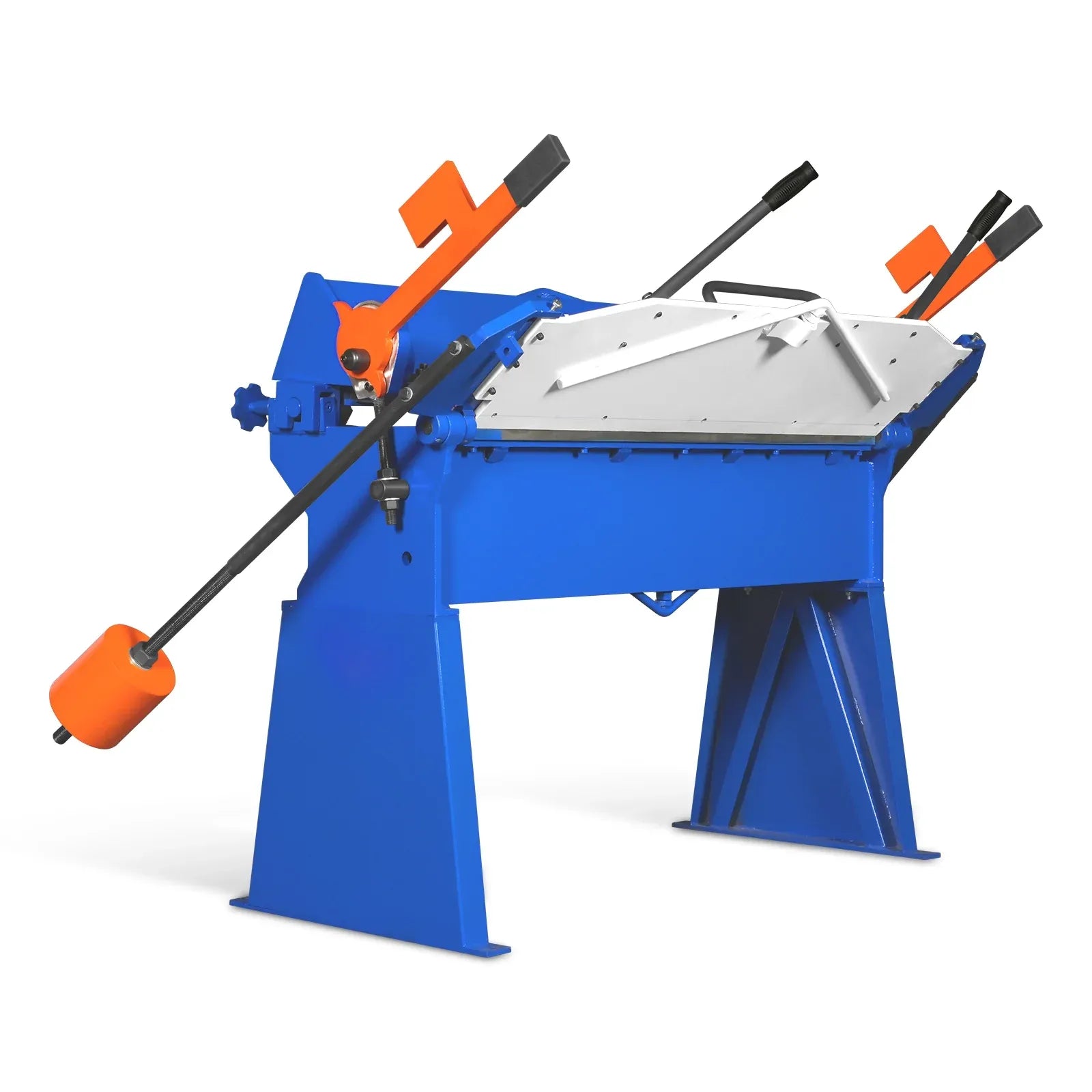

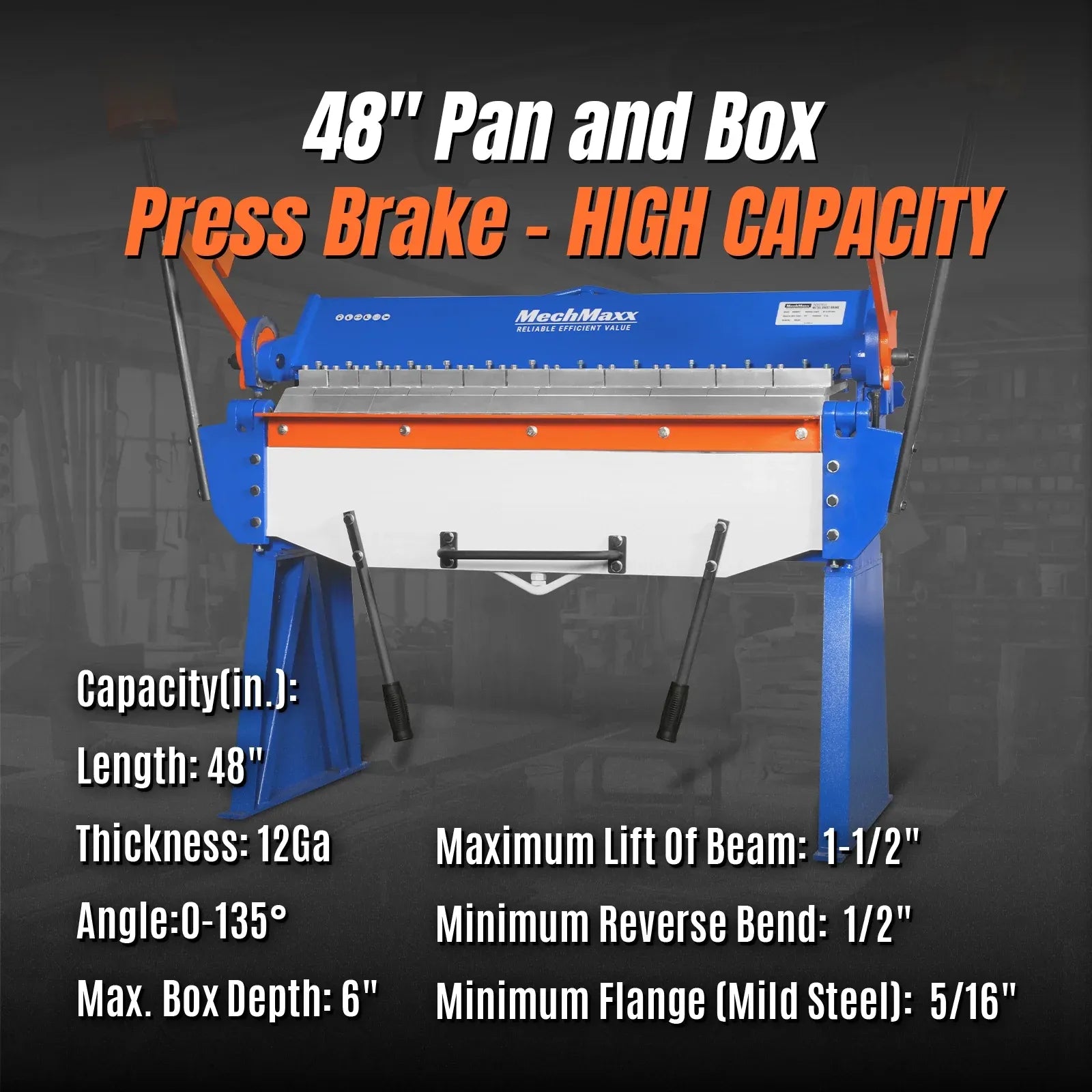

MechMaxx 48" Heavy Duty Pan and Box Brake, 12 Gauge Capacity, Model PB4812
SKU: 500302
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The 48" Heavy-Duty Box and Pan Sheet Metal Brake is a compact, industrial-grade solution designed for precise bending in fabrication shops, HVAC work, and general metalworking applications. Built to handle its rated capacity with ease, this machine delivers reliable performance for both professional environments and serious workshop use.
With a 48-inch working width and the ability to bend up to 12-gauge mild steel, this brake is ideal for forming boxes, pans, and custom sheet metal components. Its heavy-duty all-steel welded frame ensures maximum strength and rigidity, reducing flex during operation and delivering consistent, accurate results.
Key Features & Benefits
- 48" bending capacity for medium-duty fabrication work

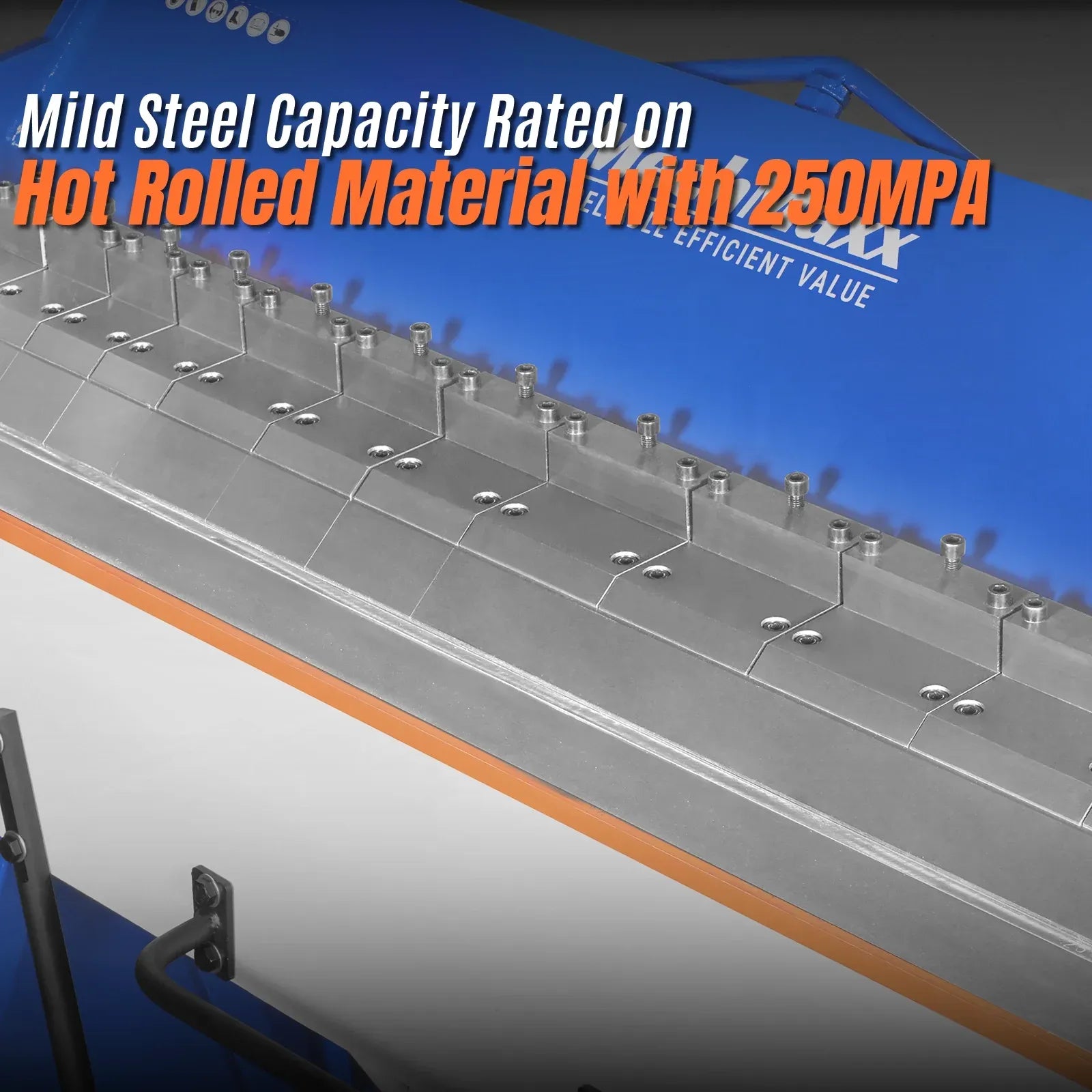

- Handles up to 12-gauge mild steel (250 MPa tensile strength)
- Adjustable bending angle from 0° to 135°

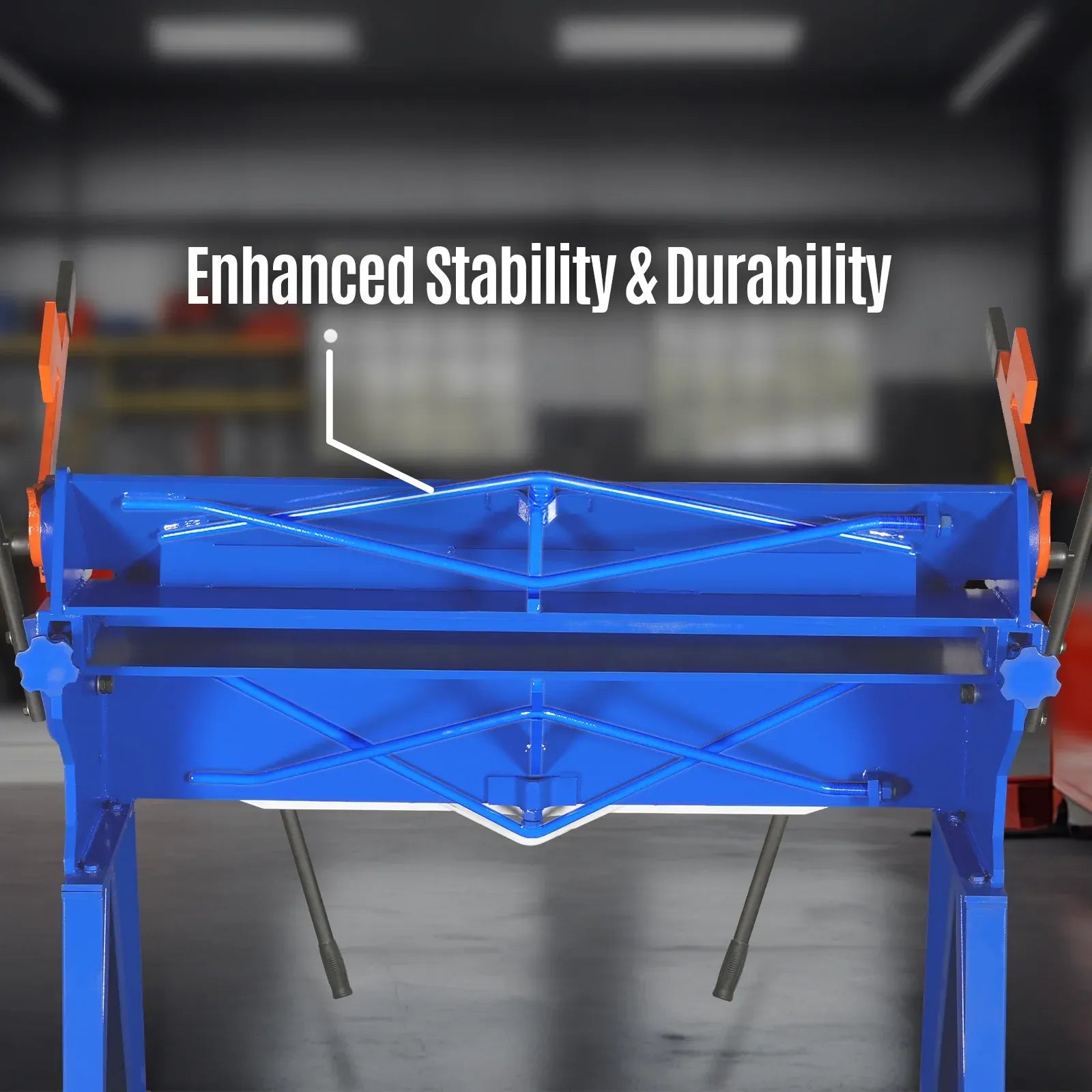

- Heavy-duty welded steel frame for strength and stability
- Precision-ground hardened steel fingers for accurate forming

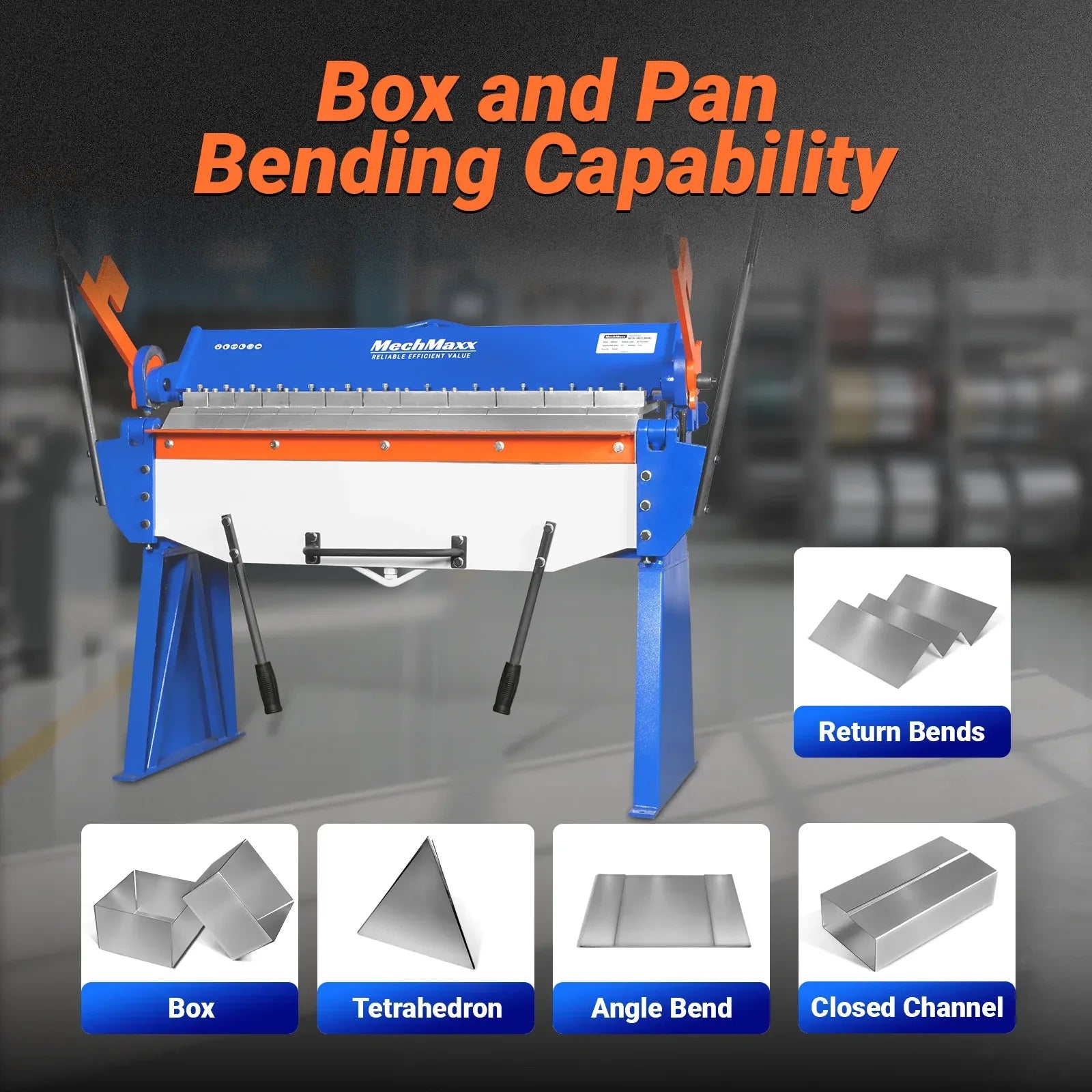

- Removable and interchangeable fingers for box and pan applications

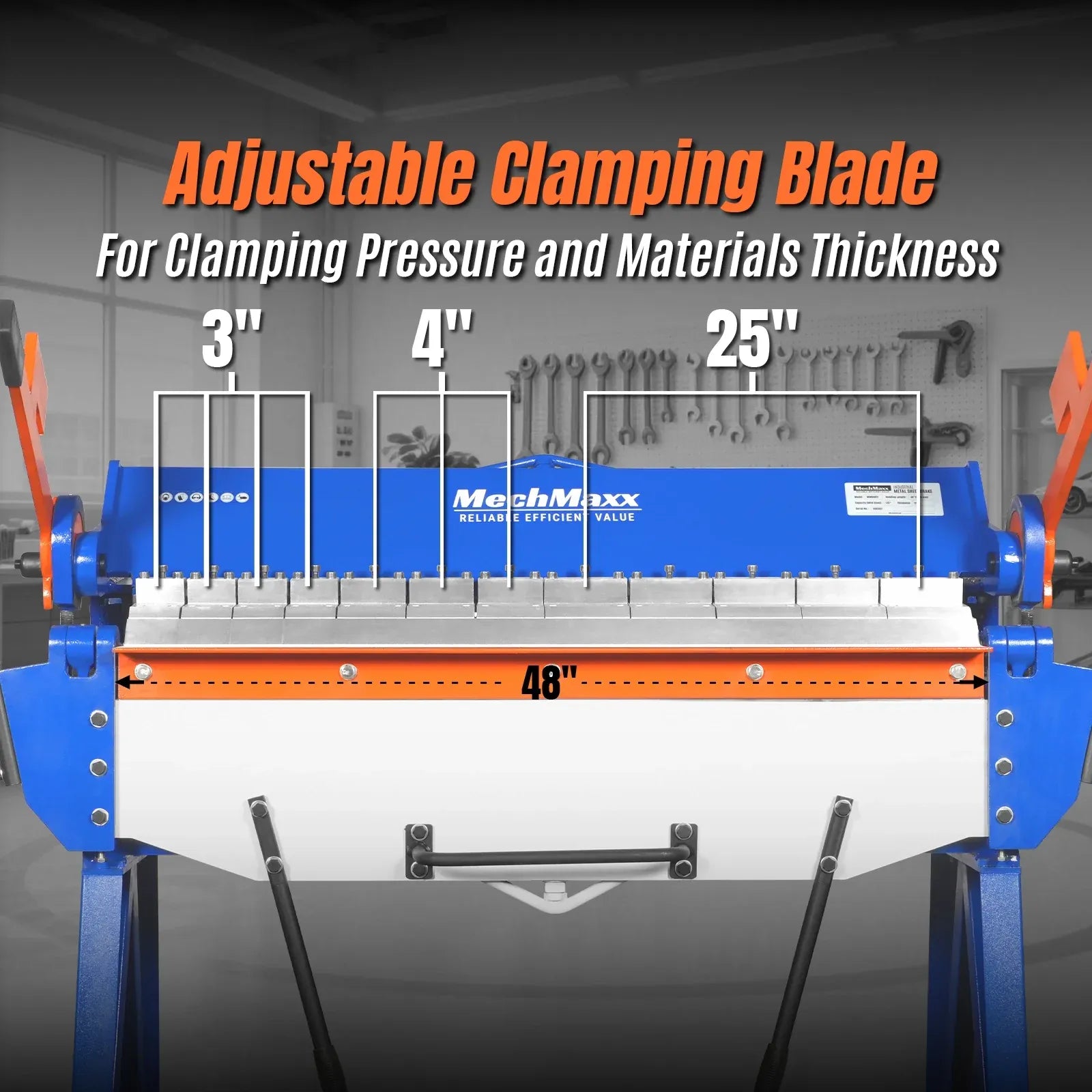

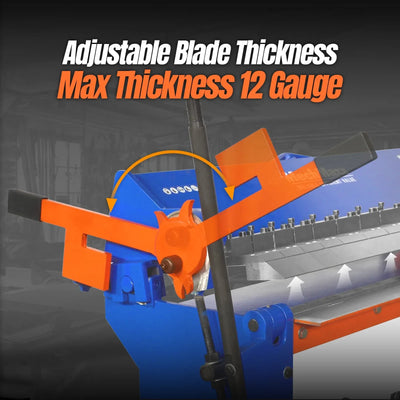

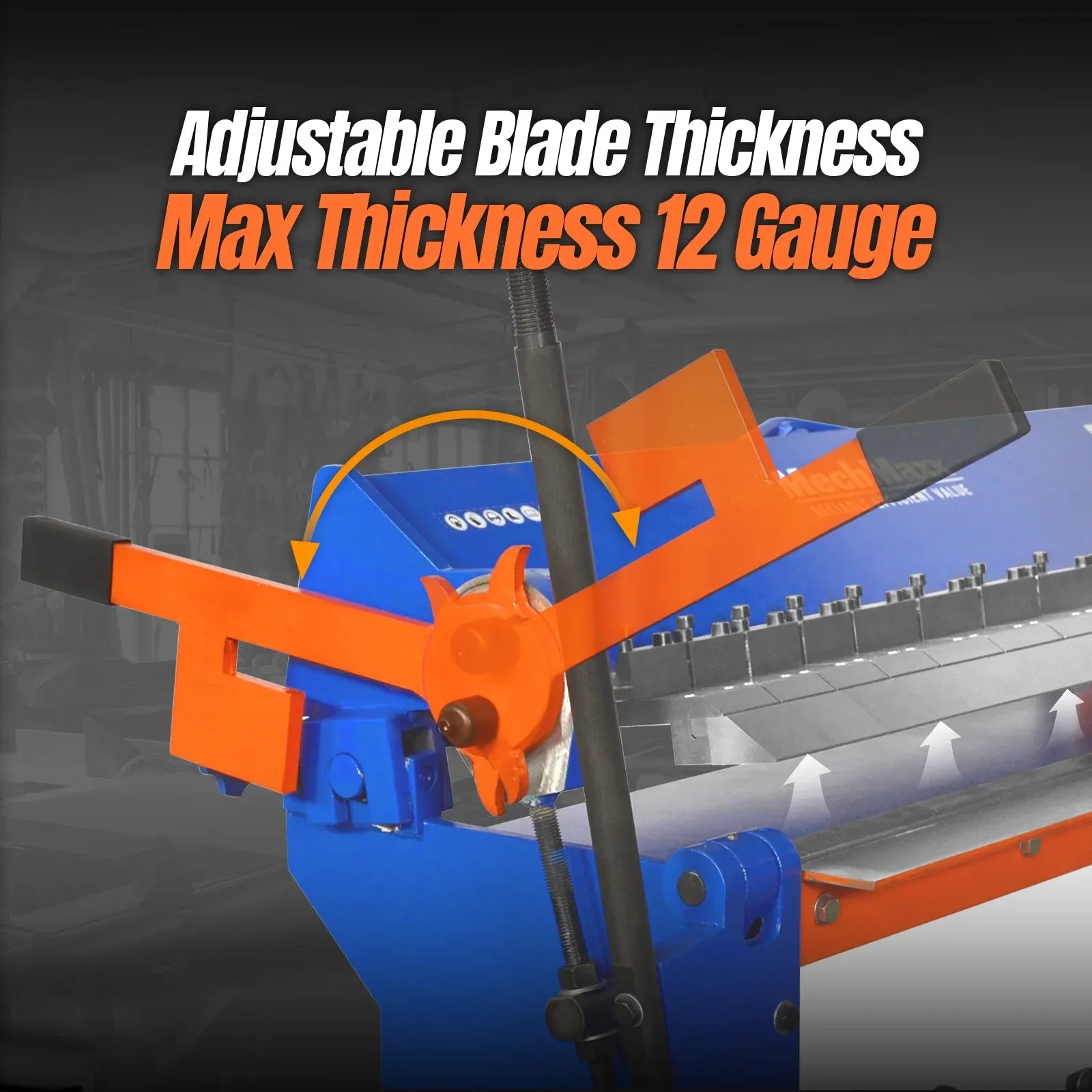

- Adjustable clamping blade for different material thicknesses
- Precision pressure beam adjustment for clean, distortion-free bends

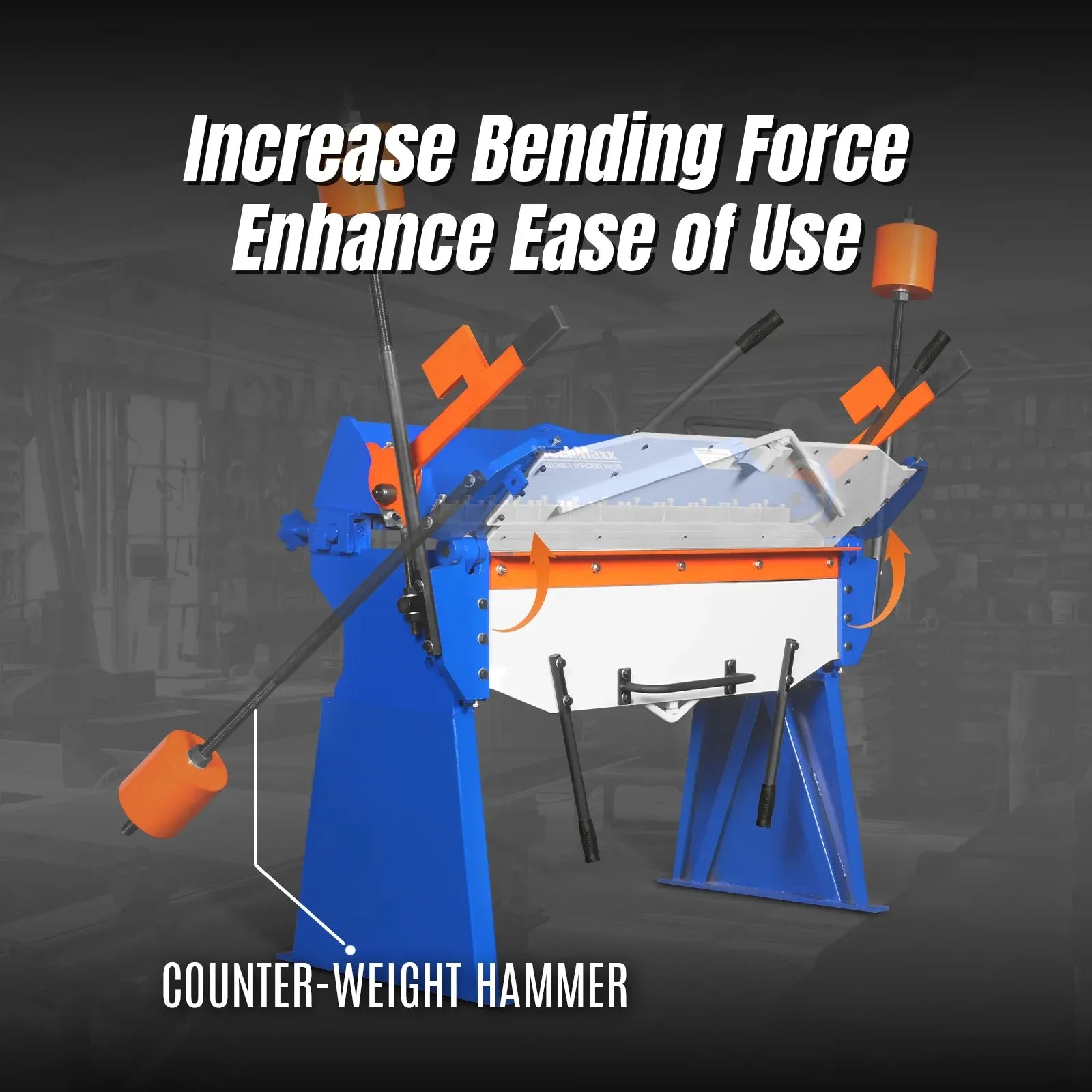

- Counter-balanced dual hammer system for improved control and ease of operation
- Lubrication points on key bearing areas for smooth operation and reduced wear
- Compact footprint ideal for small to mid-sized workshops

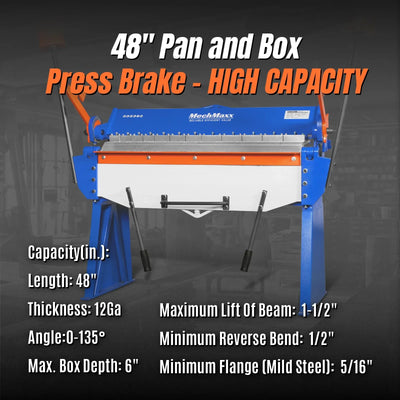

| Specifications | Details |
|---|---|
| Maximum Workpiece Width | 48" (1220 mm) |
| Bending Capacity | 12 Gauge Mild Steel |
| Bending Angle | 0°–135° |
| Box Fingers | 3" (4), 4" (3), 25" (1) – 8 Total |
| Maximum Box Depth | 4" |
| Minimum Reverse Bend | 1/2" |

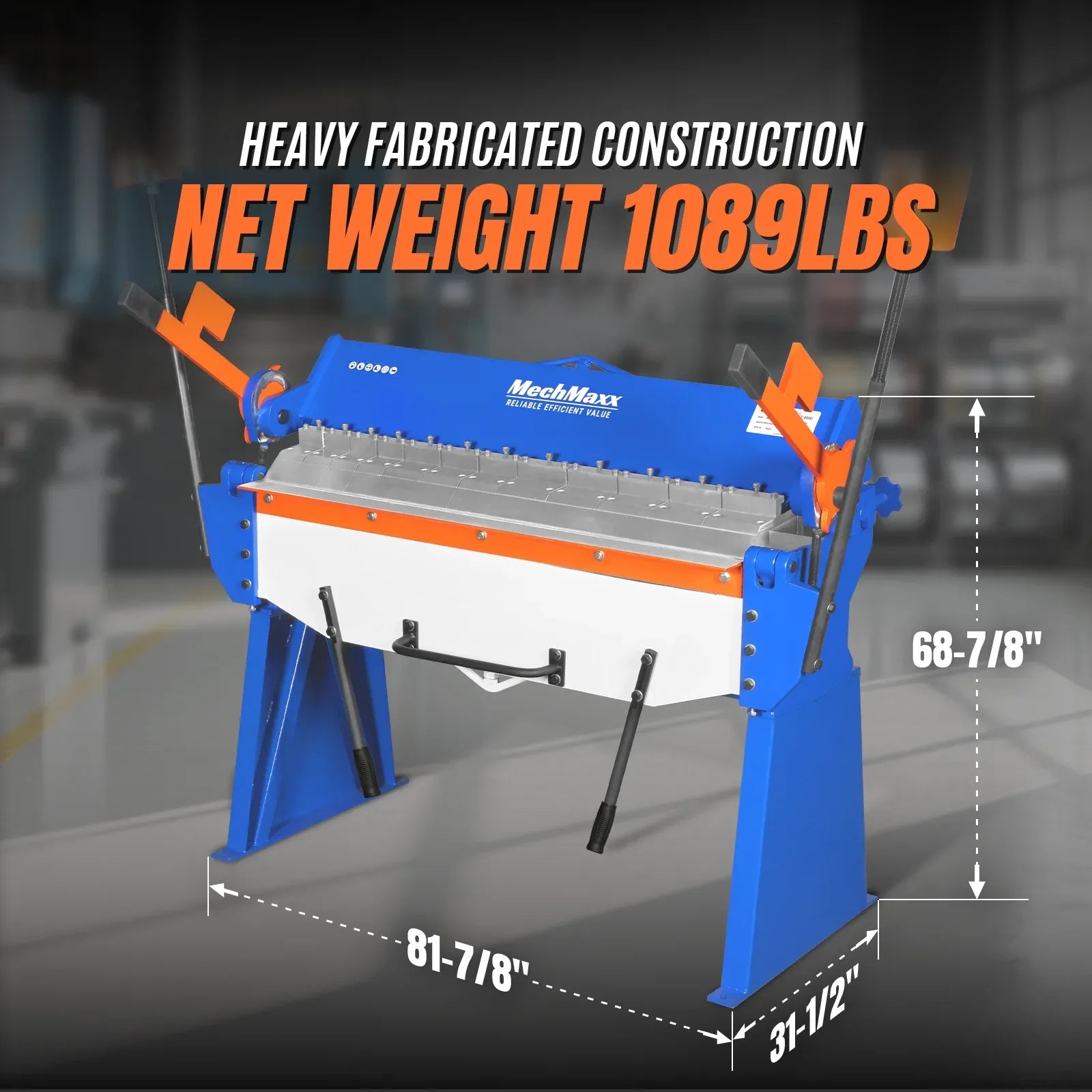

| Footprint | 56 1/2" x 29" |
| Net Weight | 1,064.83 lbs |
| Gross Weight | 1,201.52 lbs |
| Packaging Size | 64.96" x 25.98" x 33.86" |
| Construction Features | Precision-Ground Hardened Fingers, Counter-Balanced Dual Hammers, Reinforced Trussed Frame |
