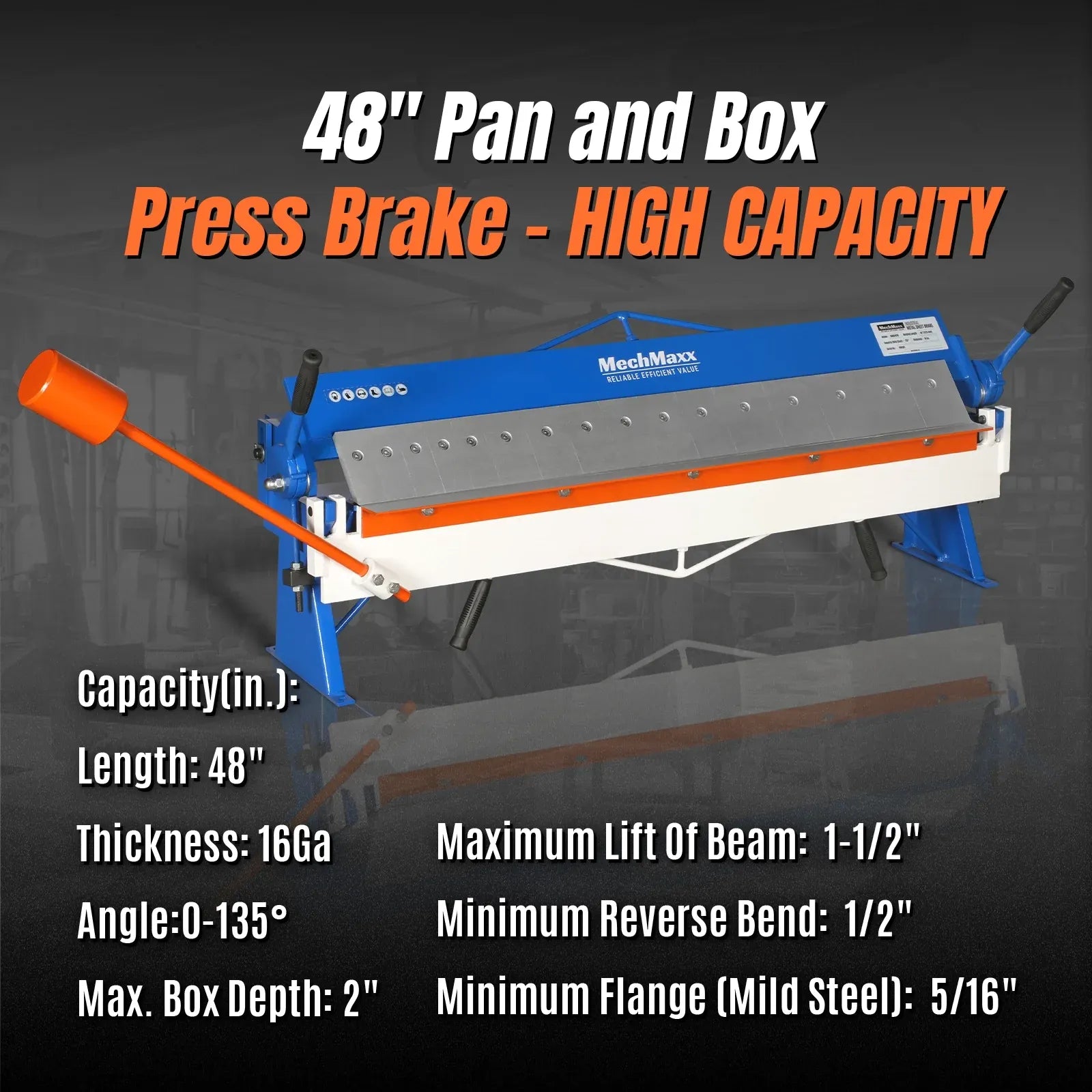

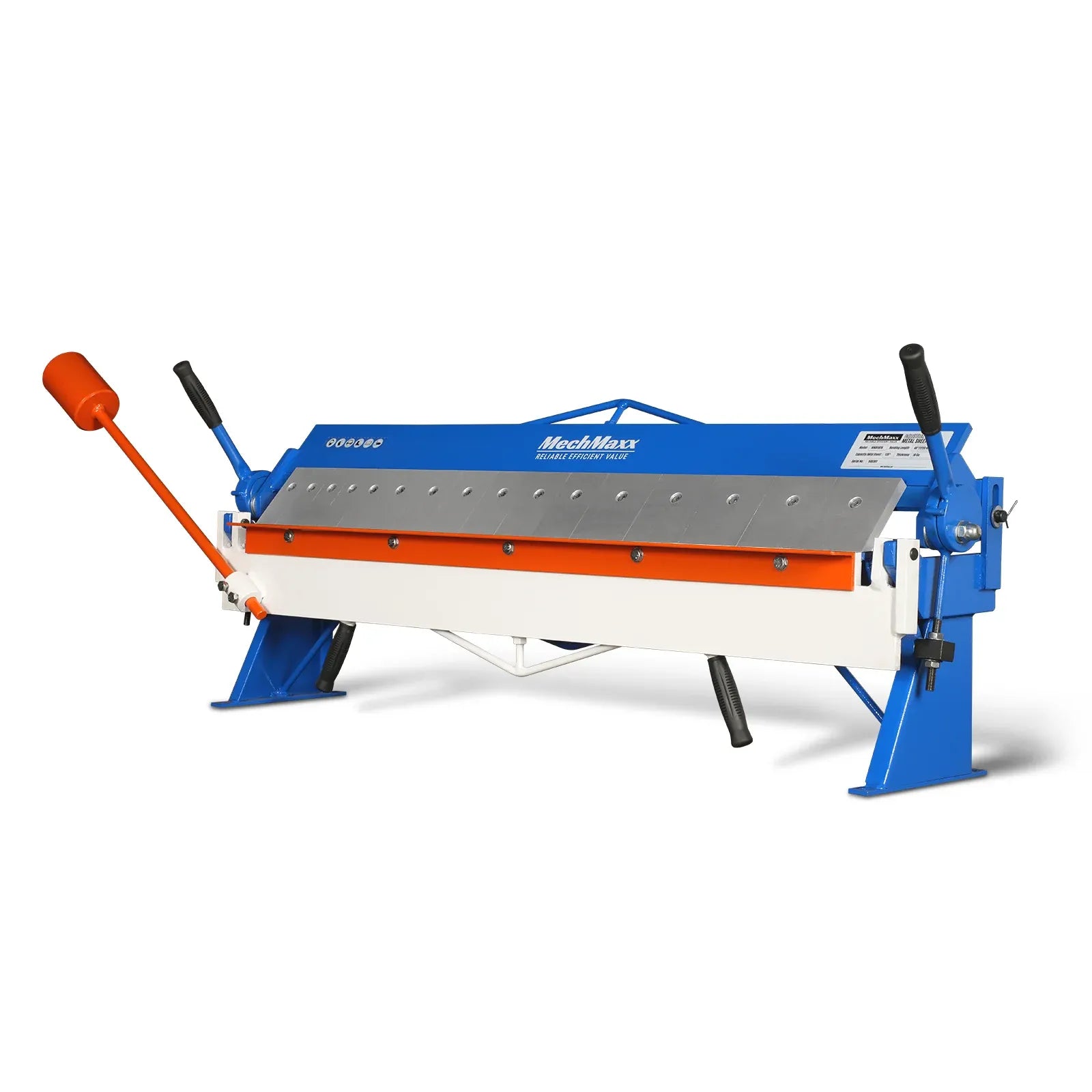

MechMaxx 48" Manual Pan and Box Brake with 16 Gauge Capacity, Model 500301
SKU: 500301
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The 48" Compact Box and Pan Sheet Metal Brake is a versatile, space-efficient solution designed for precision bending in light to medium-duty fabrication work. Built to handle its rated capacity with ease, this brake delivers consistent performance for workshops, HVAC applications, and general metalworking tasks.
With a 48-inch working length and the ability to bend up to 16-gauge mild steel, this unit is ideal for smaller projects that still require accuracy and flexibility. Its compact footprint makes it perfect for tight workspaces while still providing professional-grade results.

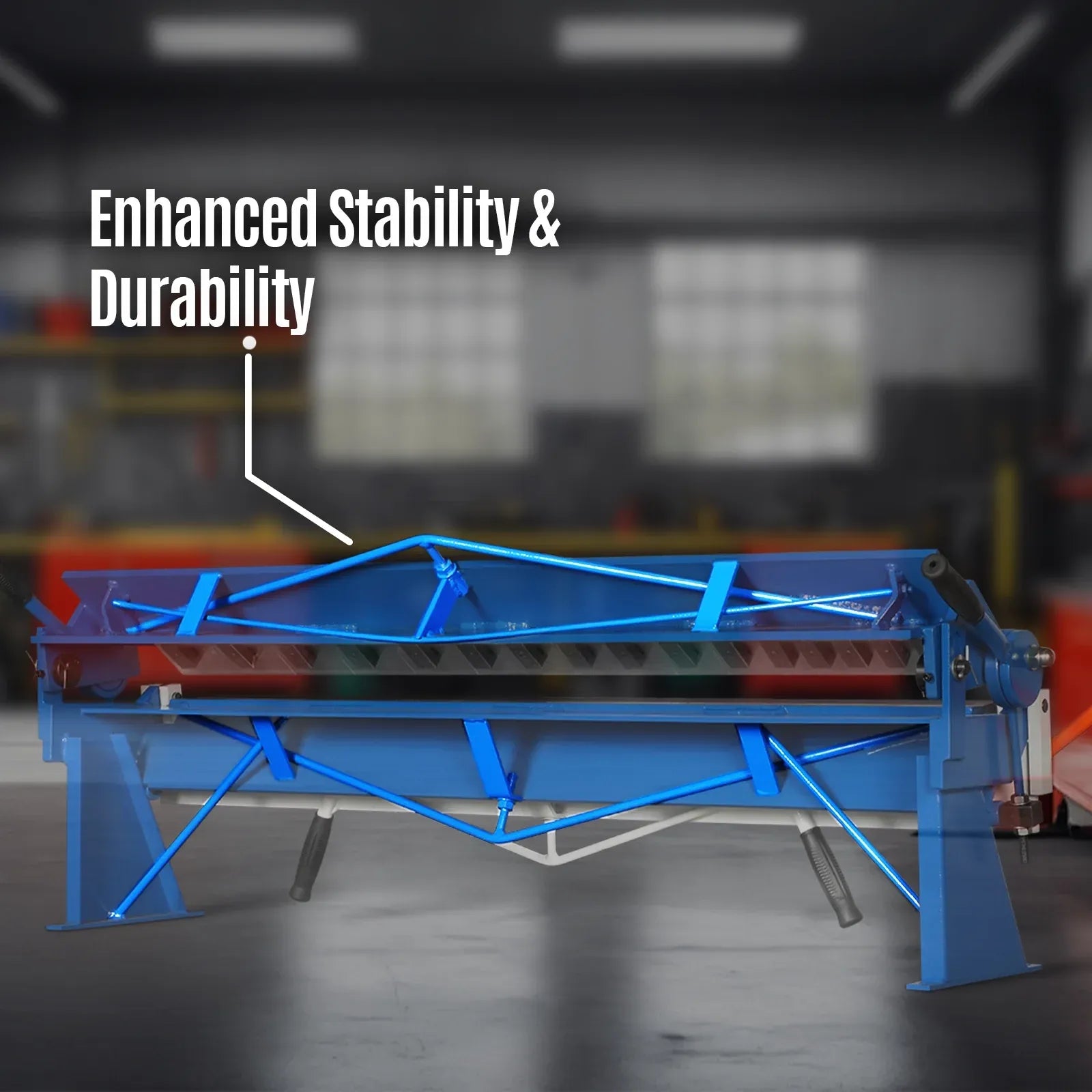

Constructed with a heavy-duty welded steel frame and reinforced bracing, this brake is designed to minimize flex and maintain accuracy during operation. The adjustable clamping blade and precision pressure beam allow operators to fine-tune bending pressure, helping prevent material distortion and ensuring clean, consistent bends.

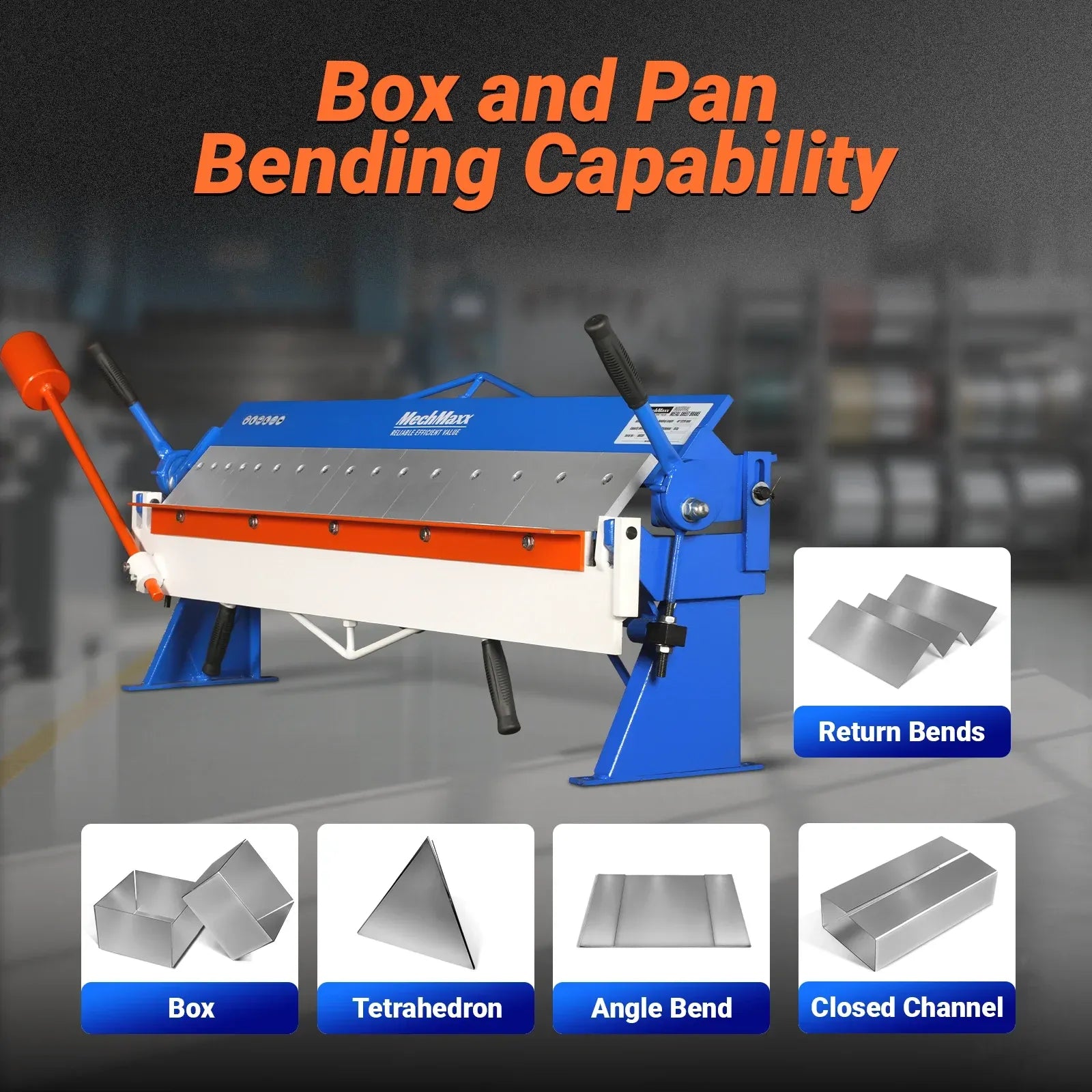

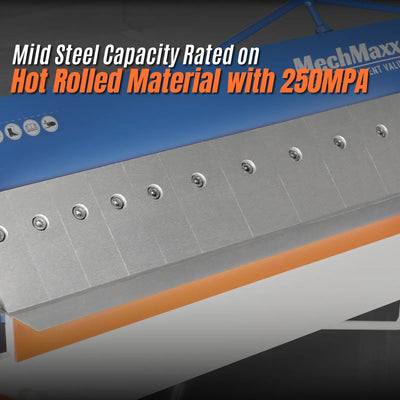

Precision-ground hardened steel fingers are fully removable and interchangeable, allowing for a wide range of box and pan configurations. A counter-balanced handle improves ease of use and control during operation.
Key Features & Benefits
- 48" Working Length for compact fabrication projects
- Handles up to 16-gauge mild steel
- Adjustable bending angle from 0° to 135°

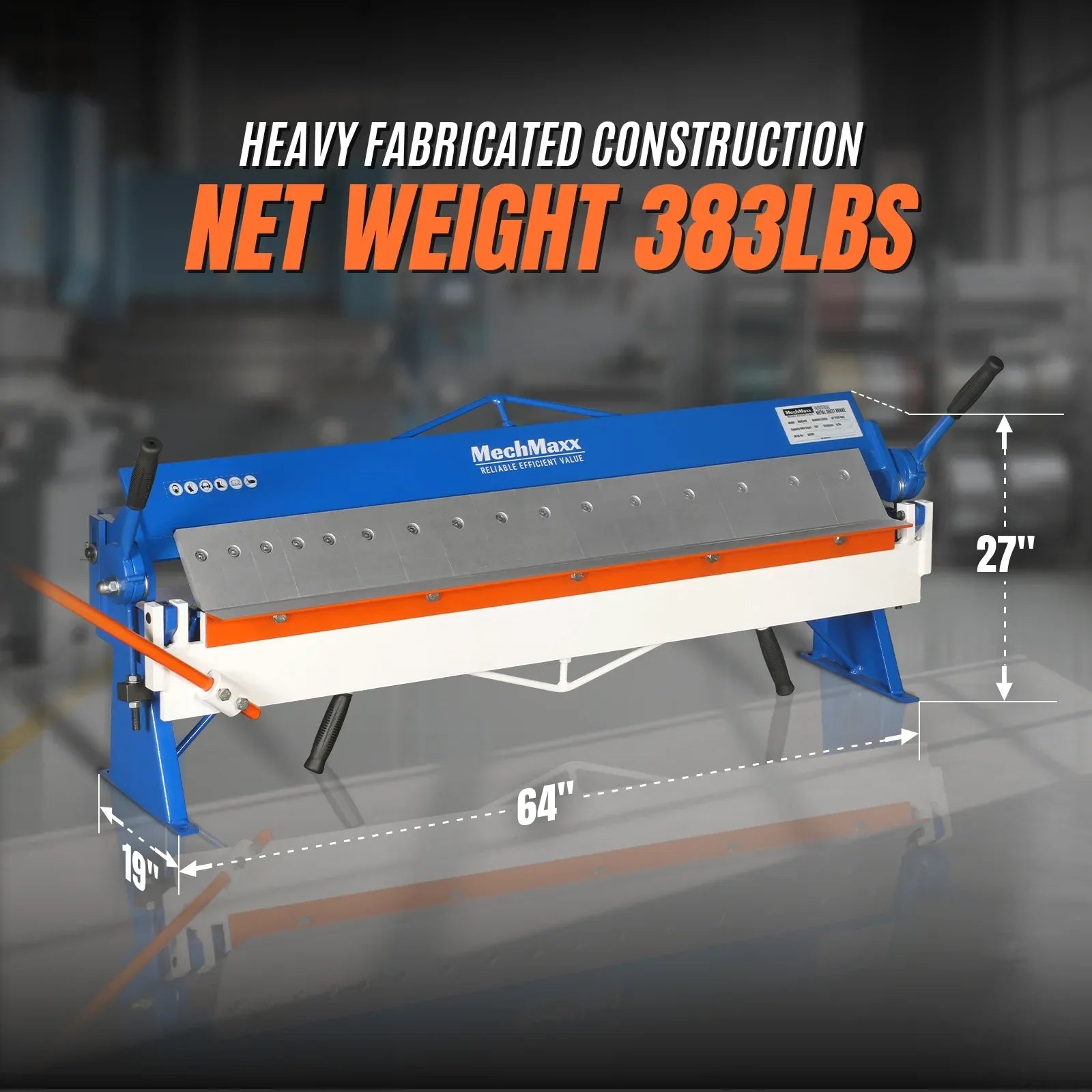

- Heavy-duty welded steel construction for durability
- Removable and interchangeable fingers for versatile forming

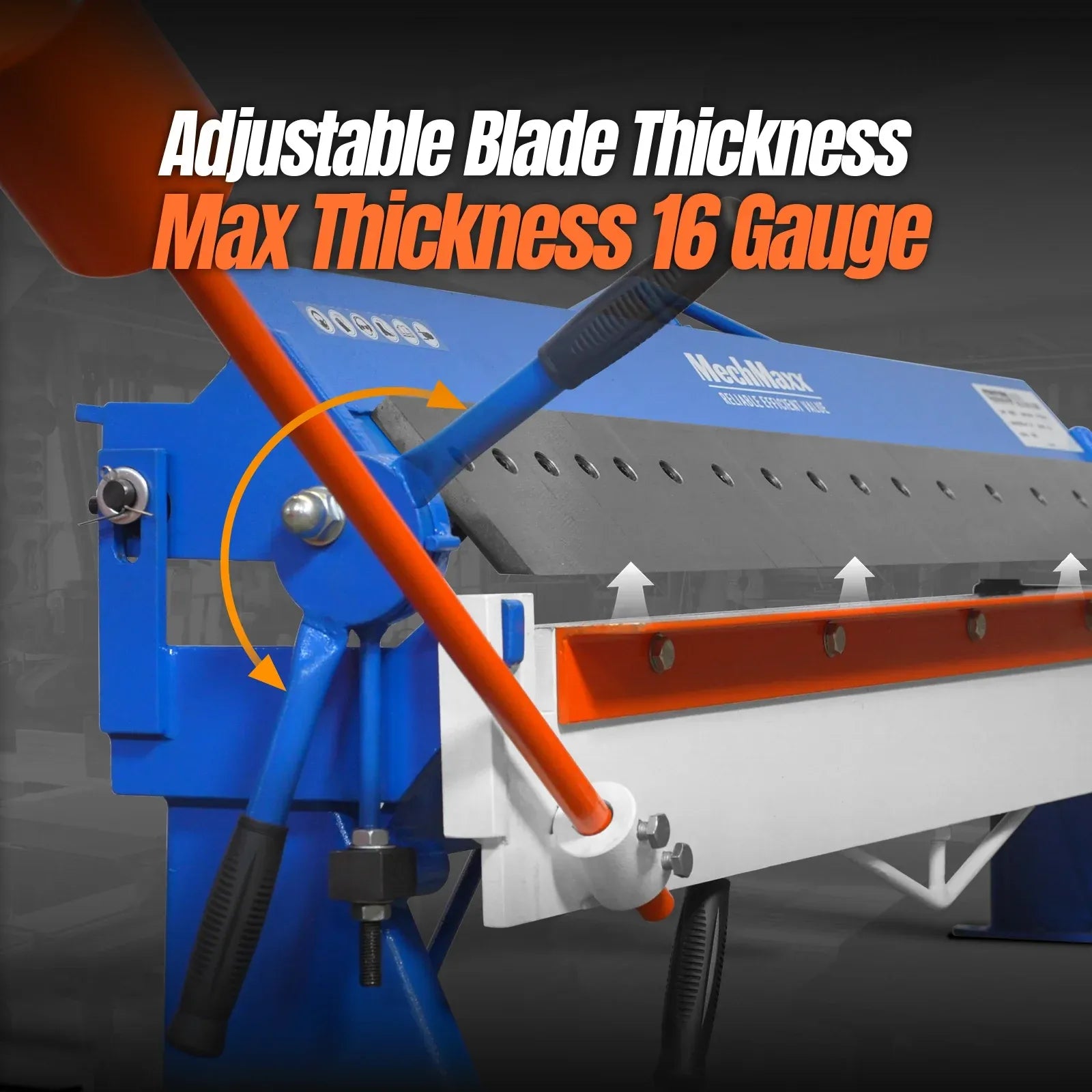

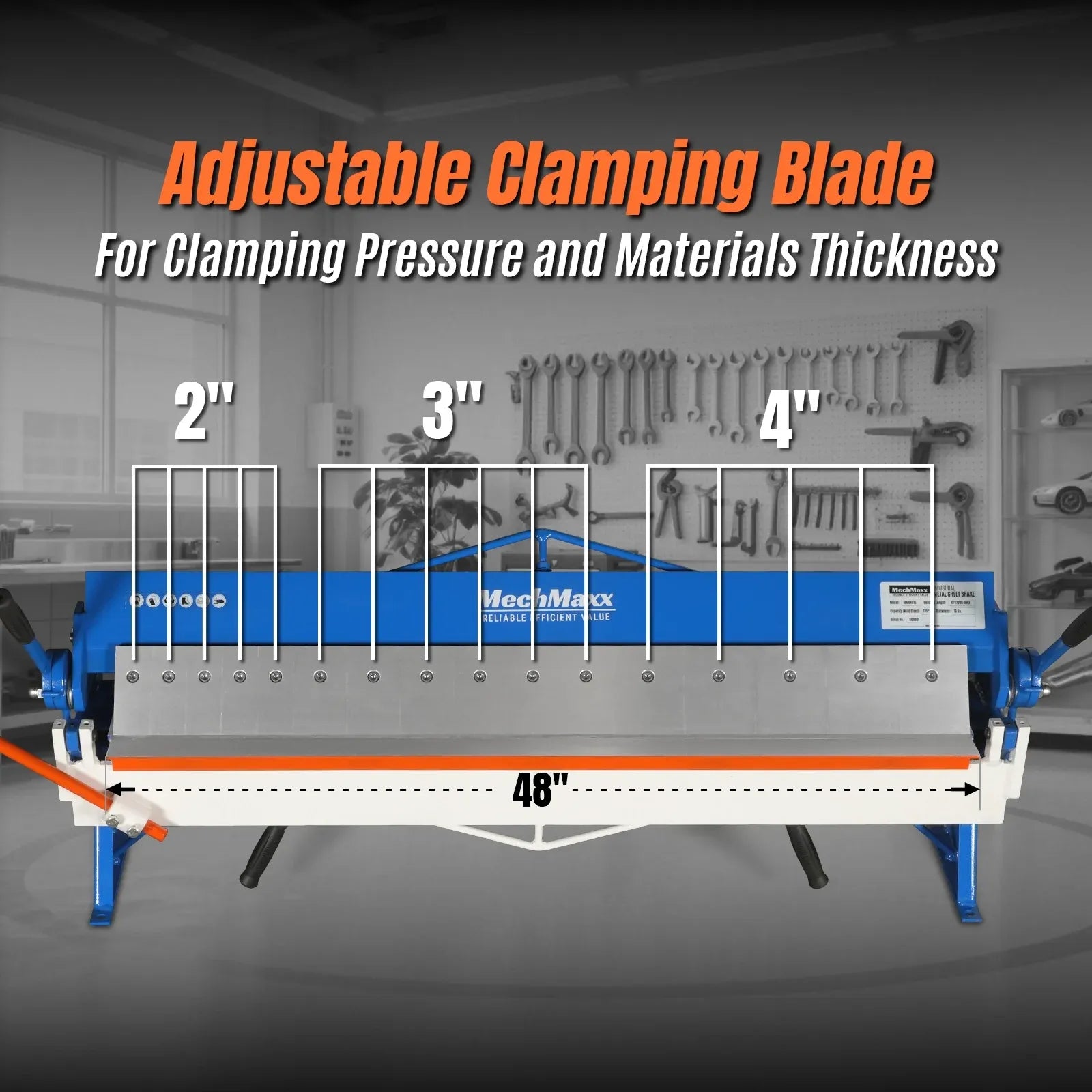

- Adjustable clamping blade for different material thicknesses
- Precision pressure beam adjustment for accurate bends
- Lubrication points for smoother operation and reduced wear
- Compact design ideal for small workshops

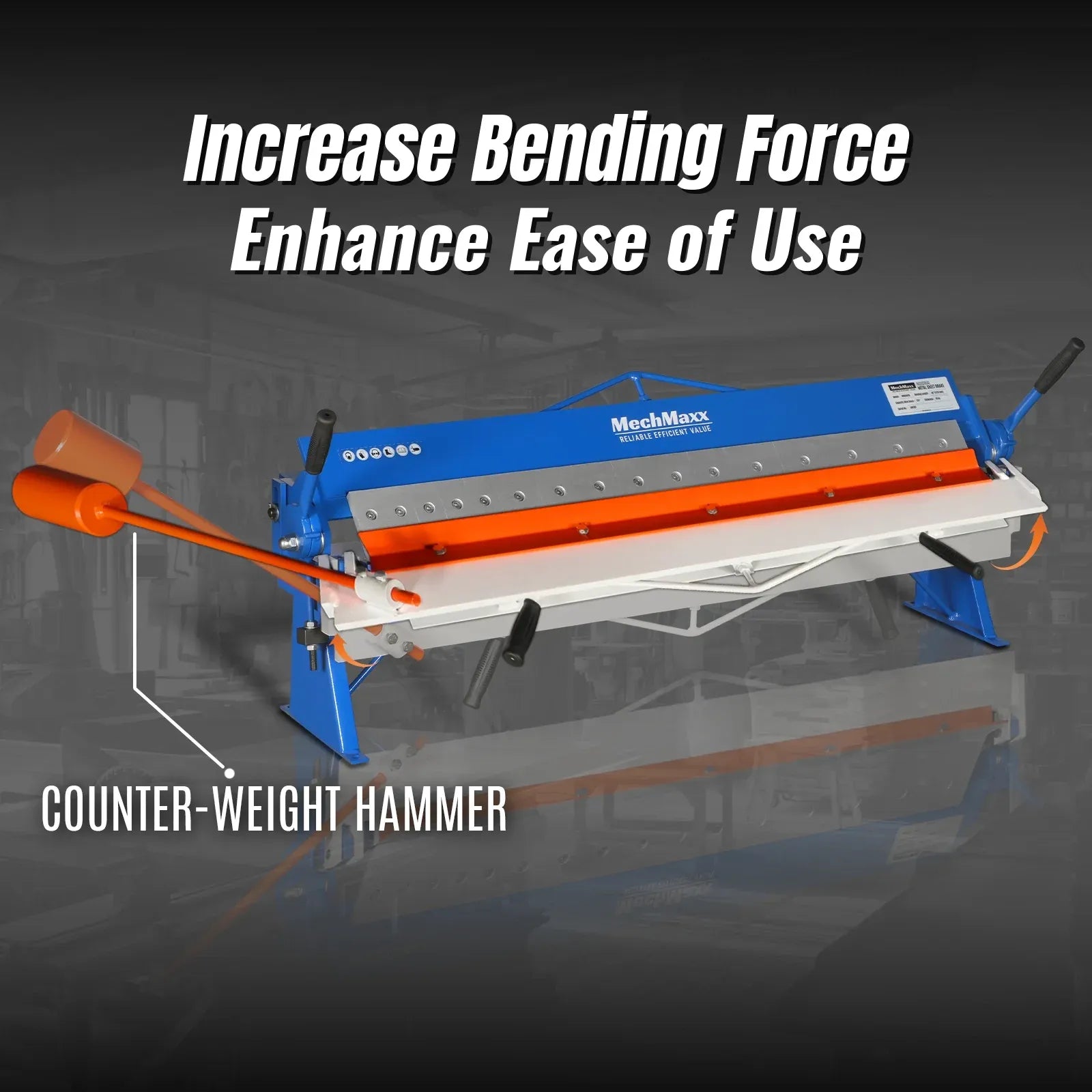

- Counter-balanced handle for easier operation
Built for Versatile Applications
This brake is a great choice for users who need reliable bending performance in a smaller, more manageable machine. It's well-suited for fabrication shops, maintenance work, and DIY metalworking where precision and flexibility are key.

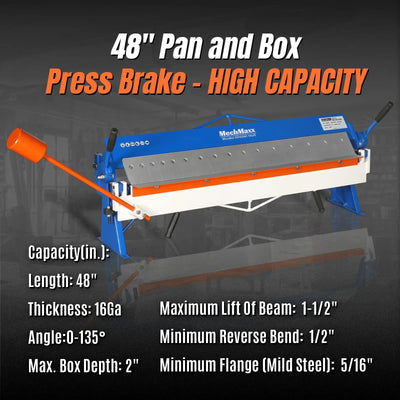

| Specifications | Details |
|---|---|
| Maximum Working Length | 48" |

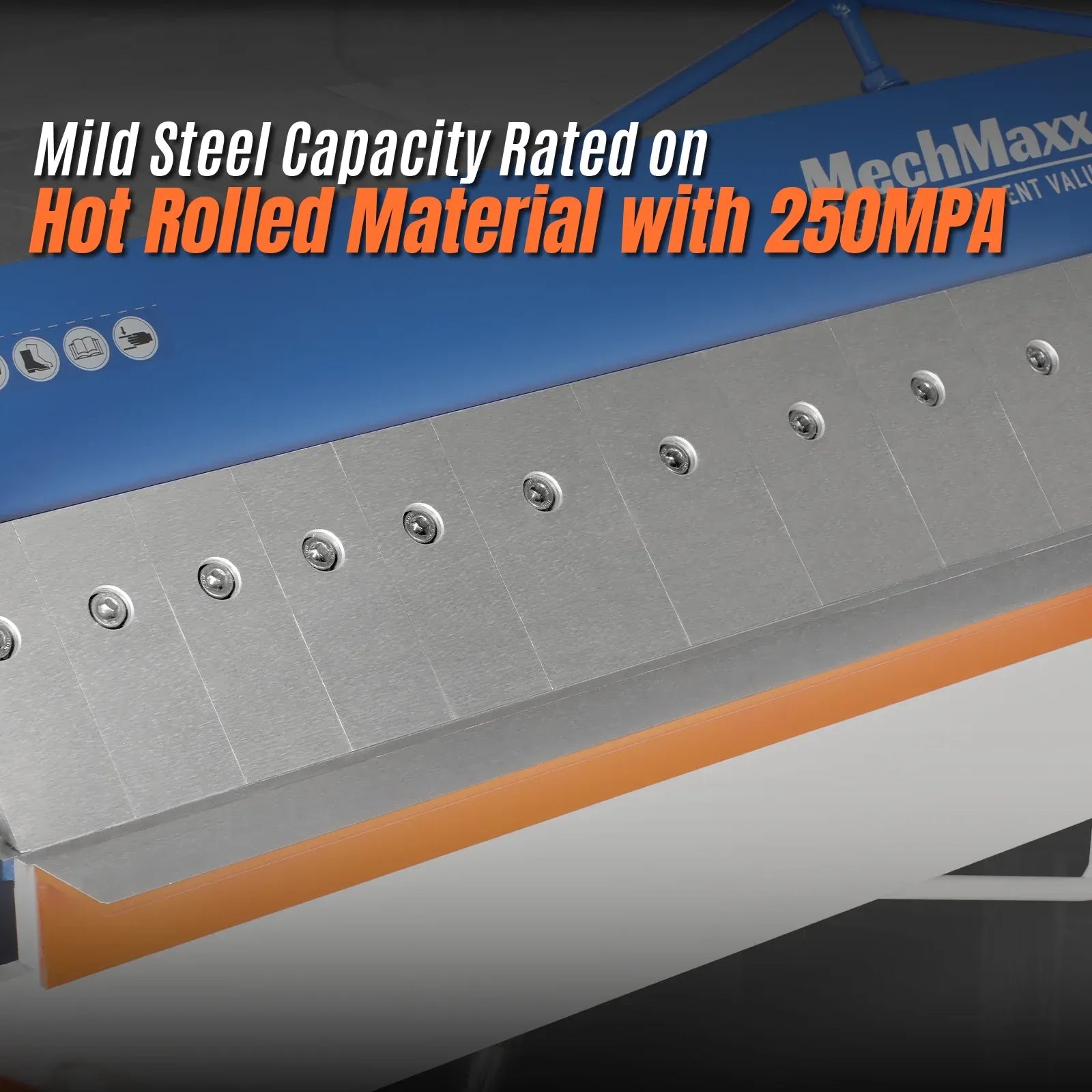

| Maximum Thickness (Full Width) | 16 Gauge Mild Steel |
| Bending Angle Range | 0°–135° |
| Finger Sizes & Quantity | 2" (5), 3" (6), 4" (5) – 16 Total |
| Maximum Box Depth | 2 1/2" |
| Maximum Beam Lift | 1 1/2" |
| Minimum Reverse Bend | 1/2" |
| Minimum Flange (Mild Steel) | 5/16" |
| Footprint | 12 1/2" x 52" |
| Packaging Size | 61.42" x 16.14" x 24.80" |
| Net Weight | 299.83 lbs |
| Gross Weight | 350.53 lbs |
| Construction Features | Precision-Ground Hardened Fingers, Counter-Balanced Handle, Reinforced Trussed Frame |
