MechMaxx Mini Compact Excavator with B&S VANGUARD 408cc 14HP Engine, 65.7" Max Digging Depth, 2370 lb Operating Weight, Model MEC10 is backordered and will ship as soon as it is back in stock.
Your payment information is encrypted and never stored
We're Available When You Need Us. Give Us A Call or Email.
MechMaxx Mini Compact Excavator with B&S VANGUARD 408cc 14HP En...

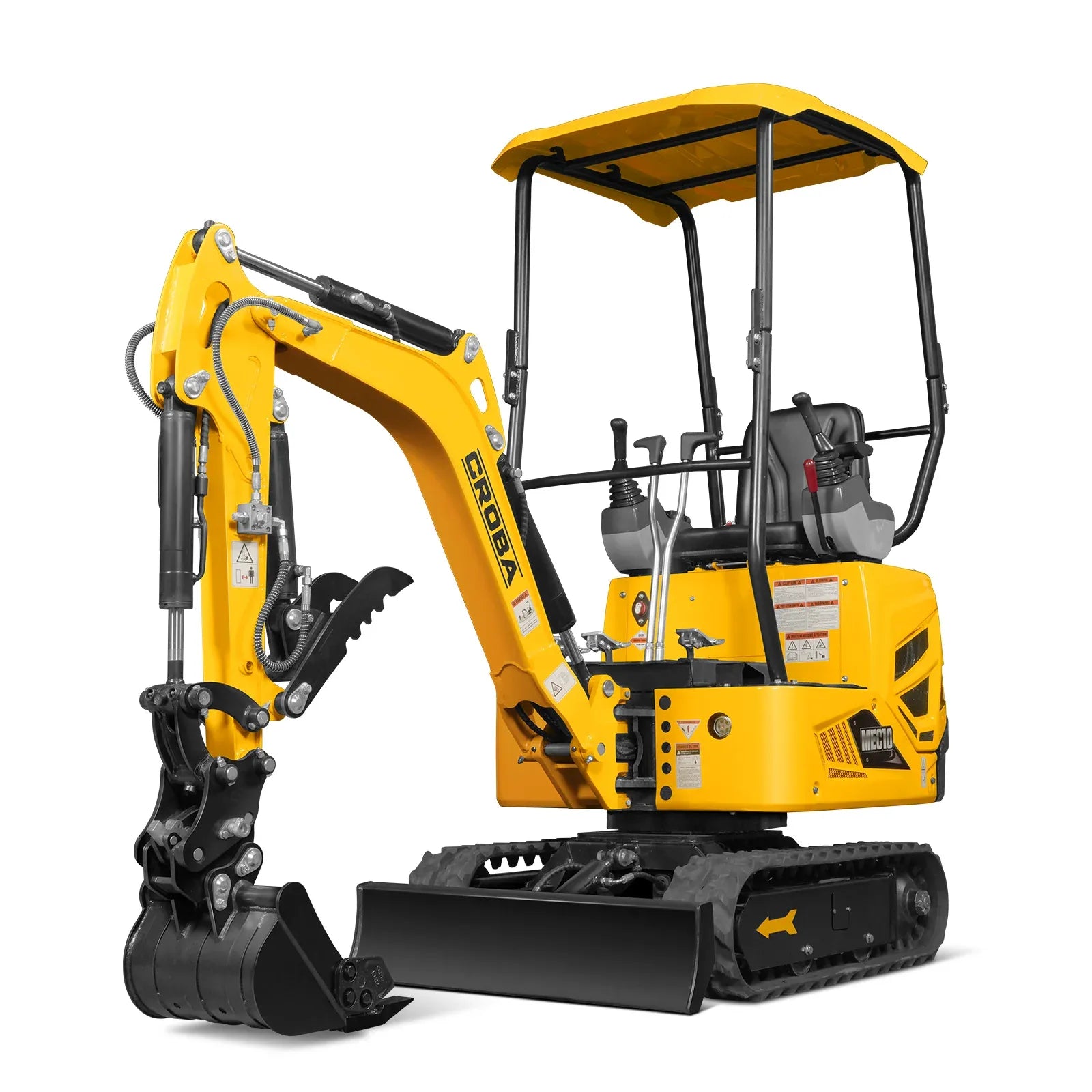

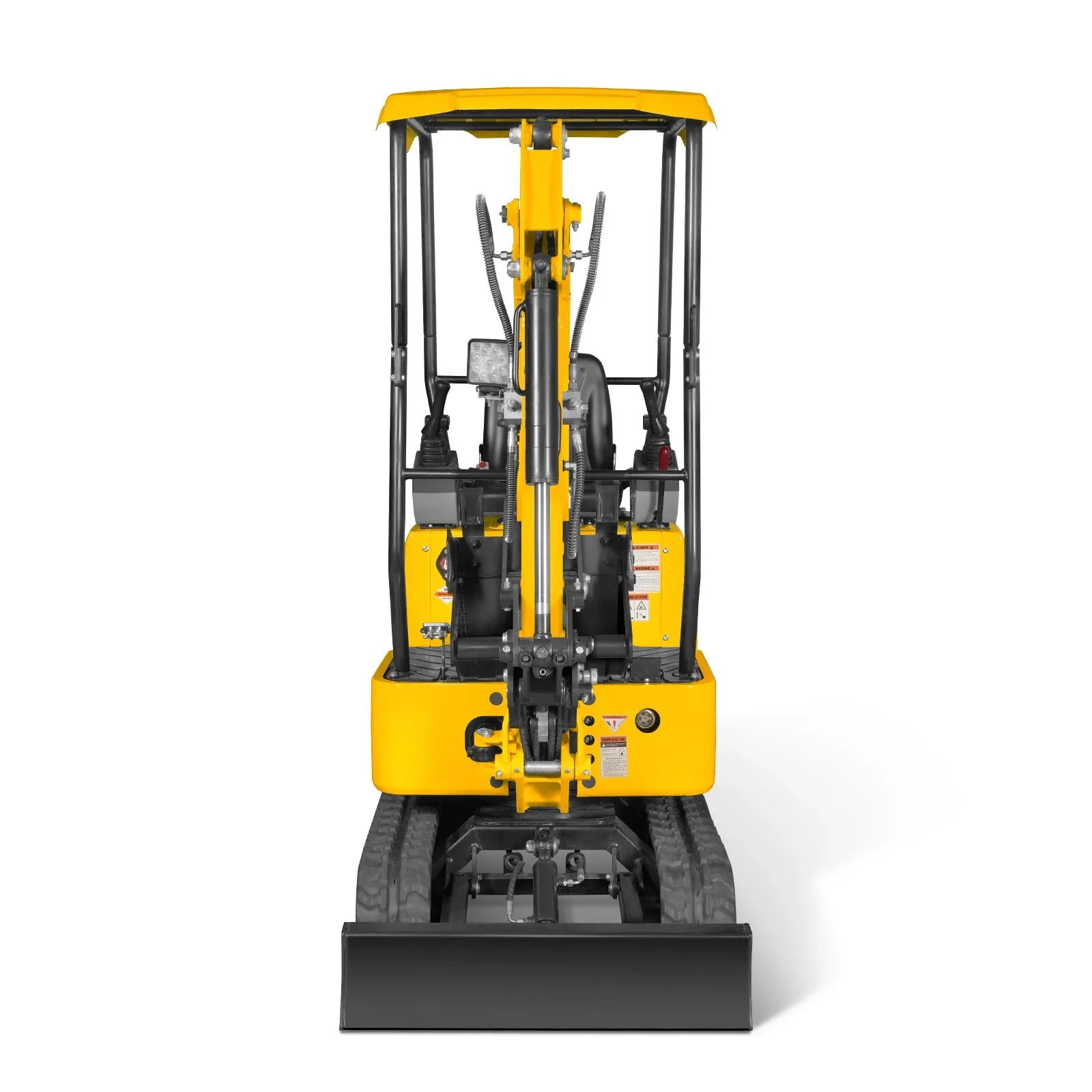

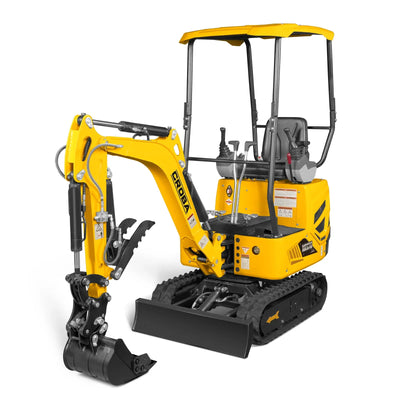

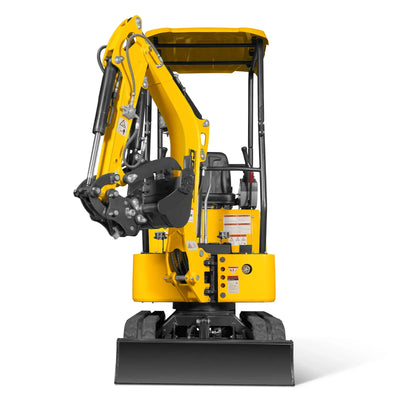

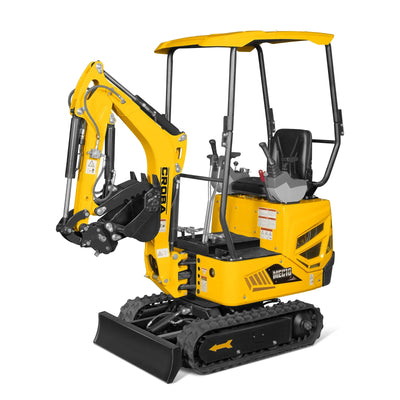

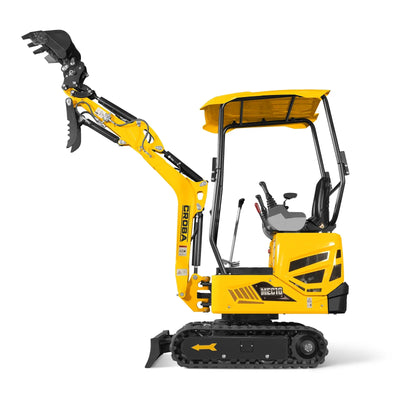

The MEC10 mini excavator is designed for efficient operation in narrow lanes, alleys, backyards, gardens, and other confined spaces. Its compact footprint makes it well-suited for working in tight or restricted environments.

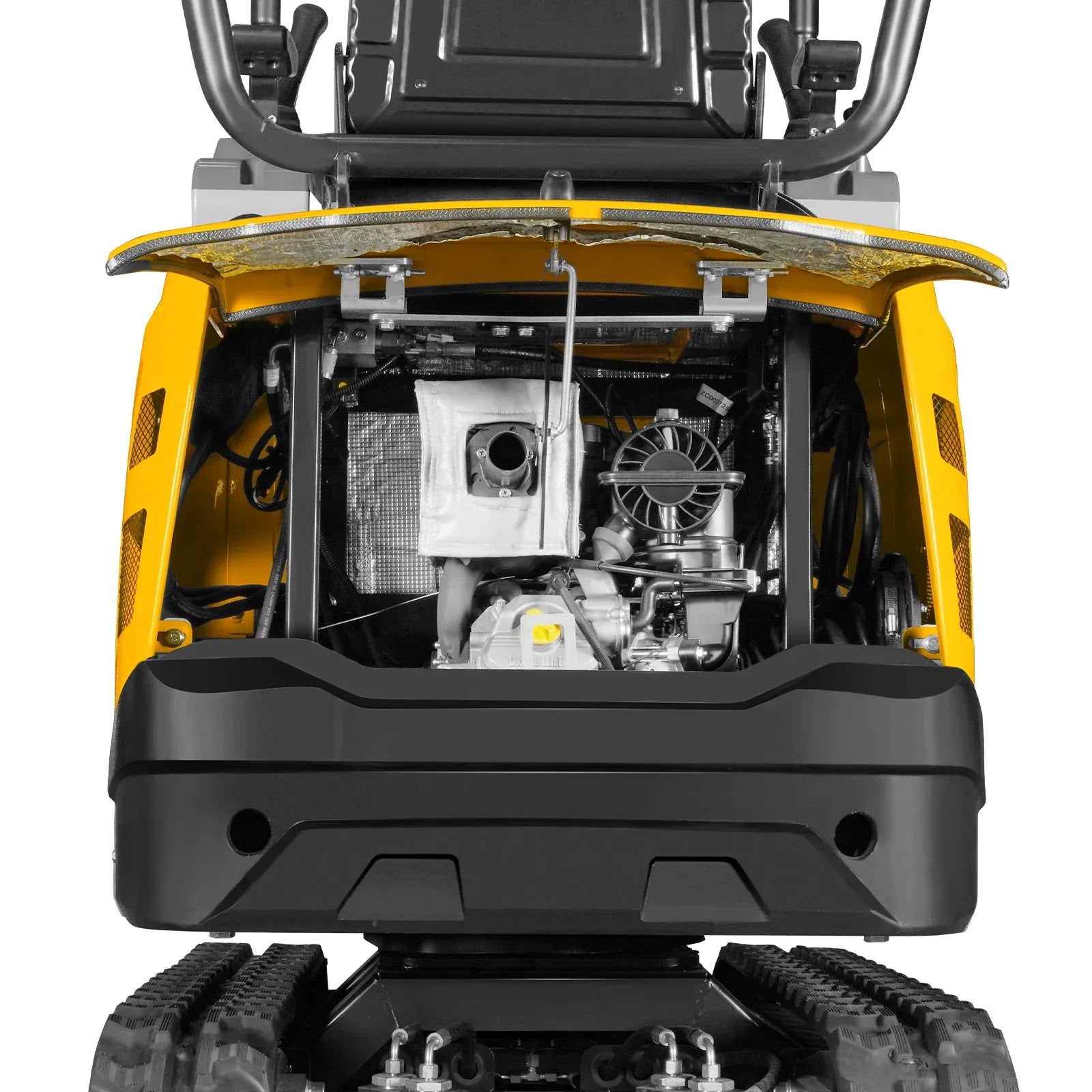

Powered by a 408cc 14HP air-cooled Briggs & Stratton Vanguard engine, the machine delivers dependable performance with a high compression ratio for improved fuel efficiency.

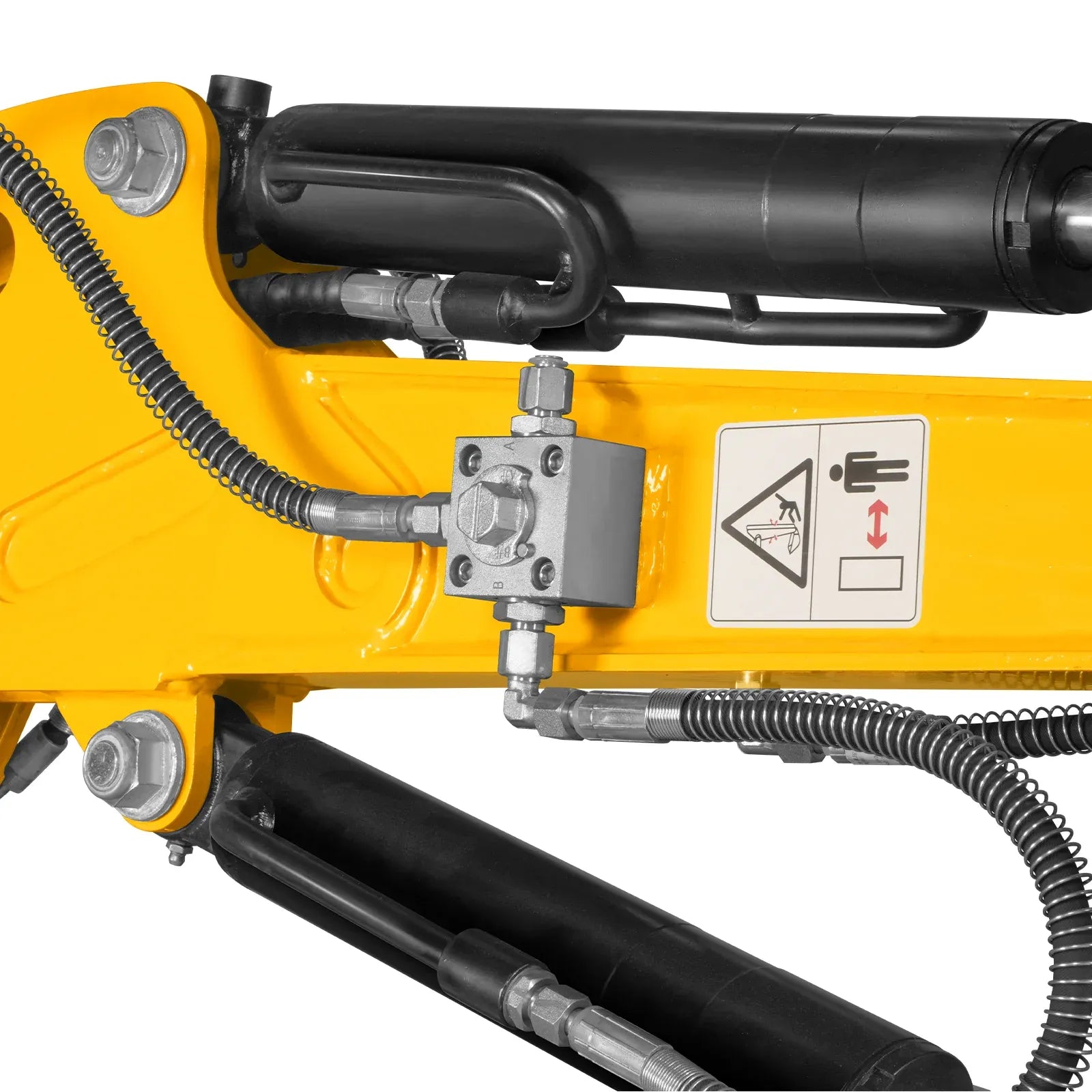

The excavator features an enhanced hydraulic system capable of supporting high-flow attachments such as augers, rippers, and mulcher heads (not included), allowing it to handle a variety of tasks including concrete work and vegetation management.

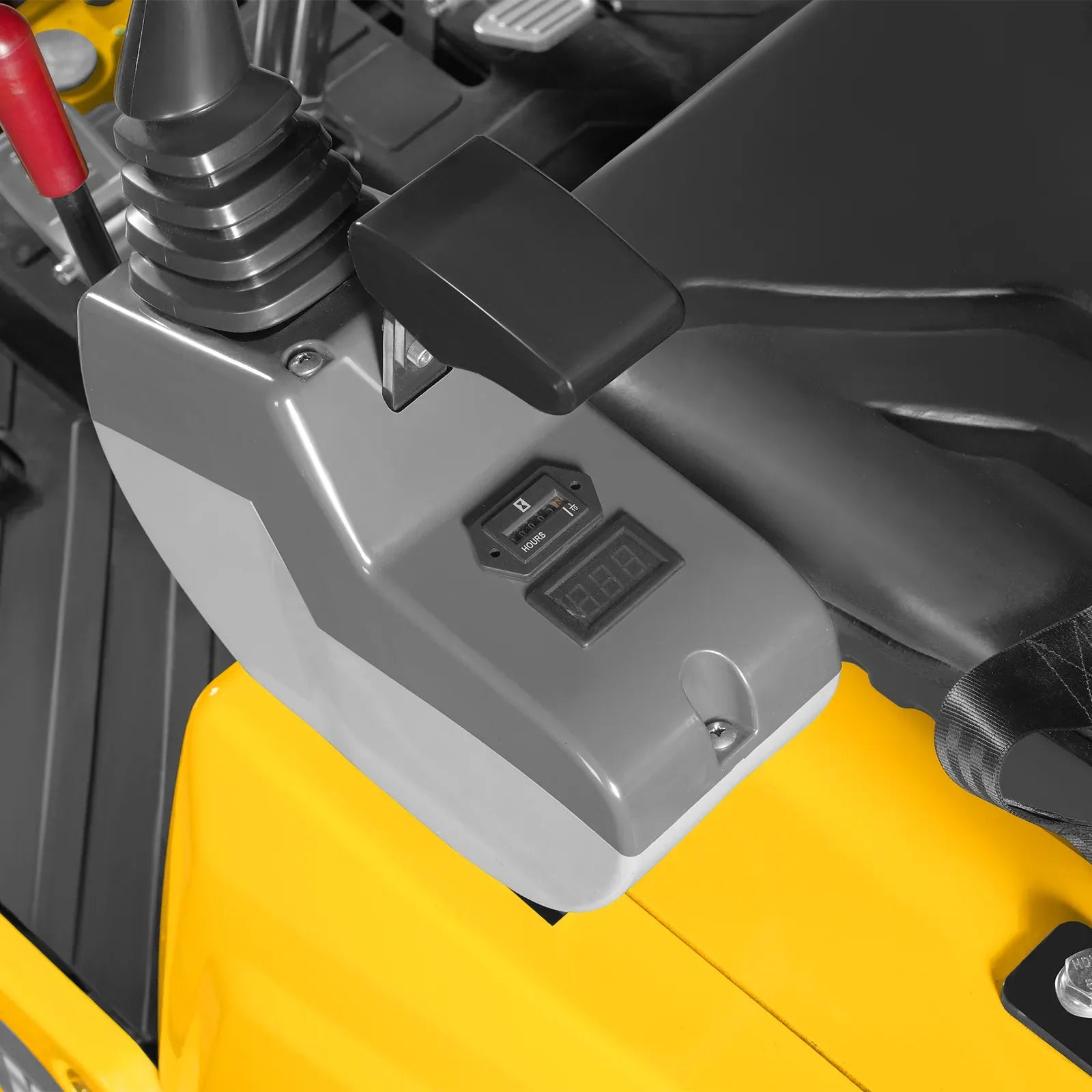

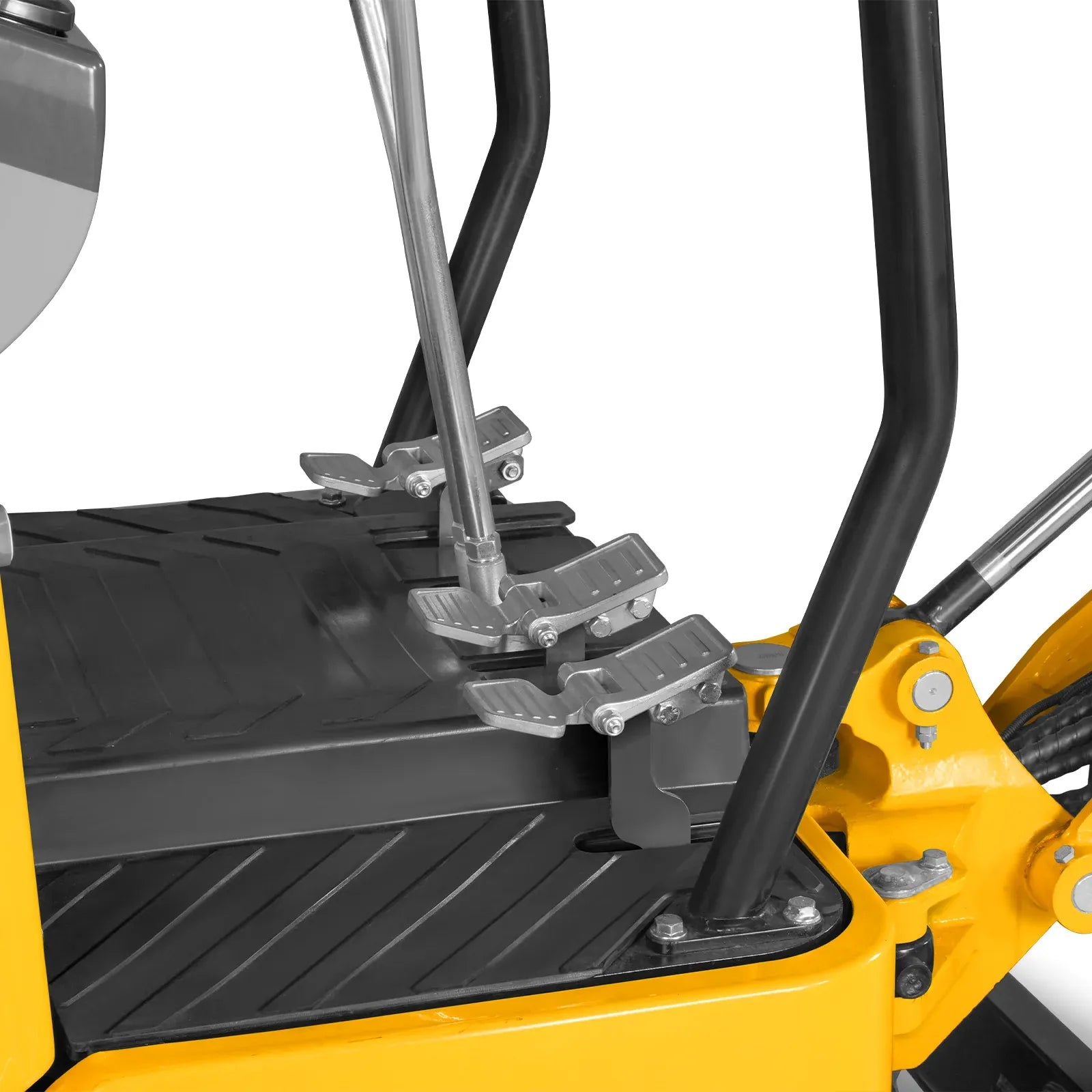

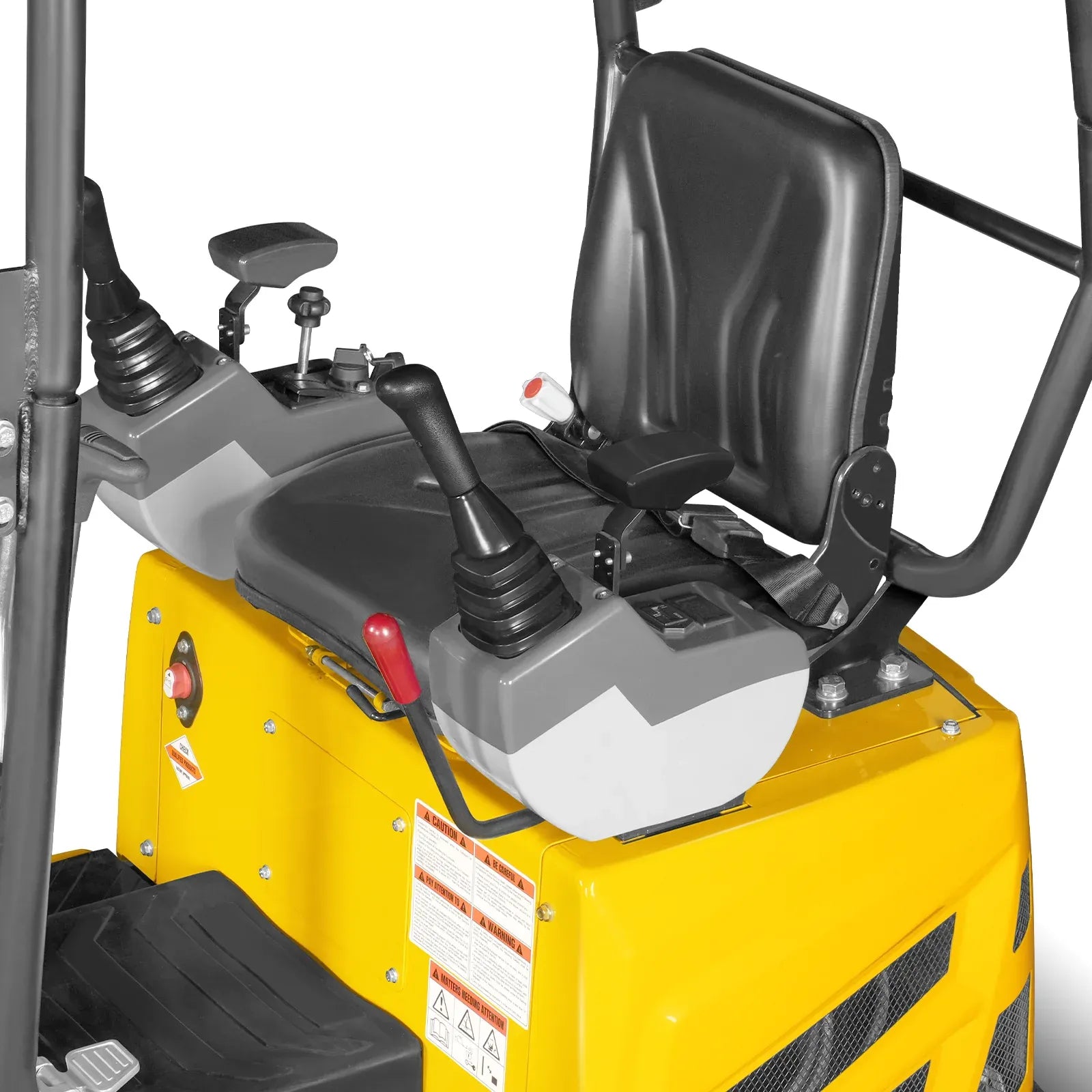

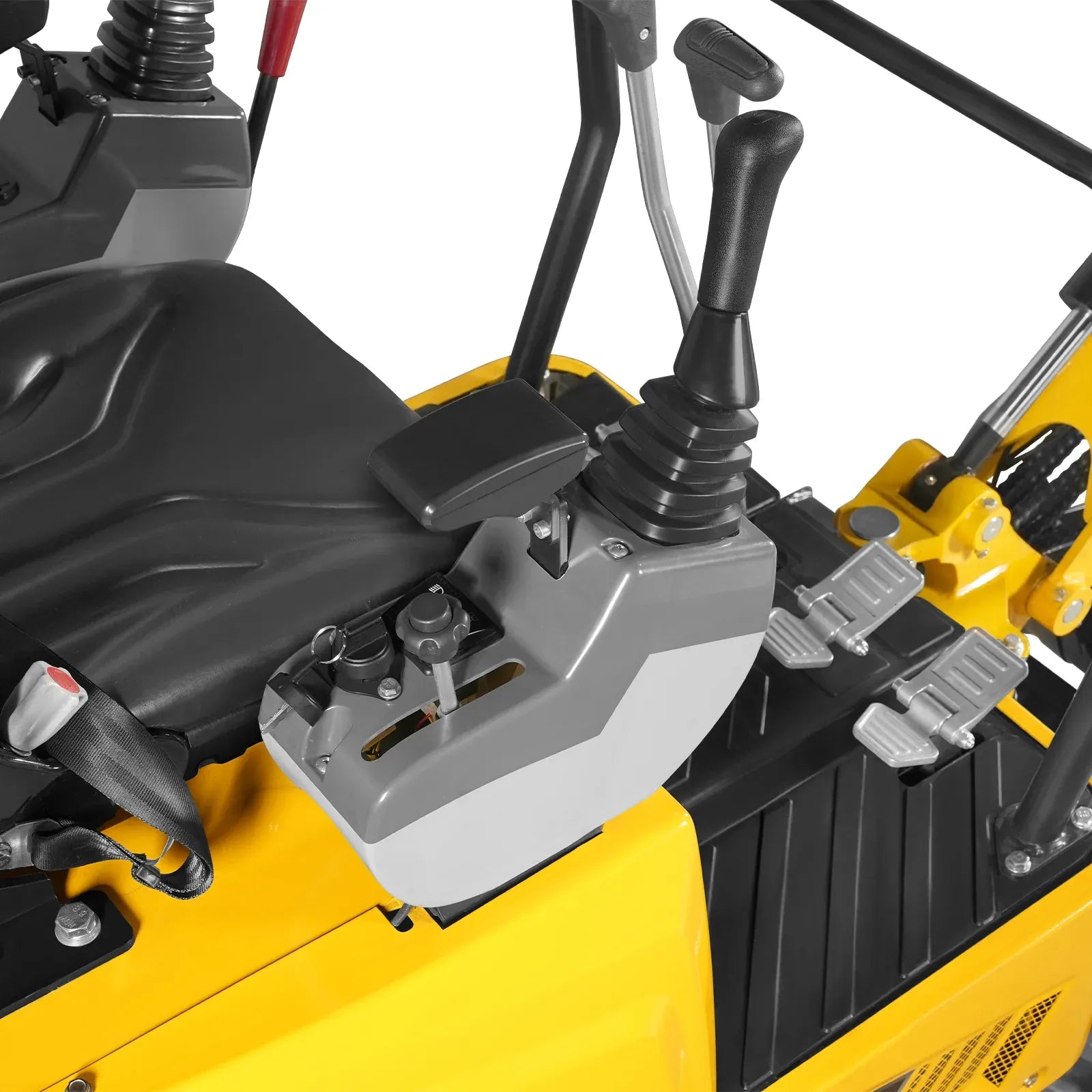

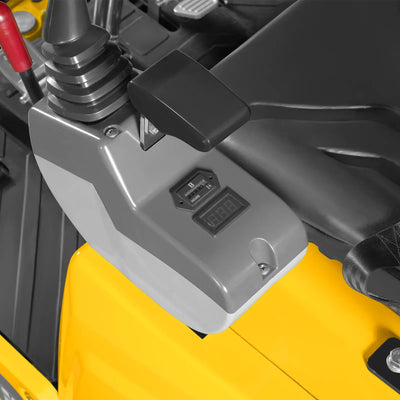

Pilot-operated control levers provide smooth, responsive, and precise handling, helping improve operator control and ease of use during extended operation.
With a digging depth of up to 65.7 inches and a maximum ground digging radius of 118.7 inches, the MEC10 can reach and operate in tight or difficult areas without frequent repositioning.

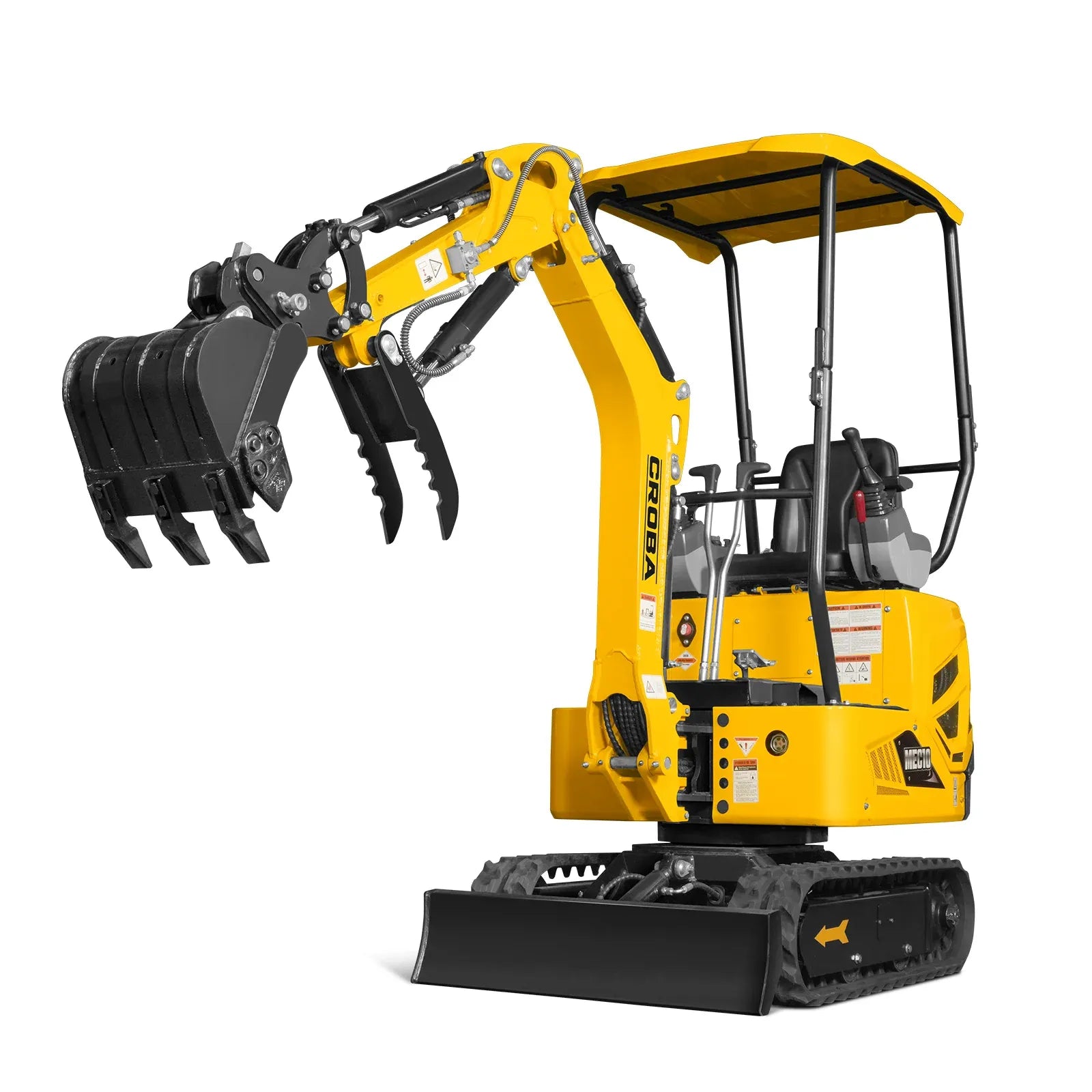

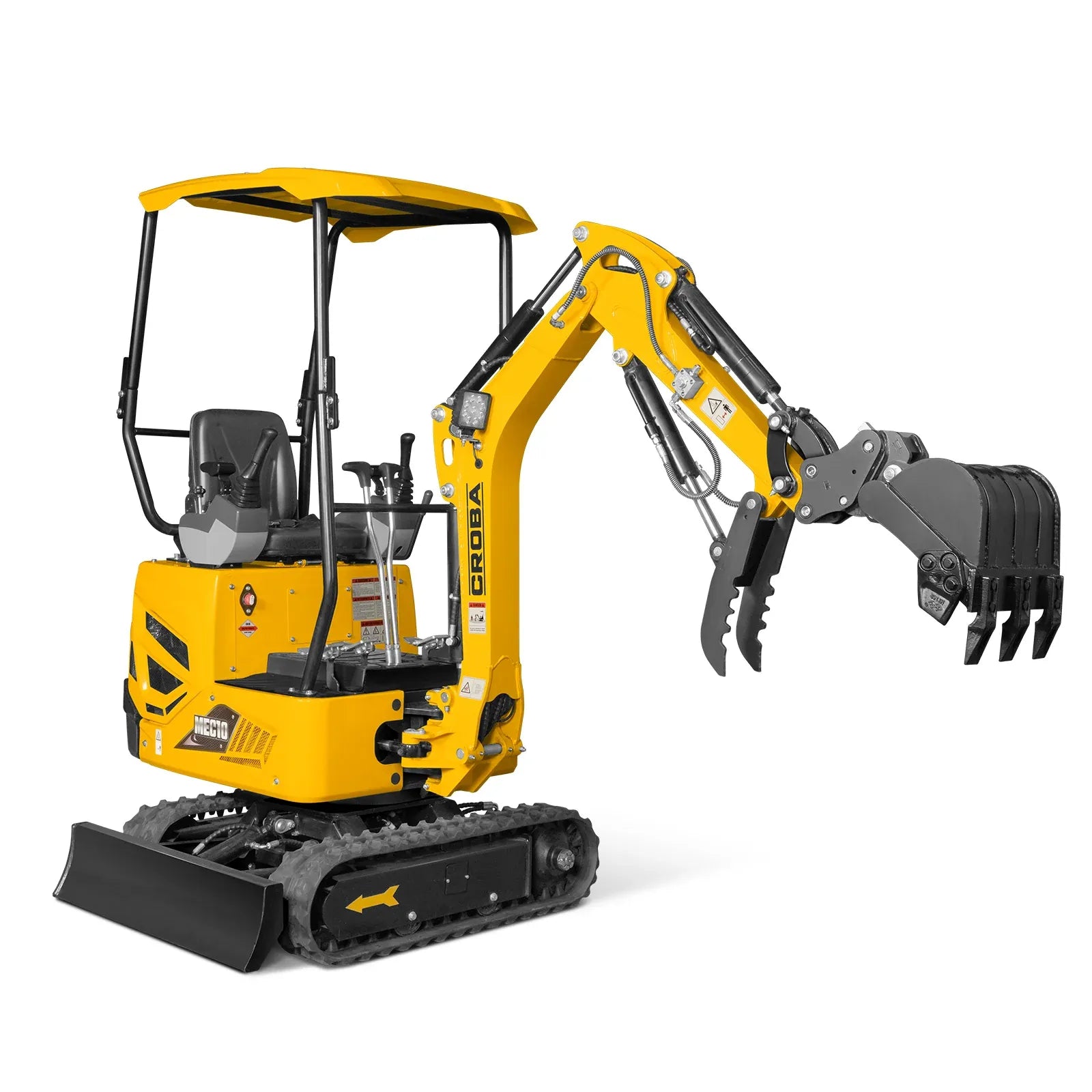

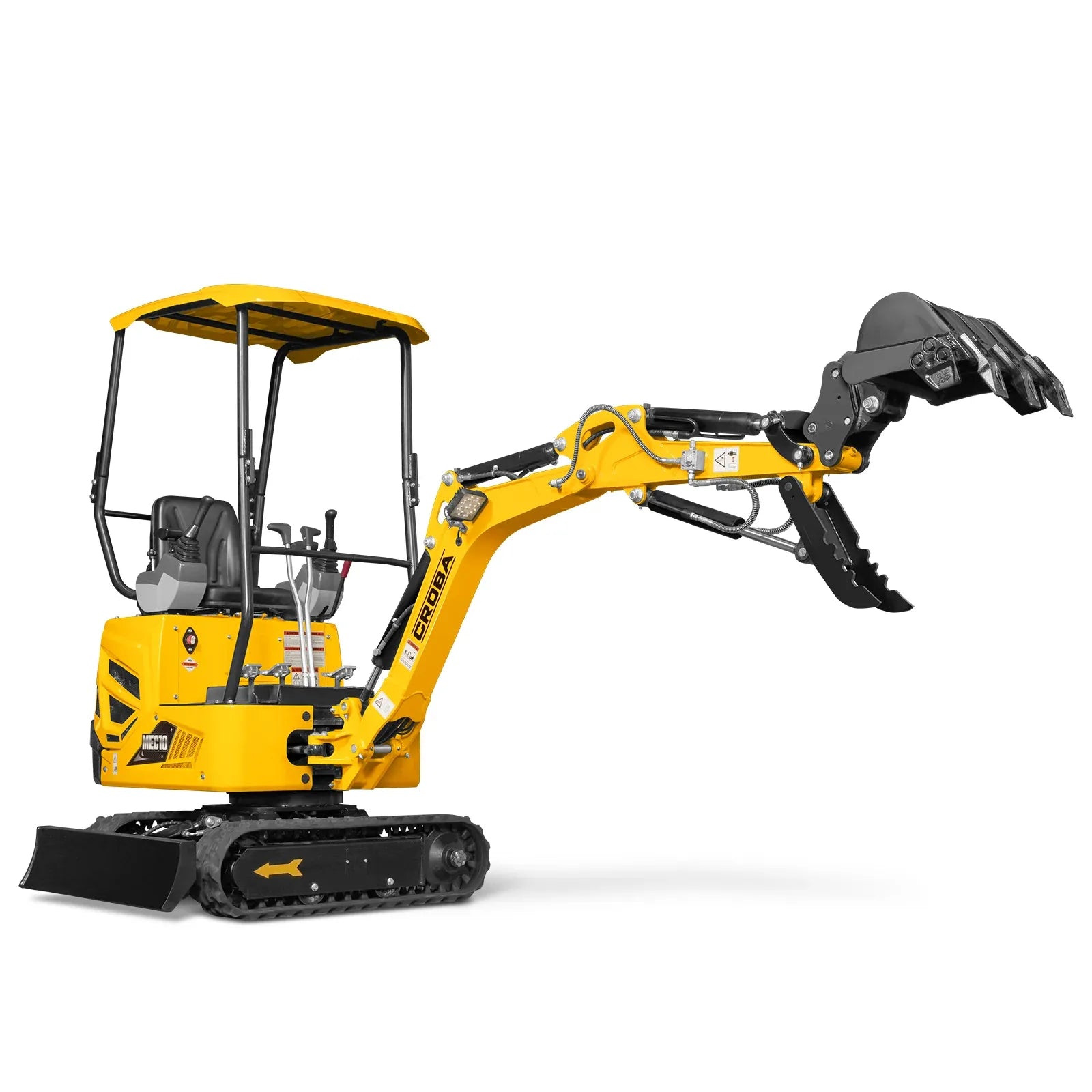

A hydraulic thumb is included for convenient handling of rocks, branches, and debris, with adjustable positioning directly from the operator's seat.
The unit is capable of full 360-degree rotation, allowing for flexible and efficient operation on the job site.
| Specifications | Details |
|---|---|
| Engine Model | Vanguard 25V000 |
| No. of Cylinders | 1 |
| Stroke | 2.638 in |
| Bore | 3.465 in |
| Rated Speed | 3600 RPM |
| Displacement | 408 cc |
| Engine Output | 14 HP |
| Engine Warranty | 3 Years |
| Fuel Tank | 1.52 gal |
| Engine Oil | 0.7 gal |
| Max. Travel Speed | 0.75 mph |
| Maximum Traction Force | 3035 lbf |
| Ground Clearance | 15.9 in |
| Ground Pressure | 5.1 psi |
| Gradeability – Maximum | 30° |
| Operating Weight | 2370 lbs |
| Hydraulic Oil Tank | 3.96 gal |
| Max. Discharge Flow | 4.65 GPM |
| Swing Speed | 8 RPM |
| Tail Swing Radius | 32.6 in |
| Bucket Digging Force | 1619 lbf |
| Arm Digging Force | 1191 lbf |
| Bucket Capacity | 0.7 ft³ |
| Bucket Width | 15 in |
| Max. Digging Height | 109 in |
| Max. Dumping Height | 80 in |
| Max. Digging Depth | 65.7 in |
| Max. Vertical Digging Depth | 62.6 in |
| Max. Digging Radius | 119 in |
| Max. Digging Radius at Ground Level | 118.7 in |
| Min. Turning Radius of Working Device | 48.1 in |

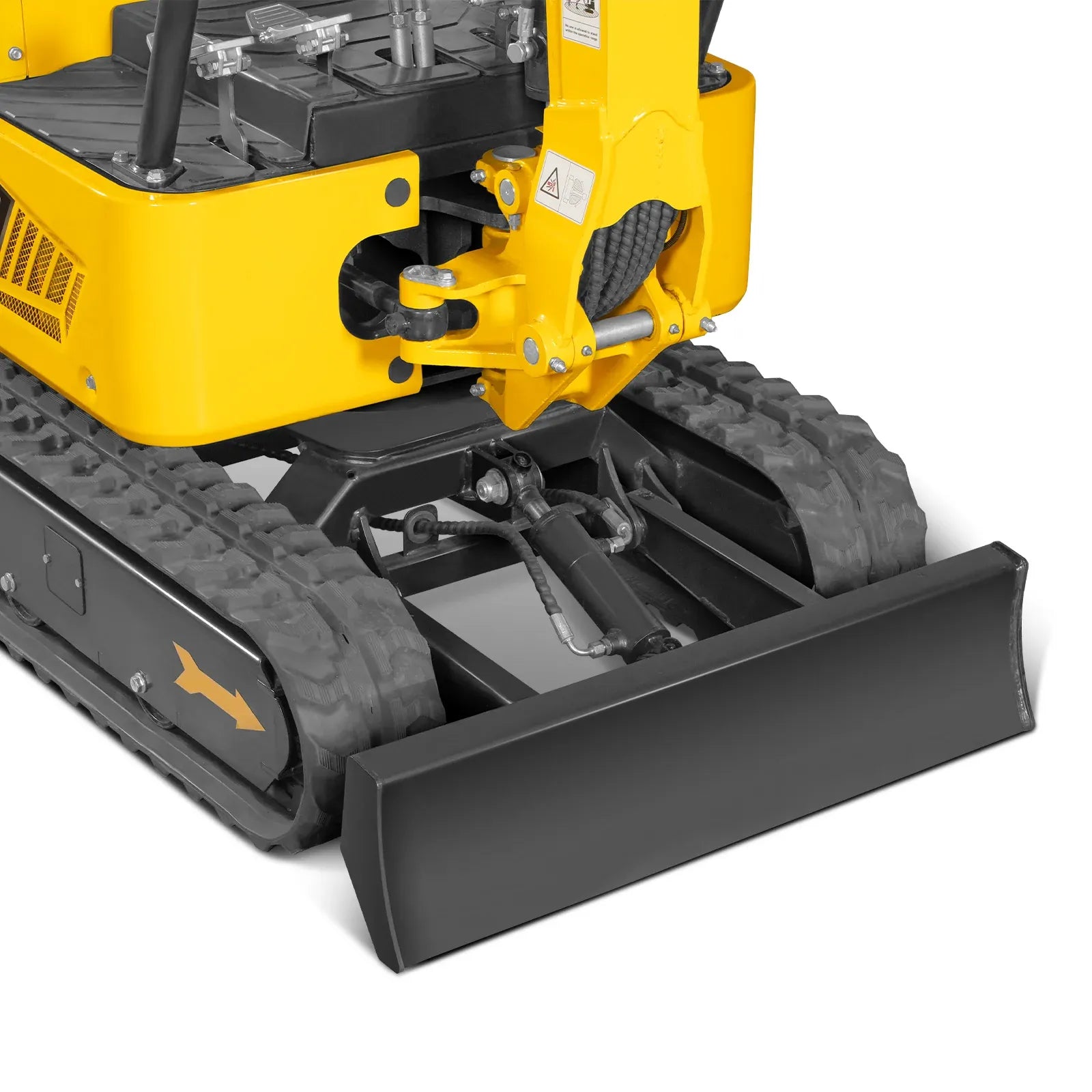

| Max. Lifting Height Dozer Blade | 5.9 in |
| Max. Depth Dozer Blade | 7.4 in |
| Boom Swing – Left | 53° |
| Boom Swing – Right | 40° |
| Transportation Length | 82 / 115 in |
| Overall Width | 37 in |
| Overall Height (To Top of Cab) | 88.5 in |
| Counter Weight Ground Clearance | 16 in |
| Crawler Wheel Base | 36 in |
| Track Belt/Shoe Width | 7 in |
| Track Length | 48.5 in |
| Track Width | 37 in |
| Package Method | Wood Case |
| Packing Size | 91 x 40 x 98 in |
| Machine Warranty | 1 Year |
| Weight (N.W./G.W.) | 2180 / 2440 lbs |
