MechMaxx Mini Compact Excavator with Kubota D722 Engine, 65.7" Max Digging Depth, 2700 lb Operating Weight, Model MEC12 is backordered and will ship as soon as it is back in stock.
Your payment information is encrypted and never stored
We're Available When You Need Us. Give Us A Call or Email.

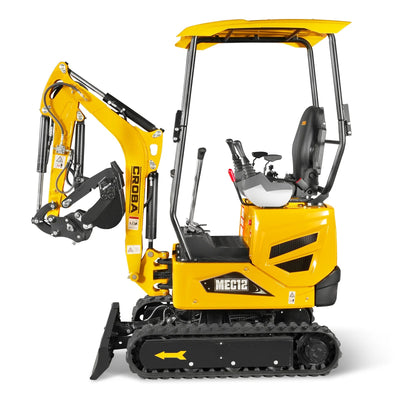

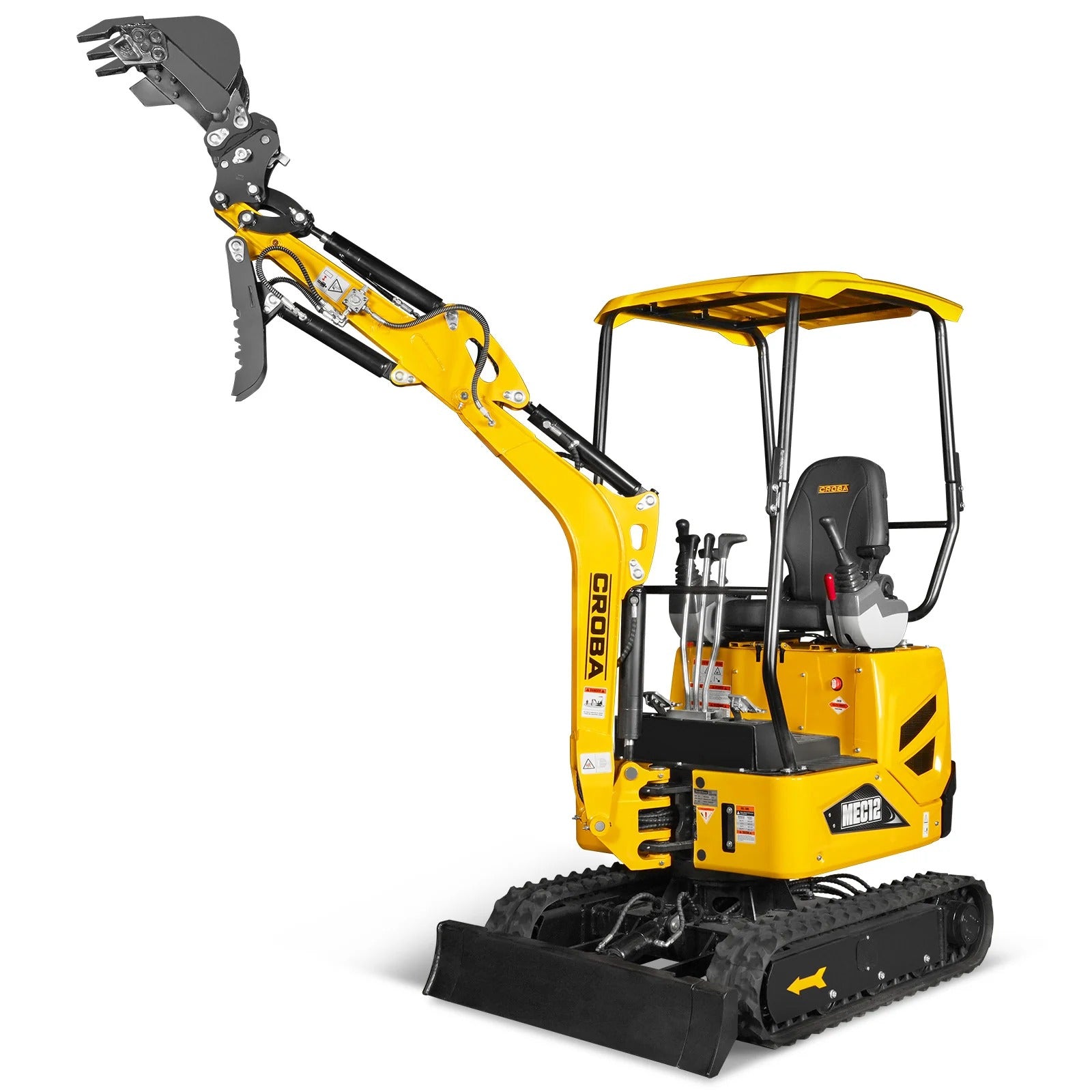

MechMaxx Mini Compact Excavator with Kubota D722 Engine, 65.7"...

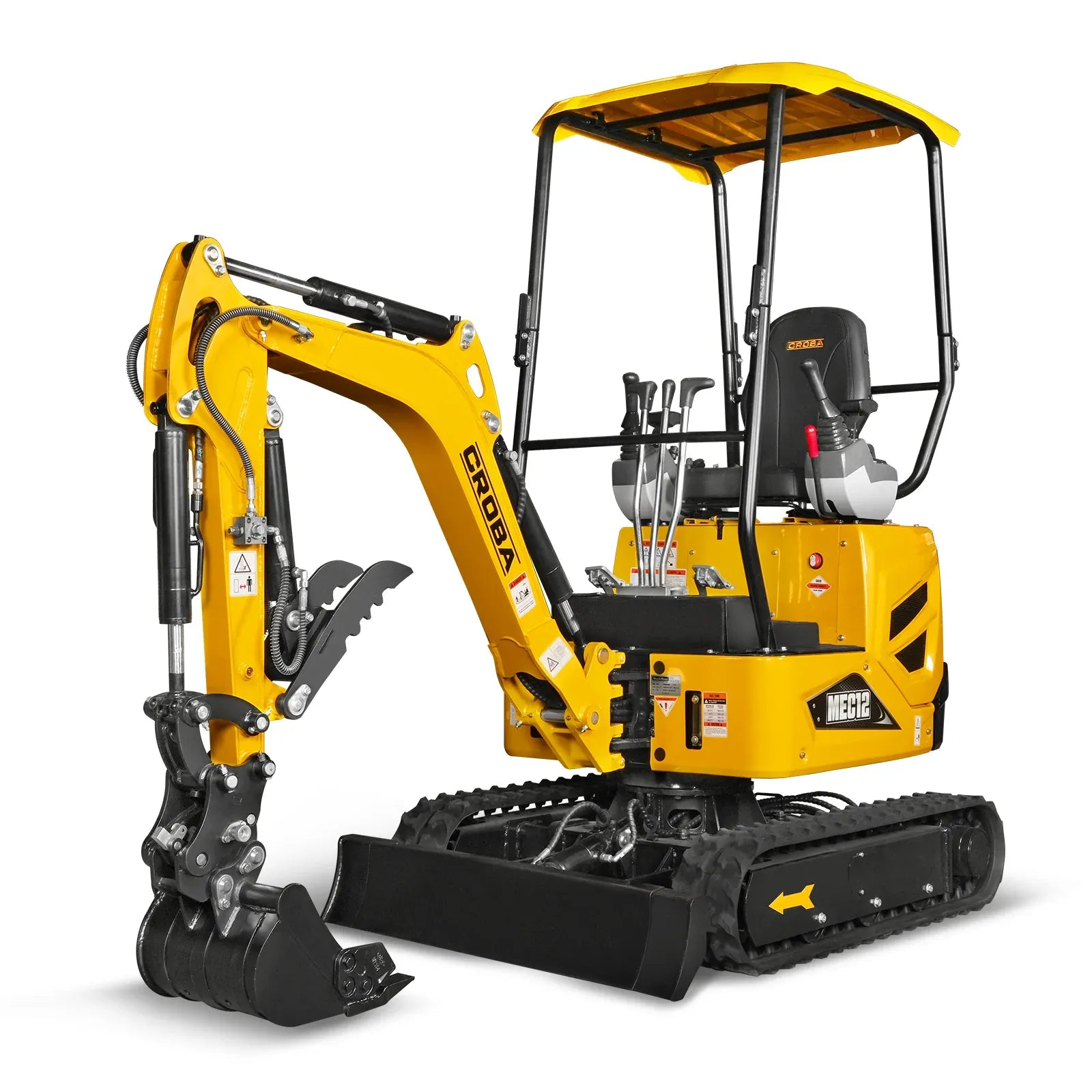

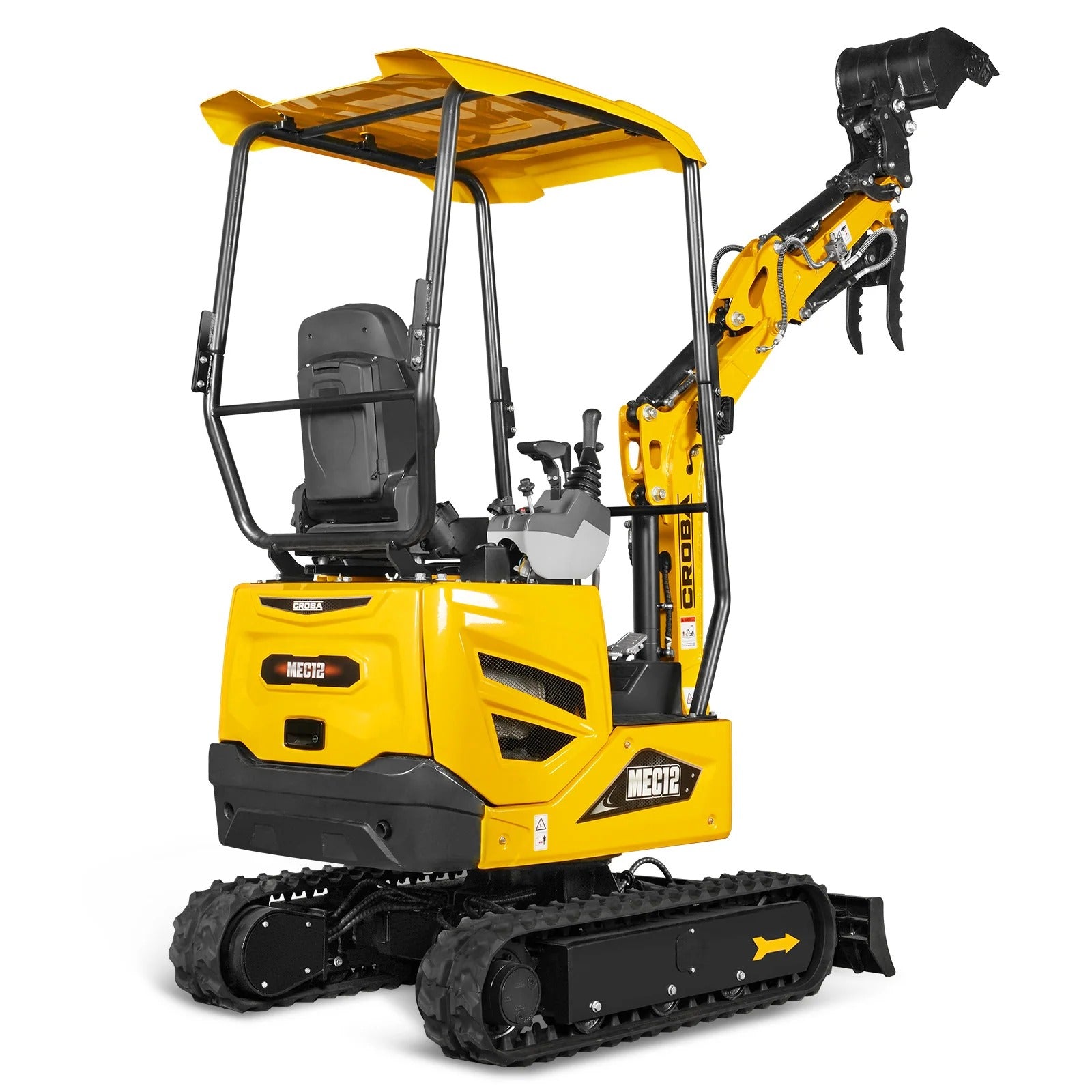

The MEC12 mini excavator is designed for efficient operation in narrow lanes, alleys, backyards, gardens, and other confined spaces. Its compact size makes it ideal for working in tight areas where larger equipment may not be practical.

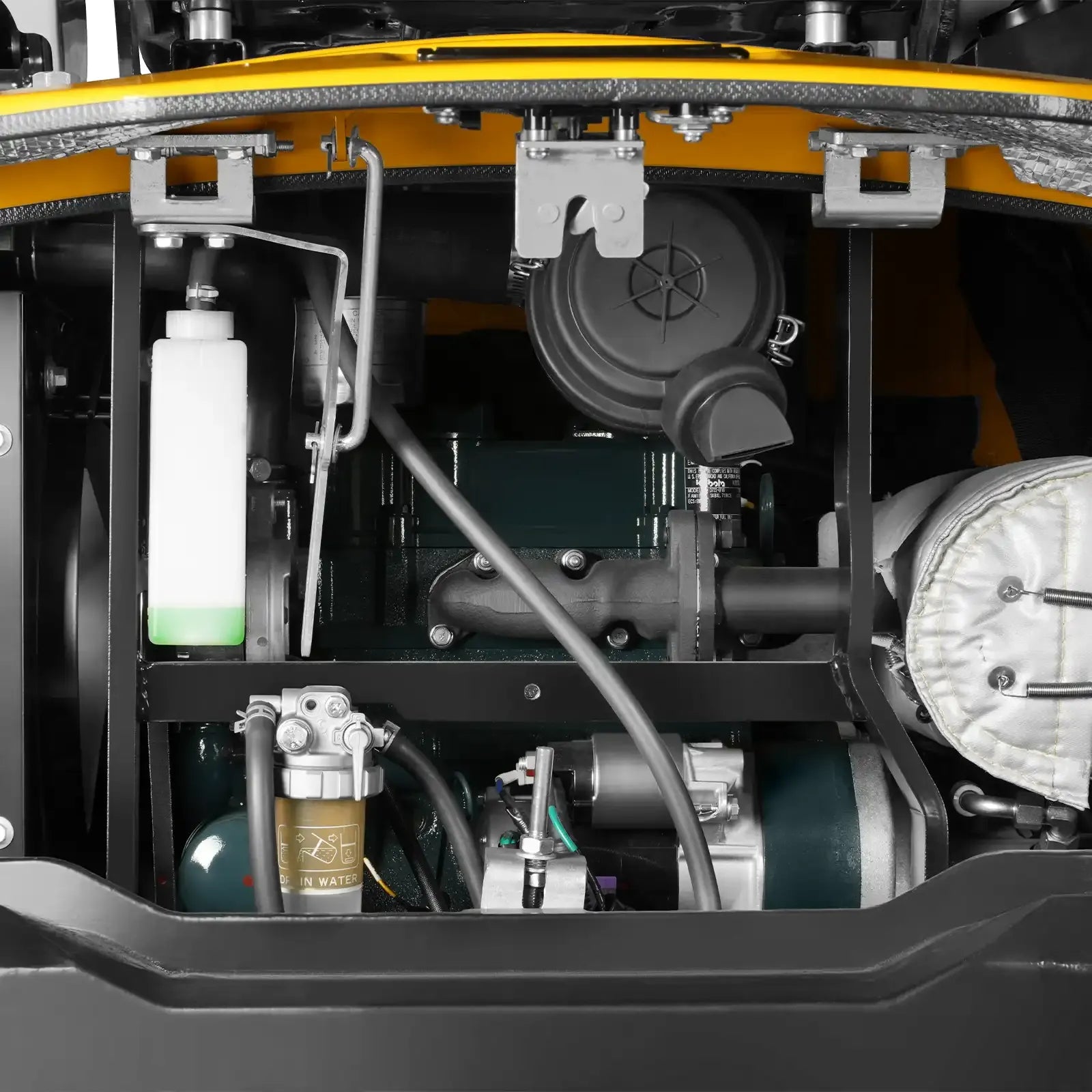

Powered by a Kubota D722 engine, this machine delivers dependable performance with a high compression ratio for improved fuel efficiency.

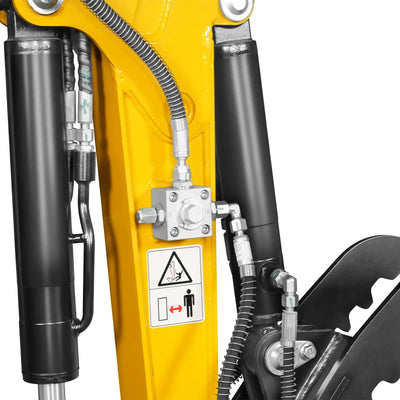

The excavator features an enhanced hydraulic system capable of supporting high-flow attachments such as augers, rippers, and mulcher heads (not included), allowing it to handle a wide range of tasks including concrete work and vegetation management.

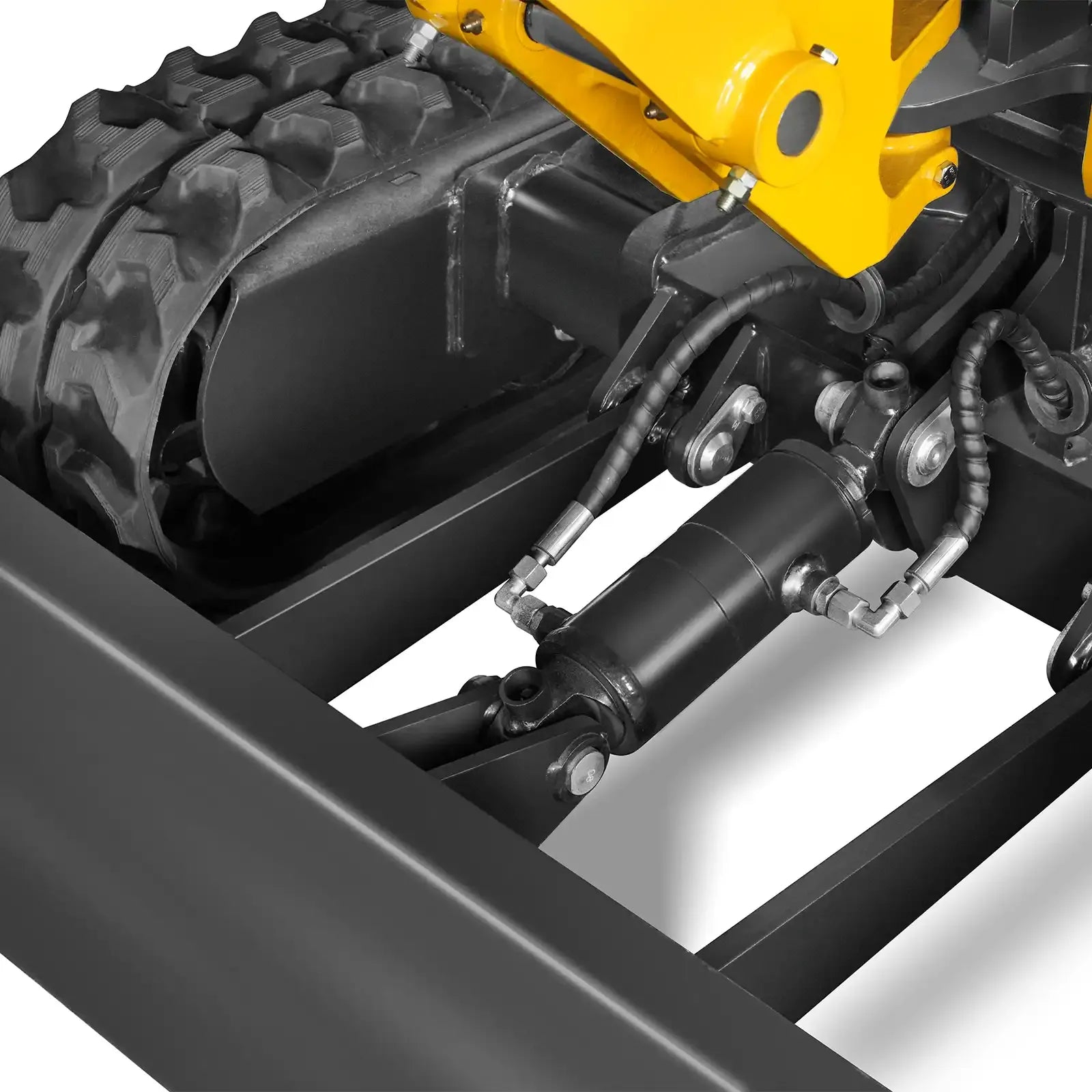

A retractable and extendable track system allows operators to adjust the machine's width for better stability on uneven terrain or to pass through narrow access points.
Equipped with two-speed travel modes (high and low), the MEC12 provides flexibility for both precise operation and faster movement across job sites.

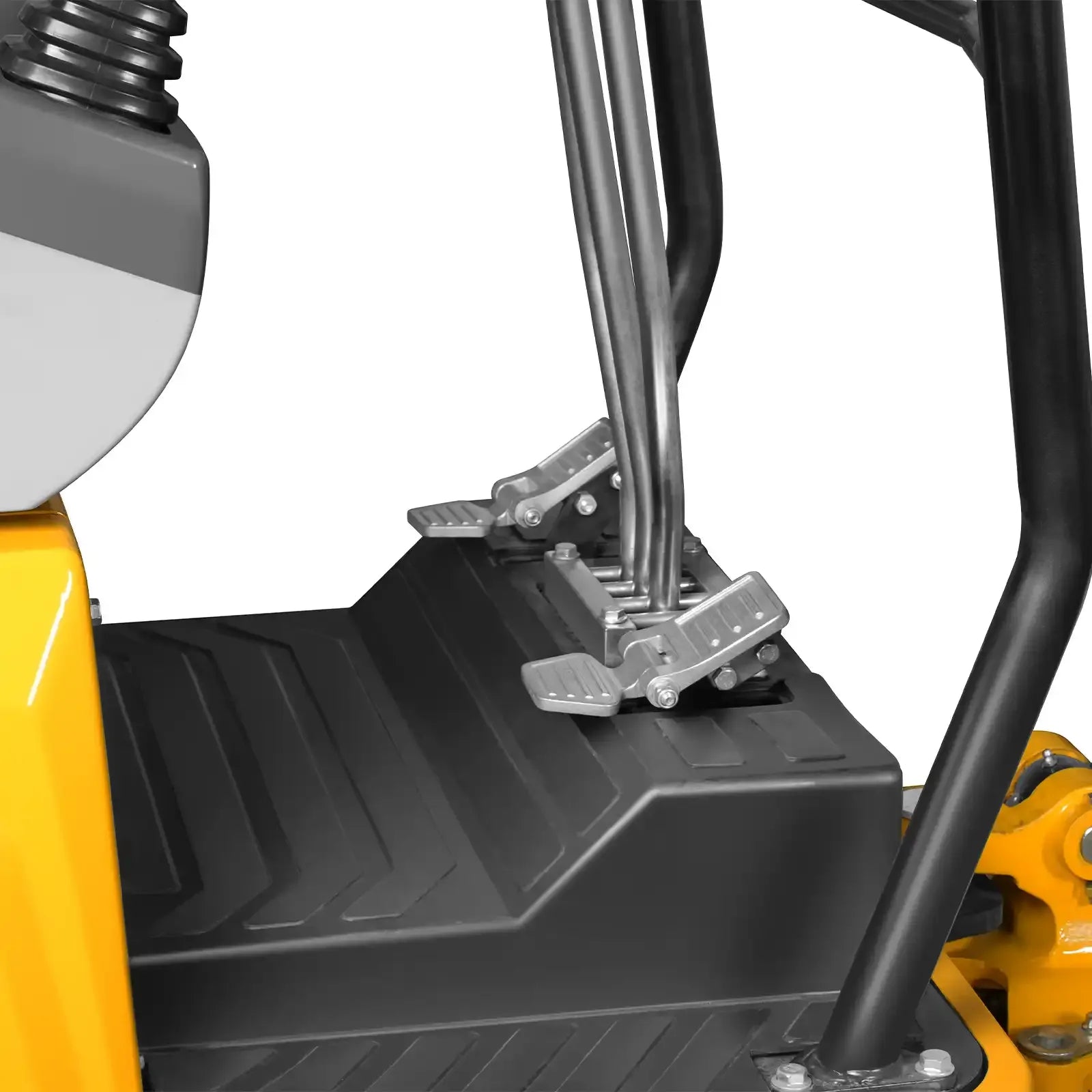

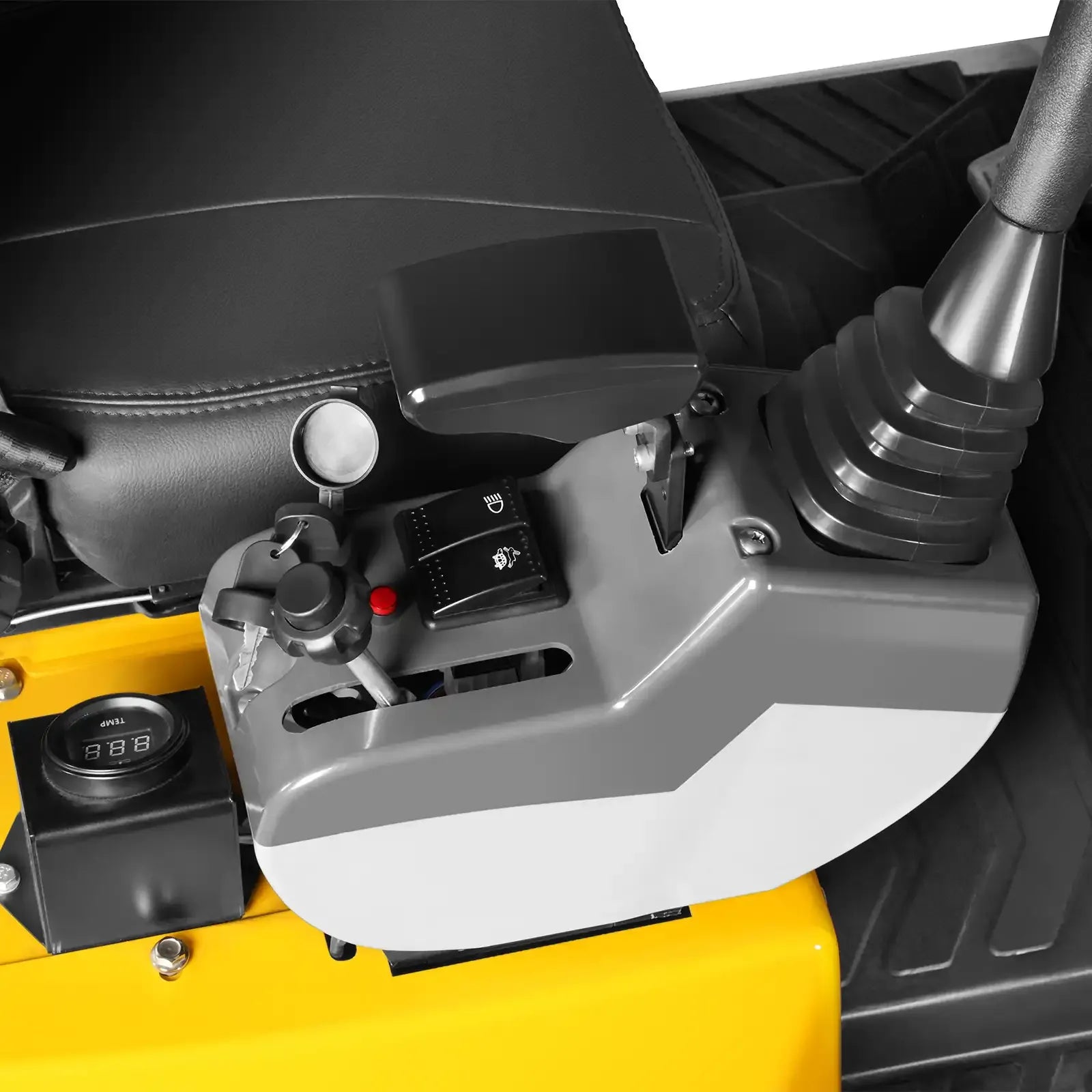

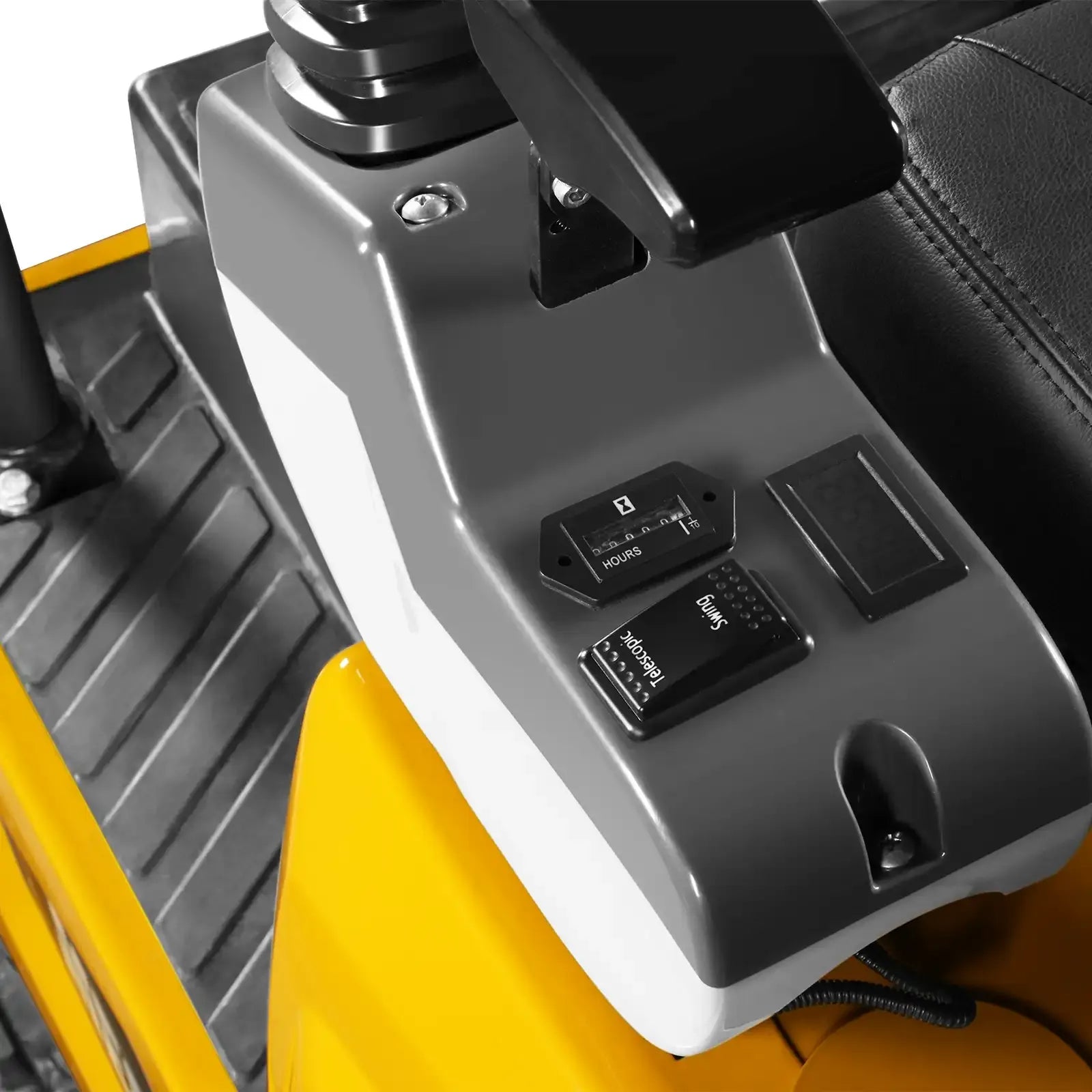

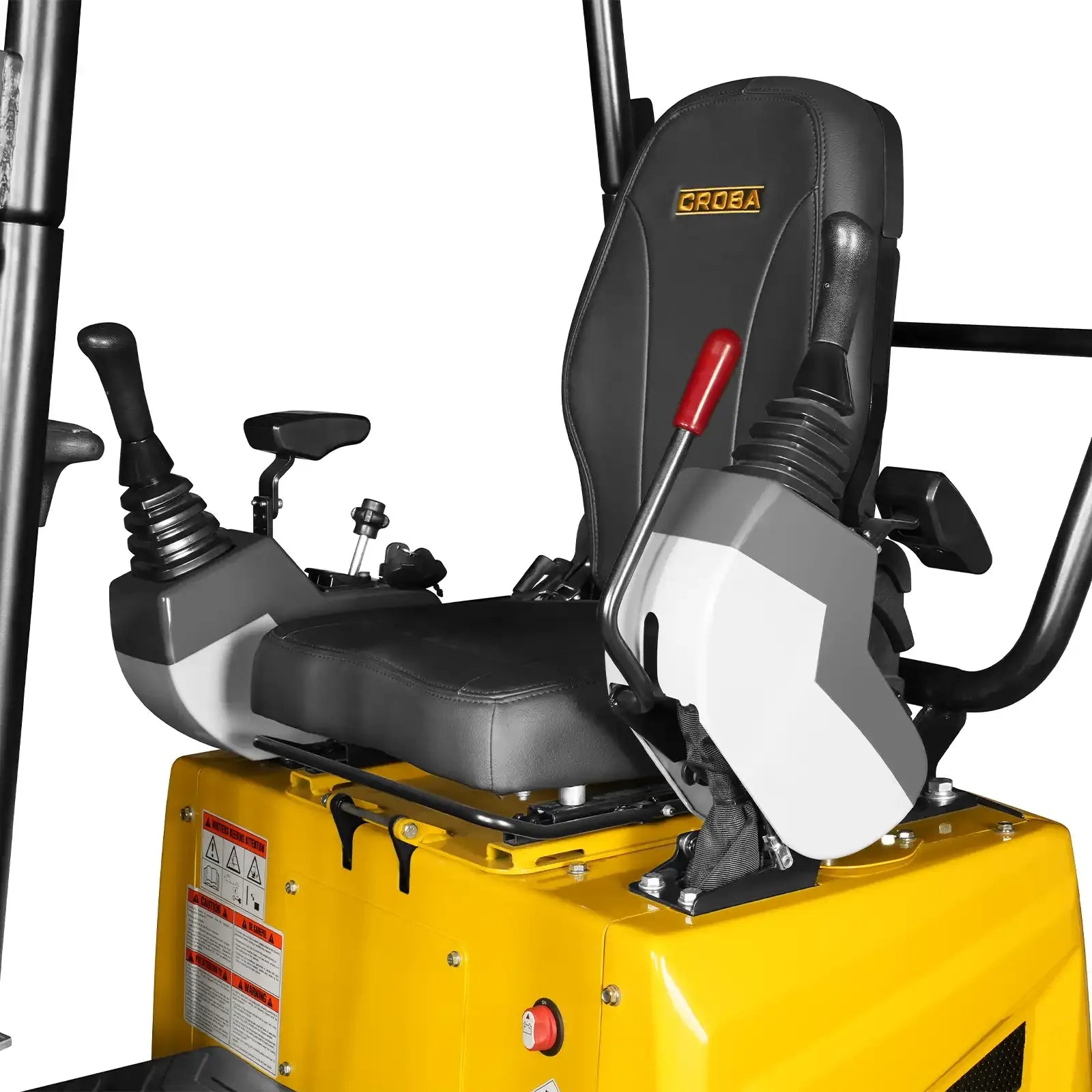

For operator comfort, the machine includes a high-back seat designed to reduce fatigue during extended working hours. Pilot-operated control levers provide smooth, responsive, and precise handling for improved ease of operation.

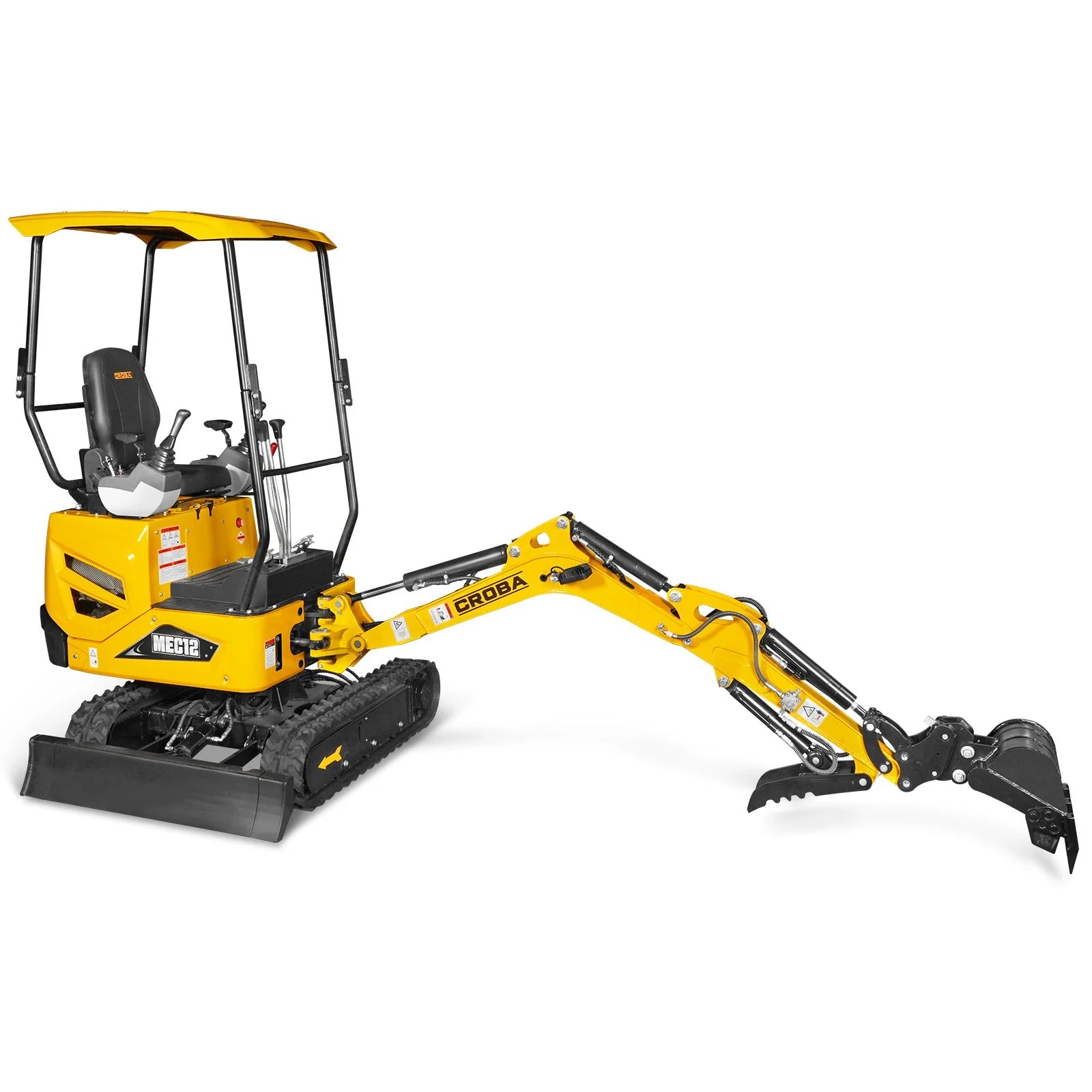

With a digging depth of up to 65.7 inches and a maximum ground digging radius of 118.7 inches, this excavator can reach tight or difficult areas without frequent repositioning.

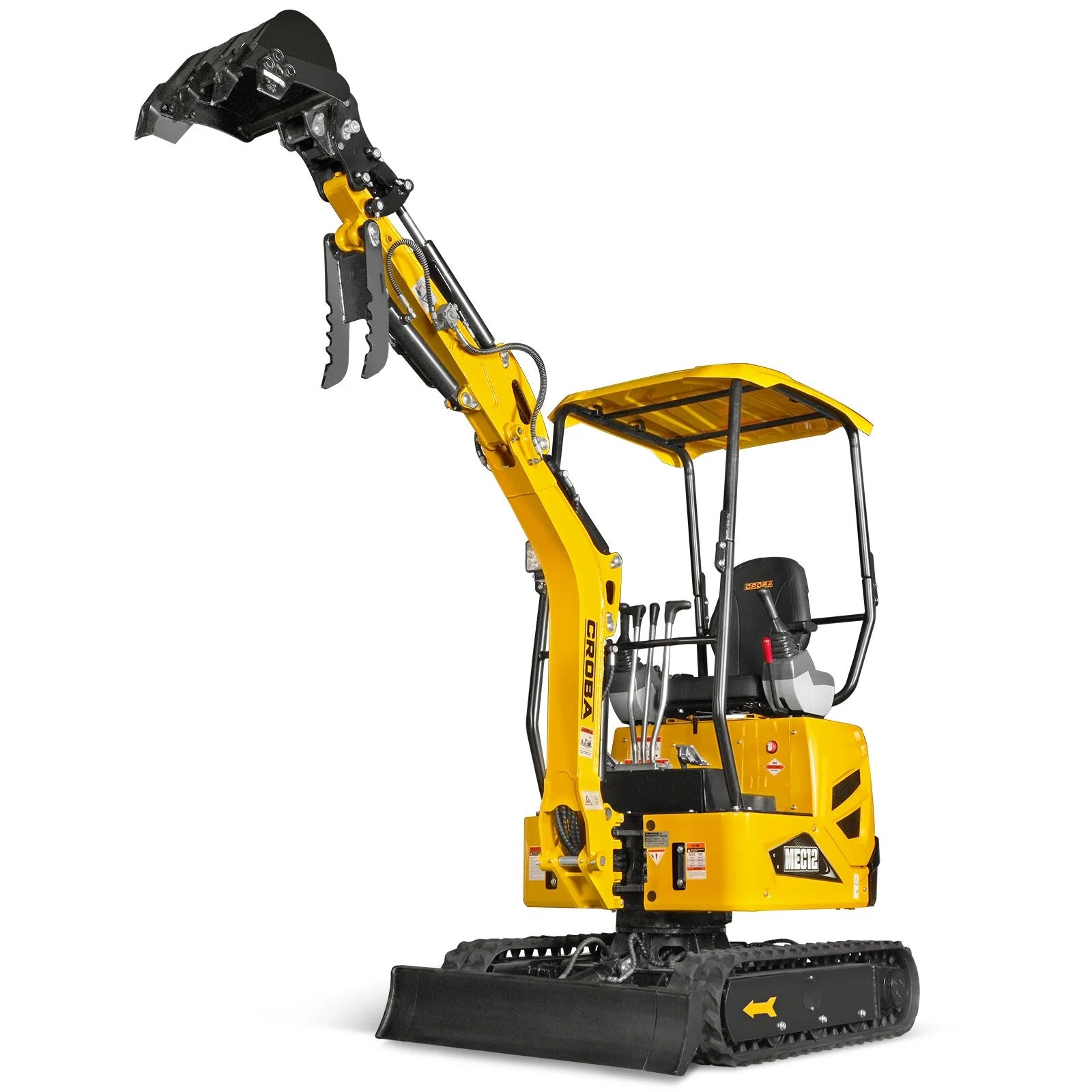

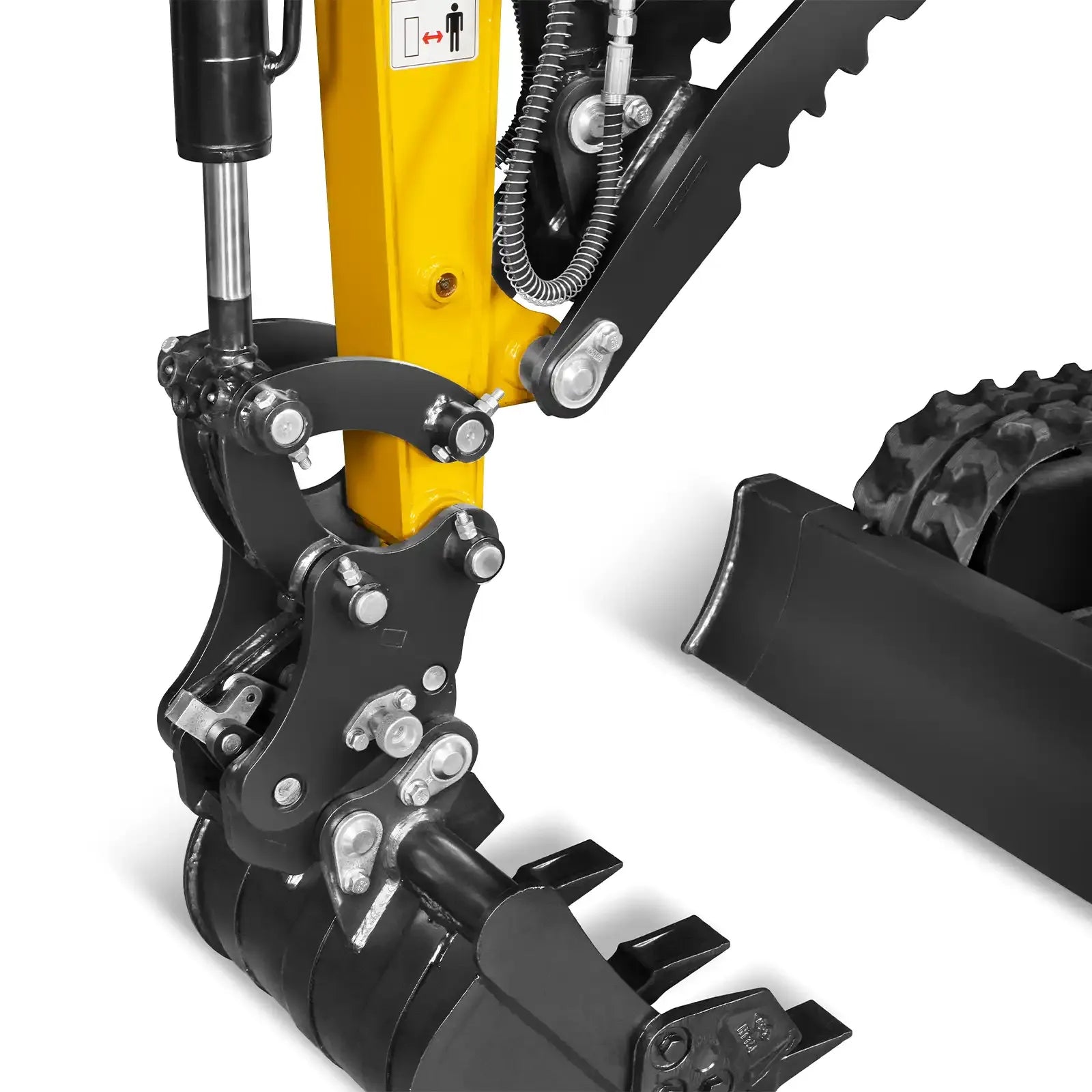

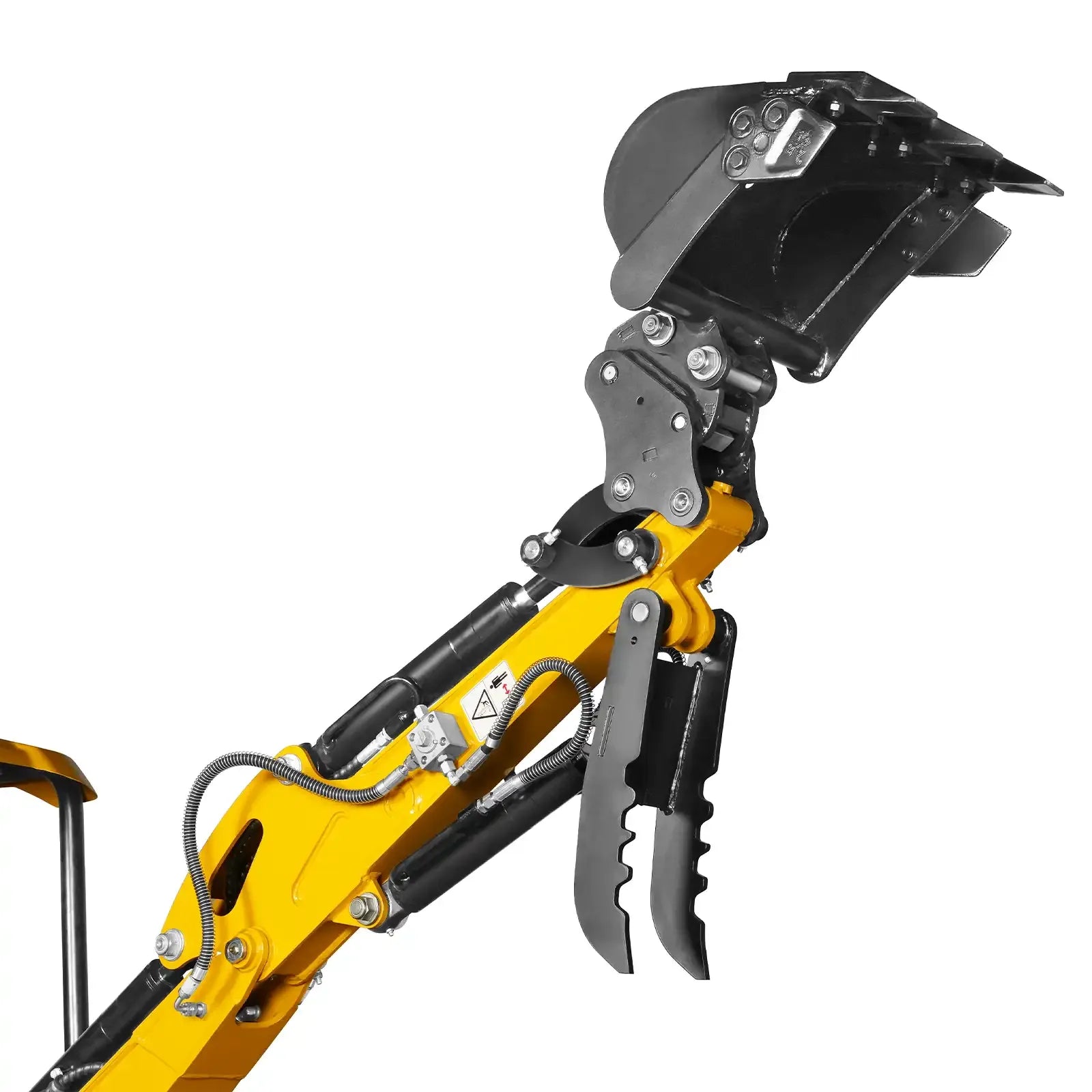

A hydraulic thumb is included for convenient handling of rocks, branches, and debris, with adjustable positioning directly from the operator's seat.
The unit supports full 360-degree rotation, allowing for efficient operation and maximum flexibility on the job site.
| Specifications | Details |
|---|---|
| Engine Model | Kubota D722 |
| No. of Cylinders | 3 |
| Stroke | 2.68 in |
| Bore | 2.64 in |
| Rated Speed | 2500 RPM |
| Displacement | 43.88 in³ |
| Engine Output | 13.7 HP |
| Engine Warranty | 2 Years |
| Travel Speed – High | 2.24 mph |
| Travel Speed – Low | 1.12 mph |
| Maximum Traction Force – Low Speed | 2923 lbf |
| Ground Clearance | 15.9 in |
| Ground Pressure | 5.1 psi |
| Gradeability – Maximum | 30° |
| Operating Weight | 2700 lb |
| Hydraulic System Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
| Max. Discharge Flow | 4.65 GPM |
| Swing Speed | 8 RPM |
| Tail Swing Radius | 48.1 in |
| Boom Length | 52 in |
| Arm Length | 35 in |
| Bucket Digging Force | 1960 lbf |
| Arm Digging Force | 875 lbf |
| Fuel Tank | 2.4 gal |

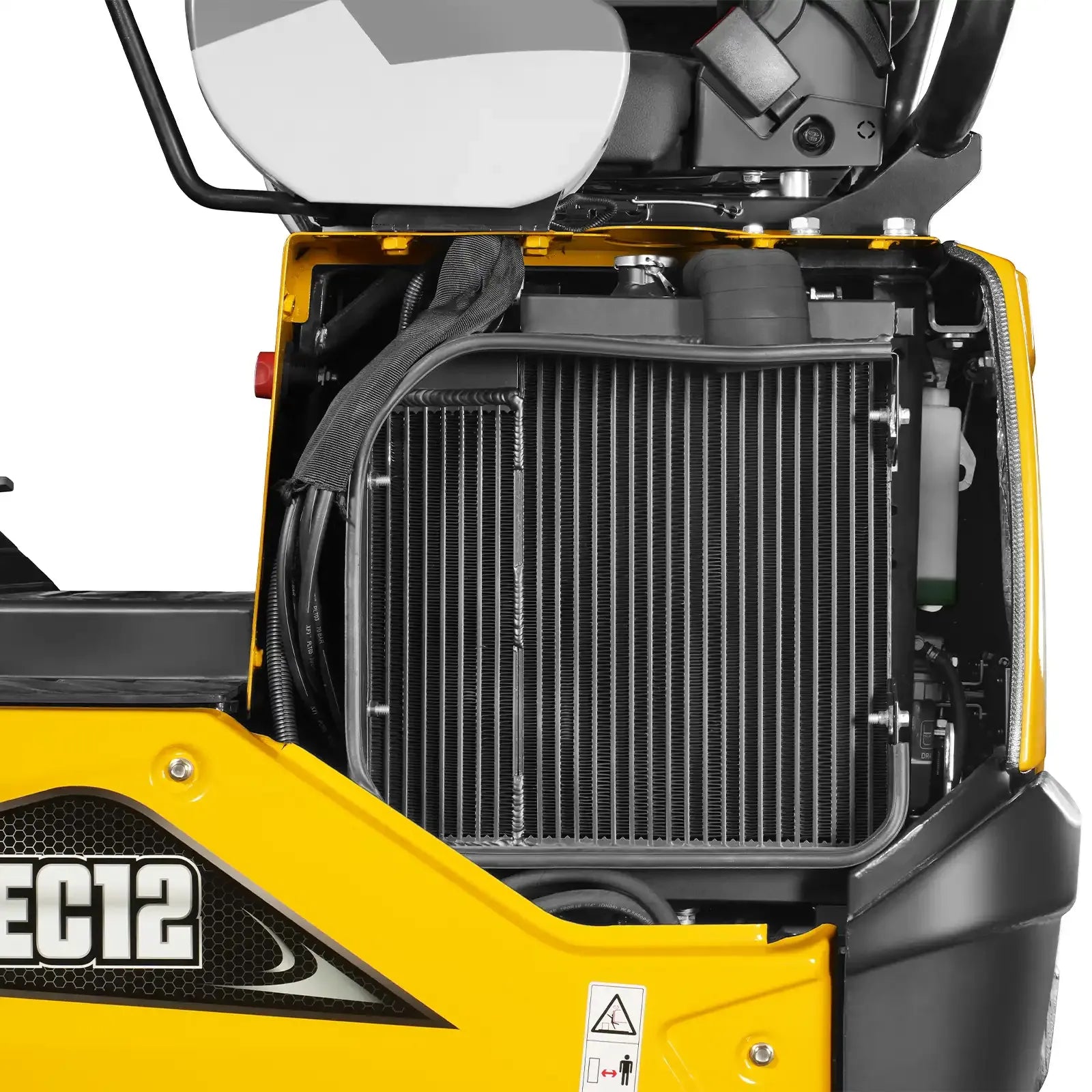

| Cooling System | 1.1 gal |
| Engine Oil | 0.7 gal |
| Hydraulic Oil Tank | 3.2 gal |
| System Capacity | 4.8 gal |
| Bucket Capacity | 0.7 ft³ |
| Bucket Width | 15 in |
| Max. Digging Height | 111.2 in |
| Max. Dumping Height | 81.1 in |
| Max. Digging Depth | 65.7 in |
| Max. Vertical Digging Depth | 62.6 in |
| Max. Digging Radius | 119 in |
| Max. Digging Radius at Ground Level | 118.7 in |
| Min. Turning Radius of Working Device | 48.1 in |
| Max. Lift Above Ground | 5.5 in |
| Max. Drop Below Ground | 8.9 in |
| Boom Swing – Left | 53° |
| Boom Swing – Right | 40° |
| Transportation Length | 92.4 / 114.8 in |
| Overall Width (Retracted/Expanded) | 42.7 in |
| Overall Height (To Top of Cab) | 89.5 in |
| Counter Weight Ground Clearance | 16.7 in |
| Crawler Wheel Base | 42.5 in |
| Track Belt/Shoe Width | 7 in |
| Track Length | 55.5 in |
| Track Width (Retracted/Expanded) | 34.6 / 42.7 in |
| Package Method | Wood Case |
| Packing Size | 91 x 40 x 98 in |
| Machine Warranty | 1 Year |
| Weight (N.W./G.W.) | 2700 / 2978 lb |
