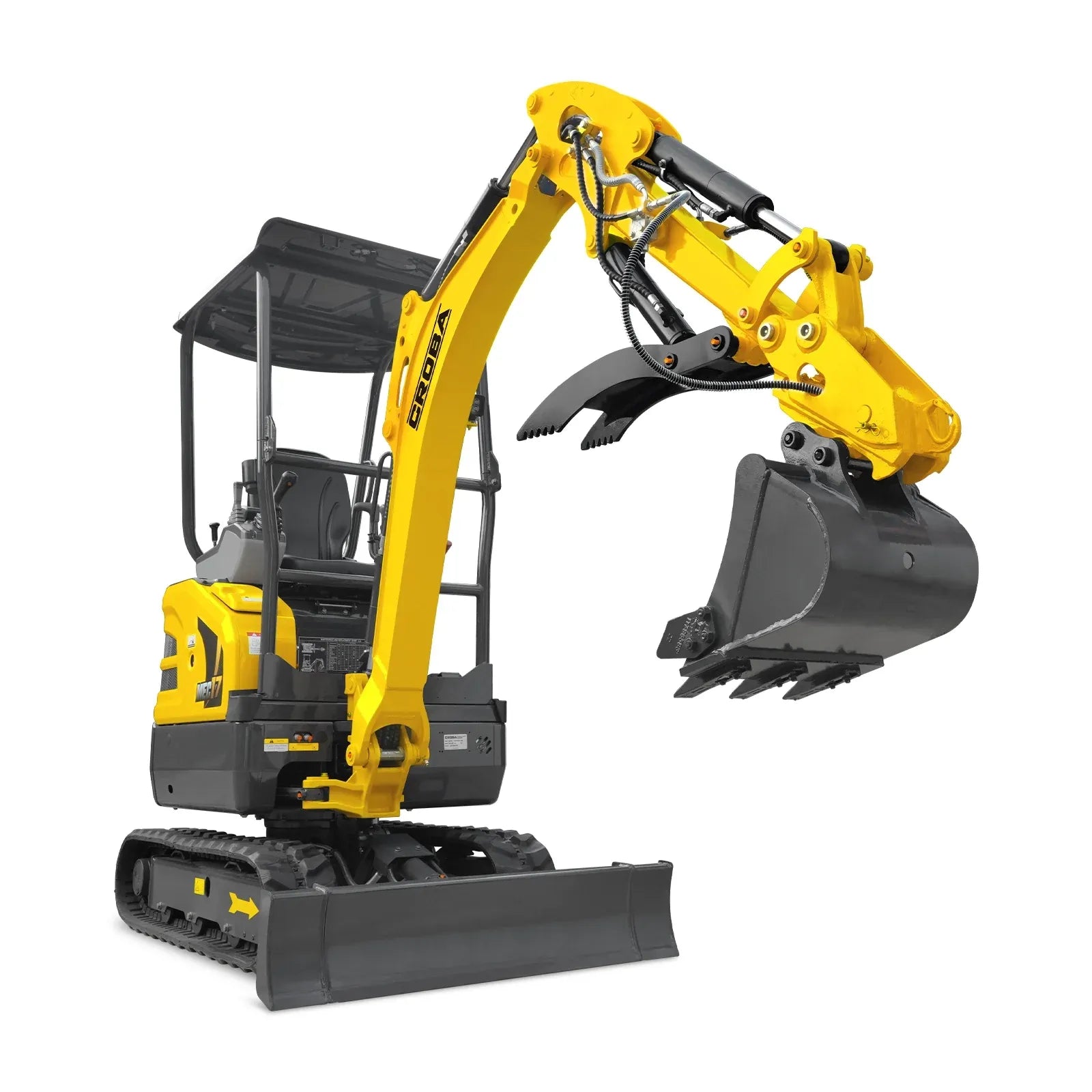

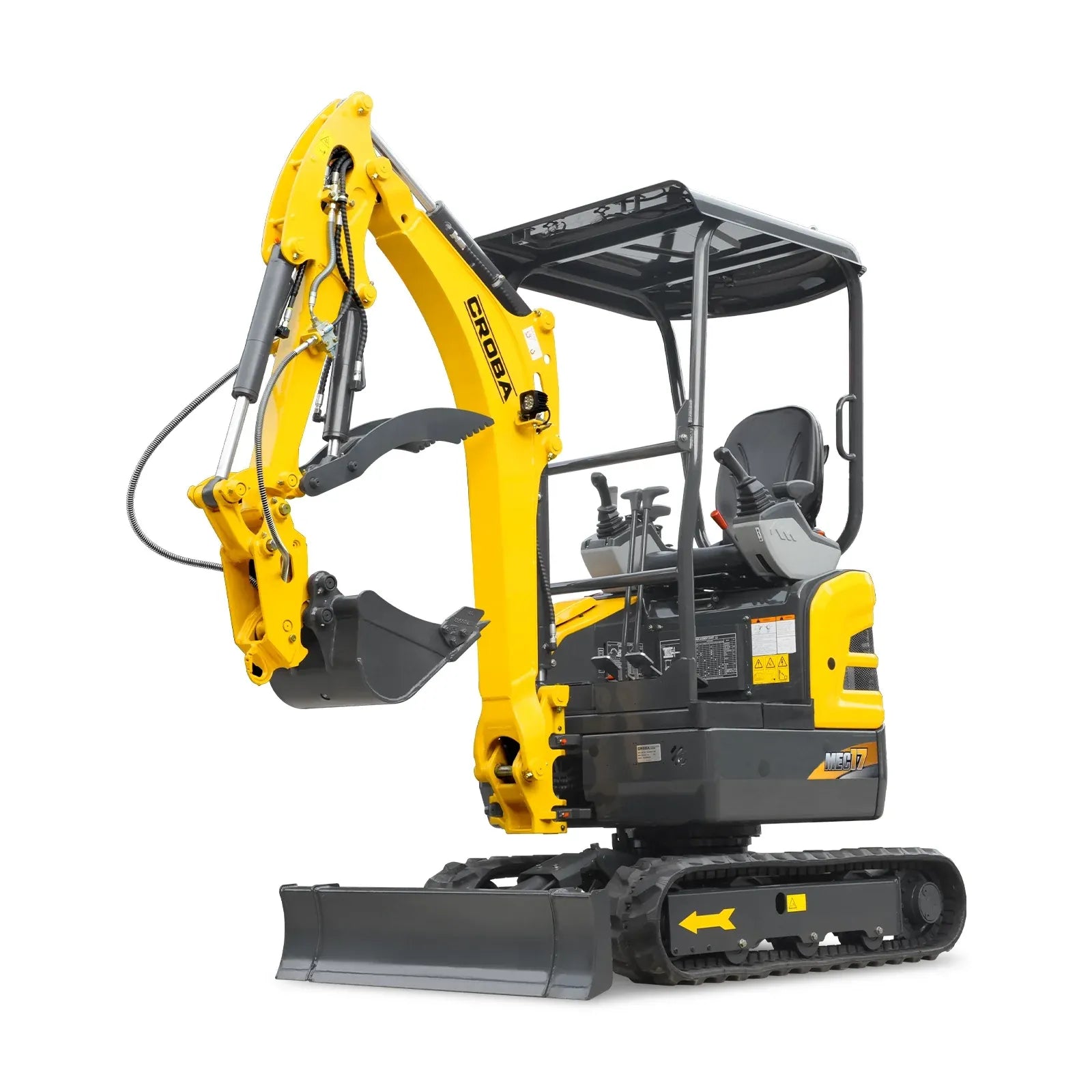

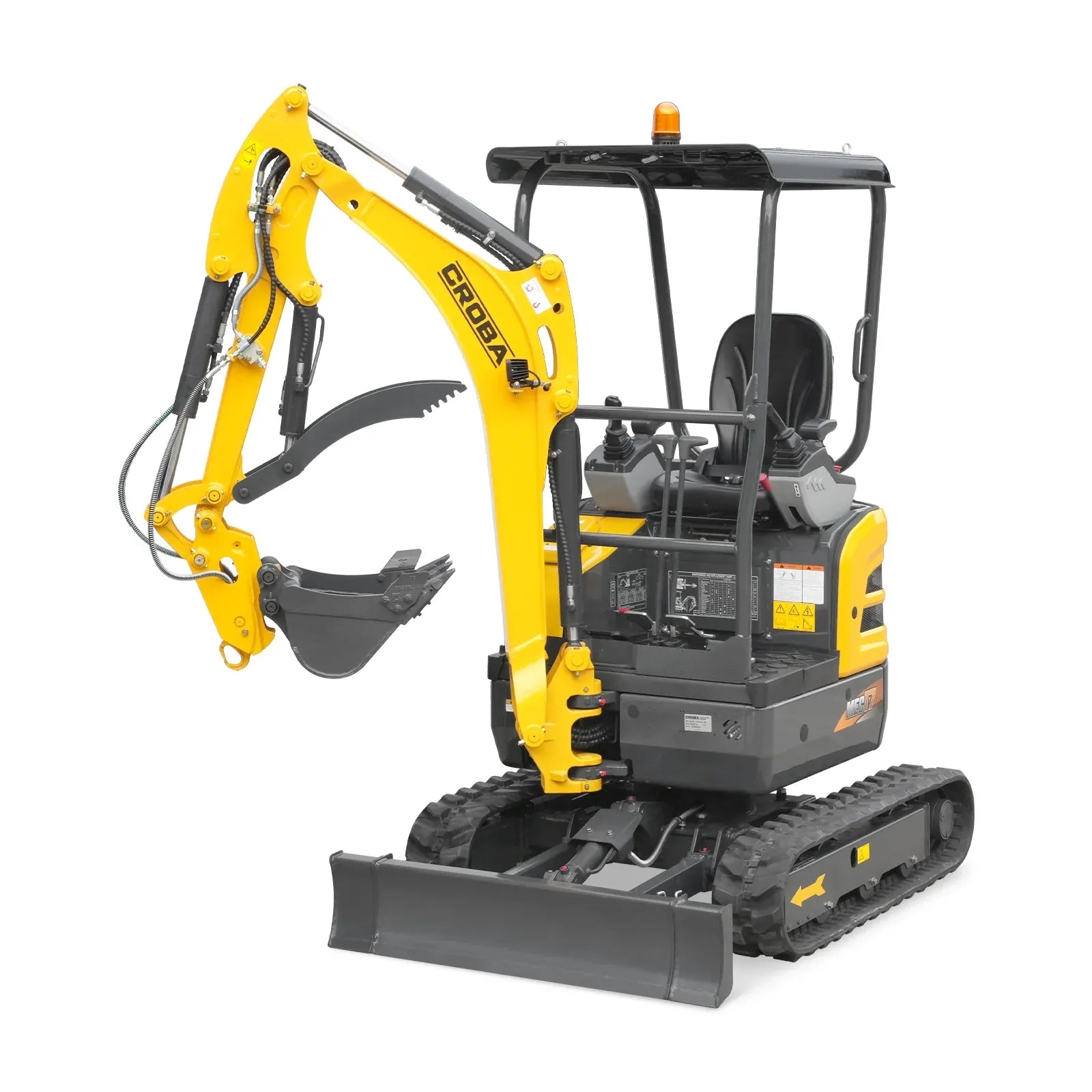

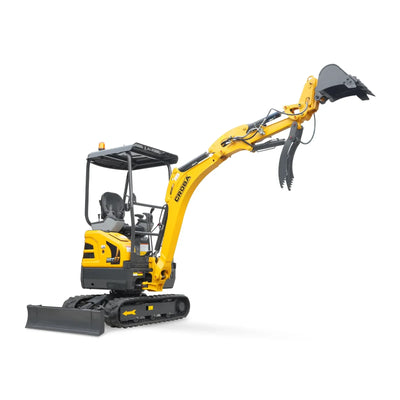

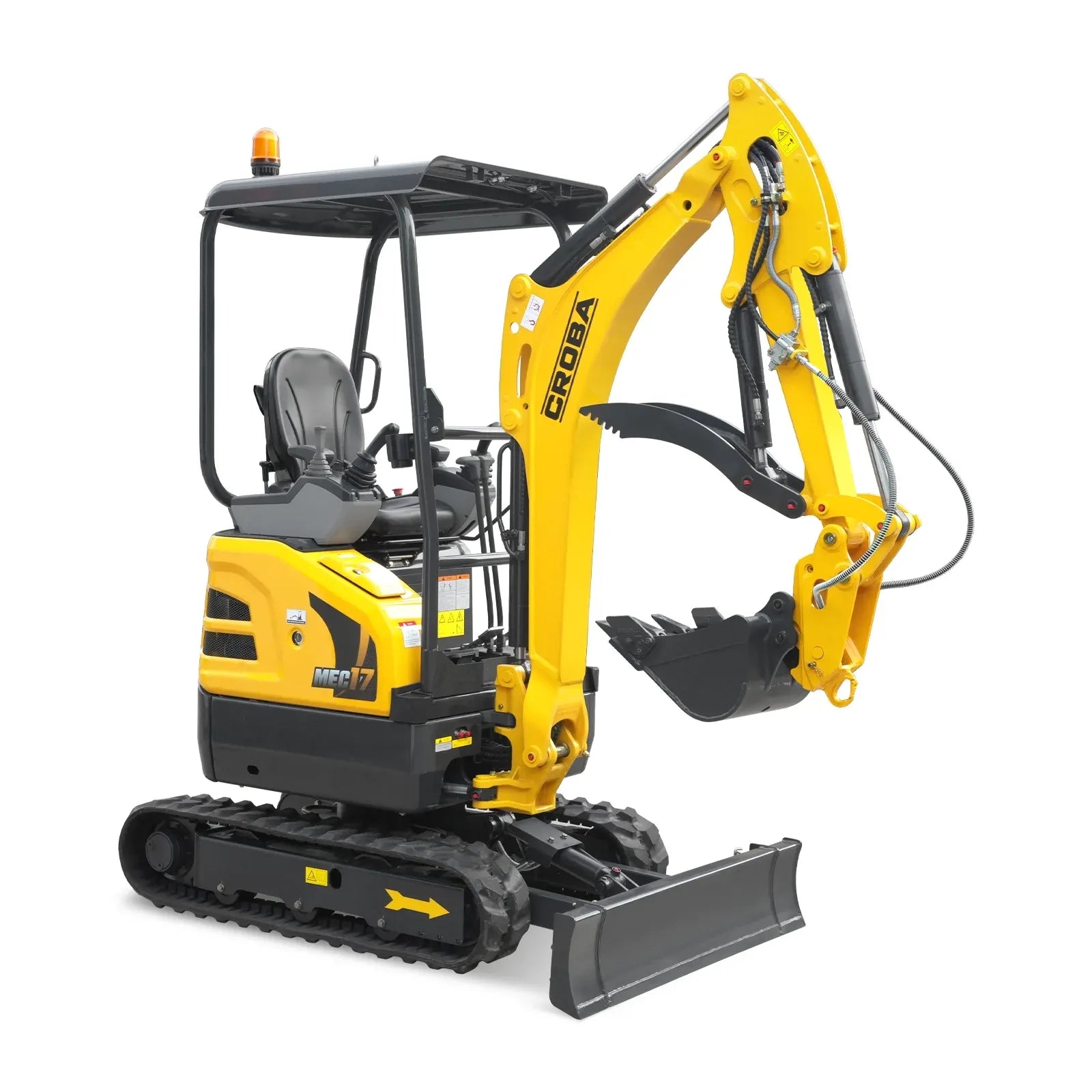

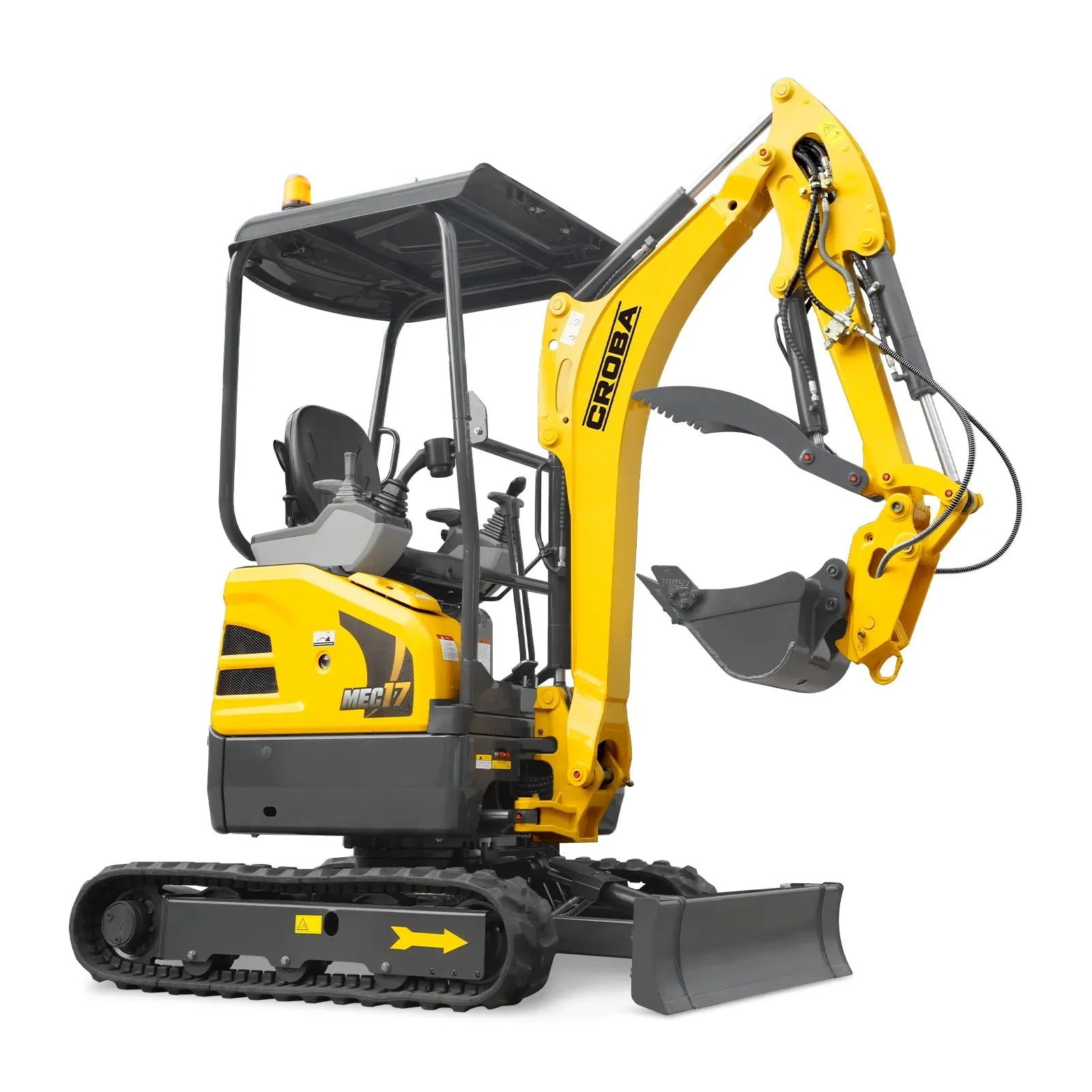

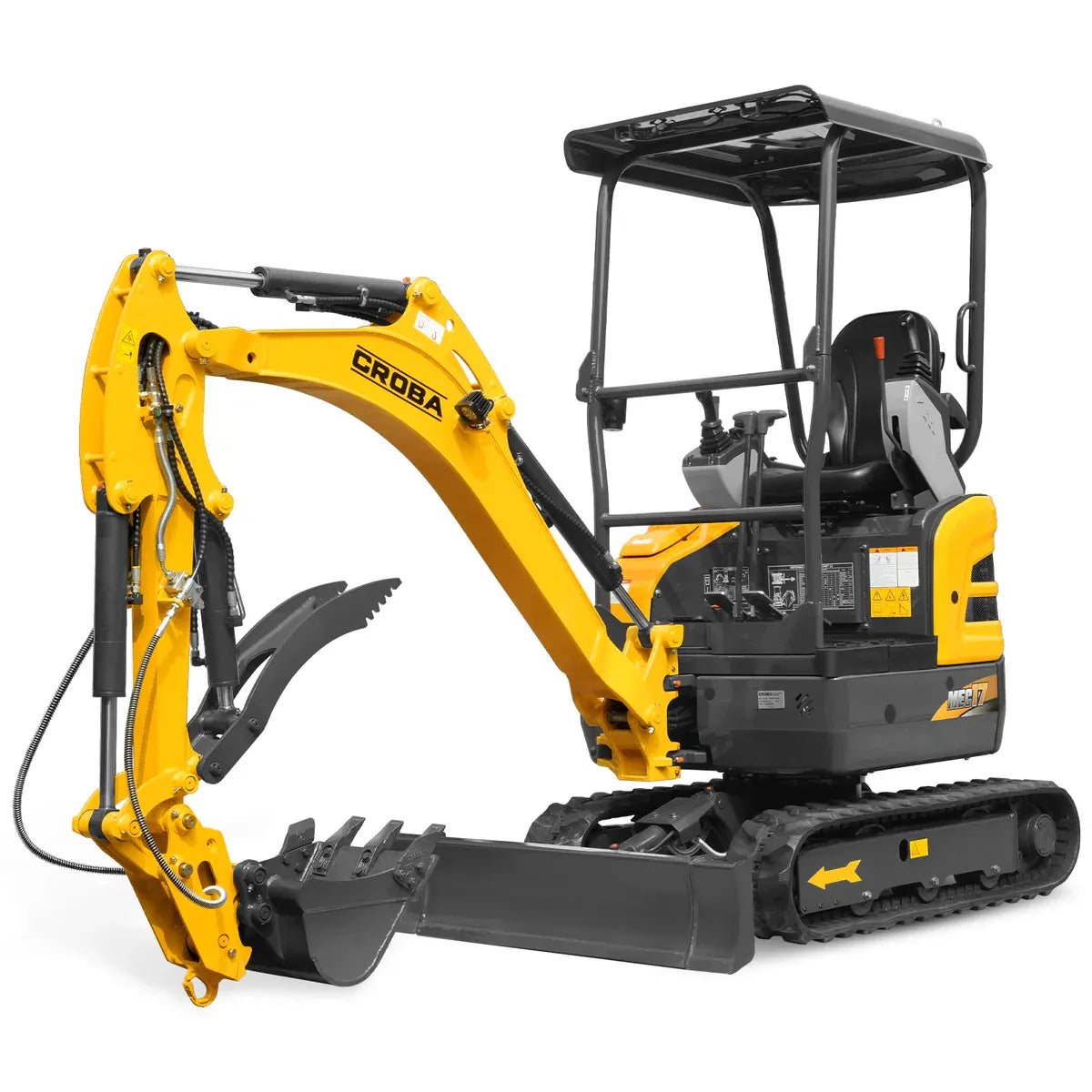

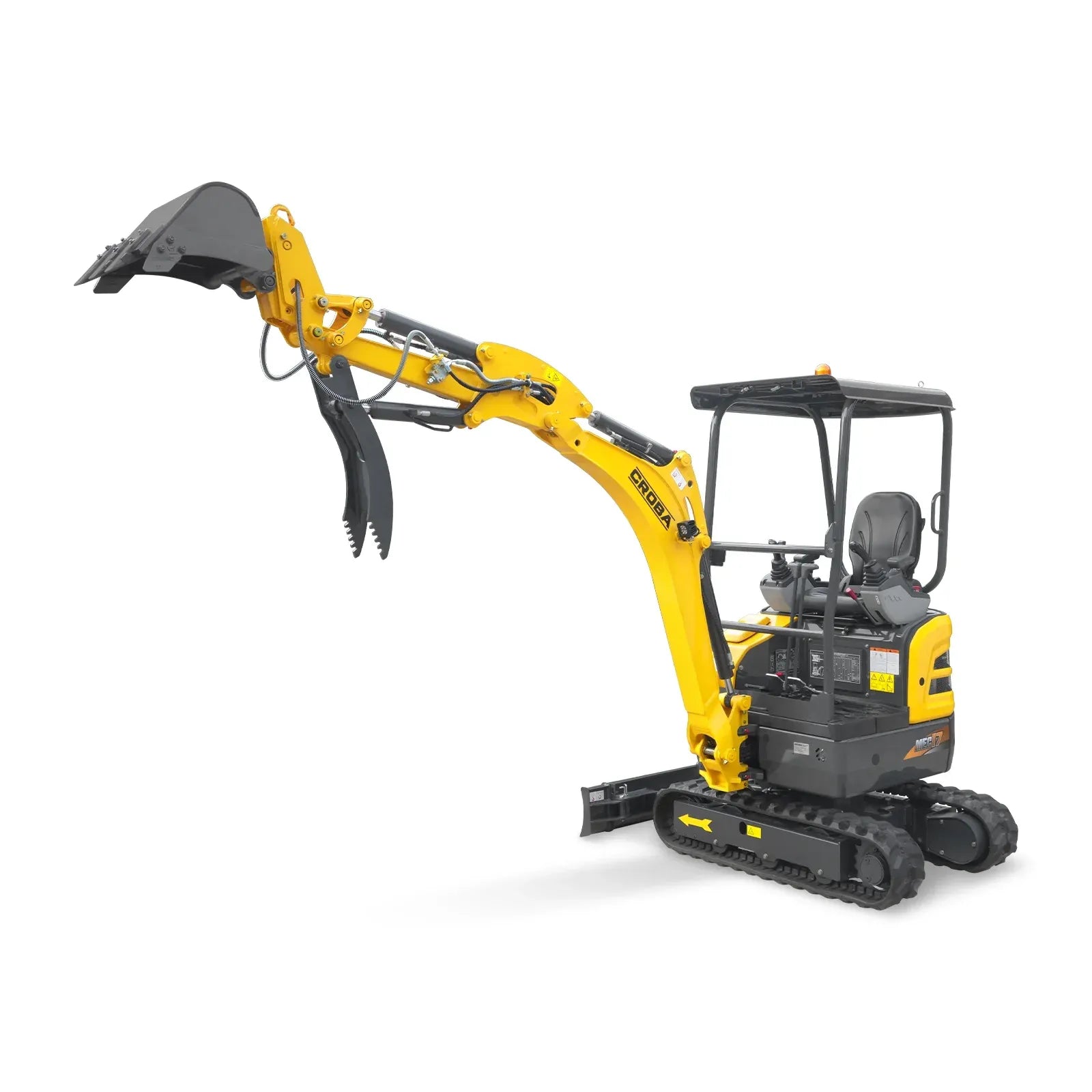

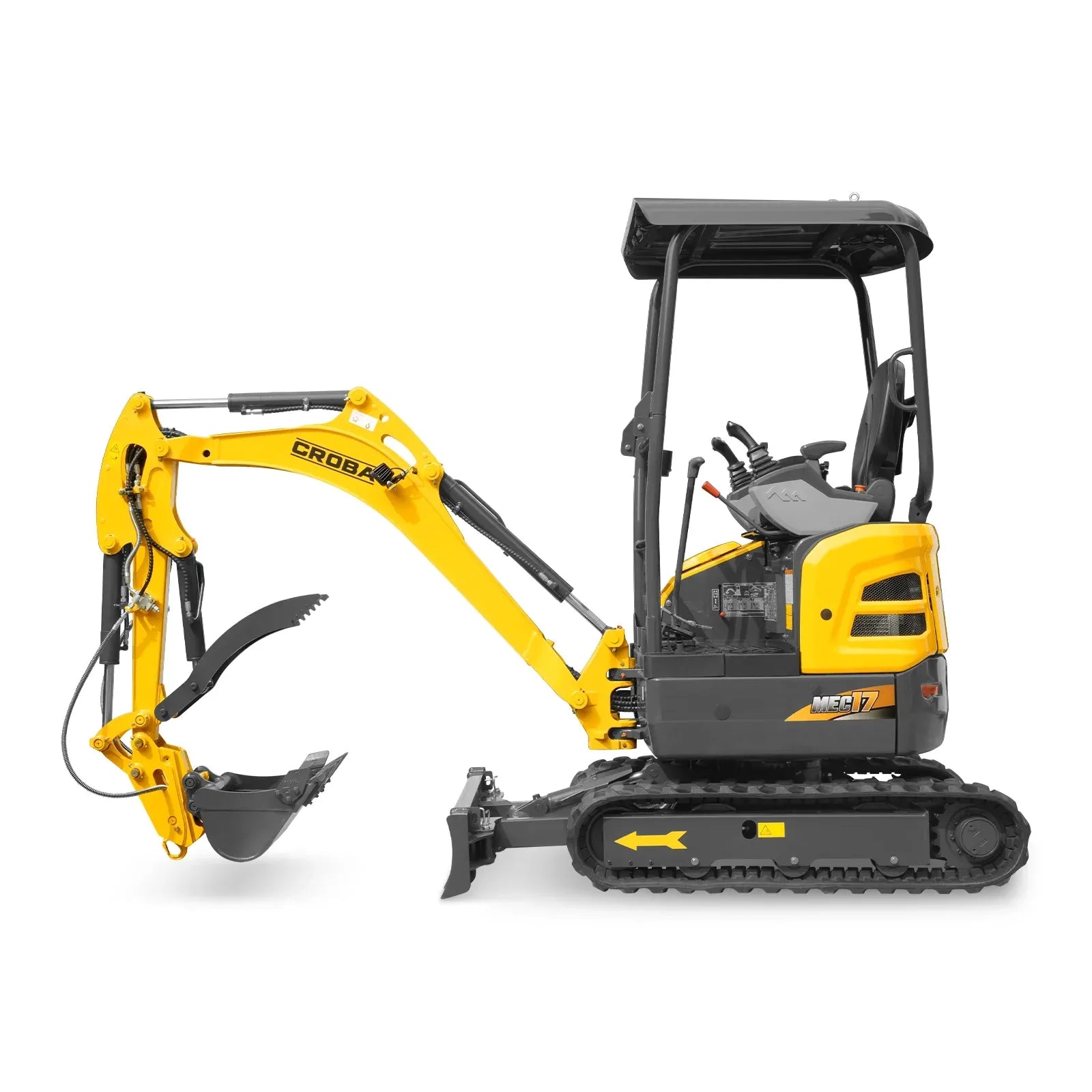

MechMaxx Mini Compact Excavator with Kubota D902 Engine, 95" Max Digging Depth, 4190 lb Operating Weight, Model MEC17PRO
SKU: 150534 | Model: MEC17PRO
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The MEC17PRO mini excavator is designed for efficient operation in narrow lanes, alleys, backyards, gardens, and other confined spaces. Its compact size and maneuverable design make it well-suited for tight job site conditions.

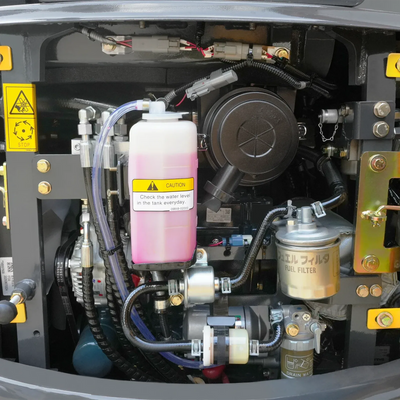

Powered by a Kubota D902 engine, this unit delivers reliable performance with a high compression ratio for improved fuel efficiency.
The excavator features an upgraded hydraulic system capable of supporting high-flow attachments such as augers, rippers, and mulcher heads (not included), allowing it to handle a wide range of tasks including concrete work and vegetation management.

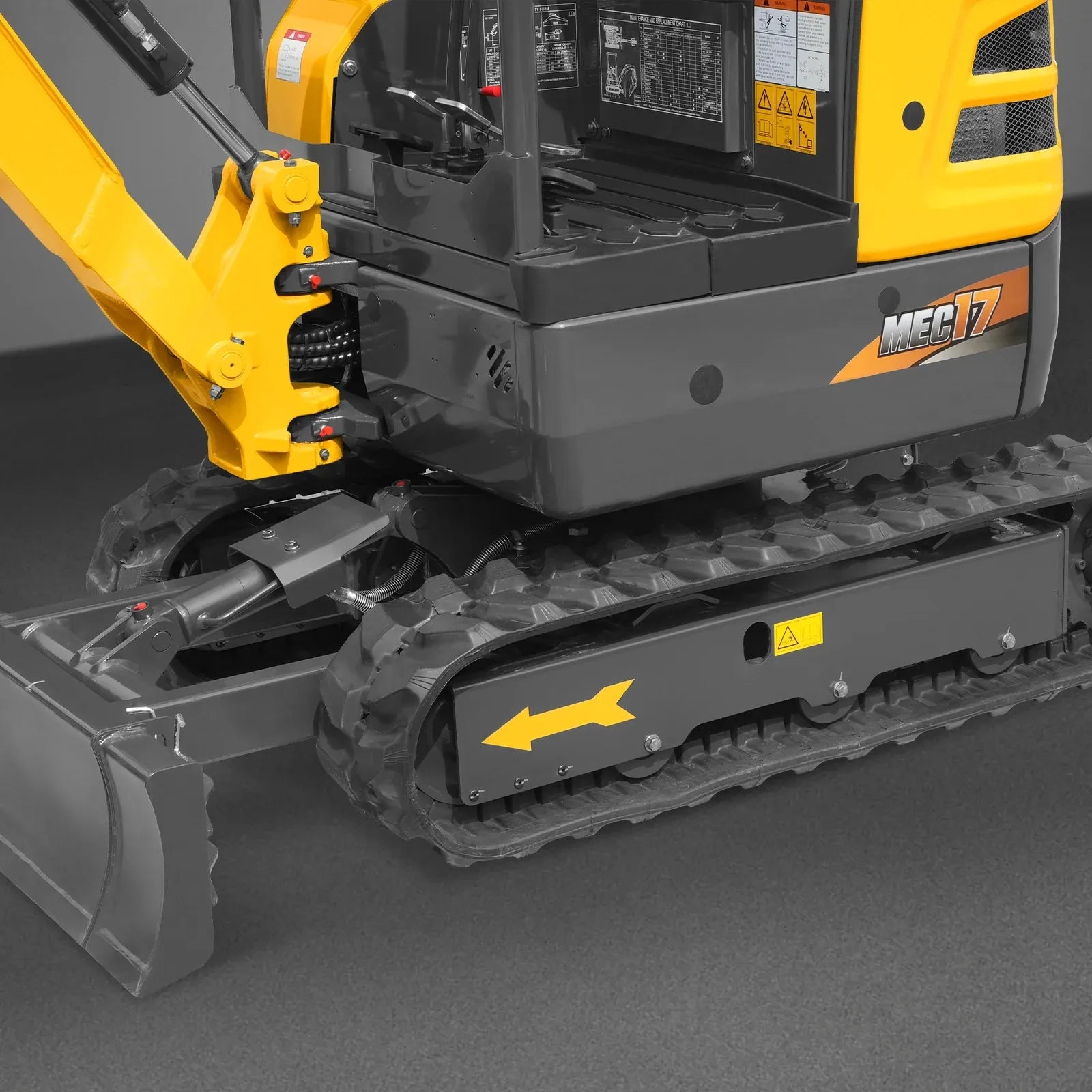

A retractable and extendable track system allows the operator to adjust the machine's width for better stability on uneven terrain or to fit through narrow access points.
It includes two-speed travel modes (high and low), providing flexibility for both precise operation and faster movement across the job site.

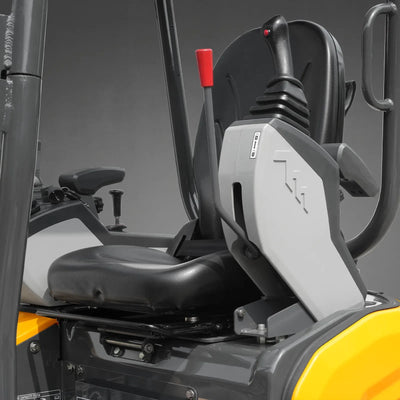

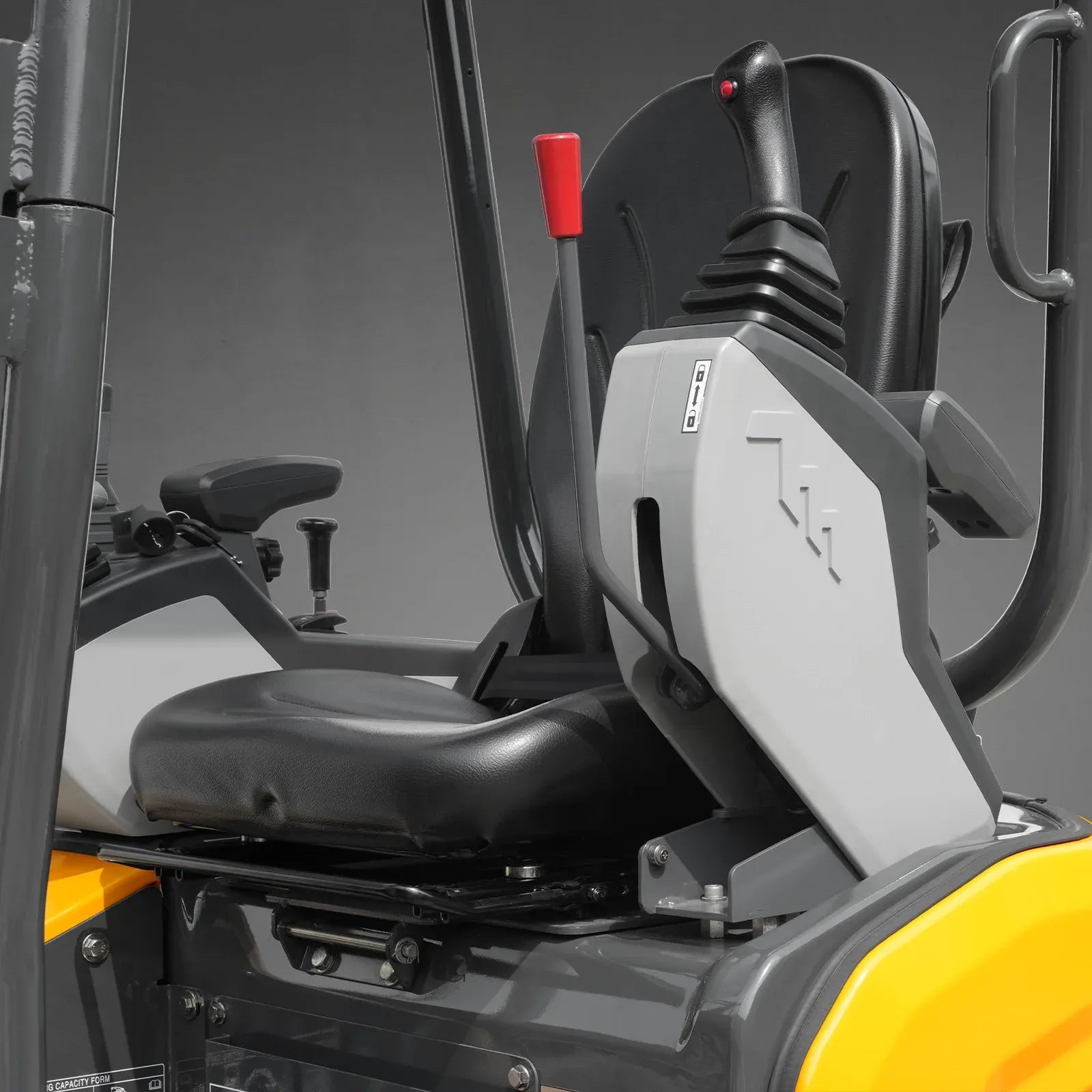

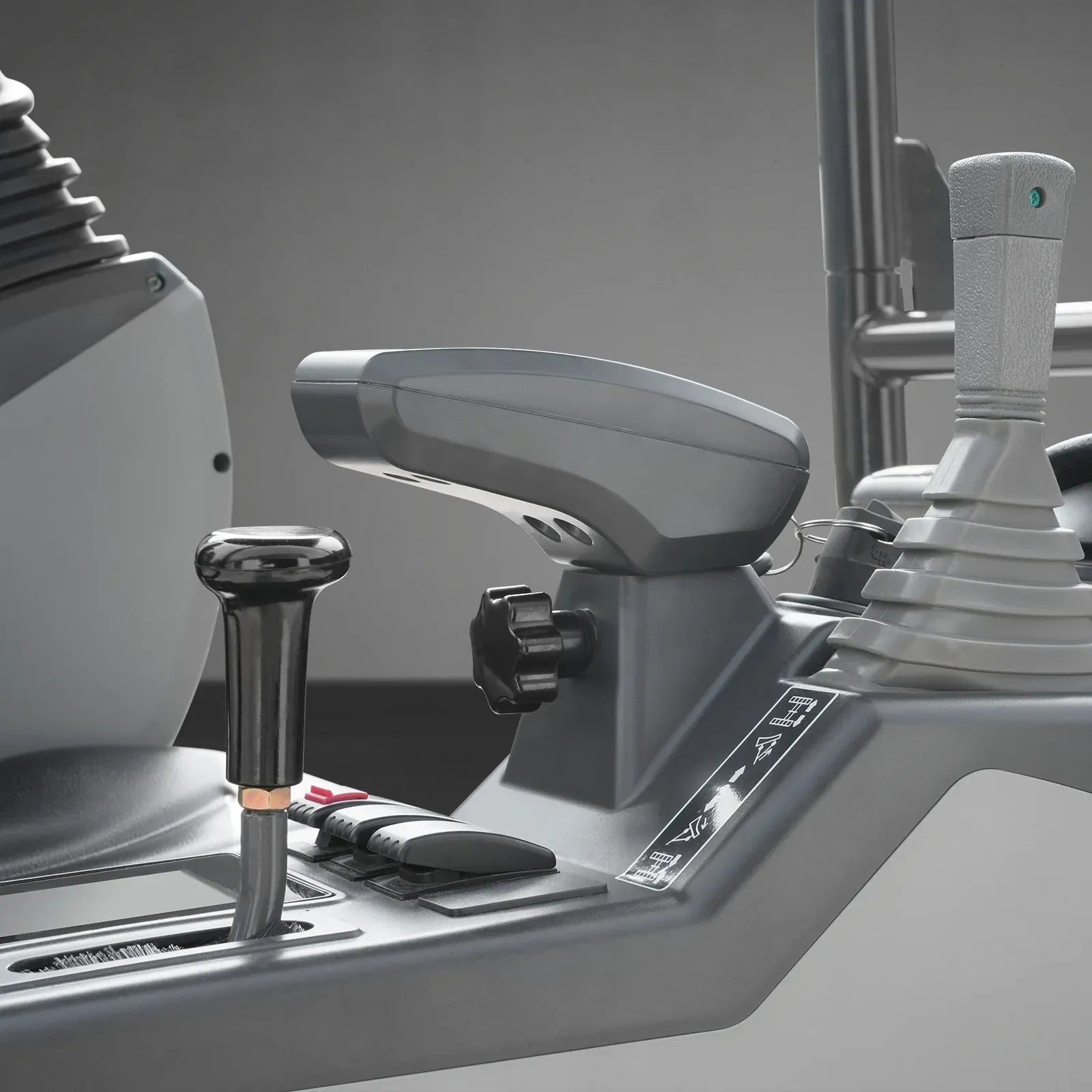

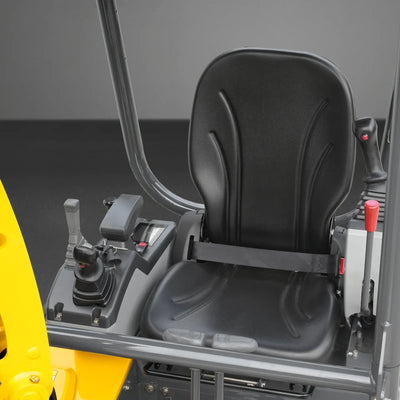

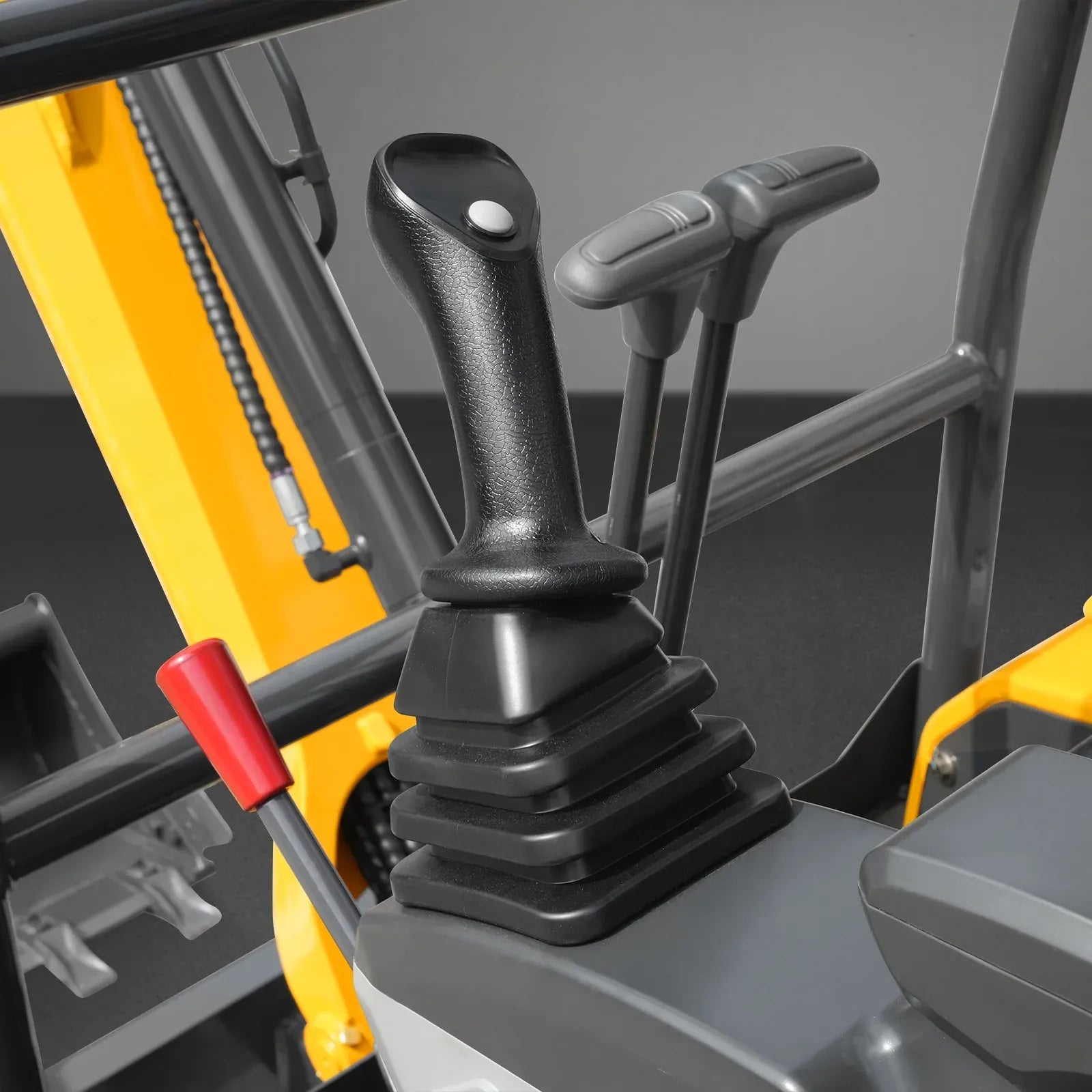

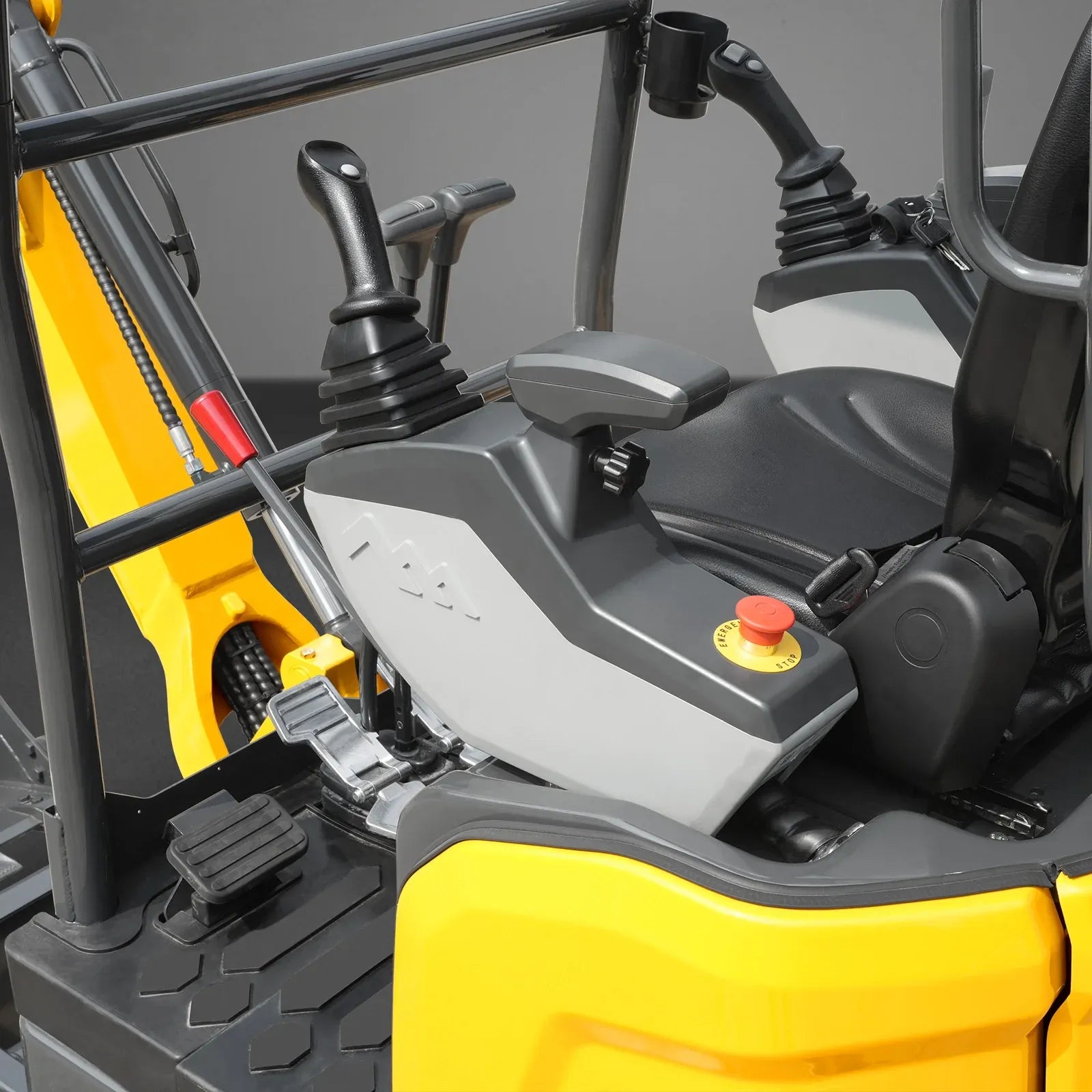

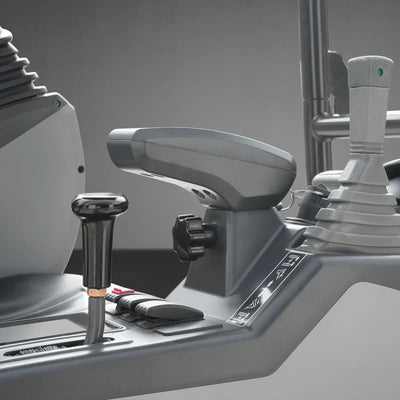

For operator comfort, the machine is equipped with a high-back seat designed to reduce fatigue during extended use. Pilot-operated control levers provide smooth, responsive, and precise handling for improved ease of operation.
The zero-tail swing design, combined with an adjustable undercarriage and boom swing function, enhances maneuverability and allows for efficient operation in confined areas.
An integrated LCD display provides real-time monitoring and simplifies operation.
Built-in hydraulic hose routing helps protect components from damage during use, while durable Gates hydraulic hoses ensure reliable performance and long service life.

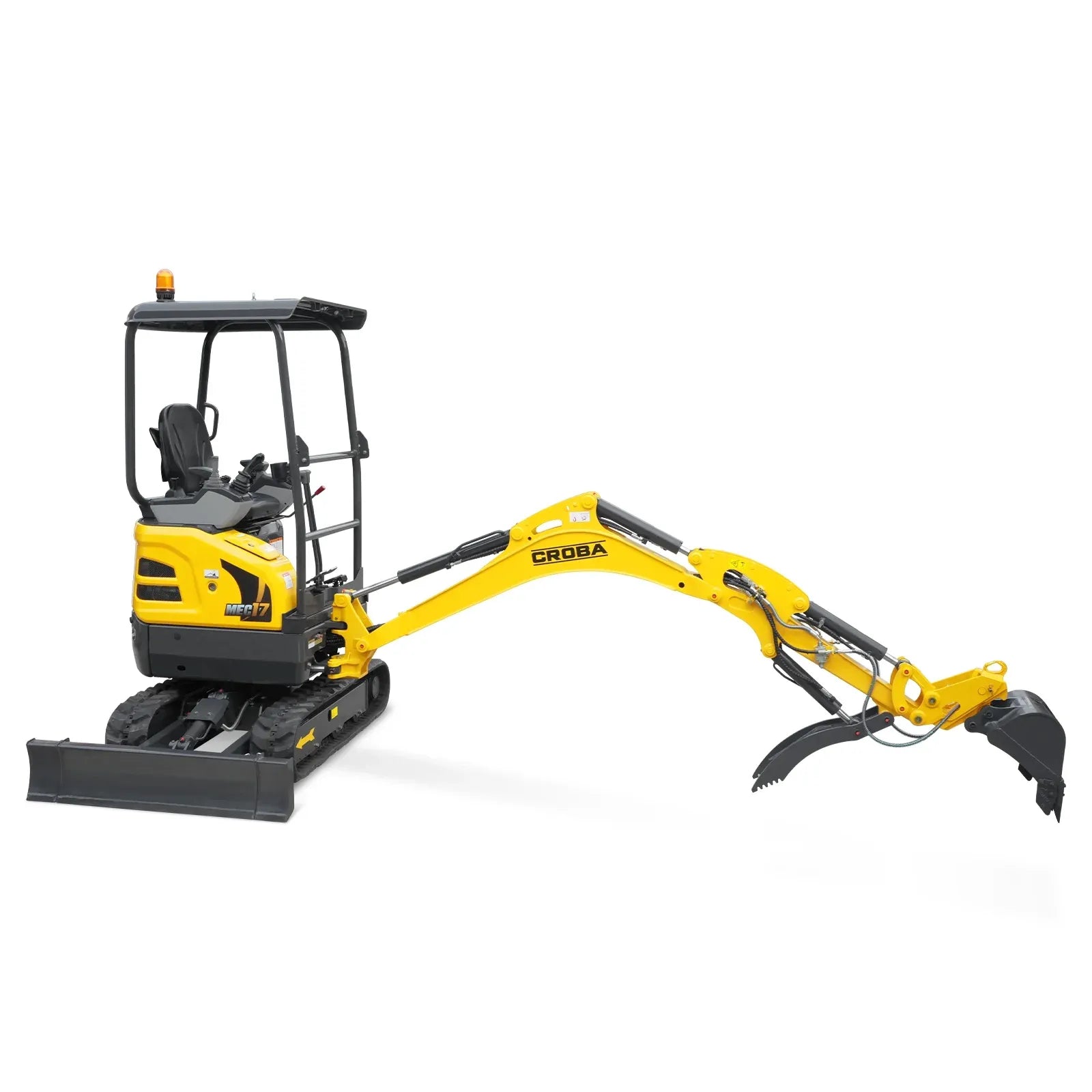

With a digging depth of up to 90 inches and a maximum ground digging radius of 157 inches, this excavator can reach and operate in areas that would otherwise require repositioning.

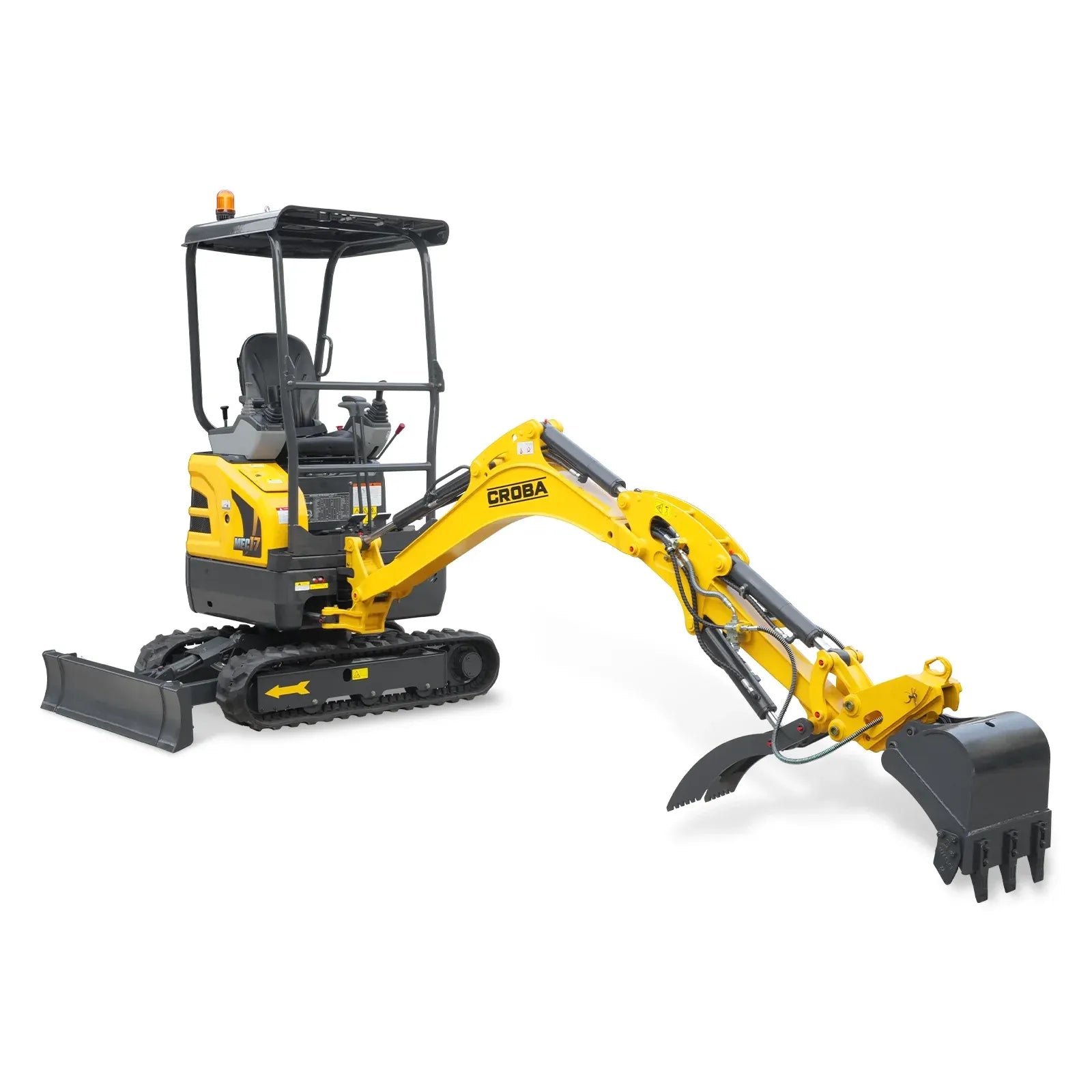

A hydraulic thumb is included, allowing for easier handling of rocks, branches, and debris. The thumb position can be adjusted directly from the operator's seat for added convenience.
The unit is capable of full 360-degree rotation, providing complete operational flexibility.
| Specifications | Details |
|---|---|
| Engine Model | Kubota D902 |
| No. of Cylinders | 3 |
| Stroke | 2.9 in |
| Bore | 2.83 in |
| Rated Speed | 2300 RPM |
| Displacement | 54.8 in³ |
| Engine Output – Net | 15.8 HP |
| Engine Warranty | 2-Year or 2,000-Hour, Whichever Comes First |
| Track Roller Qty | 6 |
| Type of Tracks | Rubber |
| Travel Speed – High | 2.67 mph |
| Travel Speed – Low | 1.37 mph |
| Maximum Traction Force – Low Speed | 4047 lbf |
| Ground Clearance | 5.7 in |
| Ground Pressure | 4.2 psi |
| Gradeability – Maximum | 30° |
| Operating Weight | 4190 lb |
| Pump Flow at 2,300 RPM | 17 GPM |
| Auxiliary Circuit – Primary Flow | 9.1 GPM |
| Auxiliary Circuit – Secondary Flow | 2.6 GPM |
| Swing Motor | Danfoss |
| Swing Motor Type | SW2.5K |
| Swing Speed | 9.5 RPM |
| Tail Swing Radius | 25.6 in |
| Boom Length | 72 in |
| Arm Length | 43.3 in |
| Bucket Digging Force | 3597 lbf |
| Arm Digging Force | 2136 lbf |
| Fuel Tank | 5 gal |
| Engine Oil | 1 gal |
| Hydraulic Oil Tank | 3.6 gal |
| System Capacity | 5.7 gal |
| Bucket Capacity | 1.4 ft³ |
| Bucket Width | 17.7 in |
| Max. Digging Height | 147 in |
| Max. Dumping Height | 104 in |
| Max. Digging Depth | 95 in |
| Max. Vertical Digging Depth | 81 in |
| Max. Digging Radius | 160 in |
| Max. Digging Radius at Ground Level | 157 in |
| Cutting Depth Per Pass | 6 in |
| Min. Turning Radius of Working Device | 57 in |
| Max. Lift Above Ground | 11 in |
| Max. Drop Below Ground | 7.5 in |
| Boom Swing – Left | 65° |
| Boom Swing – Right | 50° |
| Overall Length | 133 in |
| Ground Contact Length (Transportation) | 96 in |
| Overall Width (Retracted/Expanded) | 39 / 51 in |
| Overall Height (To Top of Cab) | 94.7 in |
| Counter Weight Ground Clearance | 18 in |
| Blade Width (Retracted/Expanded) | 39 / 51 in |
| Blade Height | 11.8 in |
| Crawler Wheel Base | 48.4 in |
| Shoe Width | 9.1 in |
| Track Length | 62.7 in |
| Track Gauge (Retracted/Expanded) | 30 / 42 in |
| Track Width (Retracted/Expanded) | 39 / 51 in |
| Package Method | Wood Case |
| Packing Size | 112.6 x 43.7 x 99.2 in |
| Machine Warranty | 1 Year |
| Weight (N.W./G.W.) | 4012 / 4580 lb |
