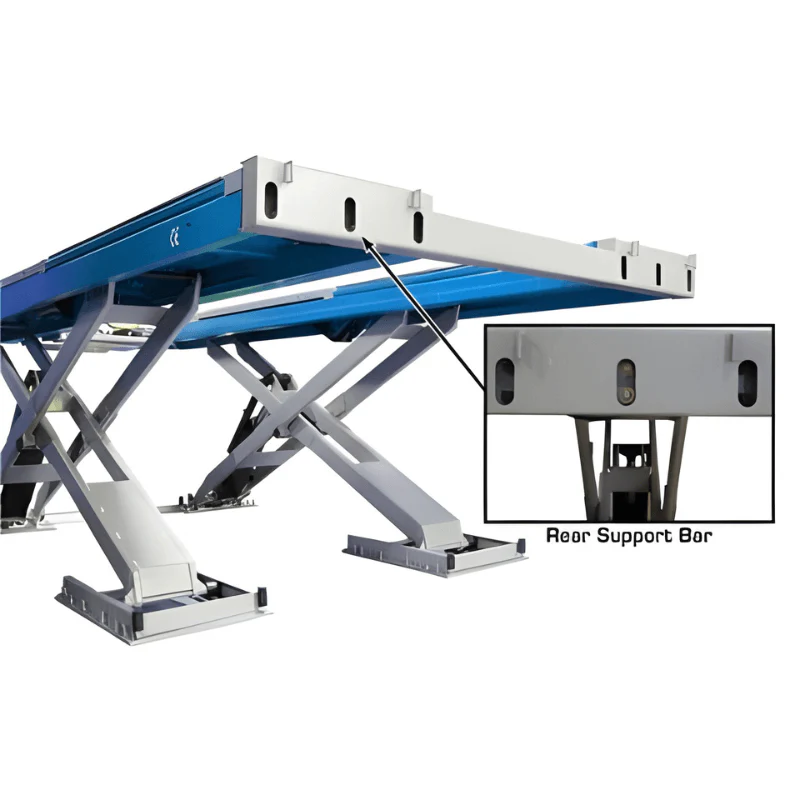

Atlas 12AWFSL 12,000 lb Alignment Scissor Lift with RJ6 Rolling Jacks Combo
SKU: ATEATTD-12AWFSL-COMBO
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

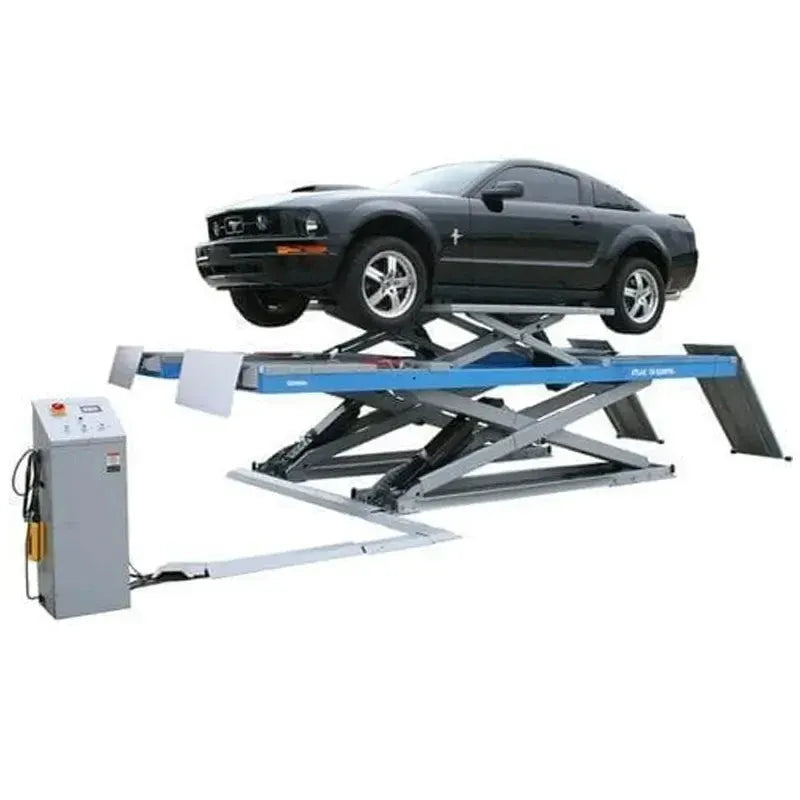

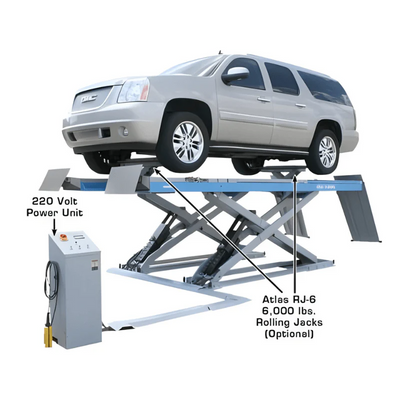

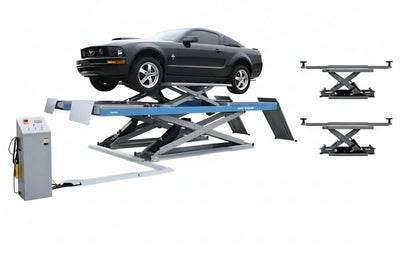

The Atlas 12AWFSL Combo is a commercial-grade alignment scissor lift system built for shops that need precision alignment capability combined with full wheel service functionality. This package includes the 12,000 lb 12AWFSL lift and two RJ-6 rolling bridge jacks, making it a complete setup for alignments, suspension work, and brake service.

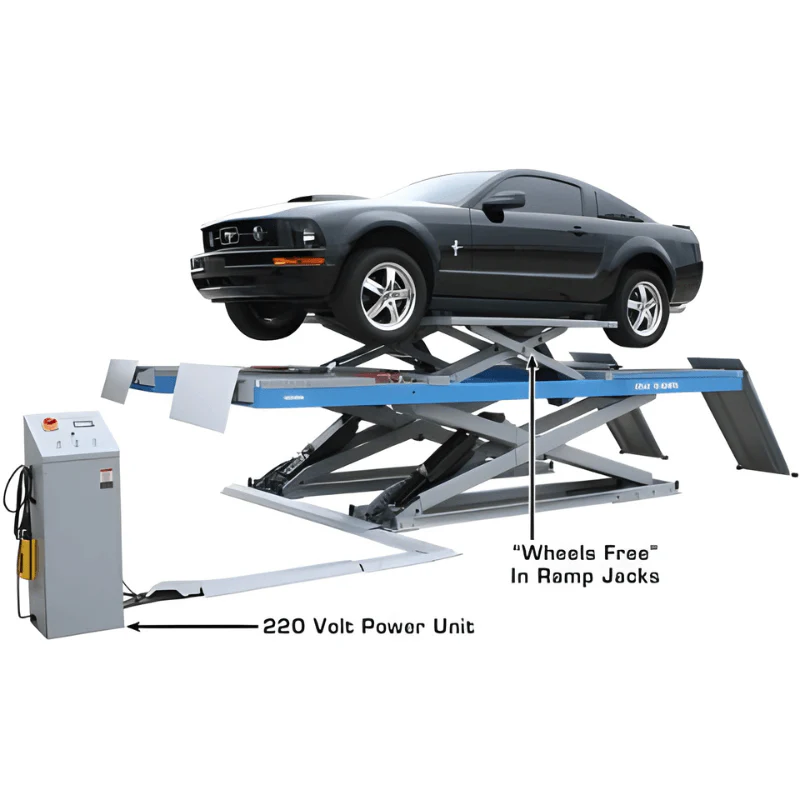

The standout feature is the integrated “Wheels Free” lifting system, which raises the vehicle by the frame so the wheels hang freely—perfect for accurate alignment adjustments and undercar service. Built-in slip plates and alignment turntables further enhance precision, while included cover plates allow the lift to be used for general service when alignment isn’t needed.
Its open-center design provides excellent access to the underside of the vehicle, and the lift can be surface-mounted or flush-mounted depending on shop layout. The included airline kit and air-operated locking system ensure smooth, controlled operation.

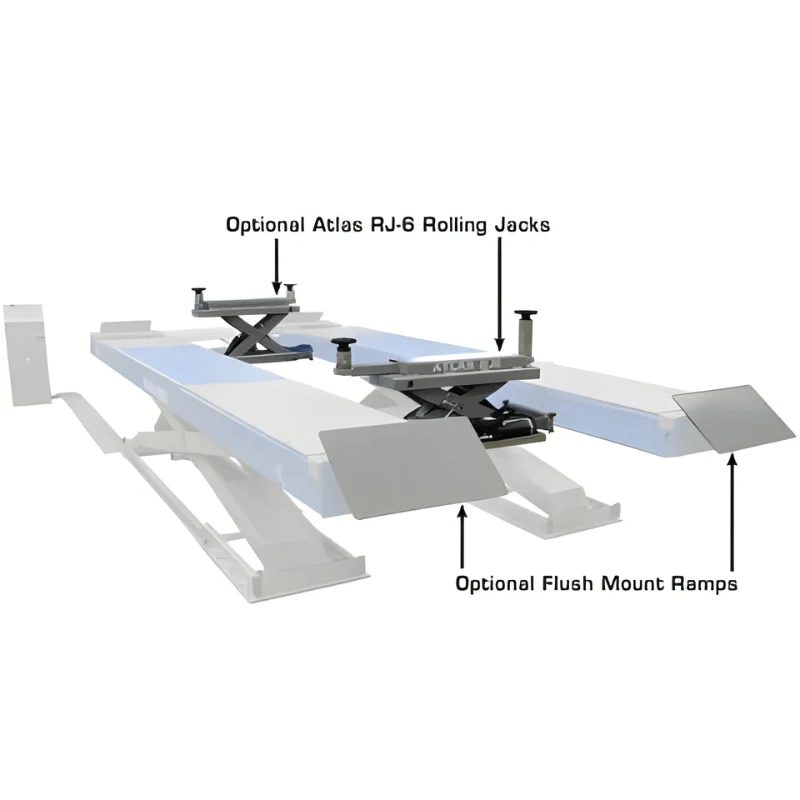

Paired with the RJ-6 rolling jacks, this system becomes a full-service workstation capable of handling both alignment and repair work efficiently.
Features and Benefits

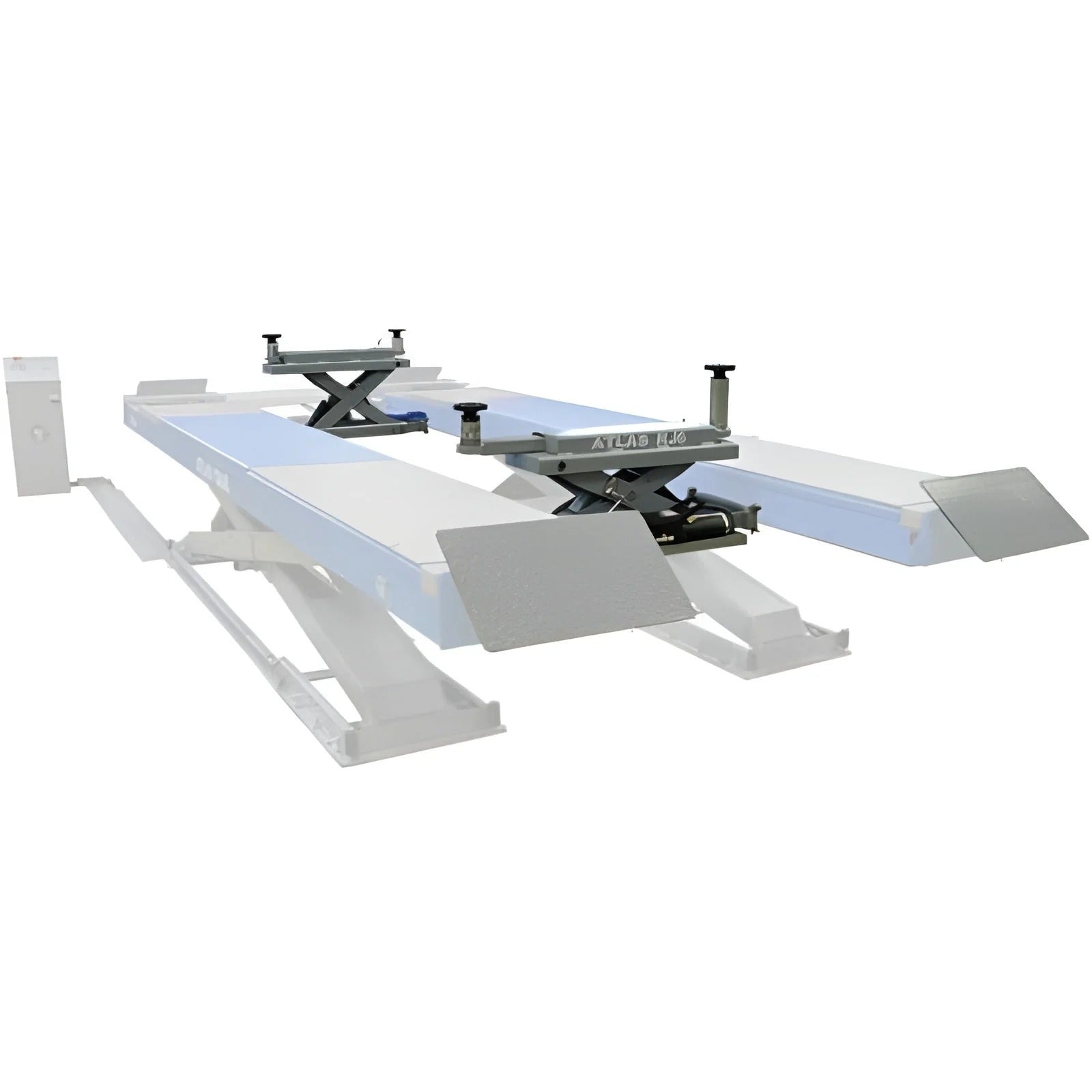

- Combo includes 12AWFSL alignment scissor lift and two RJ-6 rolling jacks
- 12,000 lb lift capacity with dual 6,000 lb rolling jacks
- Built-in “Wheels Free” lifting system for wheel-off service

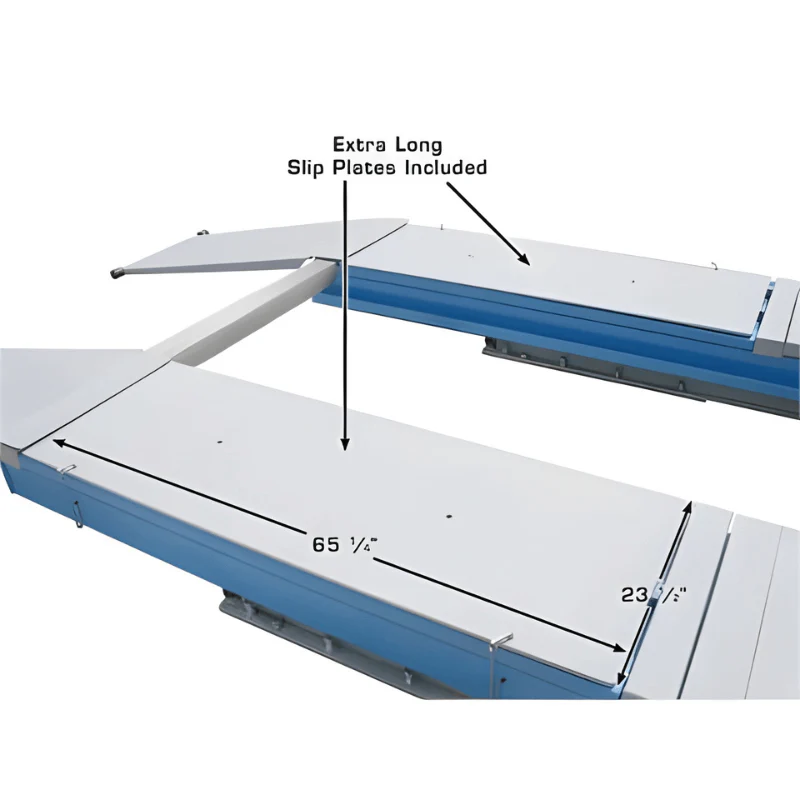

- Built-in slip plates and alignment turntables included
- Turntable cover plates for multi-purpose use

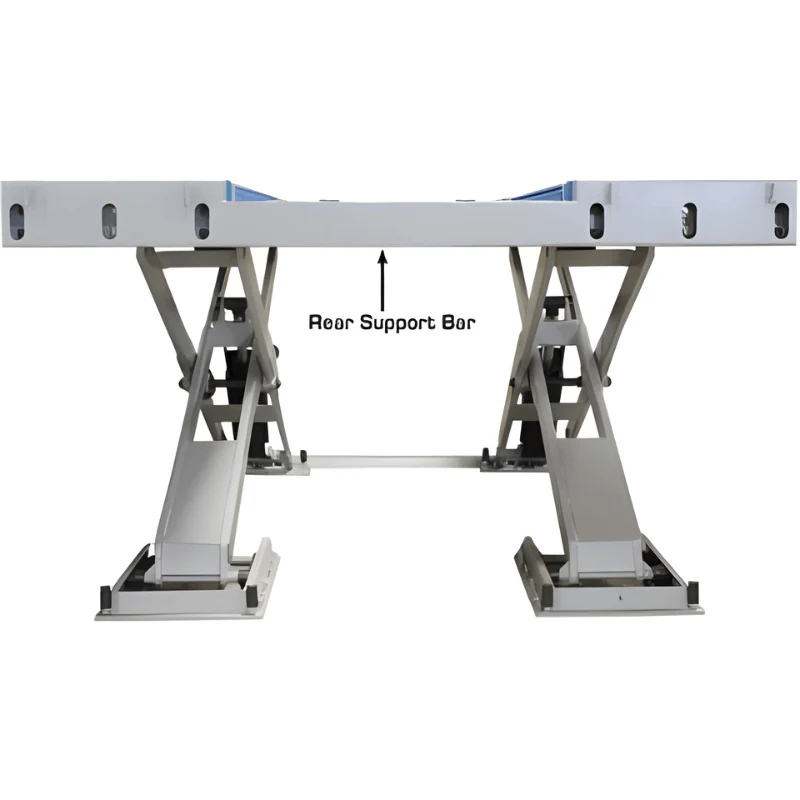

- Open center design for superior access
- Heavy-duty commercial-grade construction

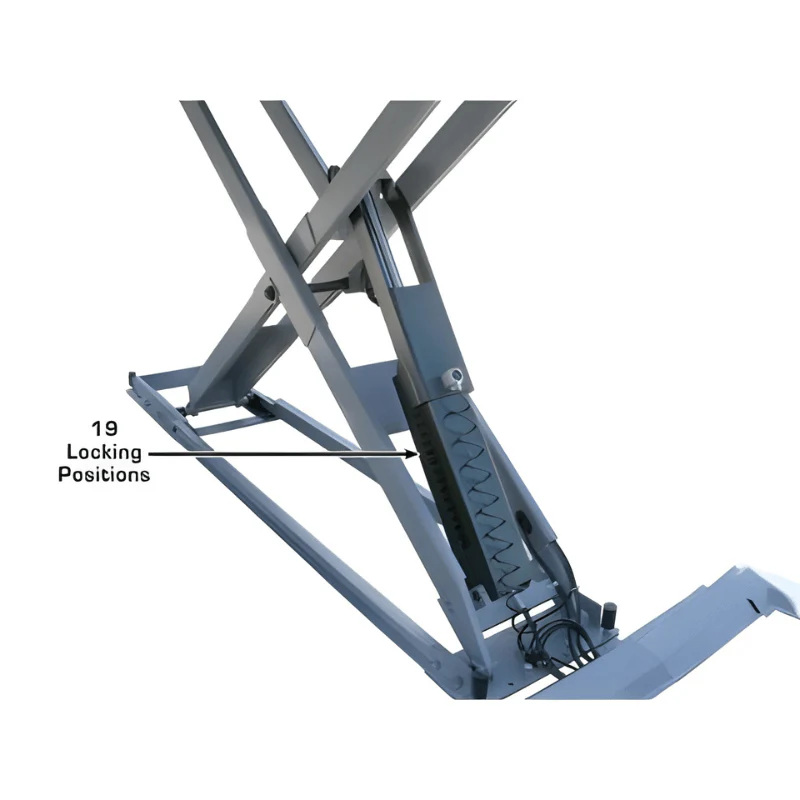

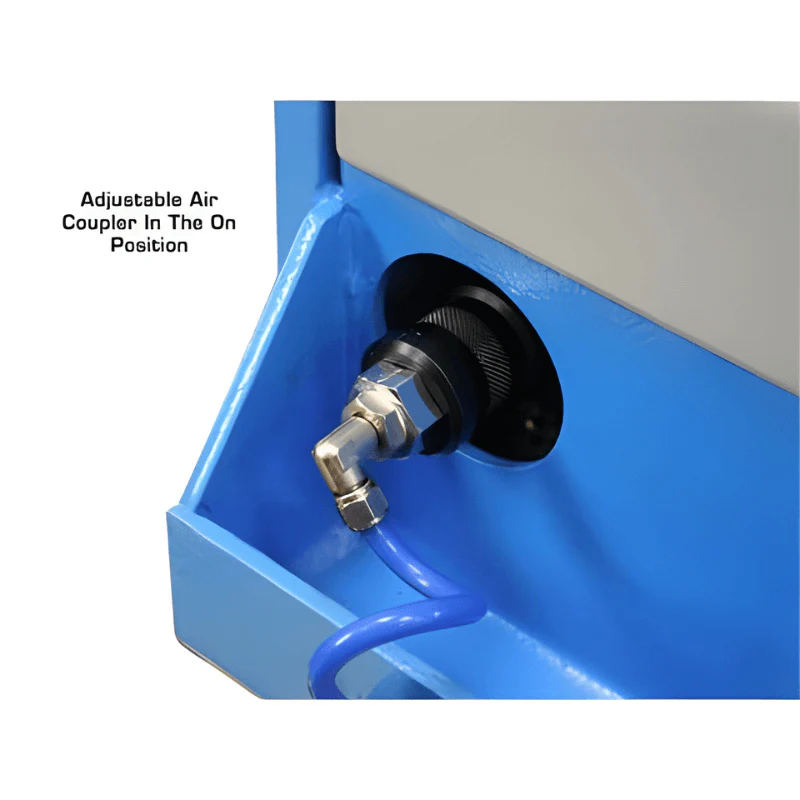

- Air-operated single-point lock release (external air required)
- Airline kit included
- Rolling jacks are air-over-hydraulic operated

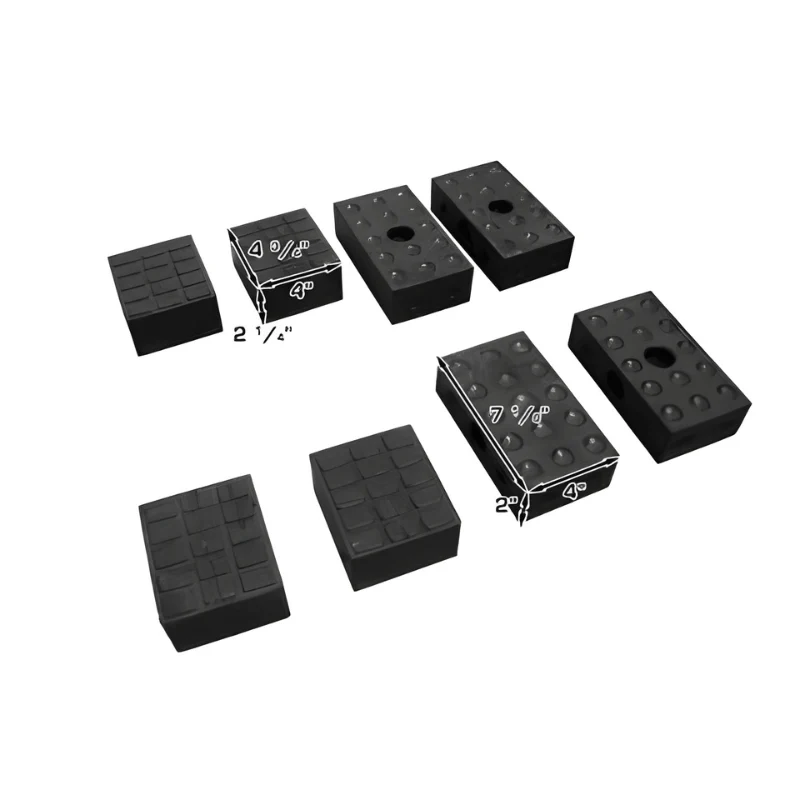

- Truck adapter set included for each jack
- Surface or flush mount installation options

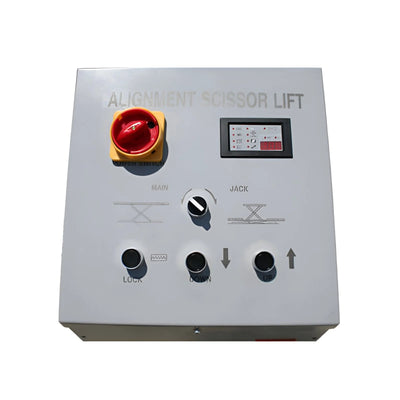

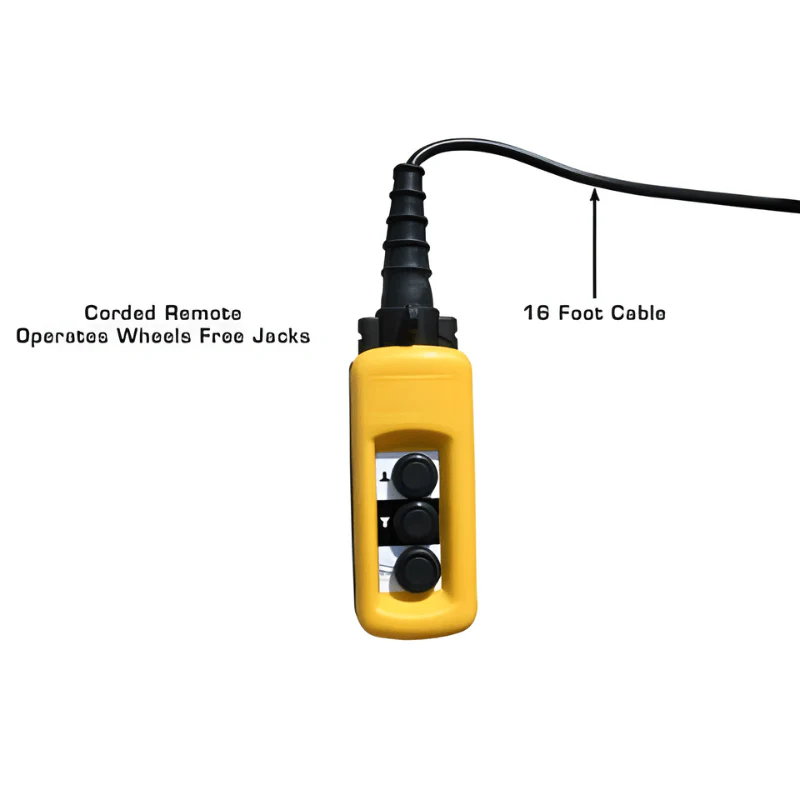

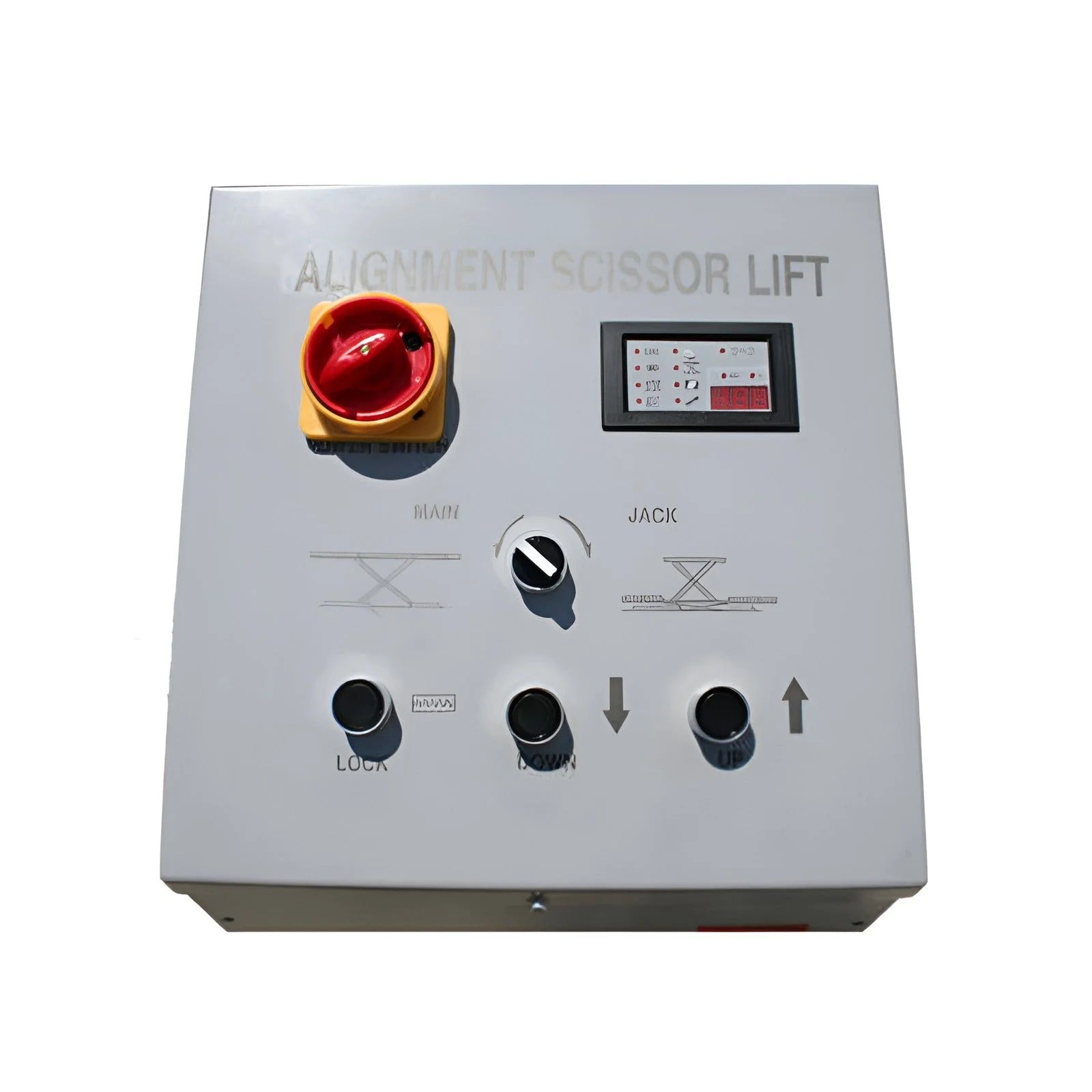

- Separate control panel for easy operation
- Freight prepaid
Atlas 12AWFSL
| Specifications | Details |
|---|---|
| Capacity | 12,000 lbs. |
| Minimum Lift Height | 11 1/2" |

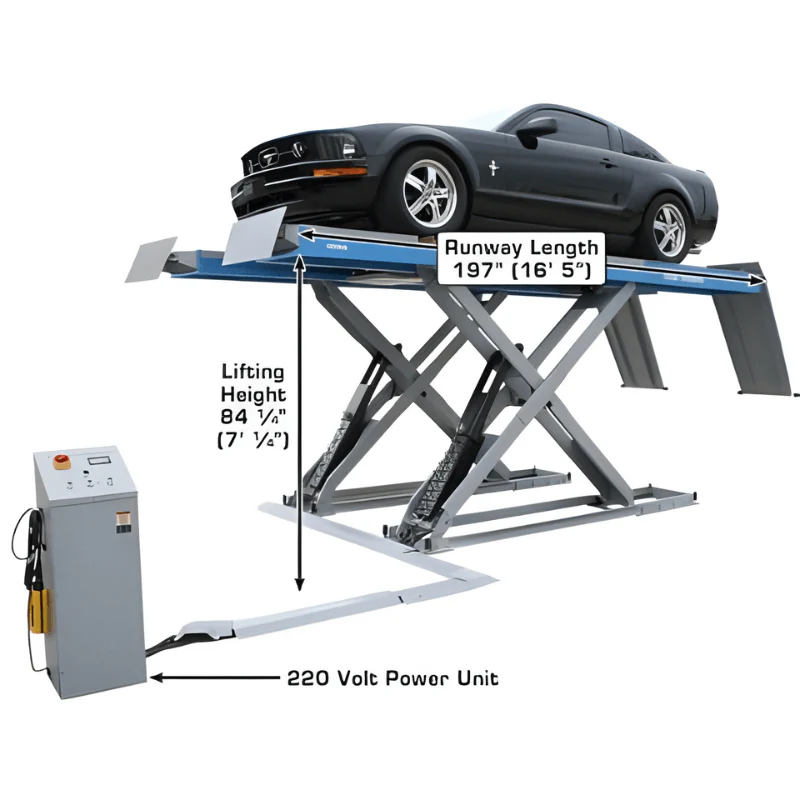

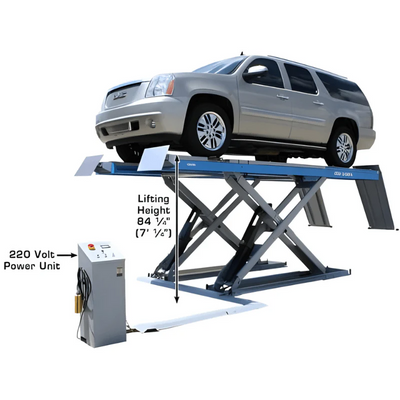

| Maximum Lift Height Above Floor | 84 1/4" (7' 1/4") |
| “Wheels Free” Lift Height Above Runway | 17" |

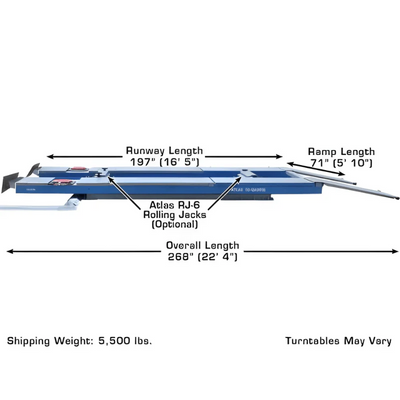

| Overall Length w/ Ramps | 250" (20' 10") |
| Overall Length w/o Ramps | 197" (16' 5") |
| Overall Width | 86 3/8" (7' 2 3/8") |
| Runway Width | 23 3/4" |
| Between Runways | 39" |
| Air Requirement | 85–120 PSI |

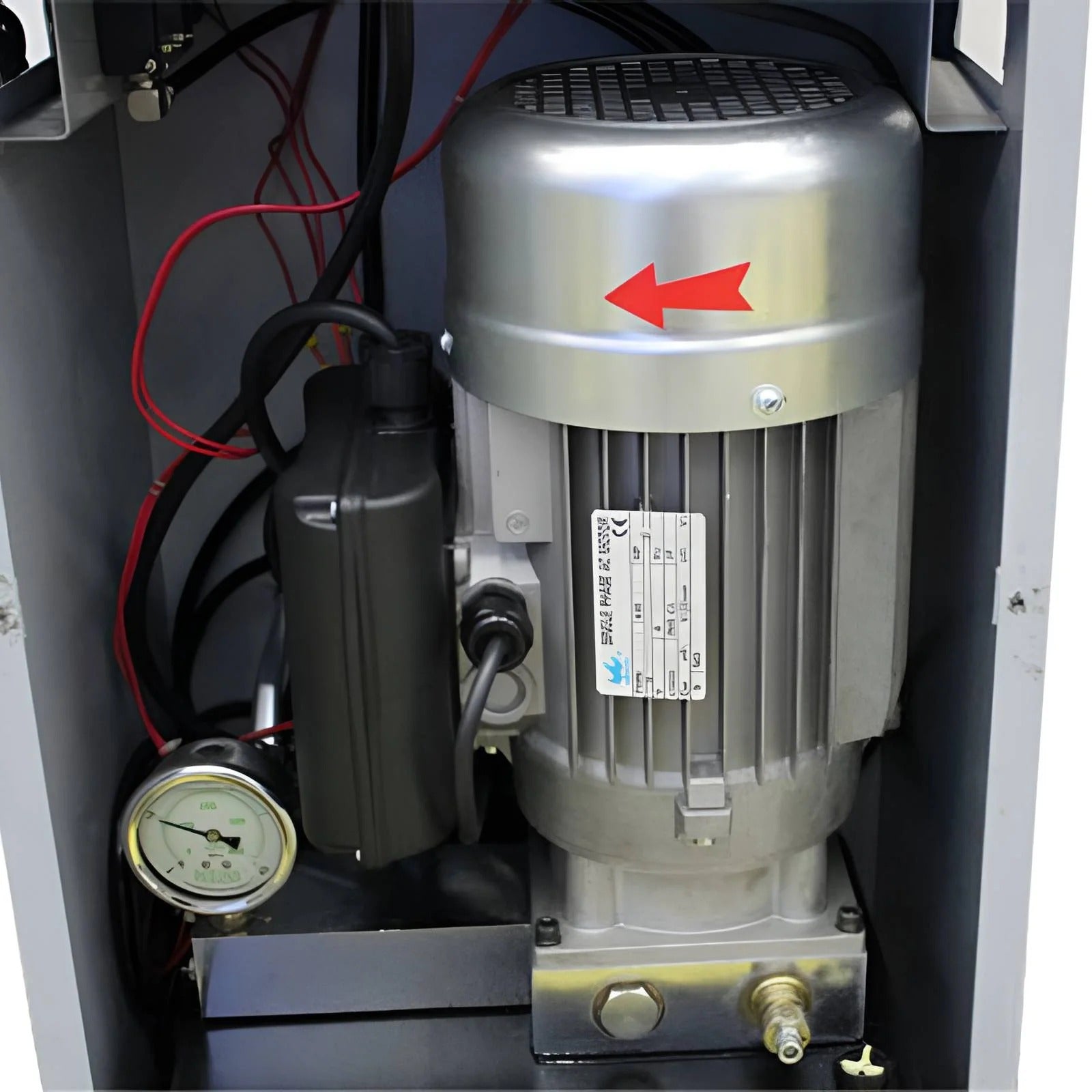

| Motor/Electrical Requirement | 220V ±5% (209–231V) / 1 Phase, 30 Amp Breaker Required |
| Oil Requirement | 3–5 Gallons AW32 or AW46 (Not Included) |

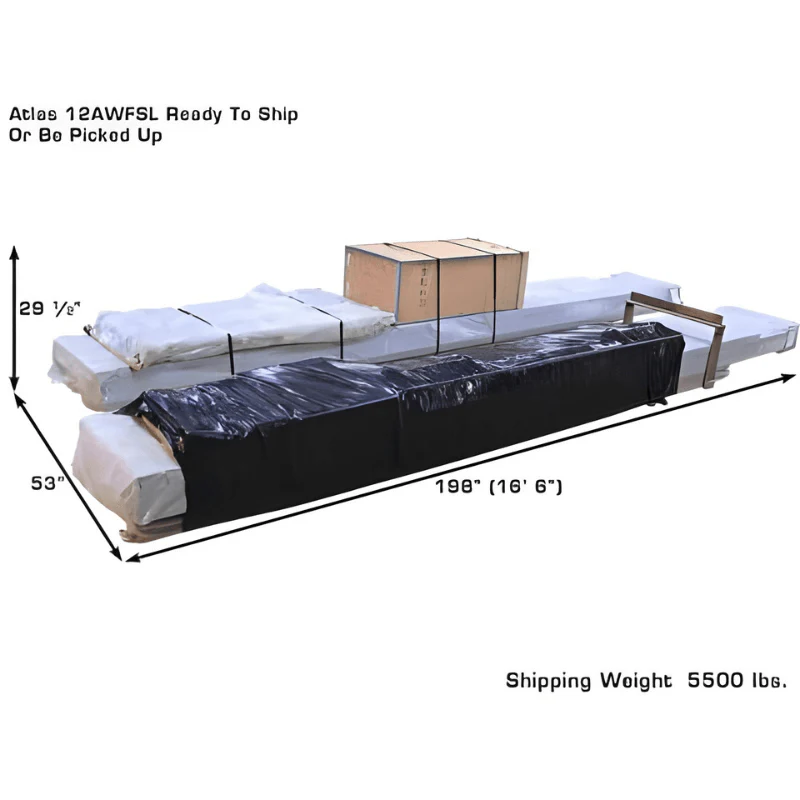

| Shipping Weight | 5,500 lbs. |

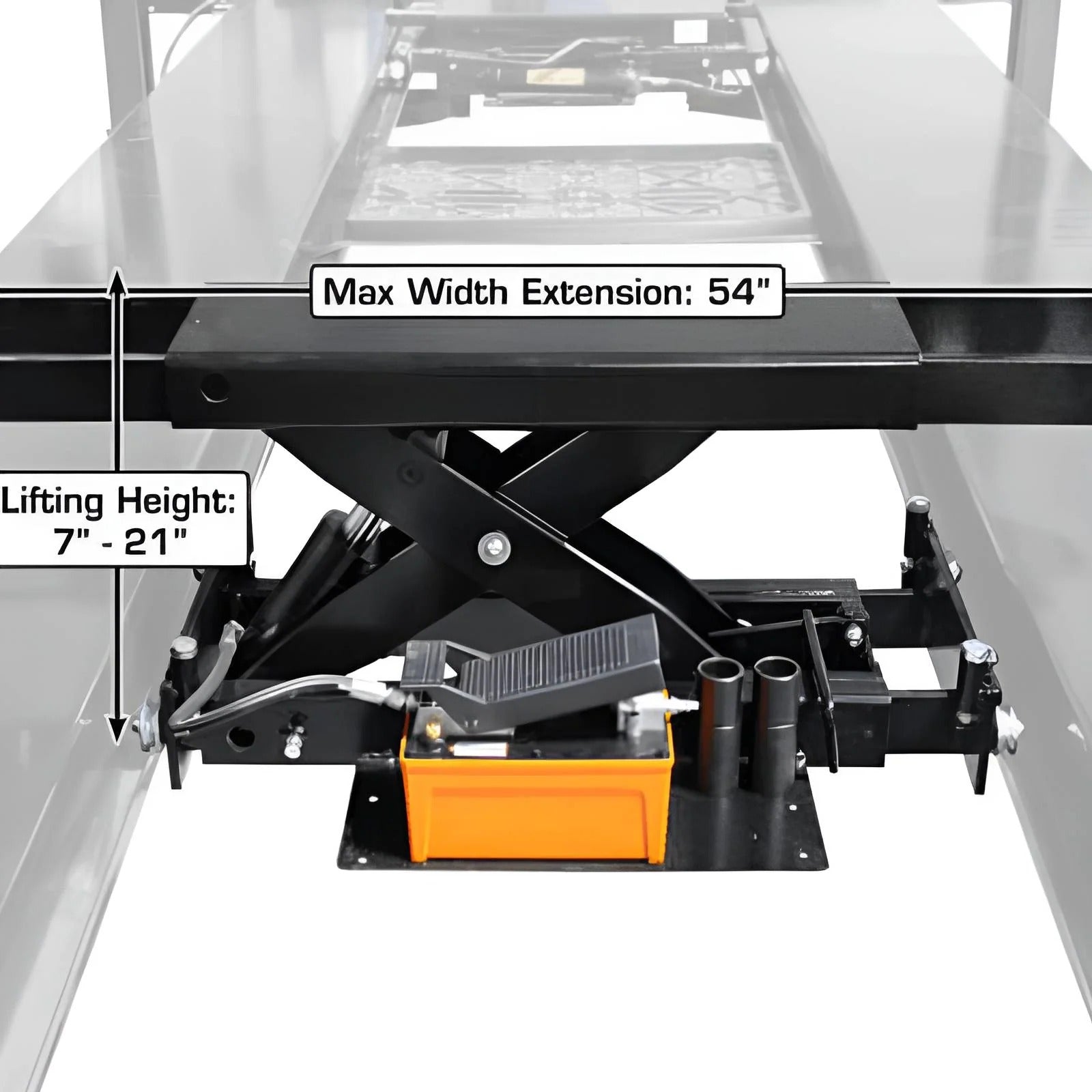

Atlas RJ-6
| Specifications | Details |
|---|---|
| Capacity | 6,000 lbs. |
| Minimum Width | 30 1/2" |
| Maximum Width | 64 1/2" |
| Distance Between Runway Capability | 31 1/2" – 49 1/2" |
| Minimum Pad Height (Above Runway) | 3 1/2" |
| Maximum Lifting Height (w/ Adapters) | 17 5/8" |
| Air Requirement | 70–115 PSI |
| Shipping Weight | 350 lbs. |
| Adapter Heights | 2 Each: 3", 7" |
| Arm Hole/Adapter Peg Size | 2" |
