Atlas FM9SL In-Ground Full-Rise Scissor Lift with 9,000 lb Capacity and Flush-Mount Design
SKU: ATEATTD-FM9SL-FPD
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

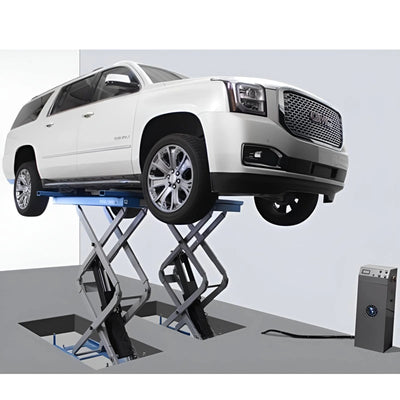

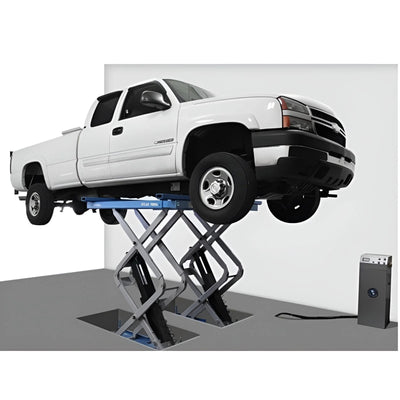

The Atlas FM9SL is a full-rise in-ground scissor lift designed for commercial shops that want maximum workspace efficiency and a clean, obstruction-free floor layout. With a flush-mounted design, this lift sits level with the floor, allowing vehicles to be driven over from any direction and positioned easily, even in tight service bays. Its full-rise capability provides up to nearly 74 inches of lifting height, giving technicians full under-vehicle access for a wide range of service tasks. Adjustable platform width and extendable platforms at both ends allow the lift to accommodate different vehicle sizes, including long wheelbase trucks. Powered by a self-contained hydraulic unit and built with commercial-grade components, the FM9SL delivers reliable performance while minimizing above-ground clutter and maximizing usable shop space.
Key Features & Benefits
- 9,000 lb lifting capacity for cars, trucks, and SUVs
- In-ground flush-mount design for a clean shop floor
- Full-rise lift height for complete under-vehicle access

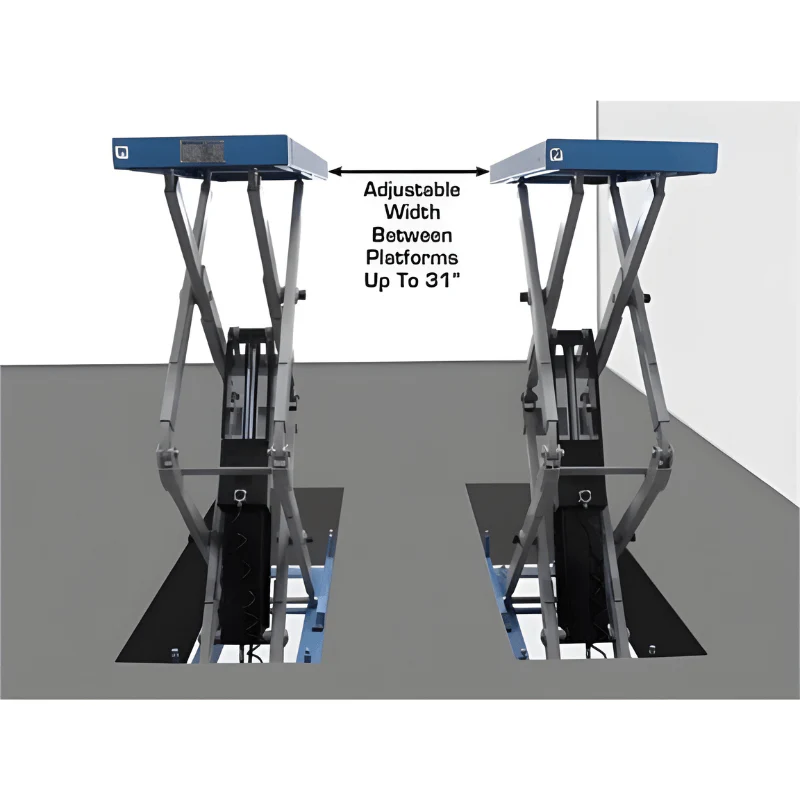

- Adjustable width between platforms for different vehicle sizes

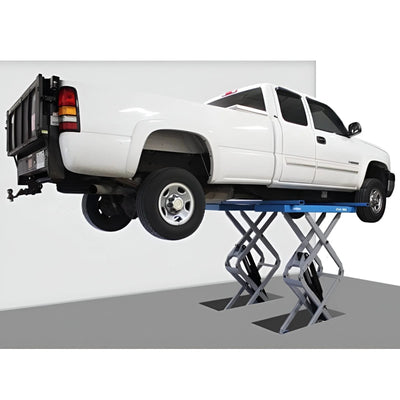

- Extendable platforms at both ends for longer wheelbases

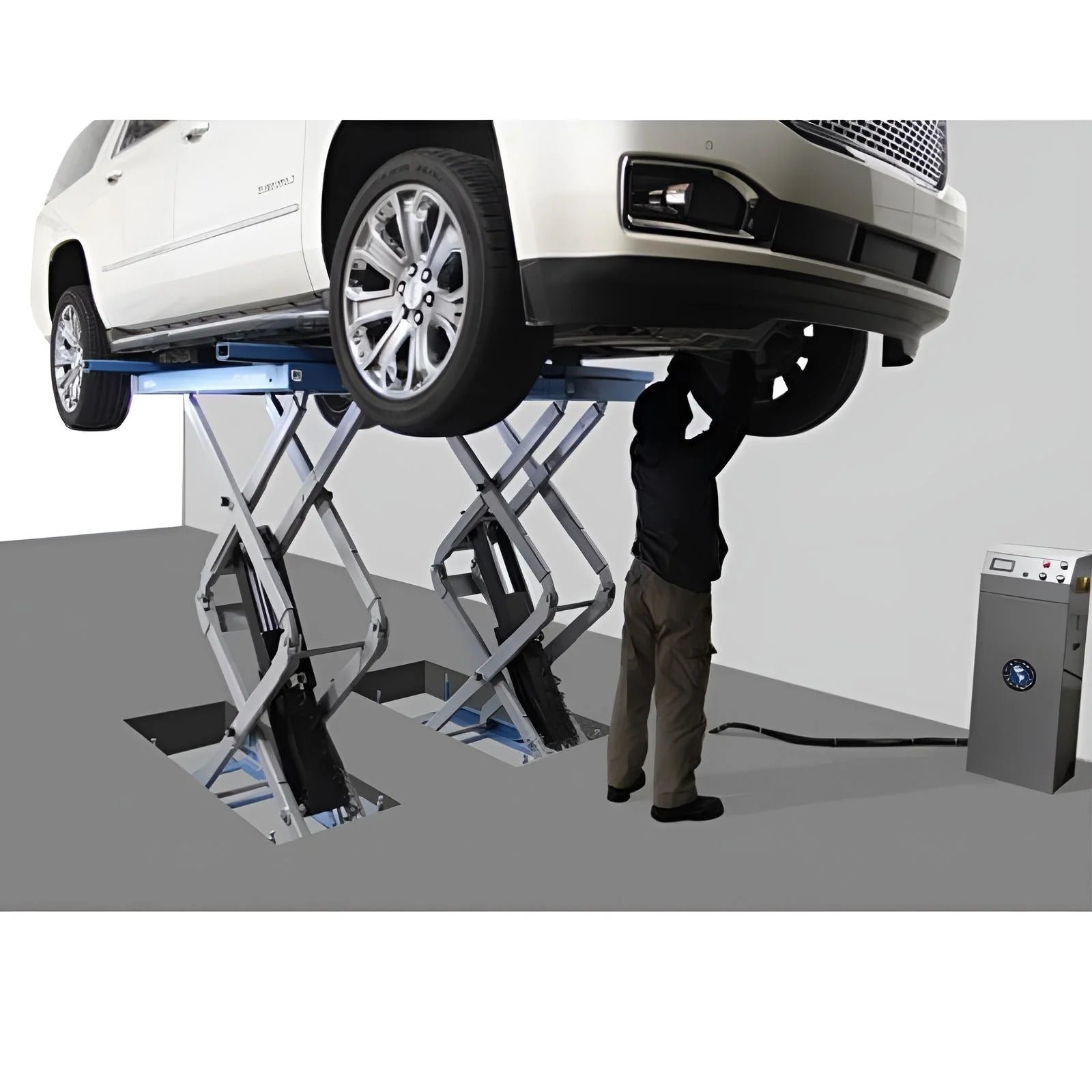

- Open center design for improved access to vehicle components

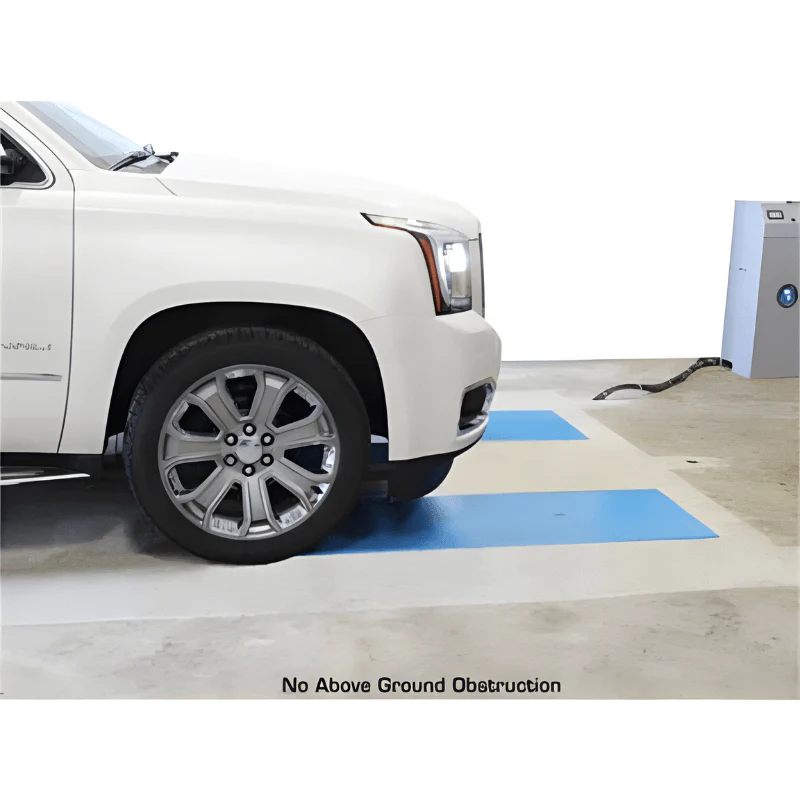

- No above-ground obstructions for easy drive-over positioning
- CE certified for safety and quality standards

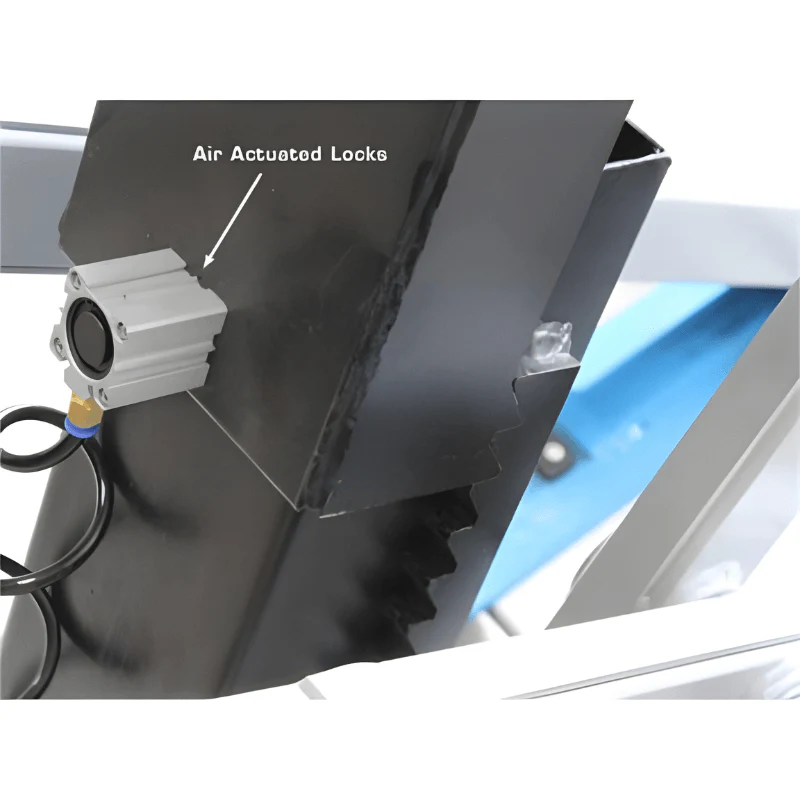

- Air-operated single-point lock release (external air required)

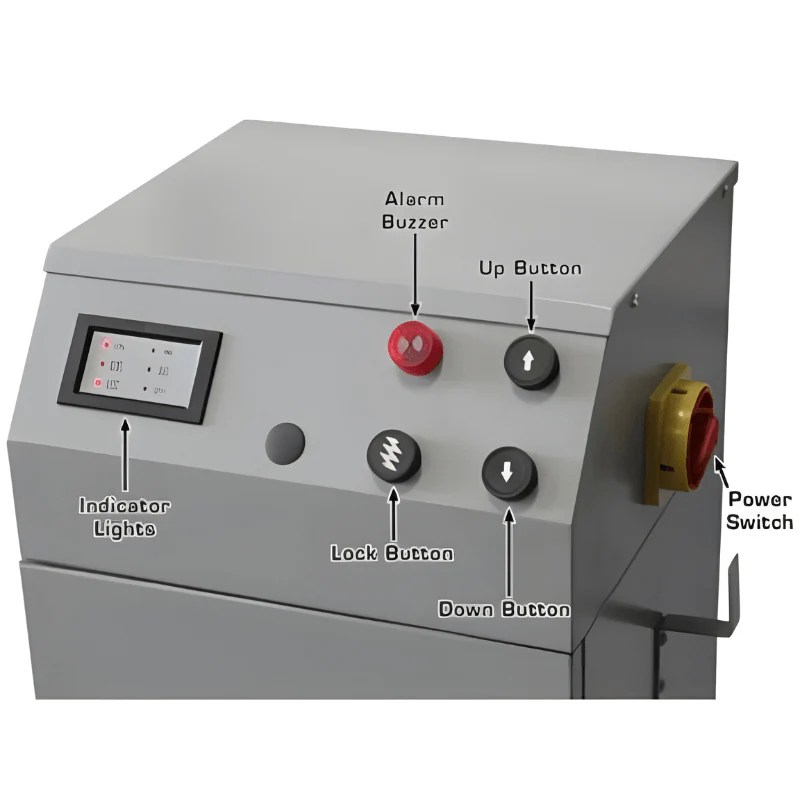

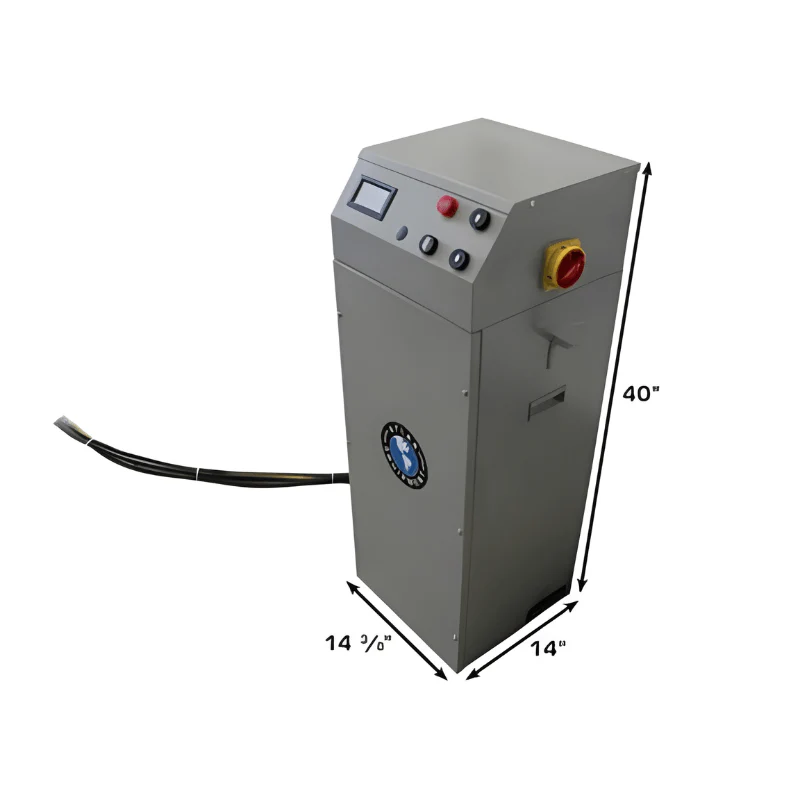

- Separate self-contained control unit for easier maintenance access
- Grease zerk fittings at hinge points for routine maintenance

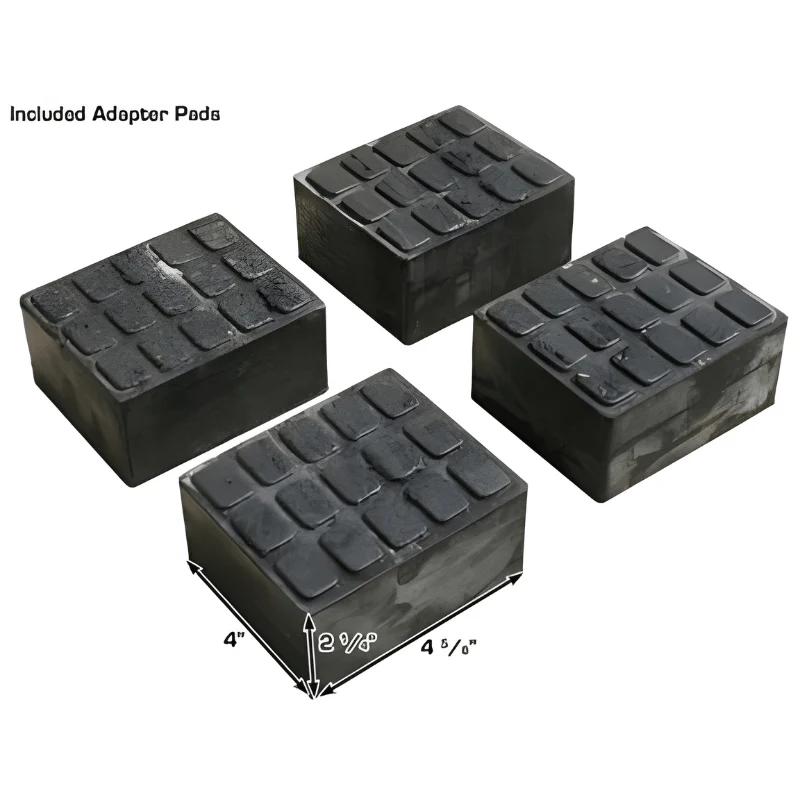

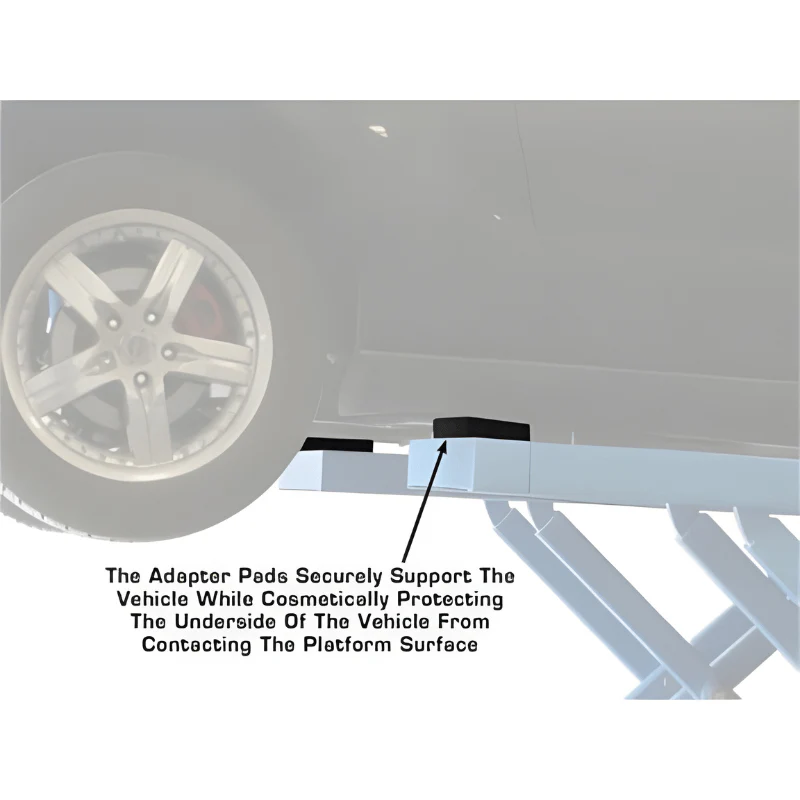

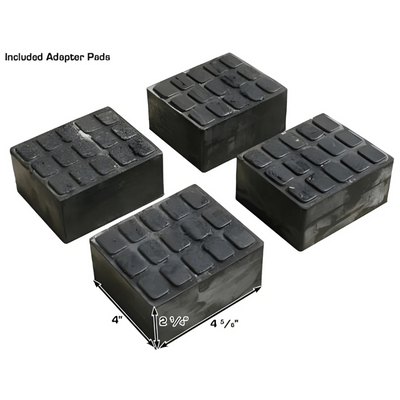

- Heavy-duty rubber lifting blocks included
- Mounting hardware included
- 220V single-phase operation (30 amp breaker required)
- 1-year structural and 1-year hydraulic parts-only warranty
Performance & Design Highlights

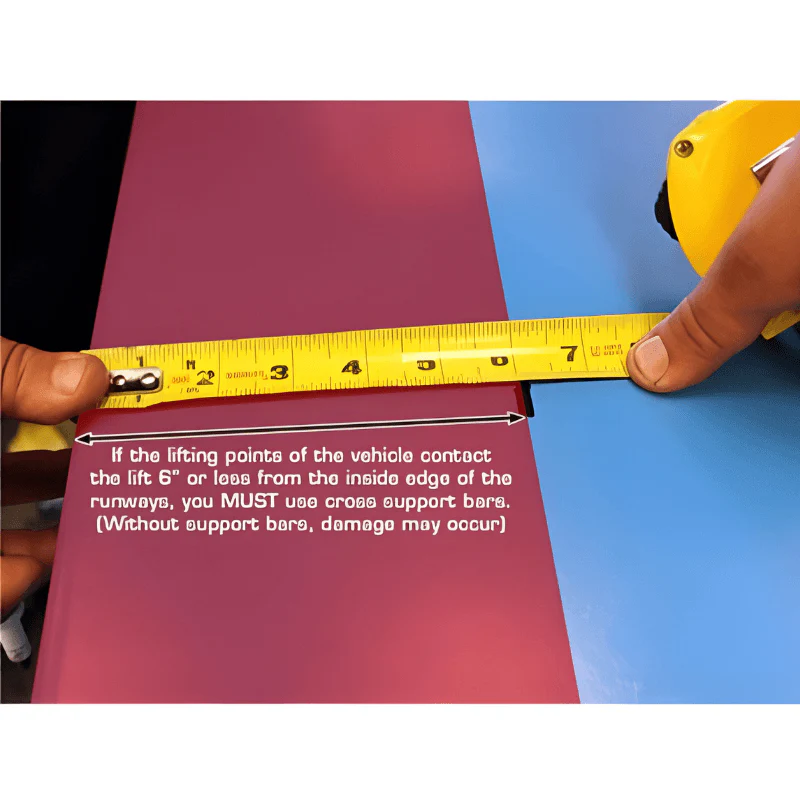

The FM9SL is engineered for service facilities that want to maximize lift capacity within limited space while maintaining a professional, uncluttered appearance. Its flush-mounted design eliminates traditional lift obstructions, allowing for flexible vehicle positioning and improved workflow. The adjustable platform spacing and extension capability make it suitable for a wide range of vehicle sizes. The open center layout provides better access to drivetrain and undercarriage components, while the full-rise height ensures technicians can work comfortably. Proper vehicle positioning is important to maintain balanced lifting, especially when working with narrow frame vehicles.
| Specifications | Details |
|---|---|
| Capacity | 9,000 lbs |

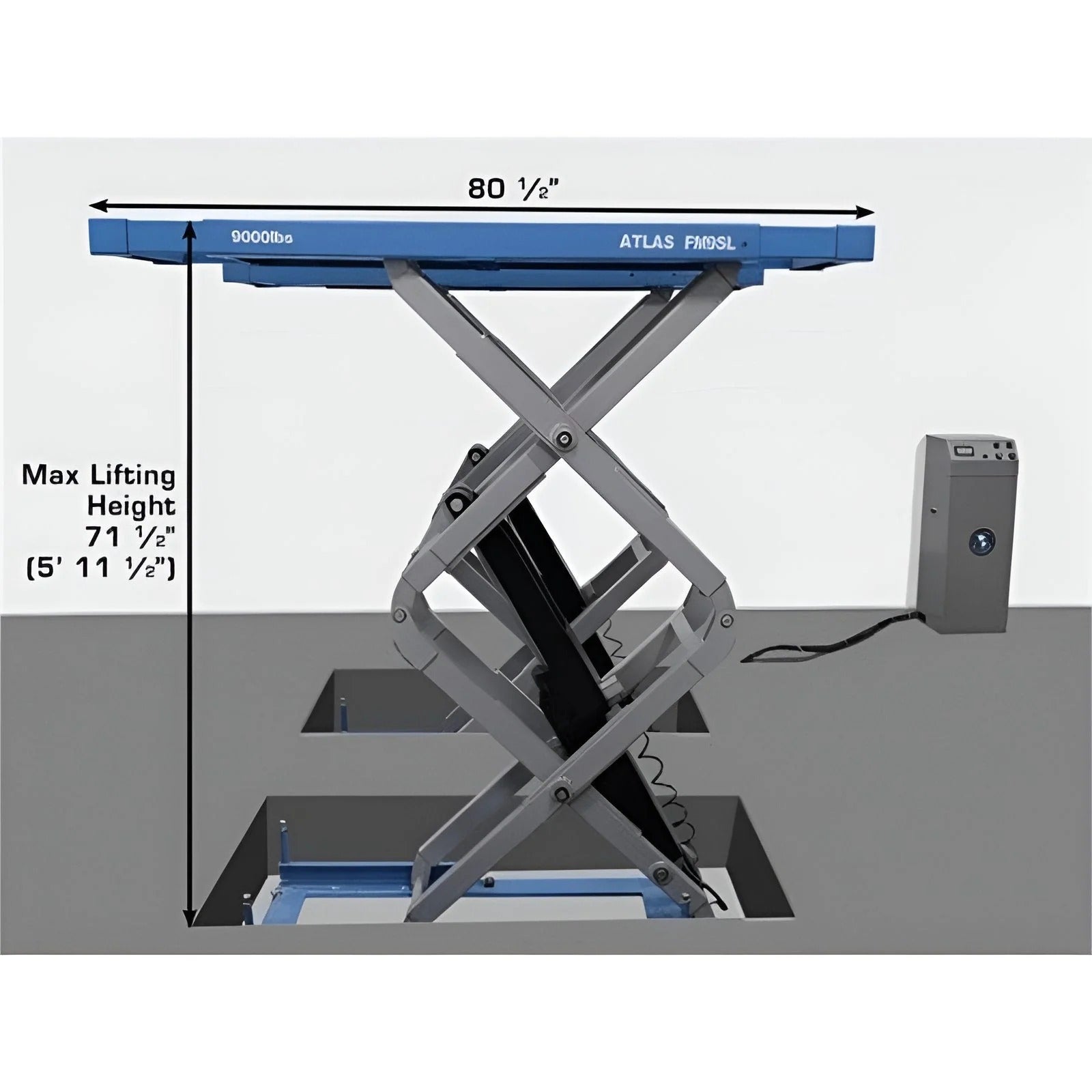

| Maximum Lift Height (with Blocks) | 73 3/4" |
| Maximum Lift Height (without Blocks) | 71" |
| Overall Length (Extensions Out) | 80" |
| Overall Length (Extensions In) | 64" |
| Platform Width | 21" |

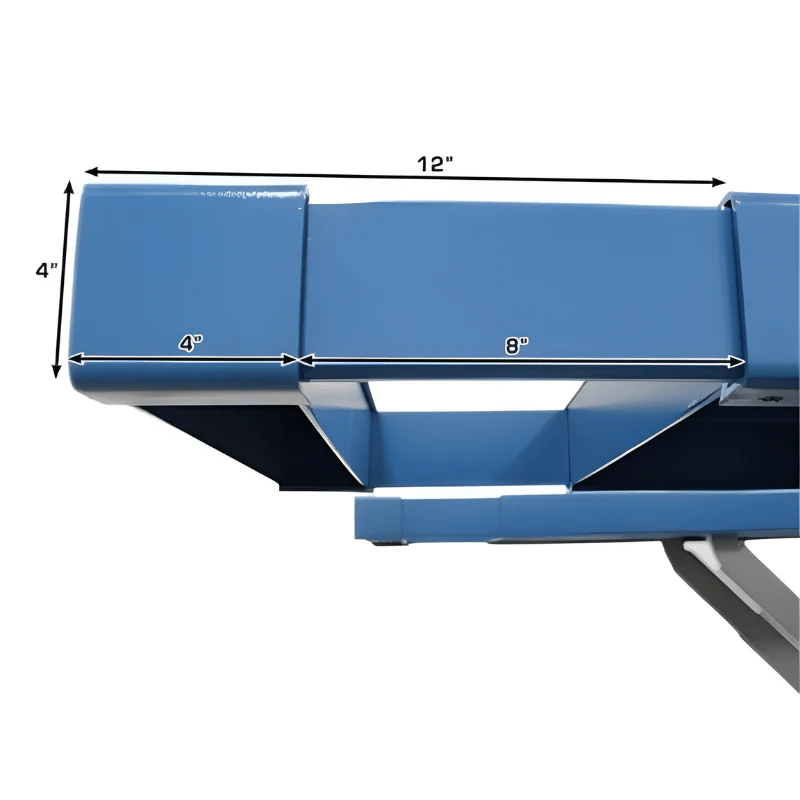

| Platform Thickness | 4" |

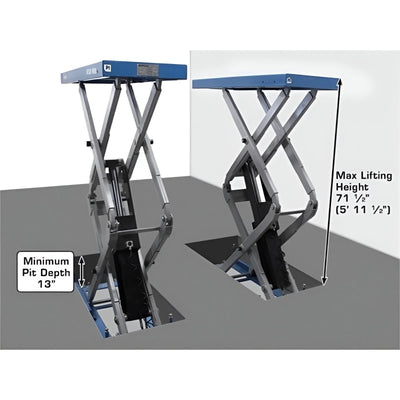

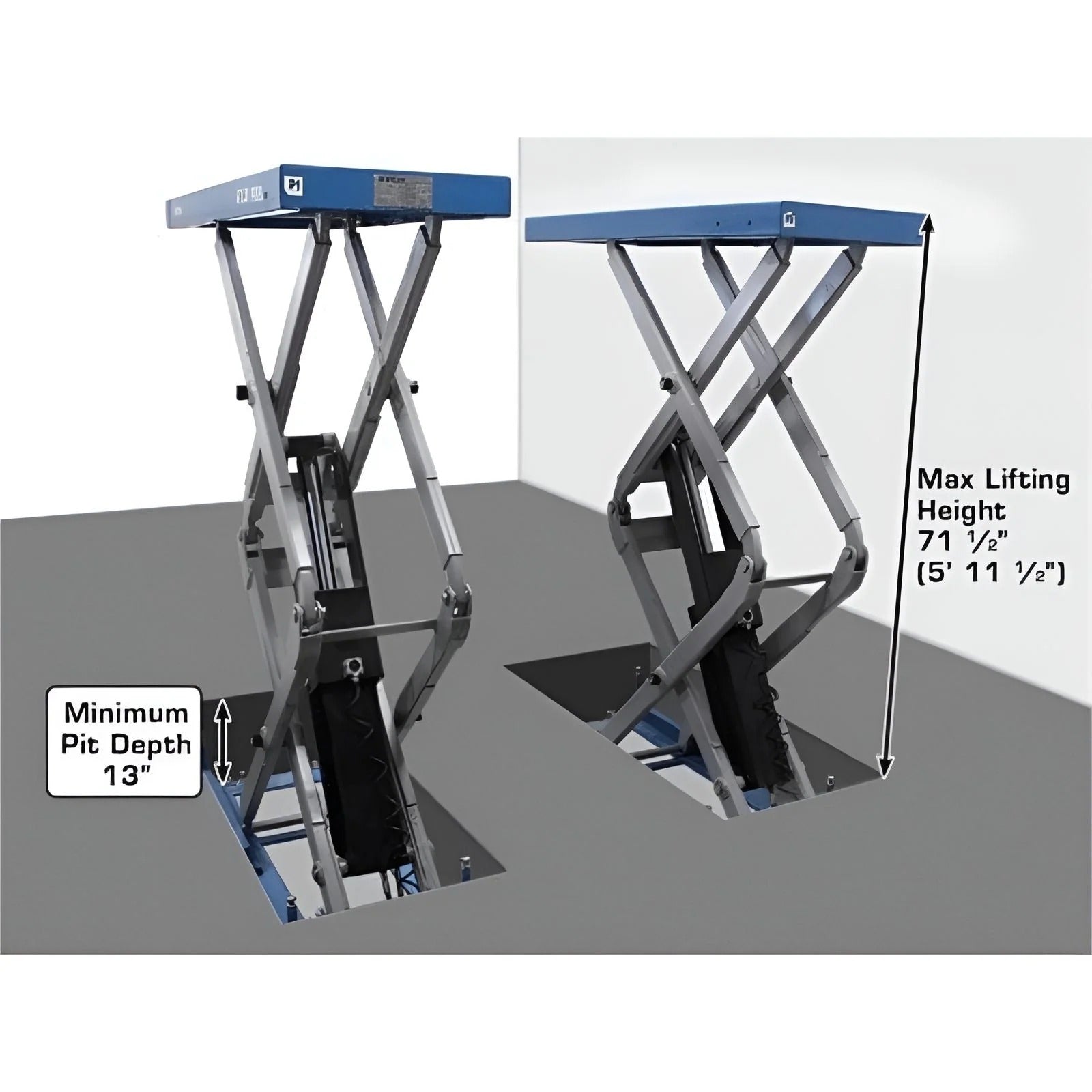

| Minimum Lowered Height (In-Ground) | 13" |

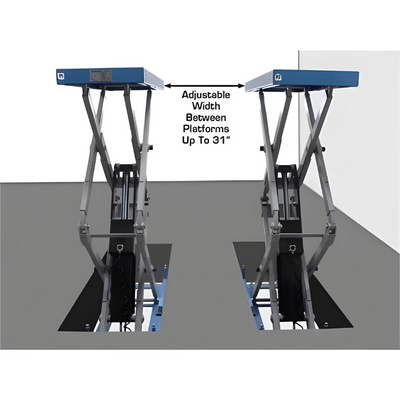

| Width Between Platforms | Adjustable up to 31" |
| Air Requirement | 90–120 PSI |
| Power Requirement | 220V / 1 Phase / 30 Amp |
| Oil Requirement | 3–5 Gallons (AW32 or AW46) |

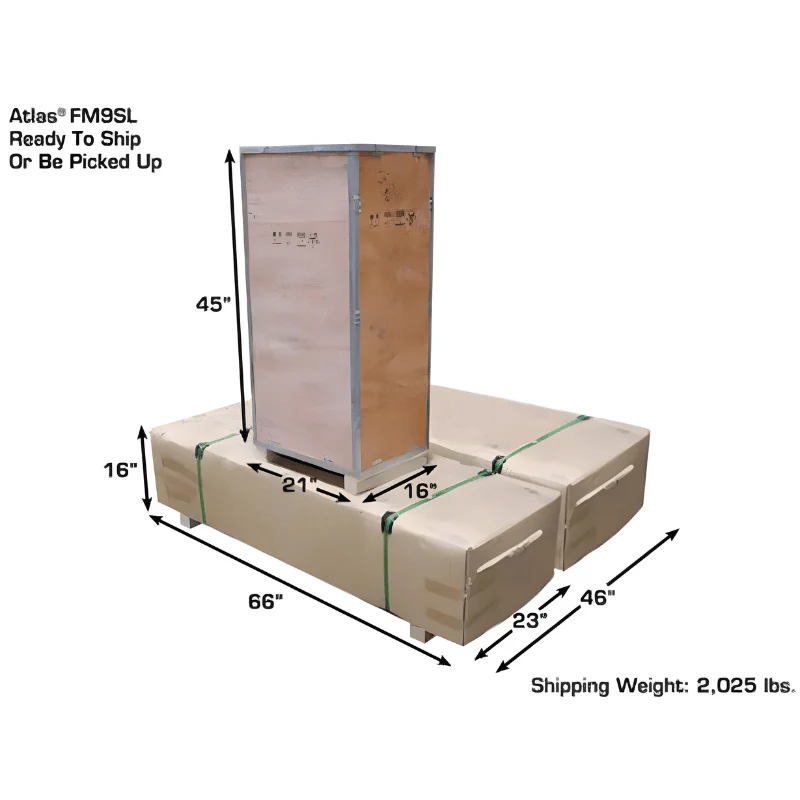

| Shipping Weight | 2,025 lbs |
| Structural Warranty | 1 Year |
| Hydraulic Parts Warranty | 1 Year (Parts Only) |
