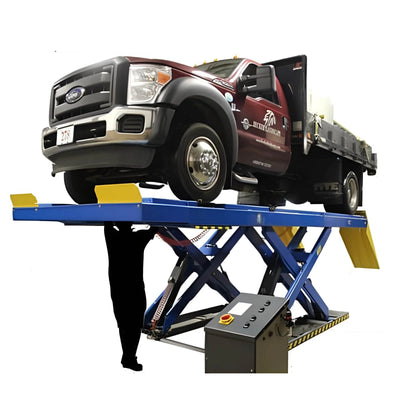

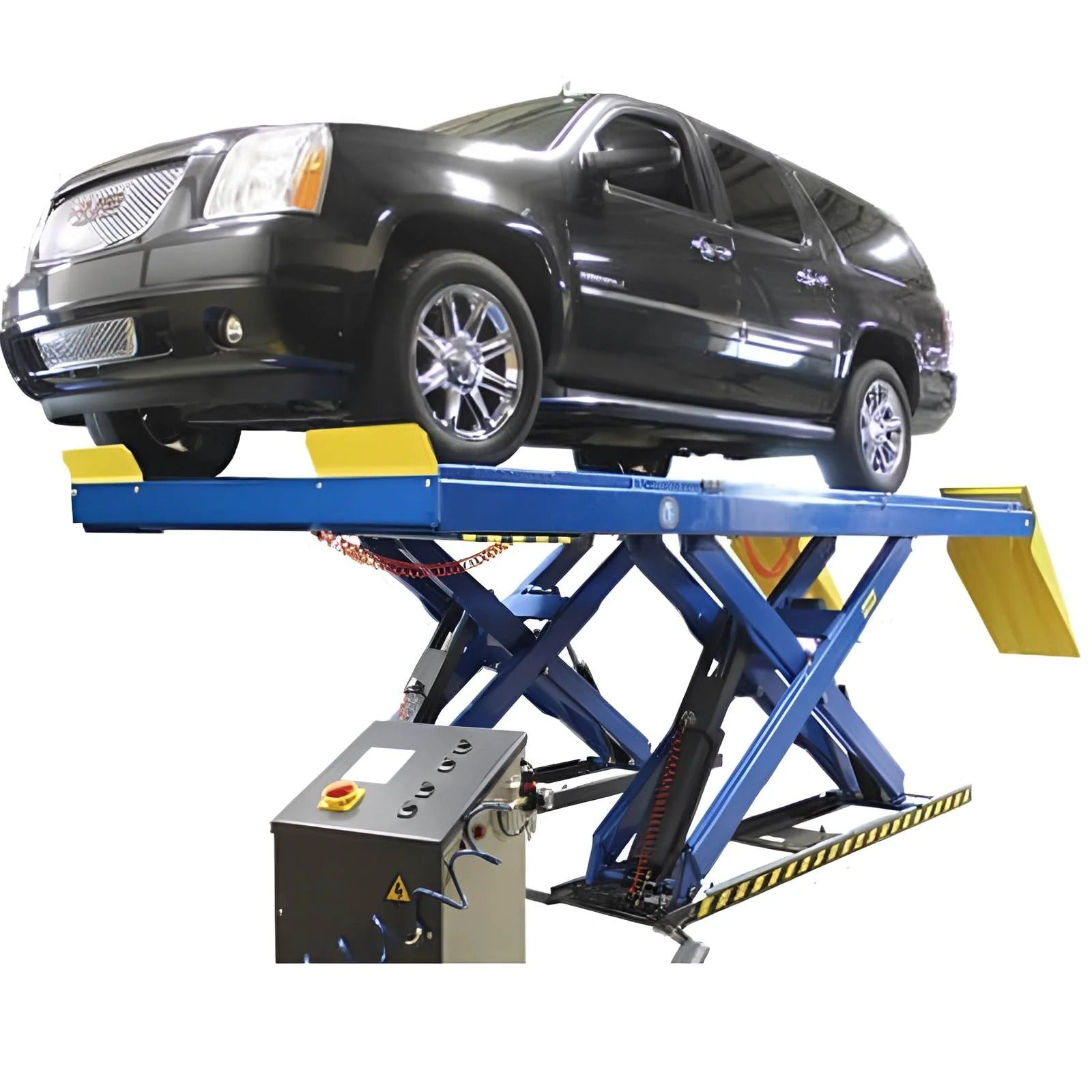

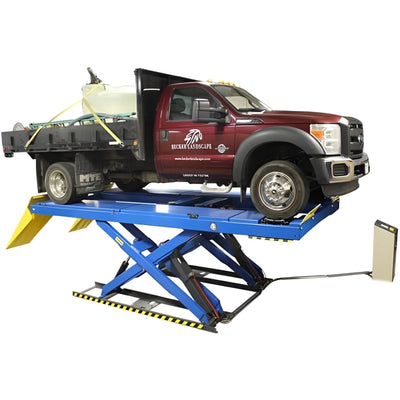

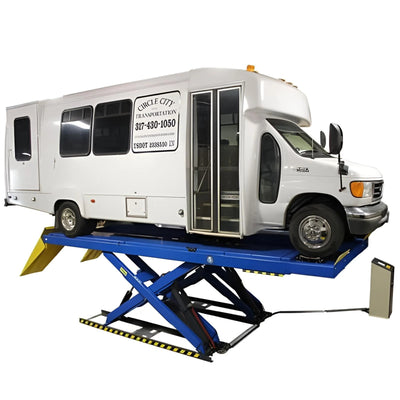

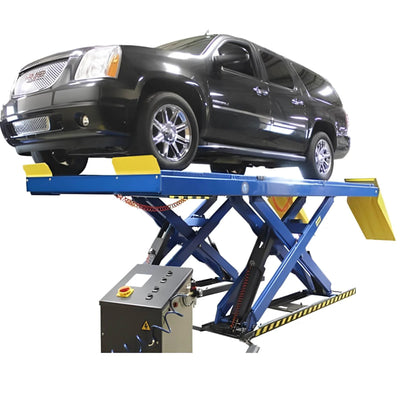

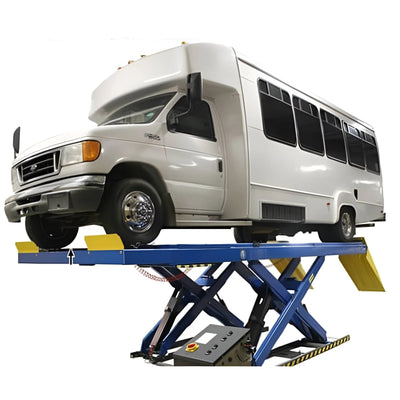

Atlas PX16A 16,000 lb Scissor Alignment Lift
SKU: ATEATPK-PX16A-CF-KIT
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas PX16A Scissor Alignment Lift (16,000 lb Capacity) is a heavy-duty, commercial-grade solution designed for professional shops that need a space-efficient alignment lift without sacrificing performance. Built with a narrow footprint and extended runway length, this lift is ideal for servicing everything from passenger vehicles to long wheelbase trucks and vans.
Engineered for precision, the PX16A features a super-balanced design that ensures accurate platform leveling, making it ideal for performing precise 4-wheel alignments. With built-in slip plates, alignment turntables, and extended slip plate coverage, this lift supports a wide range of wheelbase lengths from 96" to 184".
Key Features
- 16,000 lb capacity for passenger vehicles, trucks, and vans
- Heavy-duty commercial grade construction
- Precision-leveled platforms for accurate alignments
- Built-in slip plates and alignment turntables included
- Extra-long slip plates for 96"–184" wheelbase coverage
- Front cross-beam for added structural stability
- Air-operated mechanical safety locks (external air required)
- Emergency manual lowering pump for added safety
- Overload valve and controlled lowering valve
- Recessed turntable positions for proper alignment setup
- Compatible with optional rolling jacks (sold separately)
- Freight prepaid (FPD)
Built for Professional Shop Use
The PX16A is ideal for shops that require a dedicated alignment lift with a smaller footprint. Its narrow width design helps maximize floor space, while the long runways and alignment features allow technicians to handle a wide variety of vehicles efficiently.
An optional airline routing system helps keep air lines organized and off the shop floor when using rolling bridge jacks, improving overall safety and workflow.
| Specifications | Details |
|---|---|
| Capacity | 16,000 lbs |
| Lifting Height | 71 1/2" (5' 11 1/2") |
| Lowered Height | 13 1/4" |
| Overall Width | 94" |
| Overall Length (With Ramps) | 271" (22' 7") |
| Overall Length (Without Ramps) | 206 1/2" (17' 2 1/2") |
| Approach Ramp Length | 66" |
| Max Wheelbase (4-Wheel Alignment) | 184" |
| Min Wheelbase (4-Wheel Alignment) | 96" |
| Runway Width (Including Rail) | 23 3/4" |
| Width Between Runways | 44 7/8" |
| Width Between Runway Rails | 41 3/8" |
| Air Requirement | 90–120 PSI |
| Power Requirement | 220V Single Phase (30 Amp Breaker Required) |
| Oil Requirement | 3.5 Gallons AW32/AW46 |
| Concrete Requirement | Minimum 6" thickness, 3,000 PSI rating |

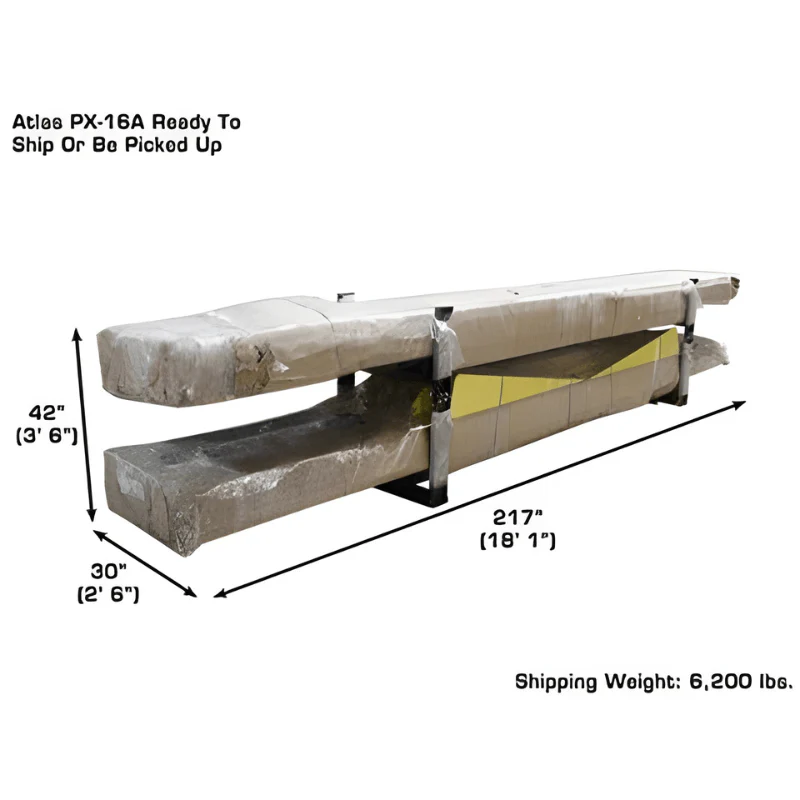

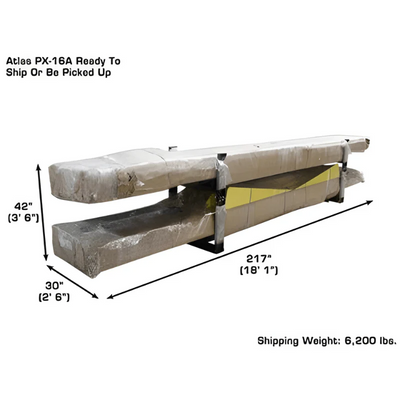

| Shipping Weight | 6,200 lbs |
