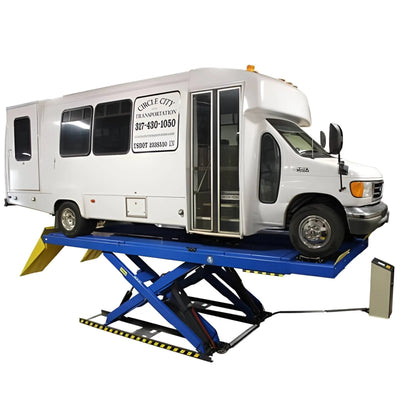

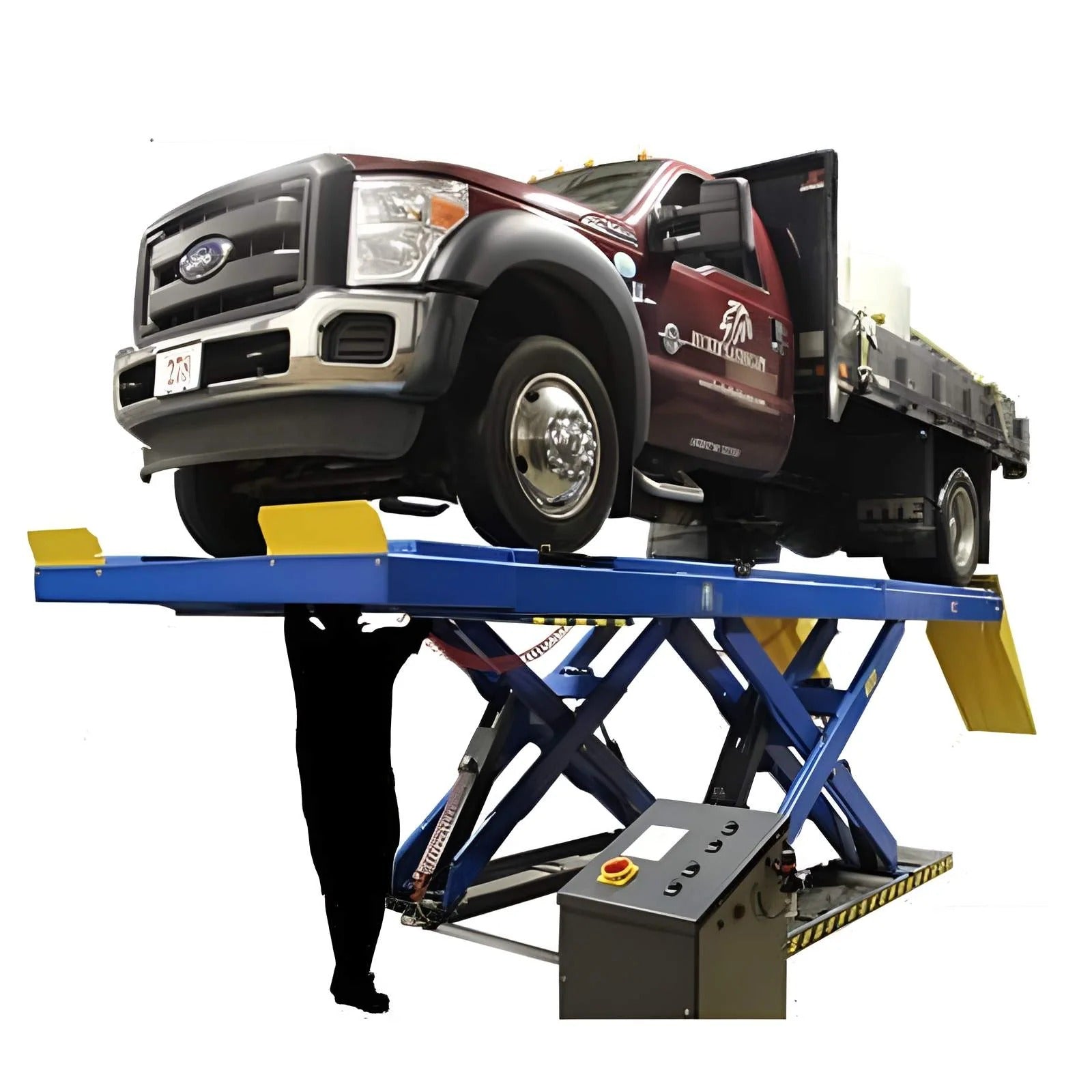

Atlas PX16A Scissor Alignment Lift with RJ8 Rolling Bridge Jacks Combo
SKU: ATEATPK-PX16ACF-COMBO
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

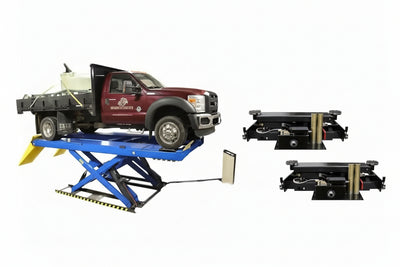

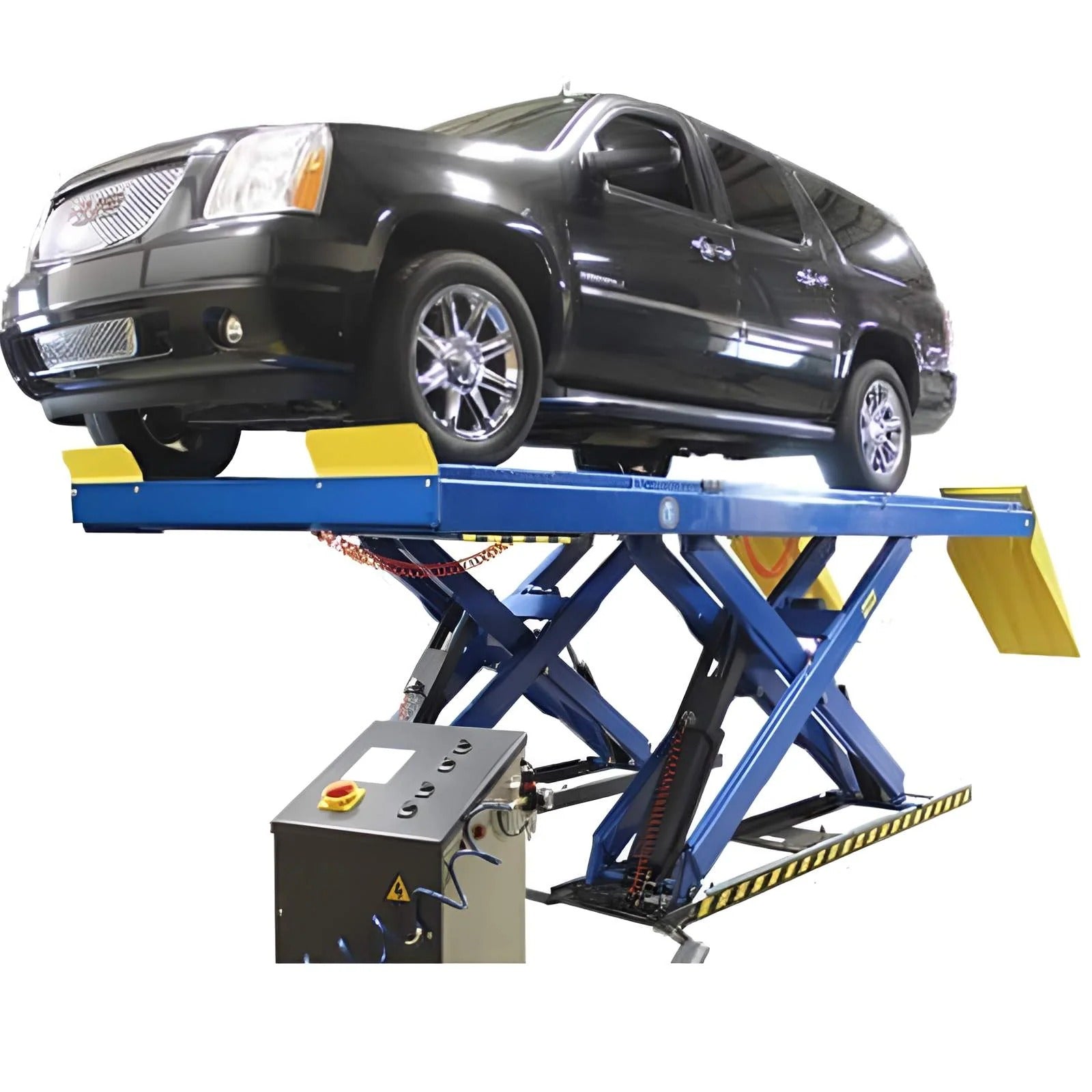

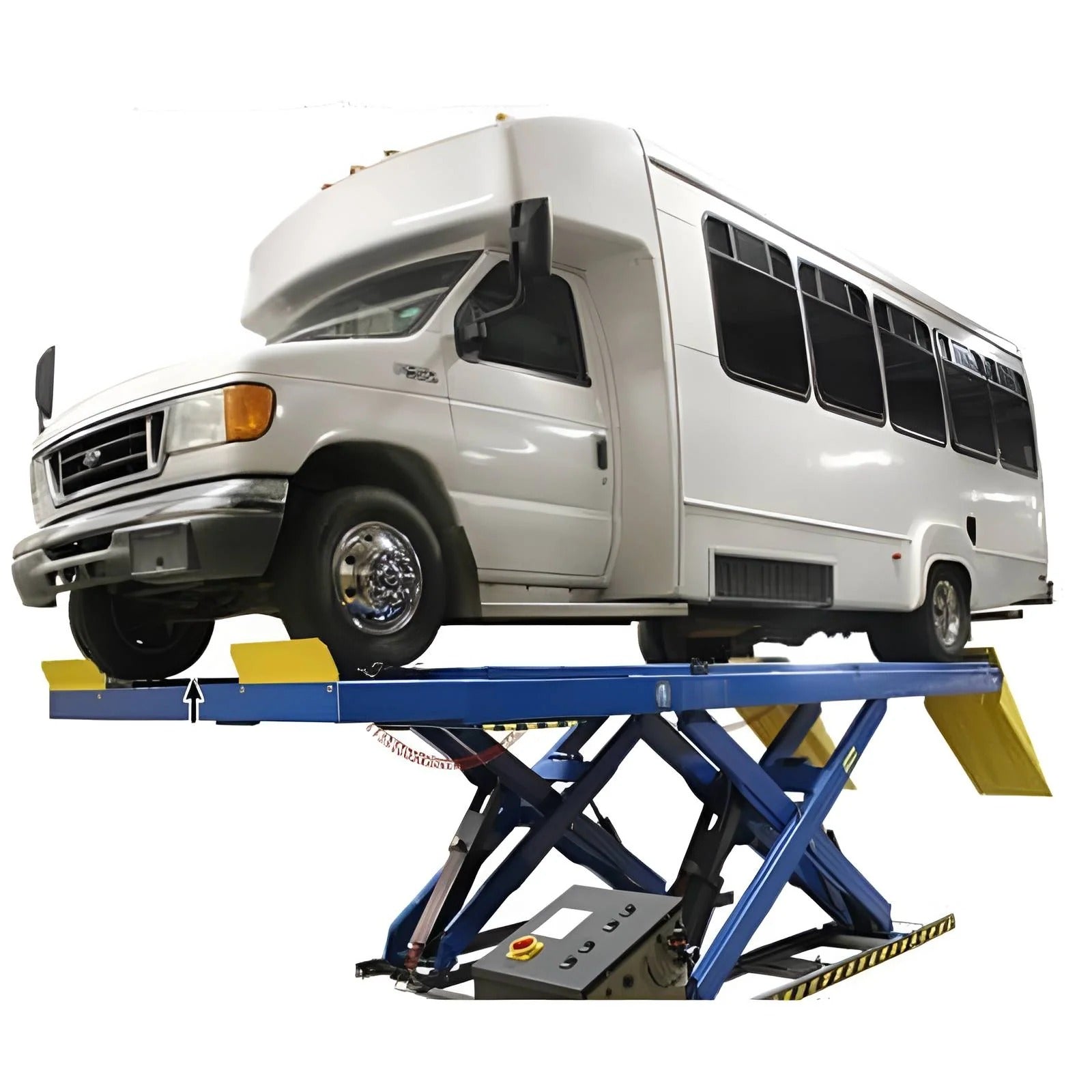

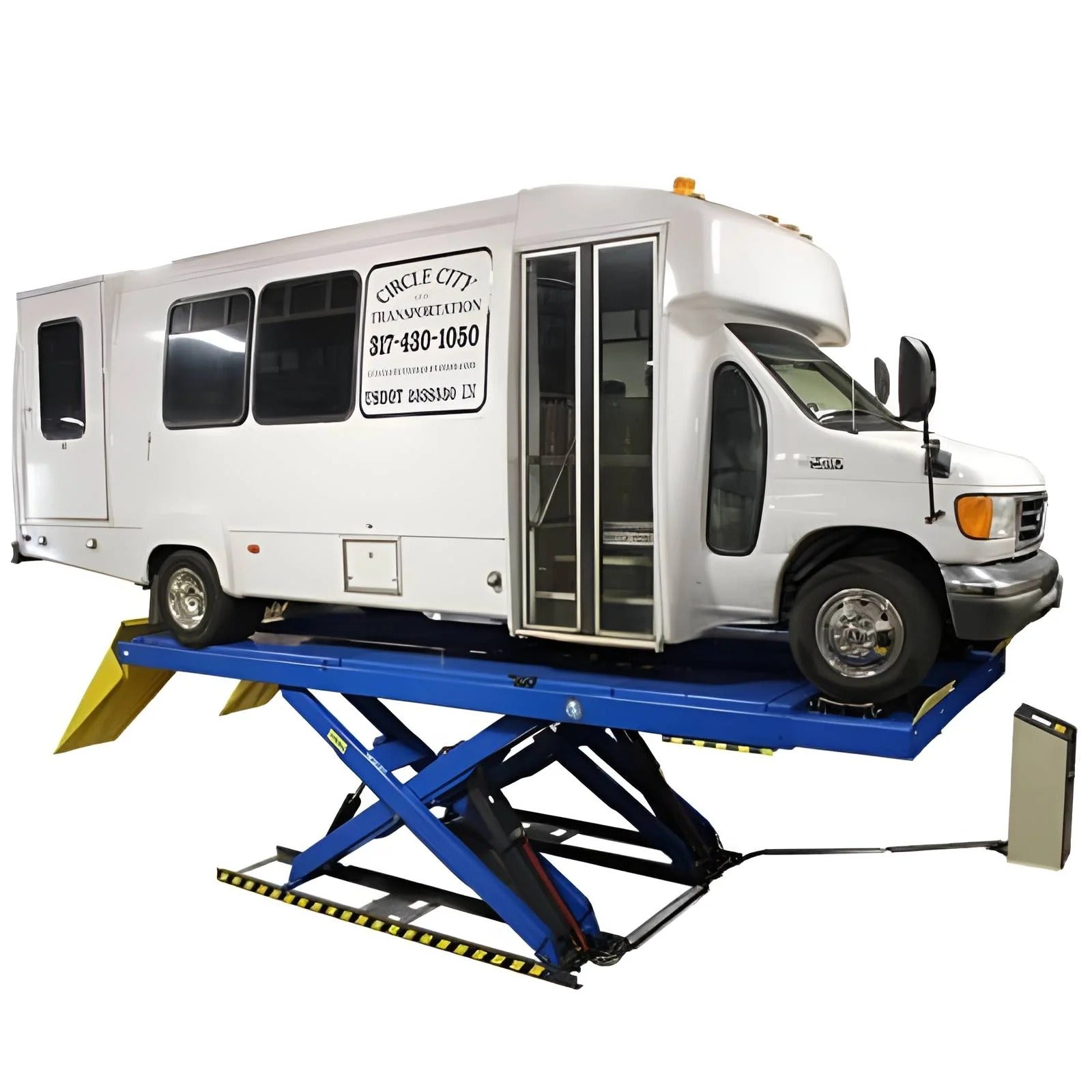

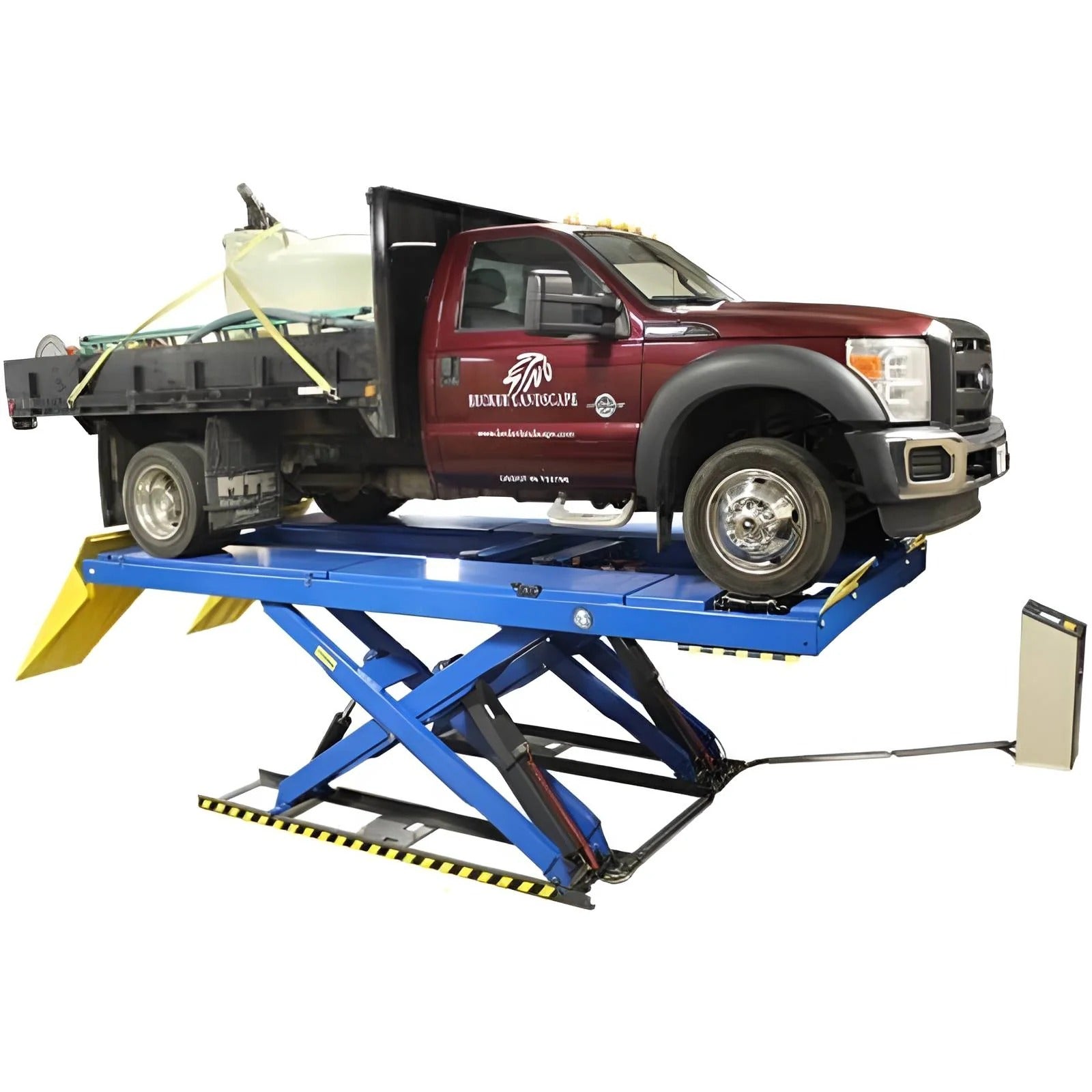

The Atlas PX16A Combo Package is a complete commercial alignment solution, combining the heavy-duty PX16A scissor alignment lift with two RJ8 rolling bridge jacks. This setup is designed for high-volume shops that need full alignment capability along with the ability to lift wheels off the runways for brake, suspension, and tire service.
With a 16,000 lb capacity lift and dual 8,000 lb rolling jacks, this combo allows technicians to perform precise alignments and full-service work on a wide range of vehicles—from passenger cars to long wheelbase trucks and vans.

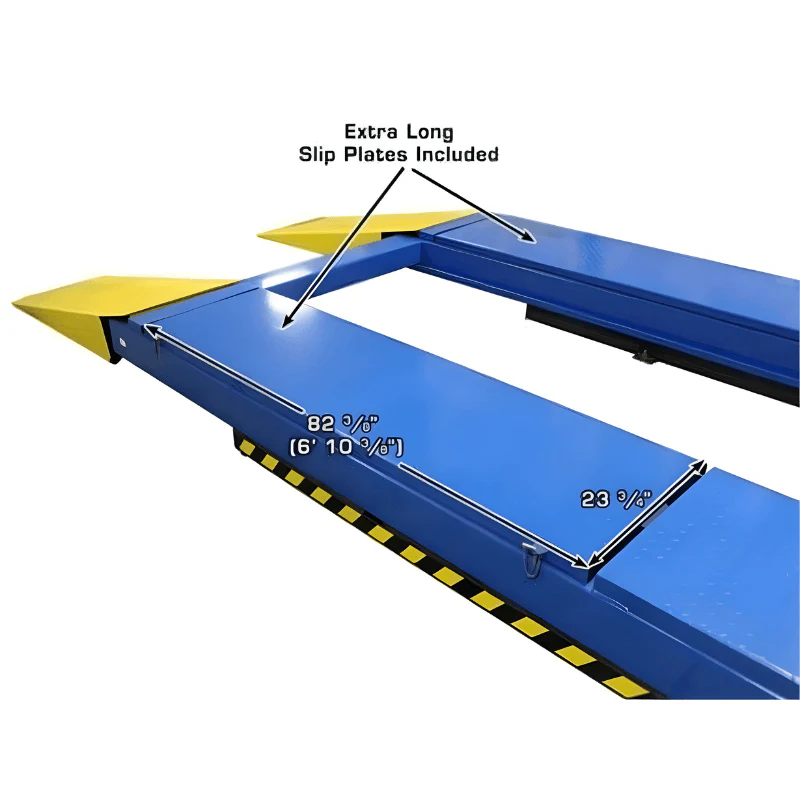

The PX16A lift includes built-in slip plates, alignment turntables, and an open-center design for maximum accessibility. The integrated runway rails support the included RJ8 jacks, while the semi-enclosed airline routing system helps keep the workspace clean and efficient.

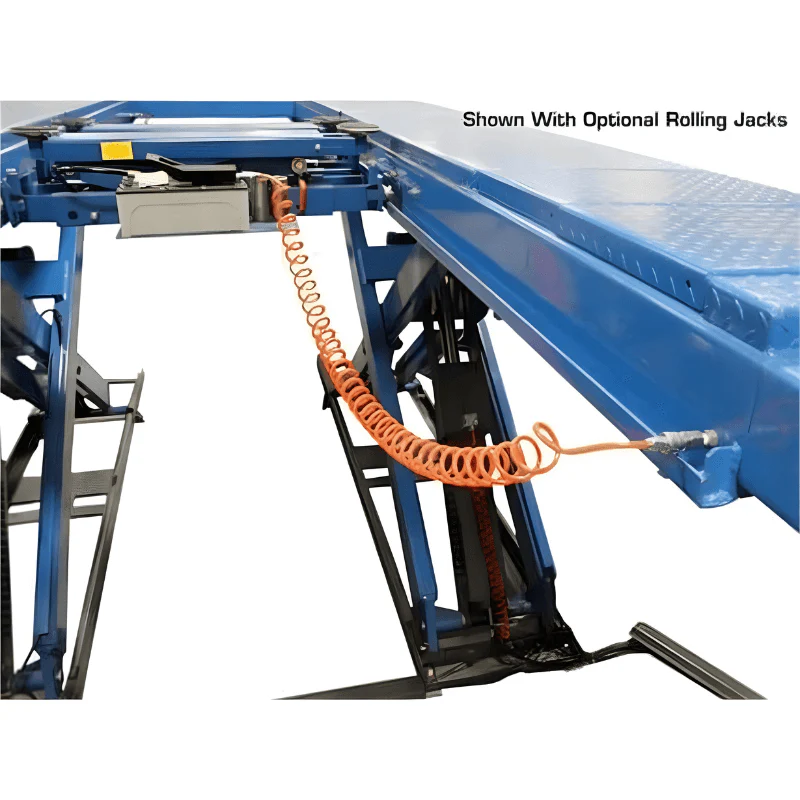

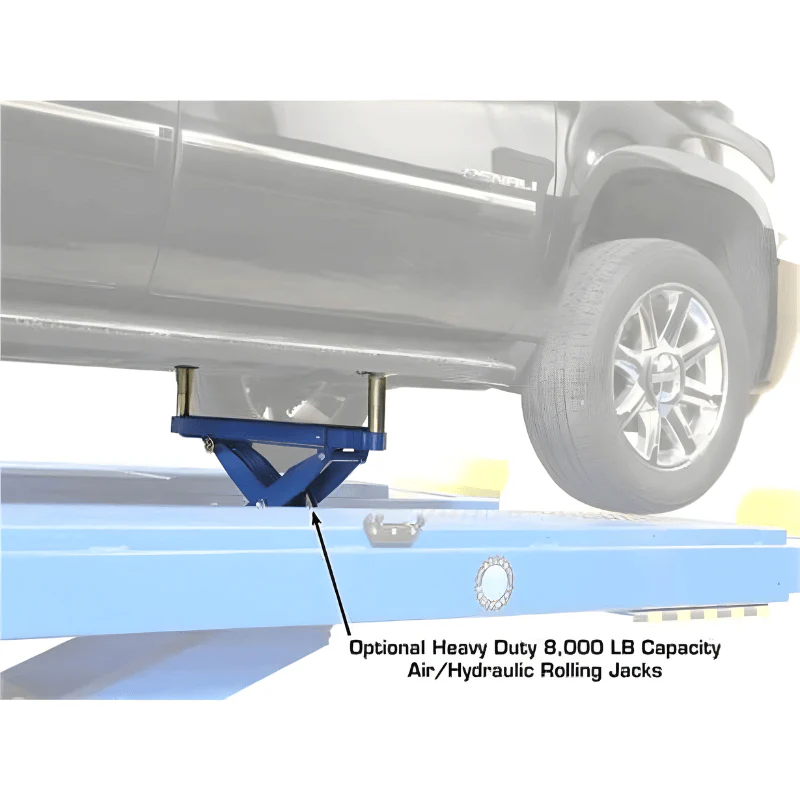

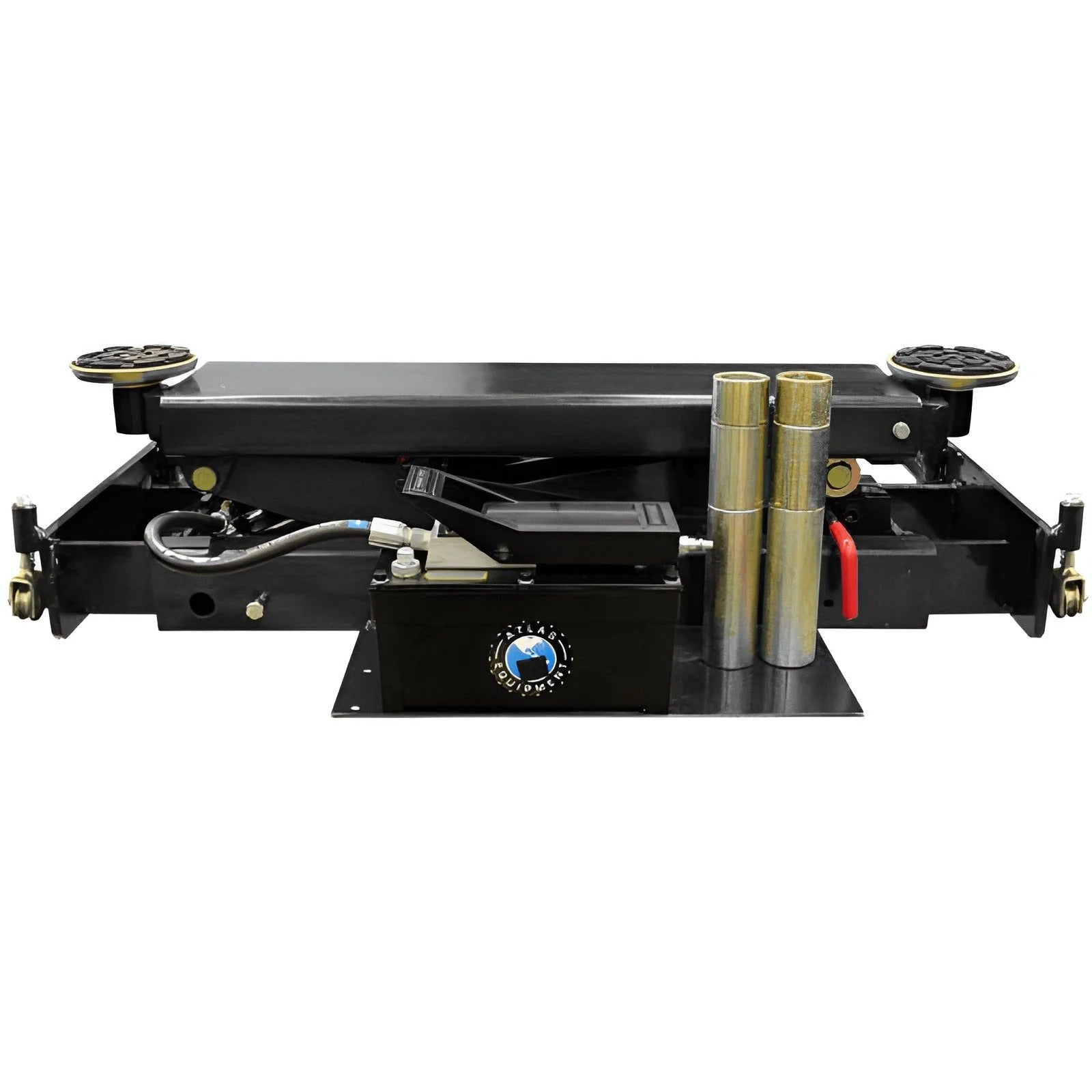

The included RJ8 rolling jacks are air-over-hydraulic operated and allow wheels to be lifted off the runways quickly, making this combo ideal for full-service alignment and repair operations.
Features and Benefits
• Combo includes PX16A alignment lift and two RJ8 rolling jacks
• 16,000 lb lift capacity with dual 8,000 lb rolling jacks
• Commercial-grade construction

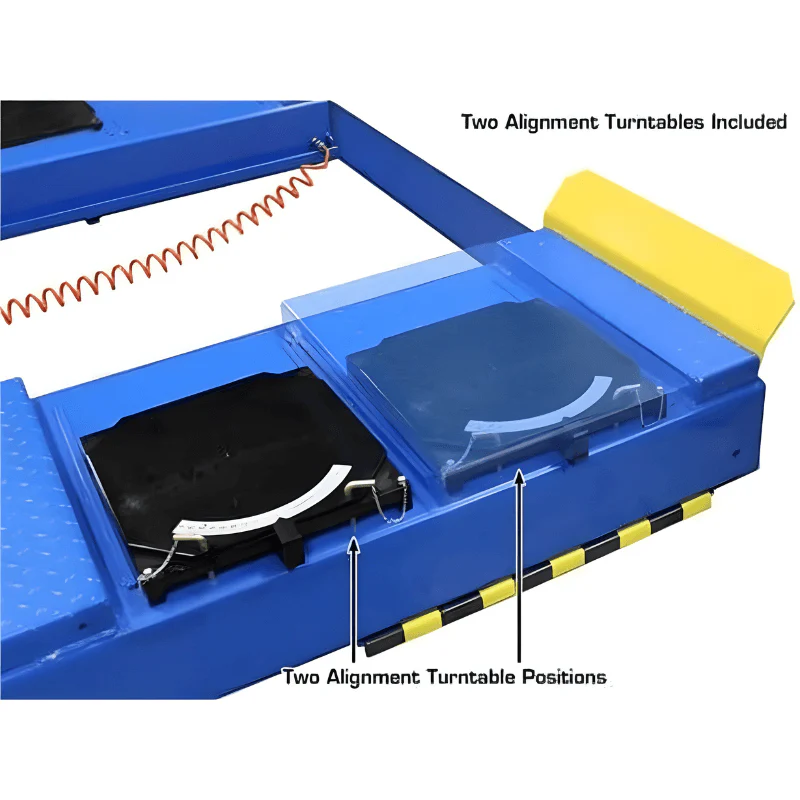

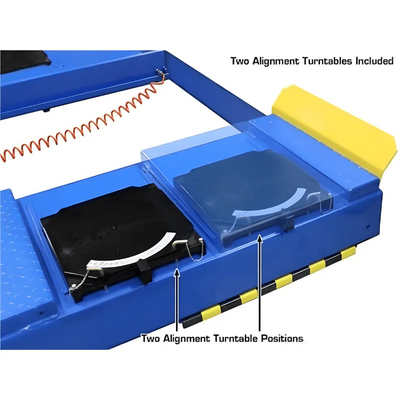

• Built-in slip plates and alignment turntables included
• Turntable covers included
• Open center design for easy undercar access

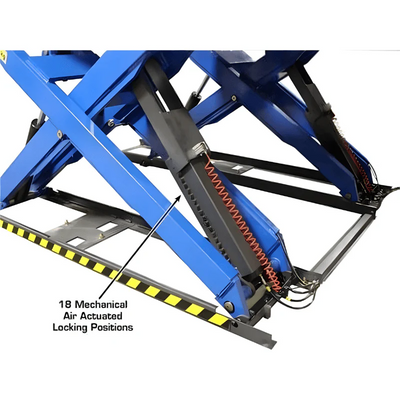

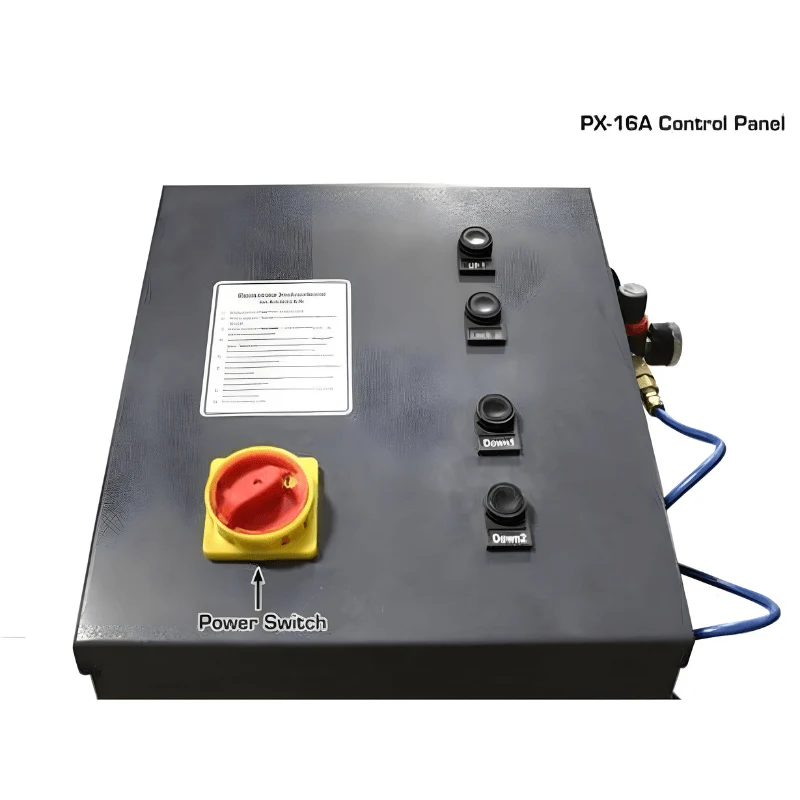

• Air-operated single-point lock release (external air required)

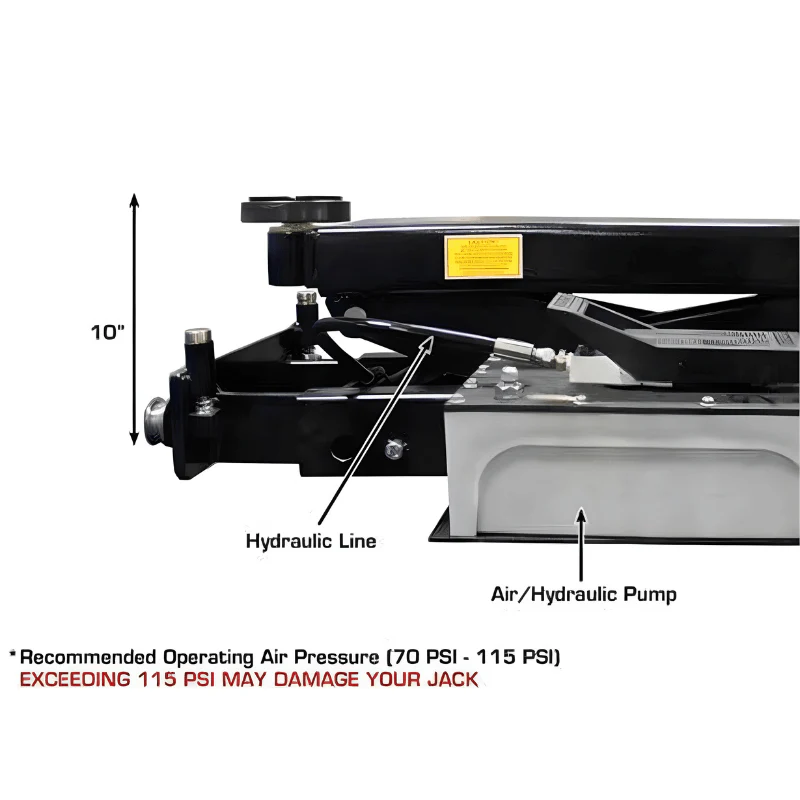

• Rolling jacks are air-over-hydraulic operated
• Truck adapter set included for each jack
• Integrated runway rails for jack compatibility

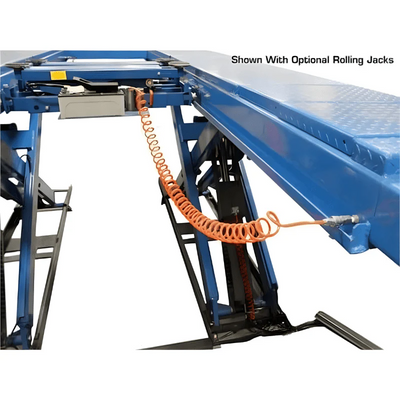

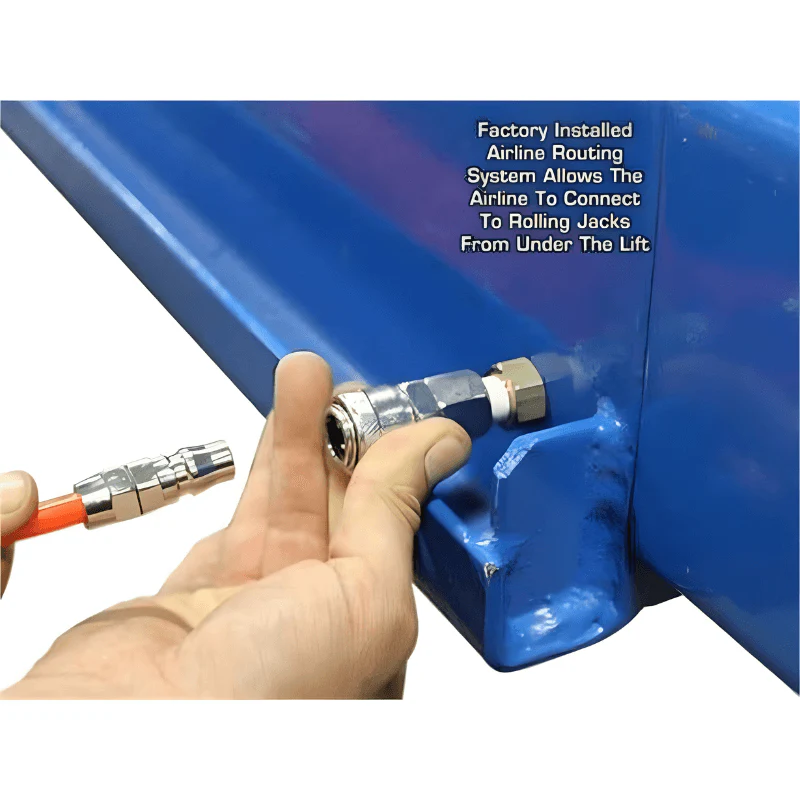

• Semi-enclosed airline routing system
• Ideal for alignment, brake, and suspension work
• Designed for high-production shop environments
• Freight prepaid

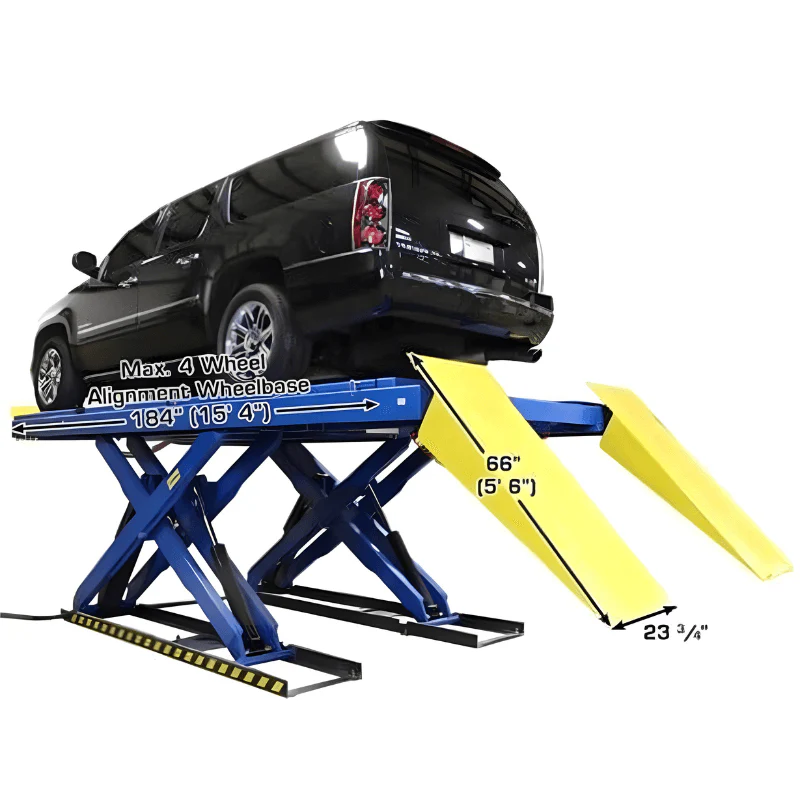

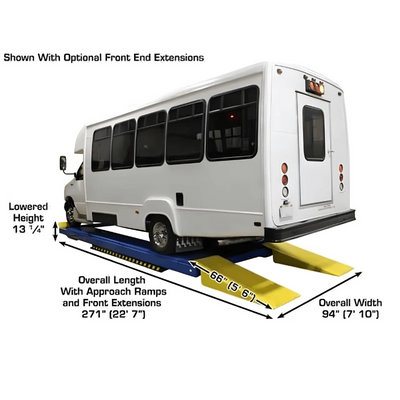

Atlas PX16A
| Specifications | Details |
|---|---|
| Capacity | 16,000 lbs. |
| Minimum Lift Height | 13 1/4" |
| Maximum Lift Height Above Floor | 71 1/2" (5' 11 1/2") |
| Overall Length w/ Ramps | 271" (22' 7") |
| Overall Length w/o Ramps | 206 1/2" (17' 2 1/2") |
| Overall Width | 94" (7' 10") |
| Runway Width | 23 3/4" |
| Between Runways | 44 7/8" at top / 41 3/8" at rails |
| Air Requirement | 85–120 PSI |
| Motor/Electrical Requirement | 220V ±5% (209–231V) / 1 Phase, 30 Amp Breaker Required |
| Oil Requirement | 3–5 Gallons AW32 or AW46 (Not Included) |
| Shipping Weight | 6,200 lbs. |

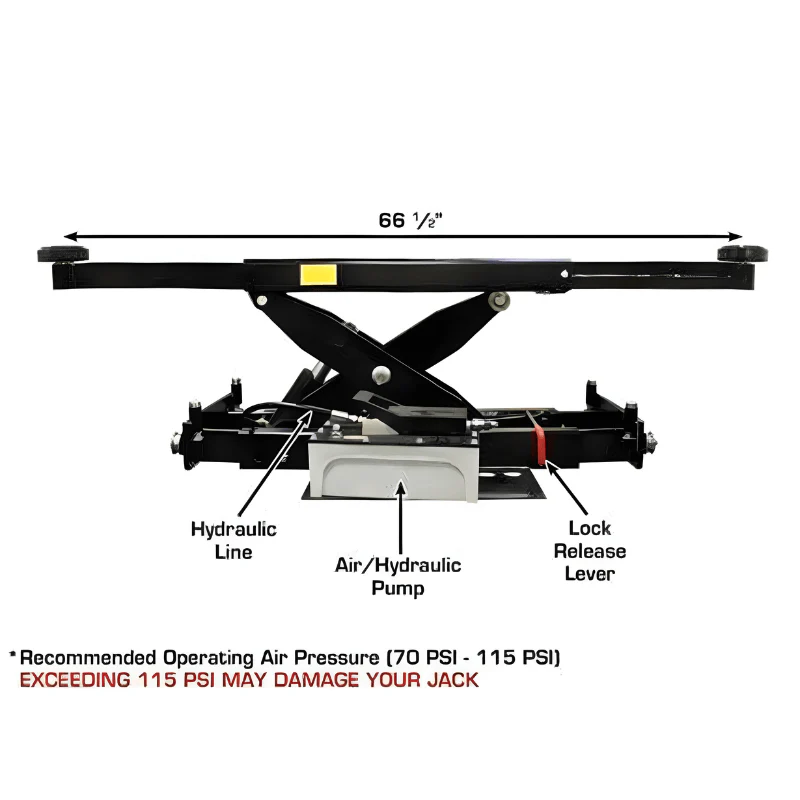

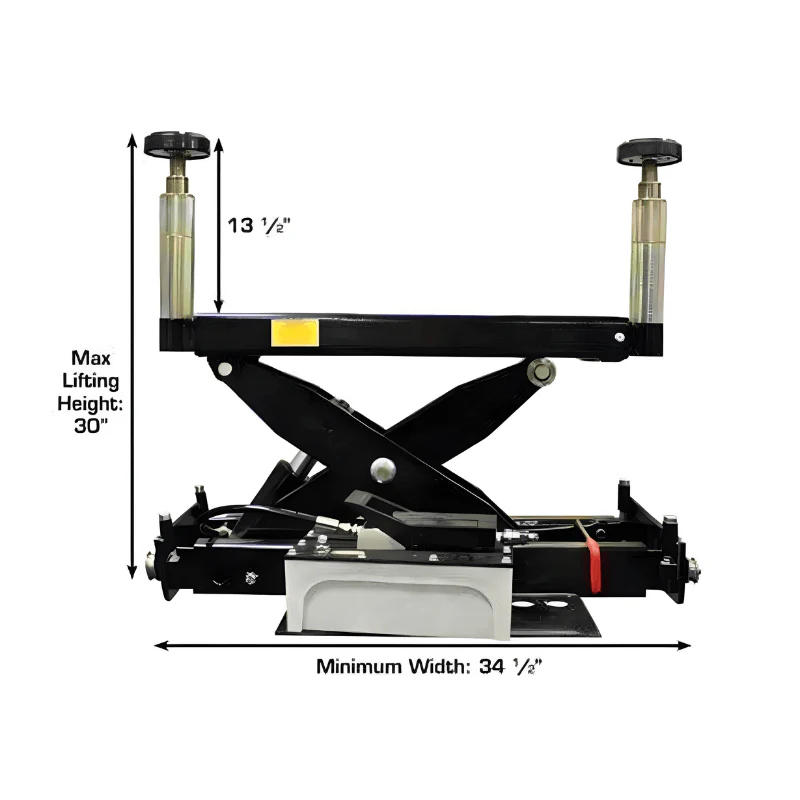

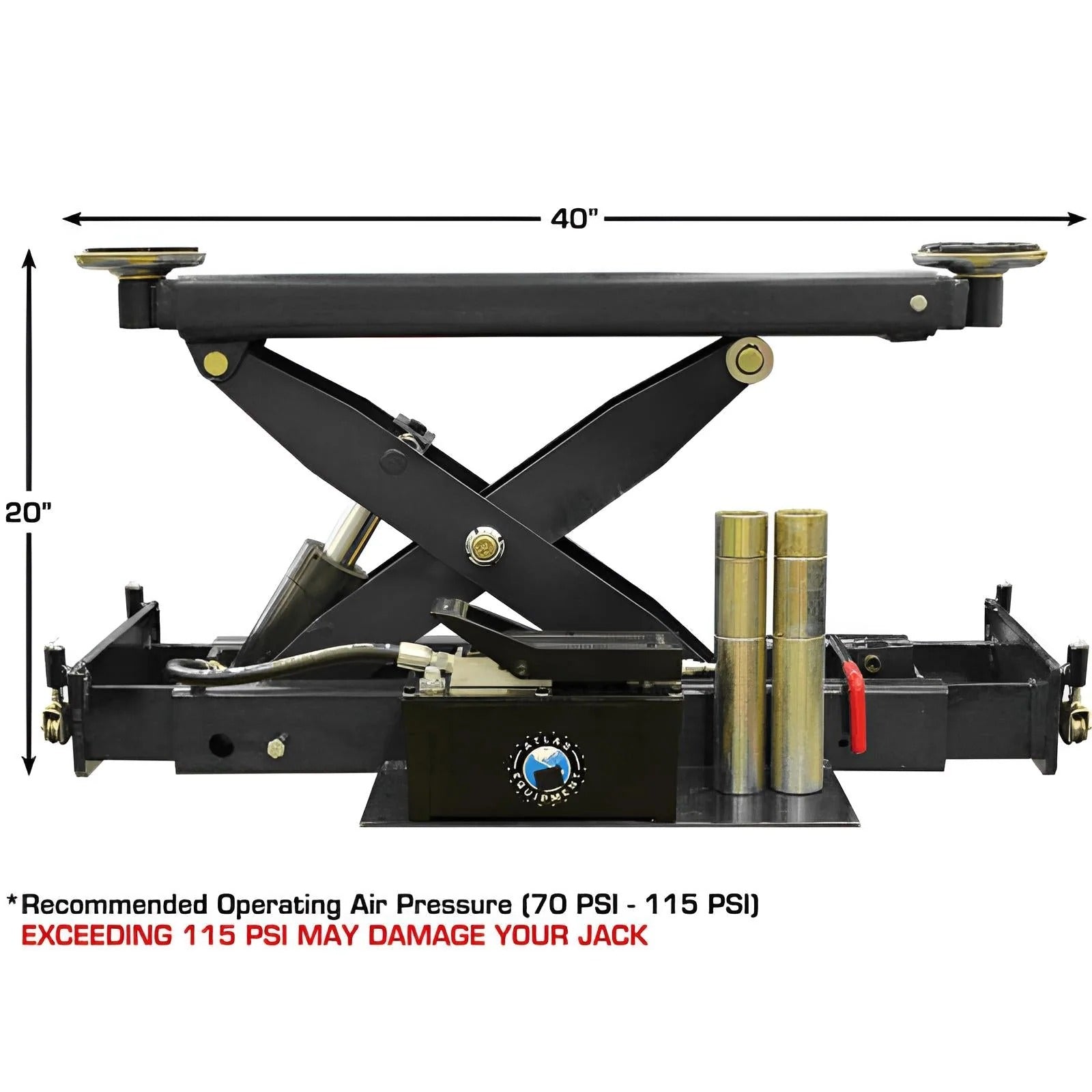

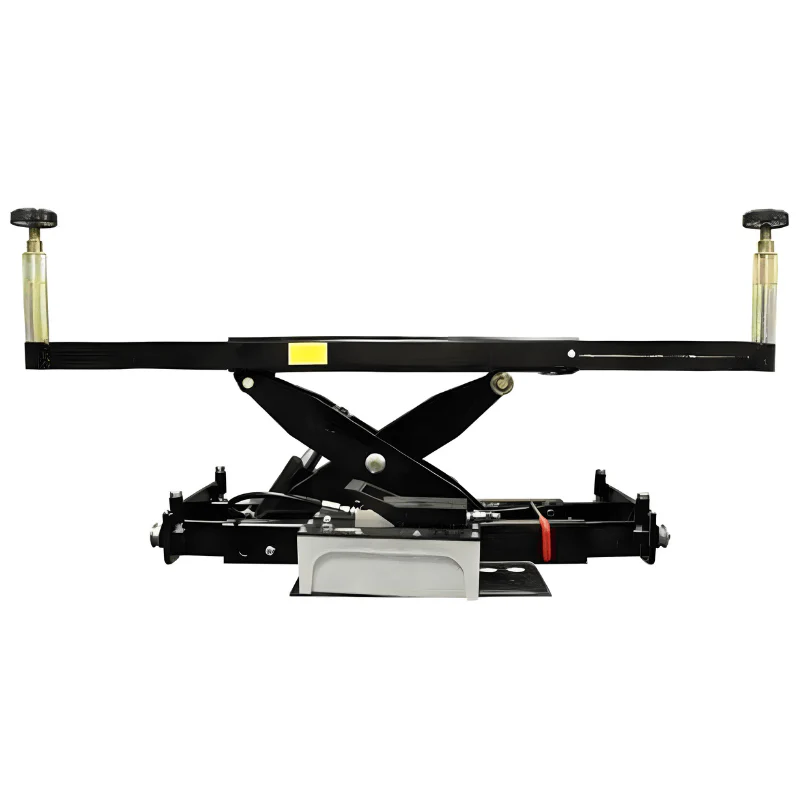

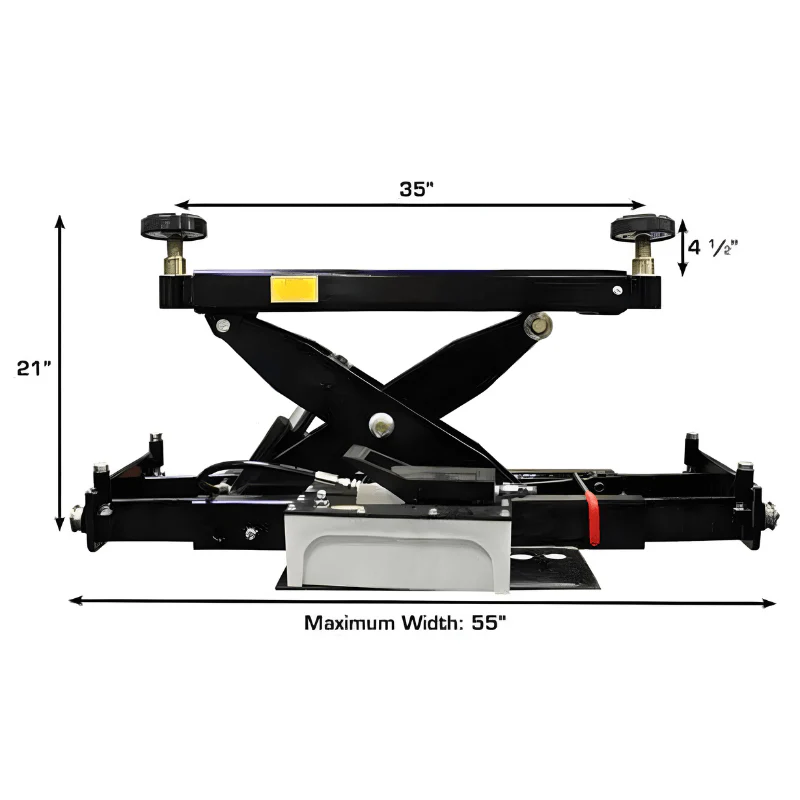

Atlas RJ8000
| Specifications | Details |
|---|---|
| Maximum Capacity | 8,000 lb. |
| Maximum Width | 66 1/2" (5' 6 1/2") |
| Minimum Width | 40" (3' 4") |
| Distance Between Runway Capability | 34 1/2" – 55" |

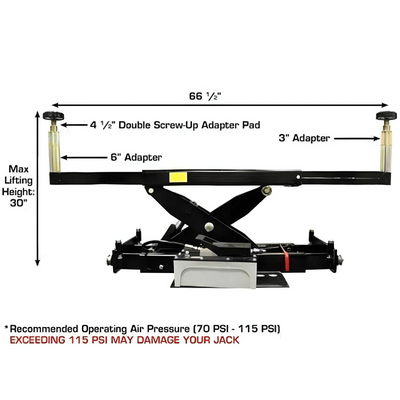

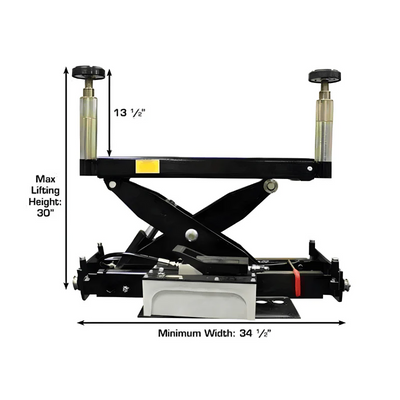

| Maximum Lifting Height (With Adapters) | 30" |
| Air Requirement | 70–115 PSI (External Air Supply Required – Not Included) |
| Shipping Weight | 390 lbs. |

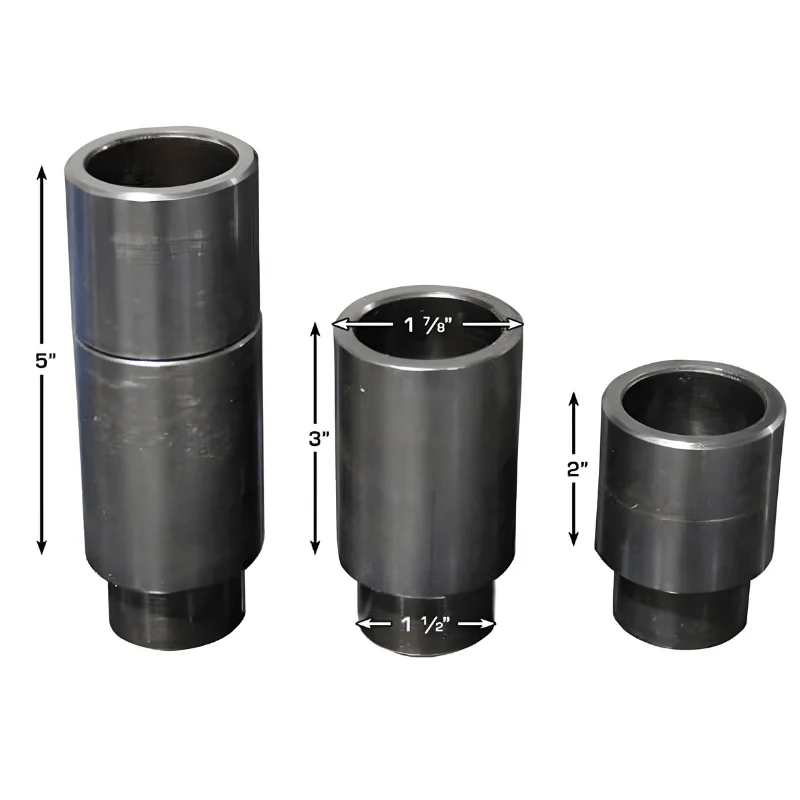

| Adapter Heights | 2 Each: 2", 3" |
| Arm Hole/Adapter Peg Size | 1.5" |
