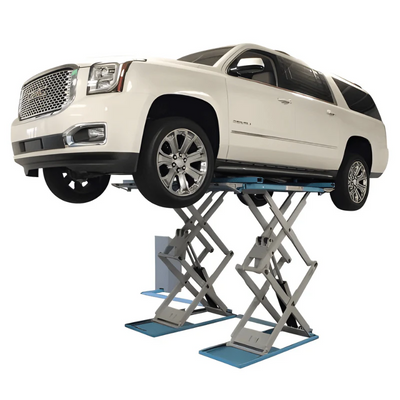

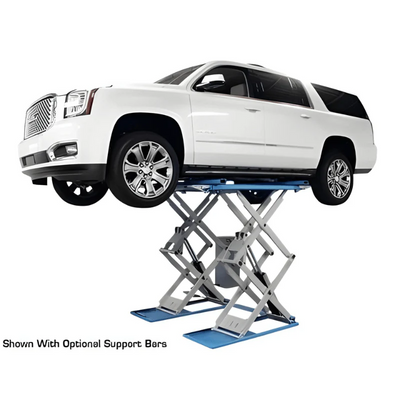

Atlas SLP9K Full-Rise Scissor Lift with 9,000 lb Capacity and Low-Profile Open Center Design
SKU: ATEATTD-SLP9K
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas SLP9K is a full-rise scissor lift designed for commercial shops that need maximum lifting height while maintaining a low-profile, space-efficient setup. With a collapsed height of just 4 inches and a full-rise lifting height of up to 78 inches, this lift is ideal for servicing cars, trucks, and SUVs in facilities with ceiling height limitations. Its open center design allows easy access to key vehicle components, while the adjustable platform width supports a wide range of lifting points across unibody and full-frame vehicles. The lift can also be flush-mounted to create a clean, drive-over surface that improves workflow and shop appearance. Built with a self-contained control panel and advanced safety locking system, the SLP9K delivers reliable and controlled lifting performance for demanding environments.
Key Features & Benefits
- 9,000 lb lifting capacity for cars, trucks, and SUVs
- Full-rise lifting height up to 78"
- Low-profile 4" collapsed height for easy drive-over access
- Open center design for improved under-vehicle accessibility
- Adjustable width between platforms for multiple vehicle types

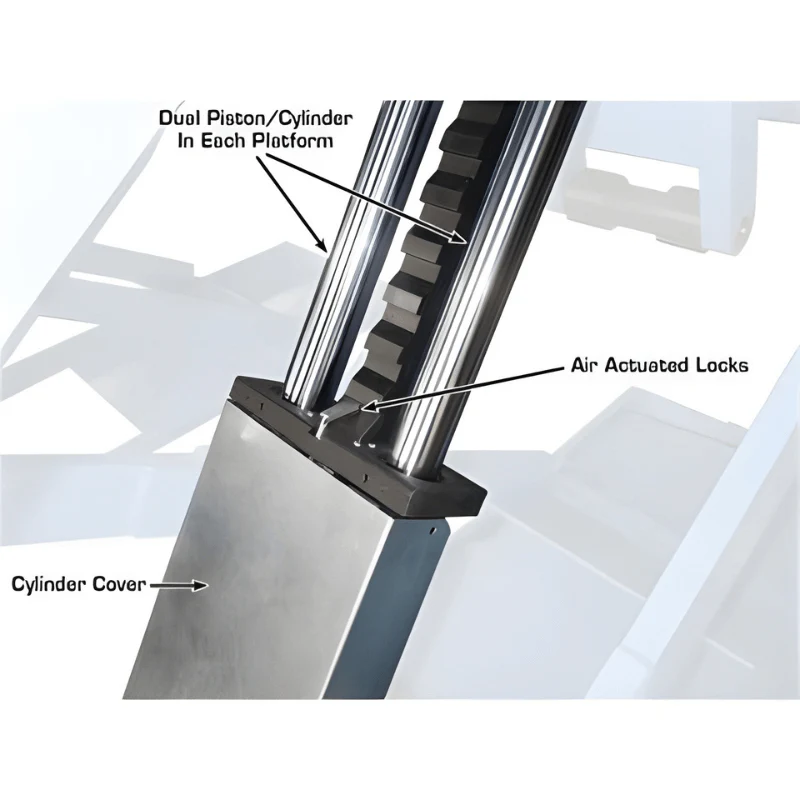

- Air-operated single-point lock release (external air required)
- 10 locking positions for flexible working heights
- Locking approach ramps for added safety and stability
- Grease zerk fittings at hinge points for maintenance

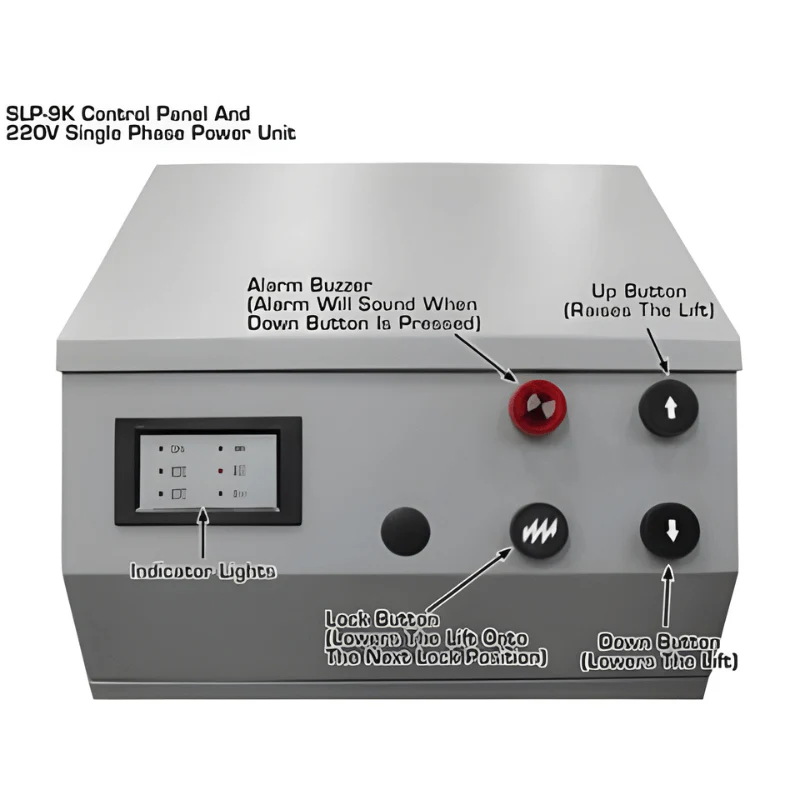

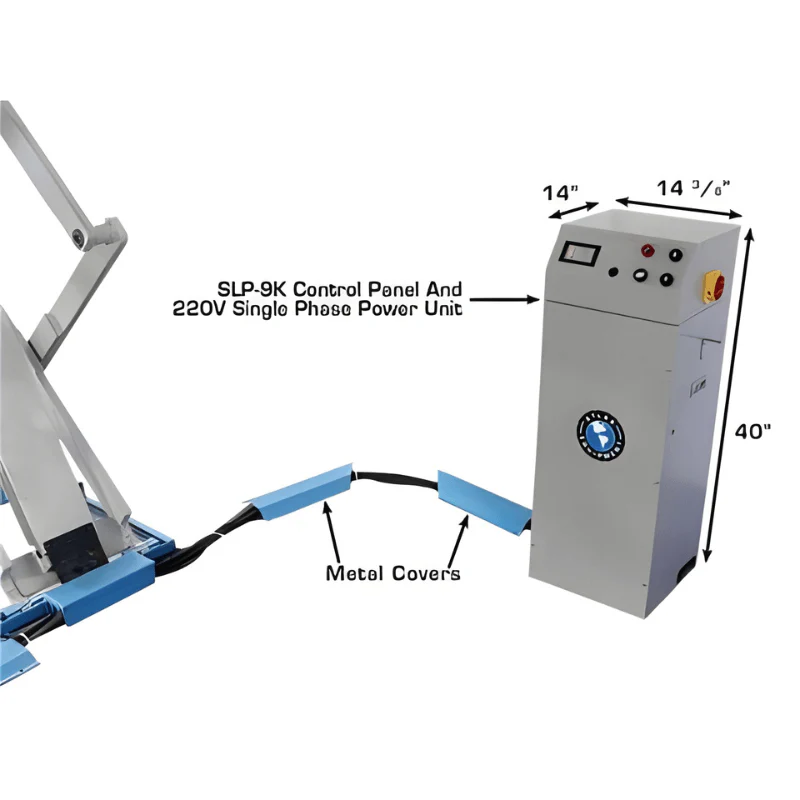

- Separate self-contained control panel for convenient operation
- CE certified for safety and quality standards

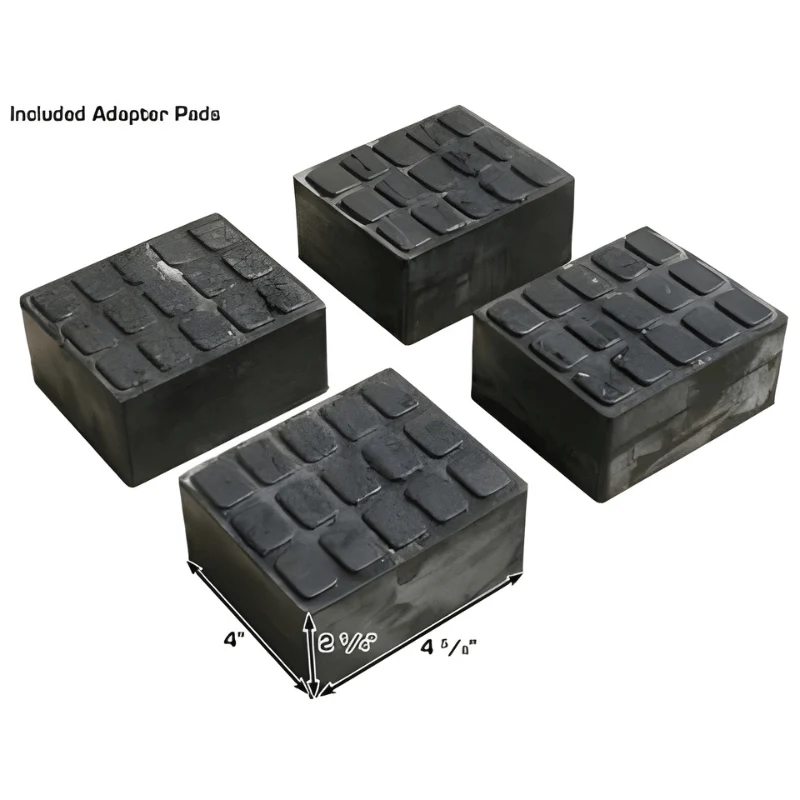

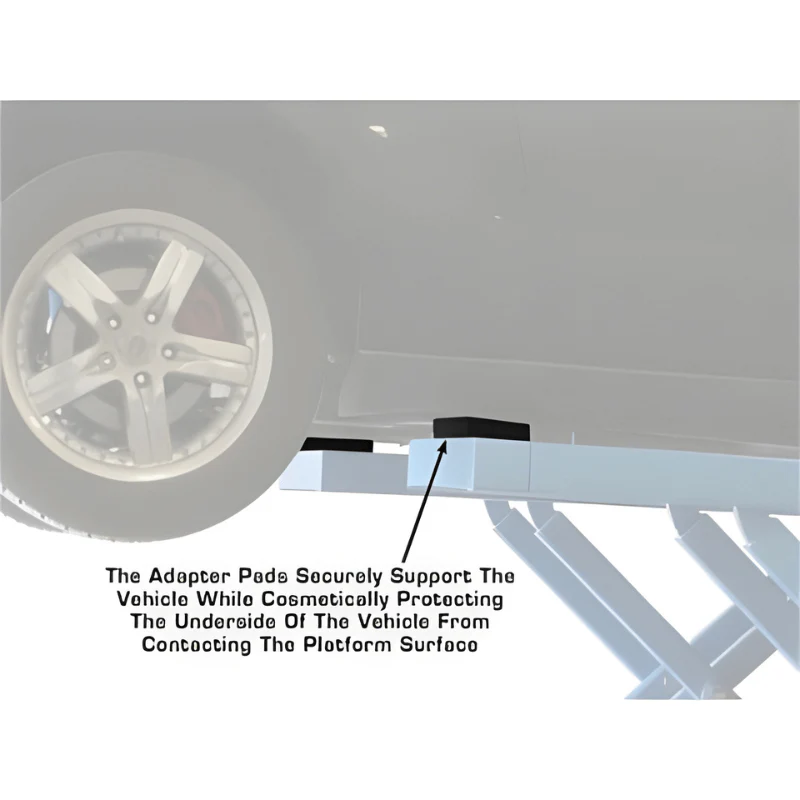

- Heavy-duty rubber lifting blocks included
- Mounting hardware included
- 220V single-phase operation (30 amp breaker required)
- 1-year structural and 1-year hydraulic parts-only warranty
Performance & Design Highlights
The SLP9K is engineered for shops that want full-rise lifting capability without the obstruction of traditional lift columns. Its low-profile design allows vehicles to be driven directly onto the lift, while the full-rise height provides comfortable working clearance underneath. The adjustable platform spacing accommodates a wide variety of vehicle sizes, and the open center layout improves access for drivetrain and exhaust work. The 10-position air-actuated locking system automatically engages during lifting and lowering to ensure safe operation. The option to flush-mount the lift creates a clean, unobstructed floor, allowing vehicles to be positioned from any direction. The integrated control panel houses the electric/hydraulic power unit and provides simple push-button operation, while a built-in safety lowering limit switch adds an extra layer of protection during use.
| Specifications | Details |
|---|---|
| Capacity | 9,000 lbs |

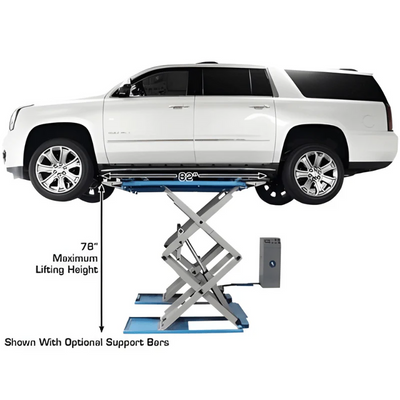

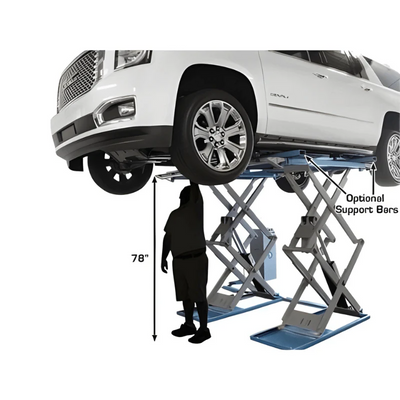

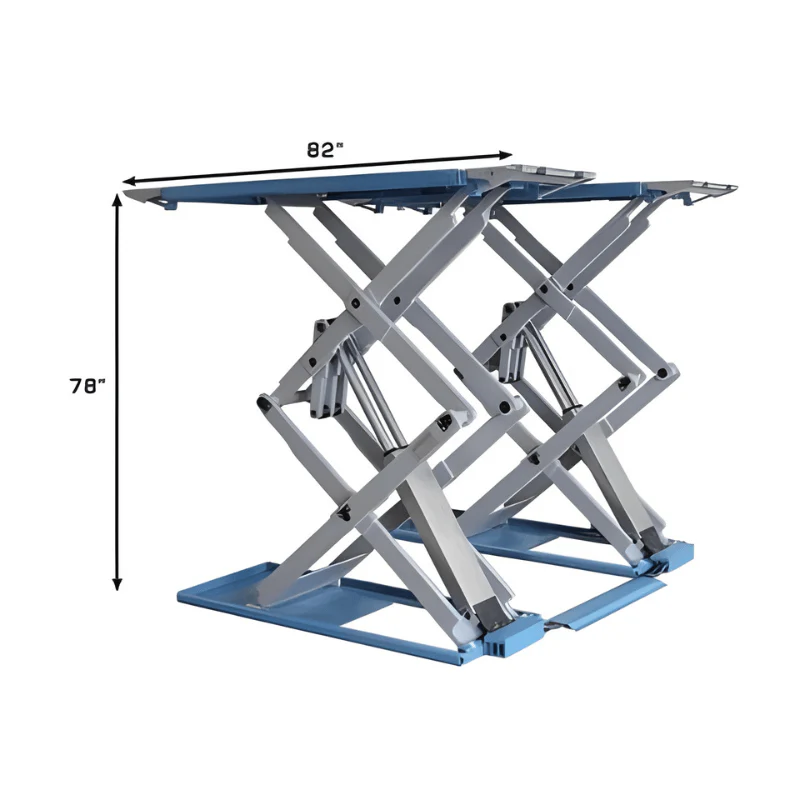

| Maximum Lift Height | 78" |
| Lowered Height | 4" |
| Overall Length | 82" |
| Maximum Width | 82" |

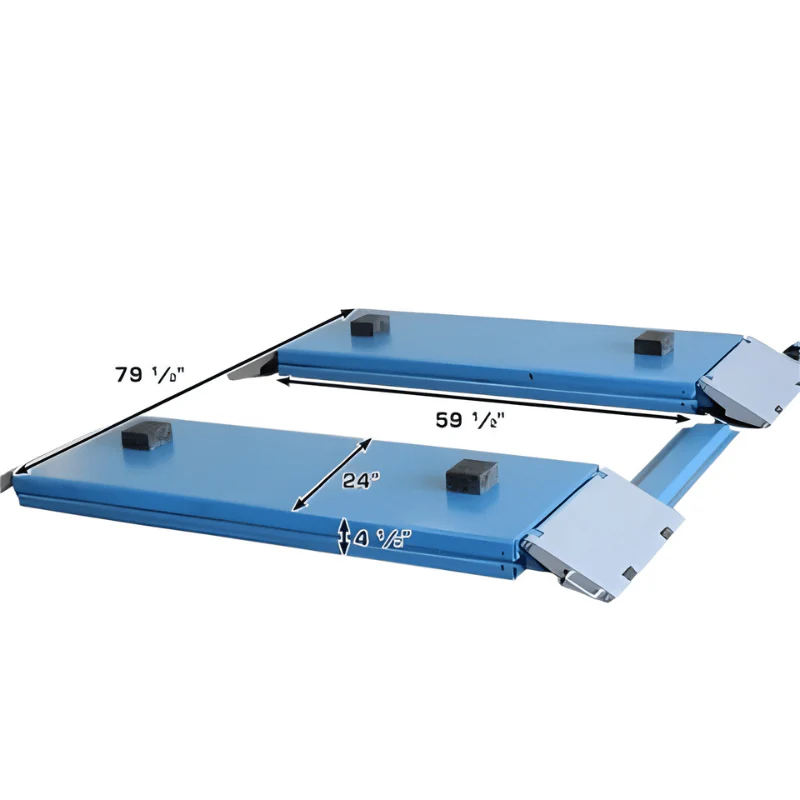

| Platform Size | 59" x 24" |

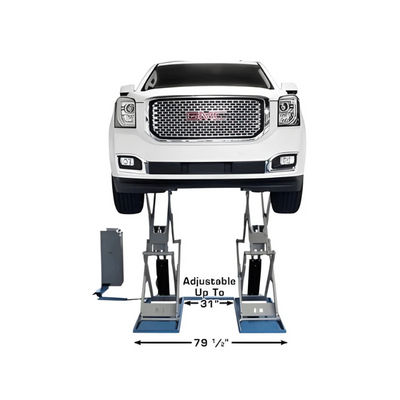

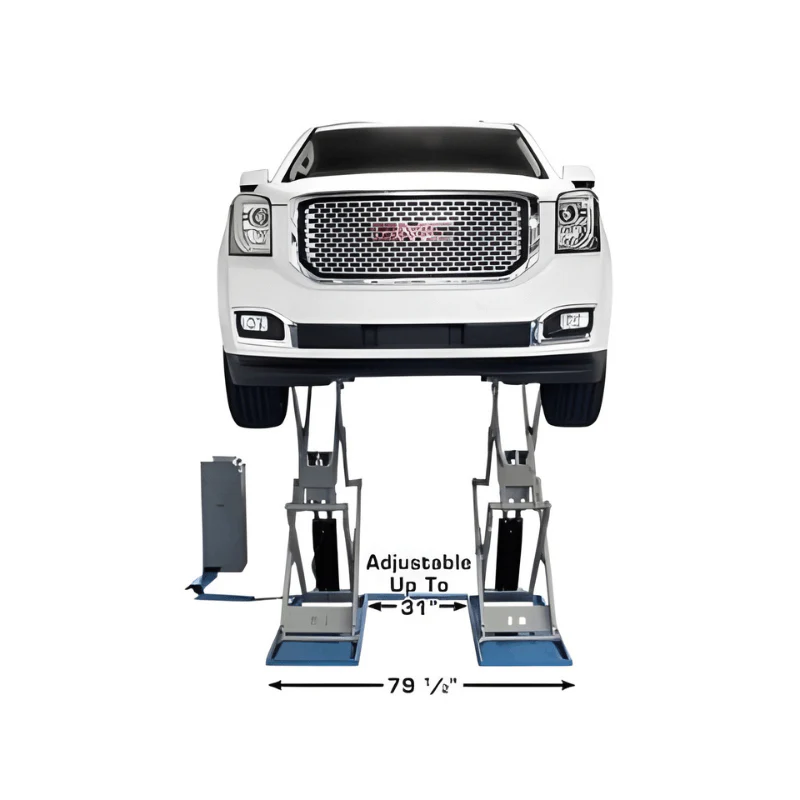

| Width Between Platforms | Adjustable up to 31" |
| Ramp Size | 11" x 24" |
| Air Requirement | 90–120 PSI |
| Power Requirement | 220V / 1 Phase / 30 Amp |
| Oil Requirement | 3–5 Gallons (AW32 or AW46) |

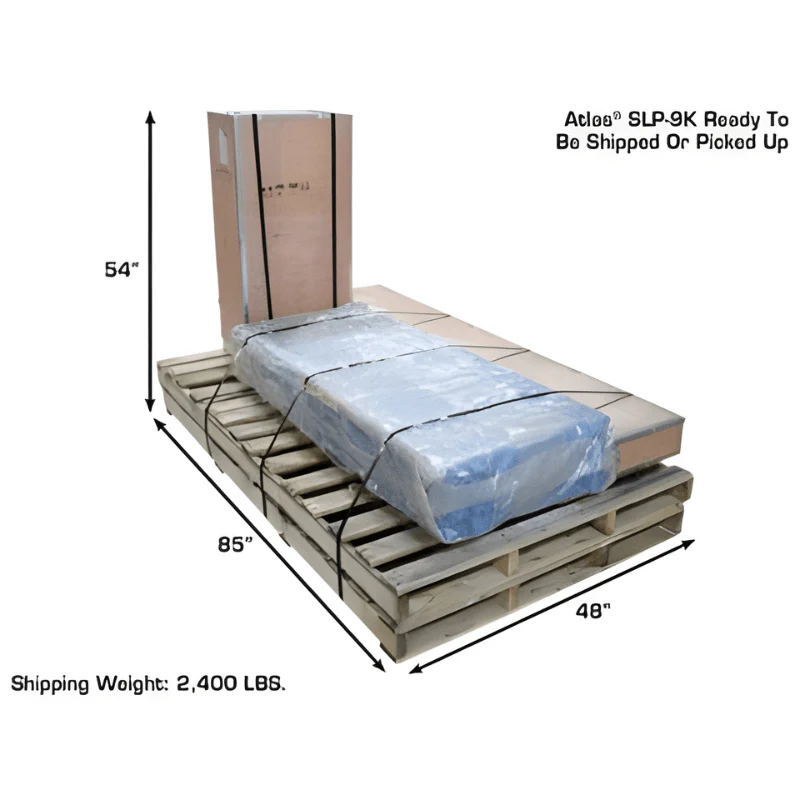

| Shipping Weight | 2,400 lbs |
