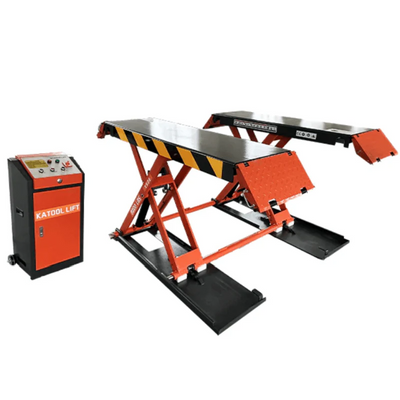

Katool KT-X90E 8,000 lb Electric Mid-Rise Scissor Lift with Low-Profile Base
SKU: KT-X90E
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Need more lifting height than a standard mid-rise without jumping into a full-rise setup? The Katool KT-X90E bridges that gap. This 8,000 lb mid-rise scissor lift is designed to give shops and garages extra working clearance while still fitting comfortably in spaces with lower ceilings.
Built for versatility, the KT-X90E handles everything from routine maintenance to heavier service work on cars, SUVs, and light trucks. Its extended platform length and higher lift range make it more capable than typical mid-rise lifts, while still maintaining a compact, efficient footprint.

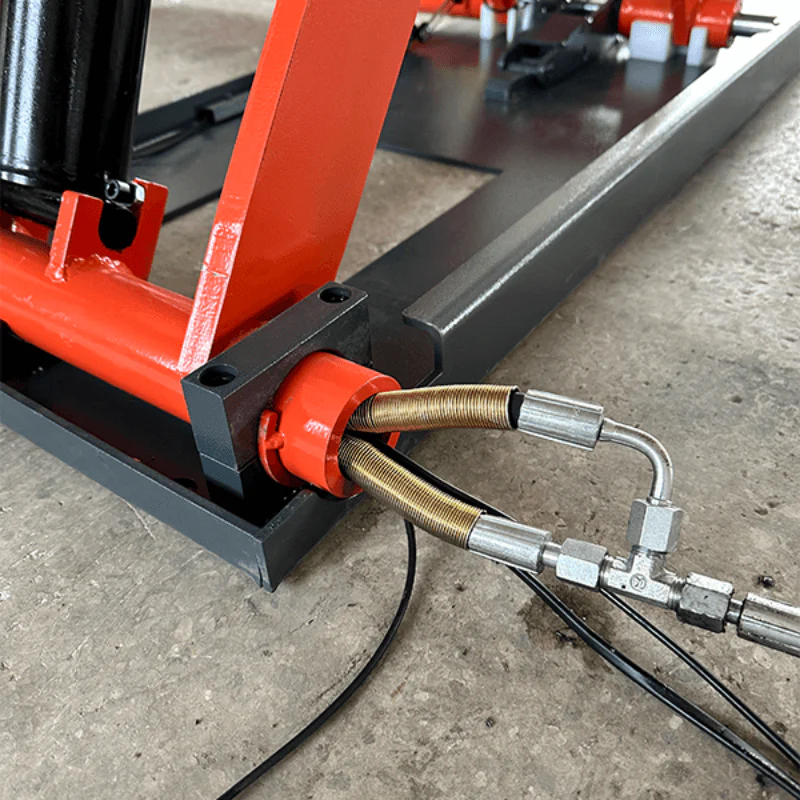

With smooth hydraulic performance, built-in safety systems, and mobility features, this lift is a practical solution for shops that want flexibility, reliability, and improved access without overcomplicating their setup.
Key Features & Benefits

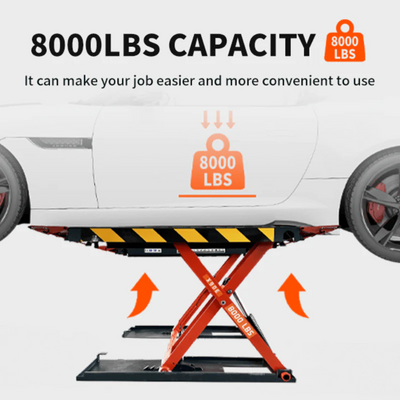

- 8,000 lb Lifting Capacity – Handles cars, SUVs, and light trucks with ease

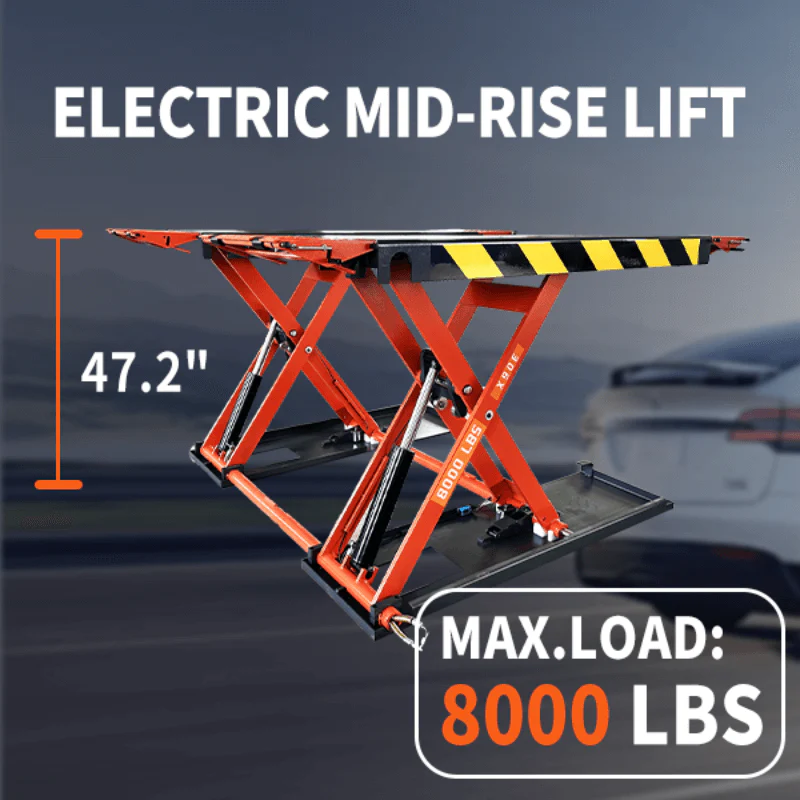

- Extended Mid-Rise Height (~47") – More clearance than standard mid-rise lifts
- Low Profile Entry (4.3") – Easy drive-on access for low-clearance vehicles
- Dual Power Compatibility – Operates on 110V or optional 220V setups
- Heavy-Duty Steel Construction – Built for long-term durability
- Self-Lubricating Components – Reduced maintenance and smoother operation

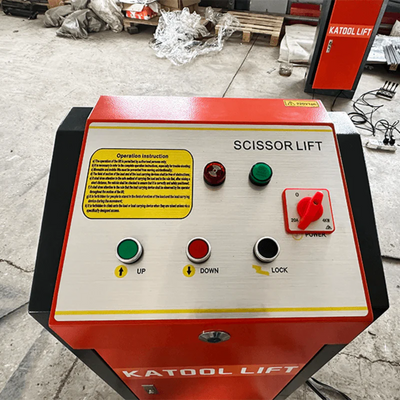

- 24V Safe Control System – Low-voltage controls for added safety
- Height Limit Switch – Prevents over-travel during operation

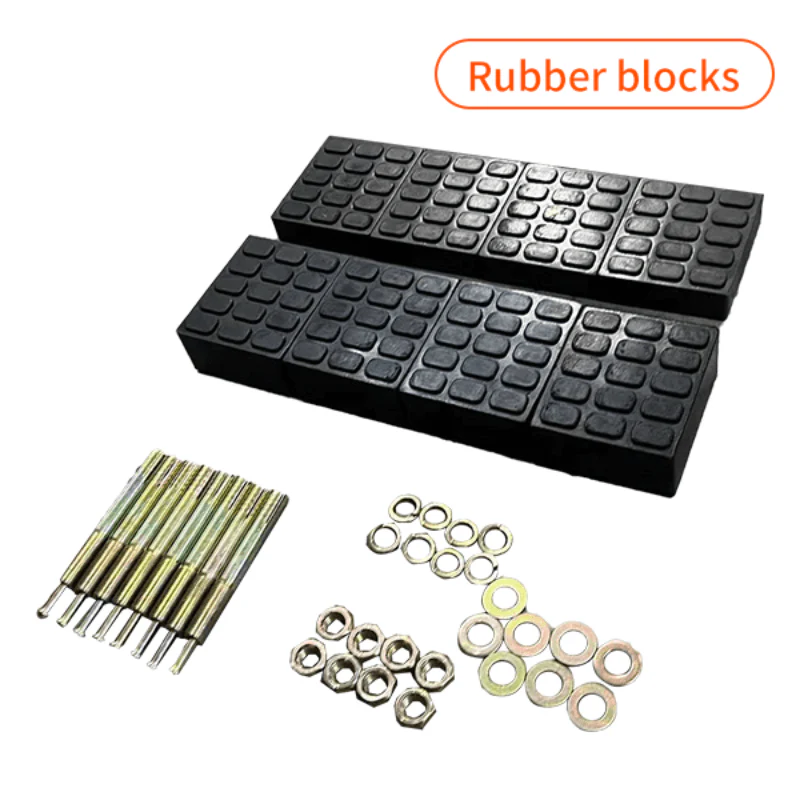

- Composite Rubber Lifting Blocks – Protects vehicle contact points

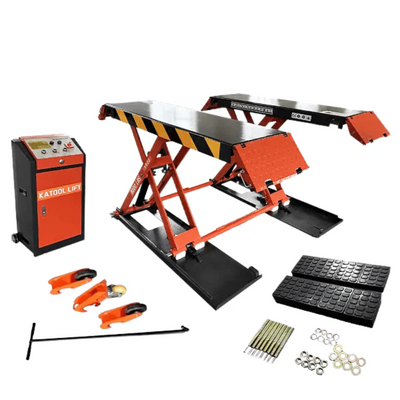

- Drive-Up Ramps Included – Supports easy vehicle positioning
- Caster Kit Included – Allows easy repositioning within the shop
- Optional Support Bars Available – Expands capability for longer vehicles
- CE Certified – Tested to 115% dynamic and 150% static load standards
- More Versatile Than Standard Mid-Rise Lifts – Added height improves access
- Space-Efficient Design – Works well in garages with limited ceiling height
- Mobile & Flexible – Move and reposition as needed
| Specifications | Details |
|---|---|
| Model | KT-X90E |
| Product Type | Mid-Rise Scissor Lift |
| Lifting Capacity | 8,000 lbs (3,500 kg) |
| Max Lifting Height | ~47 in |
| Minimum Height | 4.3 in |
| Lifting Time | ~30 seconds |
| Platform Length | 81.5 in |
| Platform Width | 20.1 in |
| Width Between Platforms | 32.2 in |
| Rated Hydraulic Pressure | 20 MPa |
| Power Requirements | 110V (30A) or 220V / 60Hz / Single Phase |
| Control System | 24V Safe Control |
| Mechanical Lock Positions | 5 |
| Hydraulic Oil Type | AW-46 (AW-32 for colder climates) |
| Certifications | CE Certified (115% dynamic / 150% static tested) |
