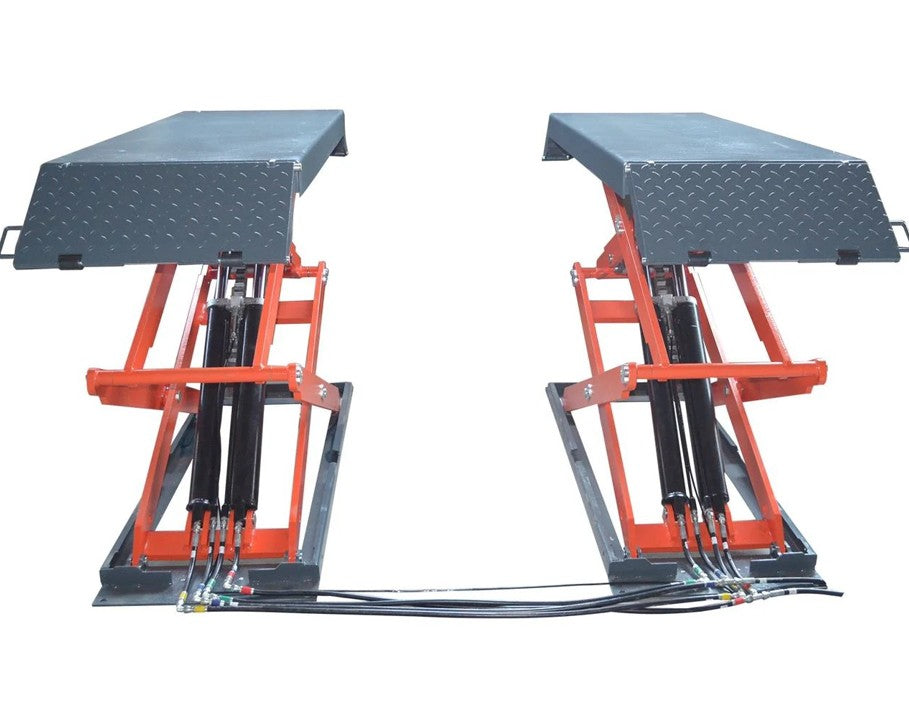

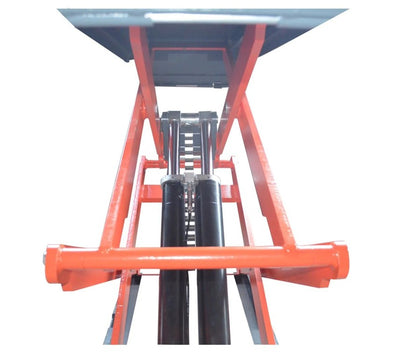

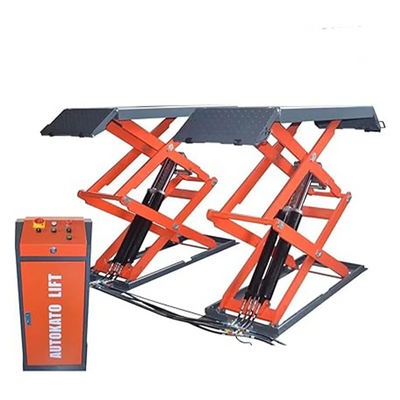

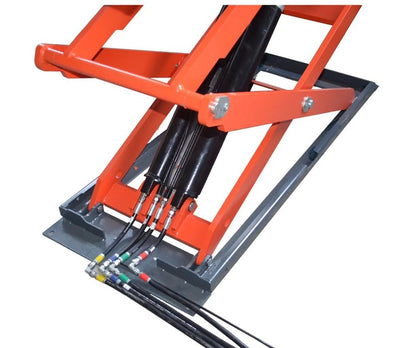

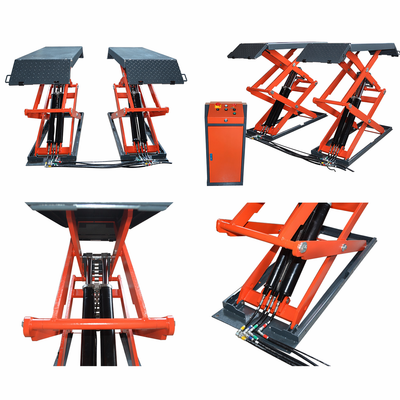

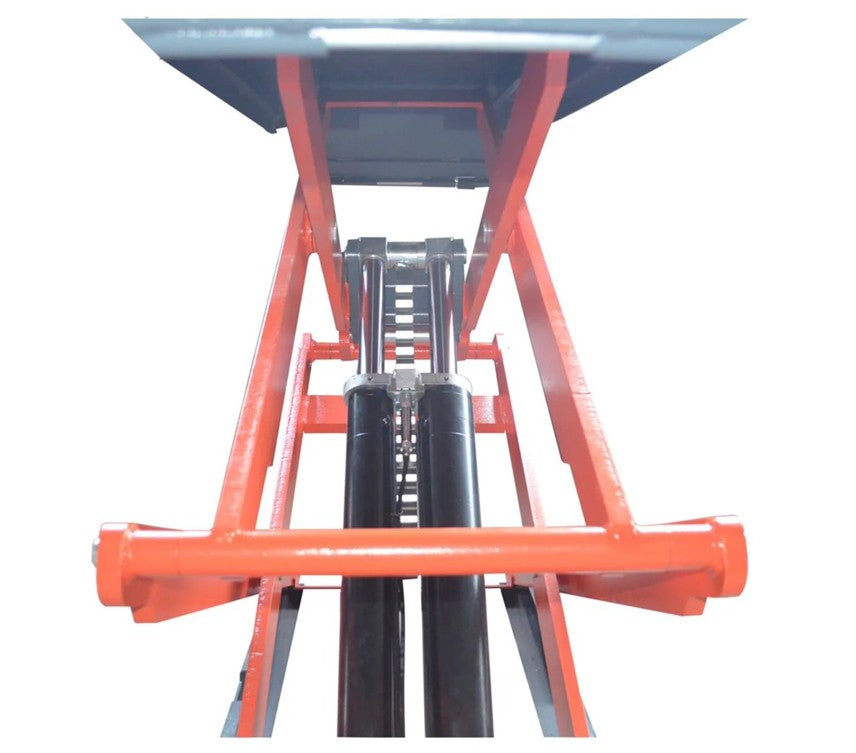

Katool KT-X95 8,000 lb Full-Rise Scissor Lift for Tire and Brake Service
SKU: KT-X95
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
If you want full-rise lifting without sacrificing a clean shop floor, the Katool KT-X95 is built exactly for that. This flush-mount full-rise scissor lift gives you the height and access of larger lifts while staying low-profile when not in use—perfect for shops that care about both performance and workspace efficiency.
With an 8,000 lb capacity and over 72 inches of lift height, the KT-X95 allows technicians to comfortably work under vehicles without obstruction. It’s designed for real shop conditions, combining smooth hydraulic operation with safety-focused features like pneumatic lock release and low-voltage controls.
Whether you’re handling routine maintenance or more involved repair work, this lift delivers the balance of strength, safety, and space-saving design that modern shops need.
Key Features & Benefits
- 8,000 lb Lifting Capacity – Handles cars, SUVs, and light trucks with ease
- Full-Rise Height (72.3") – Provides comfortable undercar access for detailed work
- Flush-Mount Design – Keeps your shop floor clear when the lift is lowered
- Pneumatic Safety Lock Release – Reliable locking system with air-assisted control
- 24V Safe Control System – Low-voltage operation for added safety
- Height Limit Protection – Prevents over-travel during lifting cycles
- Drive-Up Ramp Lock Design – Supports longer wheelbases with added stability
- Aluminum Motor with Cooling Fan – Helps prevent overheating during extended use
- Self-Lubricating Bushings – Reduces maintenance and ensures smooth operation
- Composite Rubber Lifting Blocks – Protects vehicle contact points
- CE Certified – Tested to 115% dynamic and 150% static load standards
- Full Access Without Posts – Clean undercar workspace for efficient repairs
- Space-Saving Design – Ideal for shops that want an open, organized floor
- Built for Daily Use – Reliable performance in busy shop environments
| Specifications | Details |
|---|---|
| Model | KT-X95 |
| Product Type | Full-Rise Flush-Mount Scissor Lift |
| Lifting Capacity | 8,000 lbs (3,500 kg) |
| Max Lifting Height | 72.3" (1,836 mm) |
| Lifting Time | ≤ 50 seconds |
| Platform Length | 58.9" (1,496 mm) |
| Platform Width | 24.4" (620 mm) |
| Motor Power | 2.2 kW |
| Rated Oil Pressure | 20 MPa |
| Air Pressure Requirement | 6–8 kgf/cm² (≈ 85–115 psi) |
| Control Voltage | 24V |
| Safety Features | Height limit switch, pneumatic locking system |
| Design | Flush-mount with drive-up ramps and lock |
| Certifications | CE Certified (115% dynamic / 150% static tested) |
What's Included
- Lift system
- Composite rubber lifting blocks
- Control system
