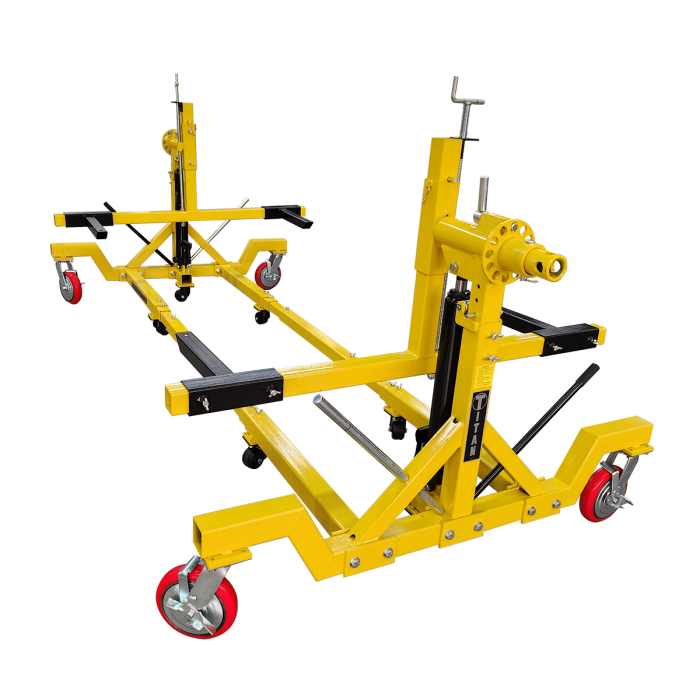

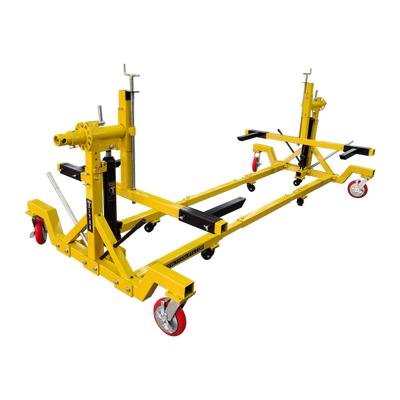

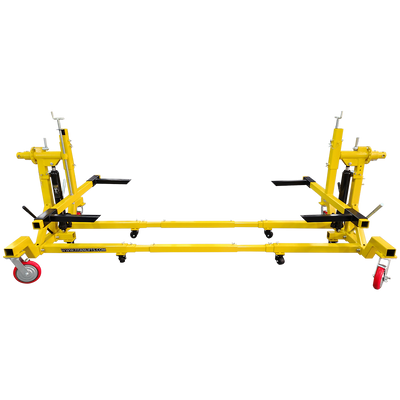

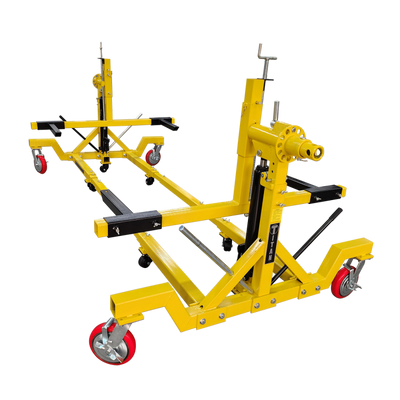

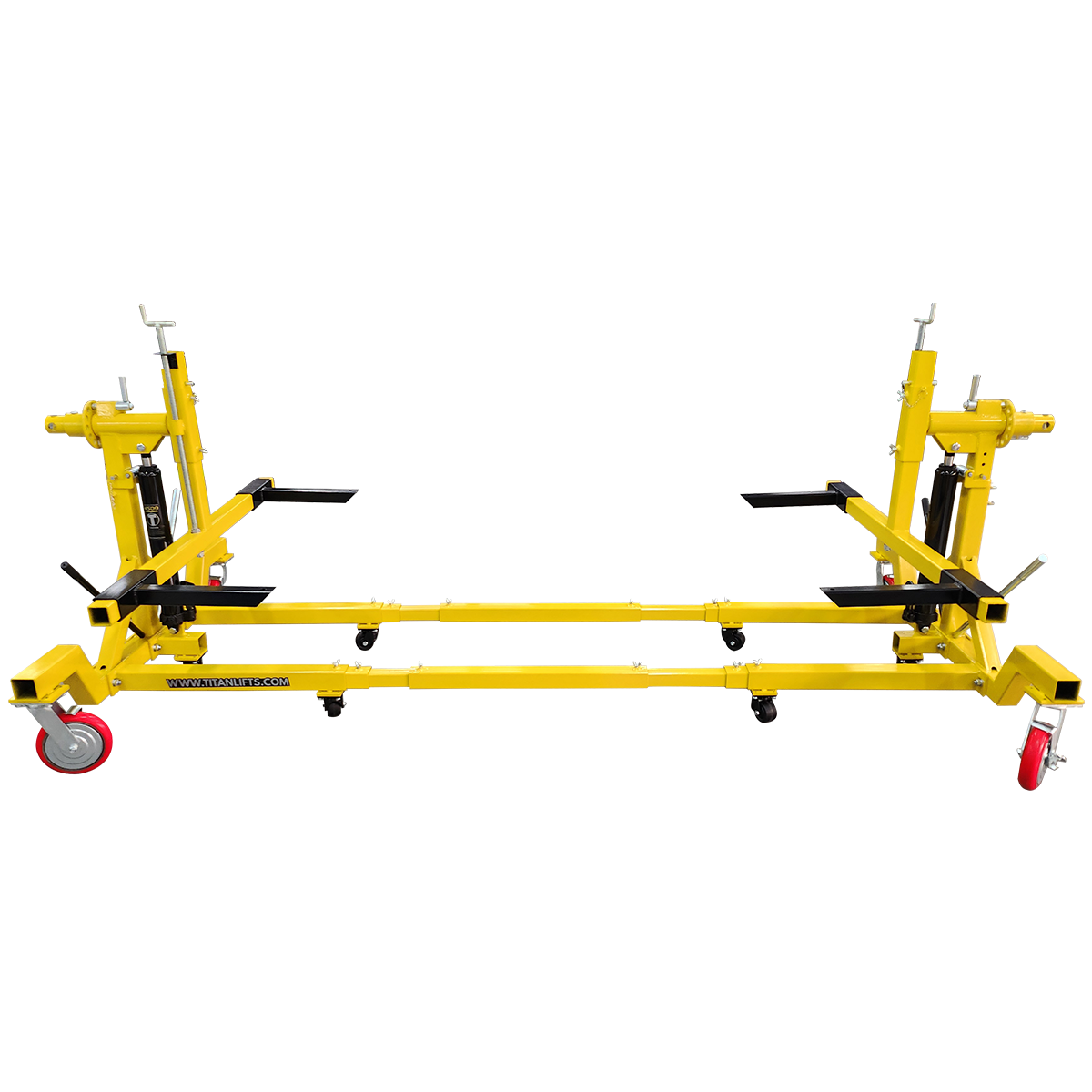

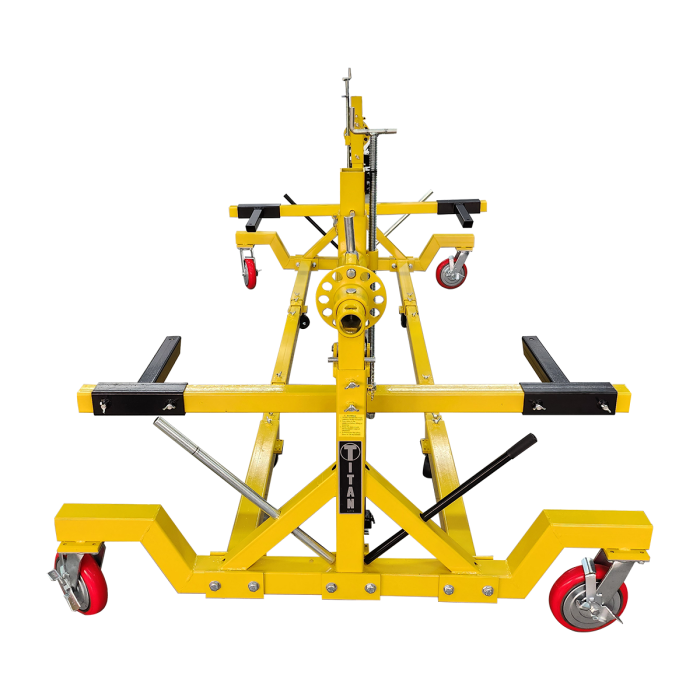

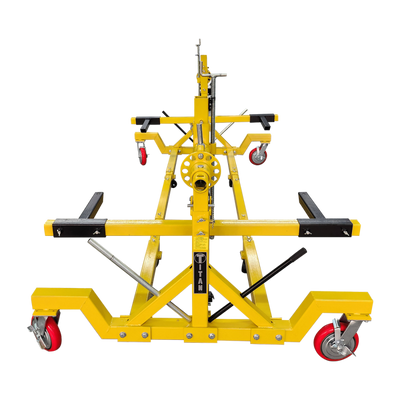

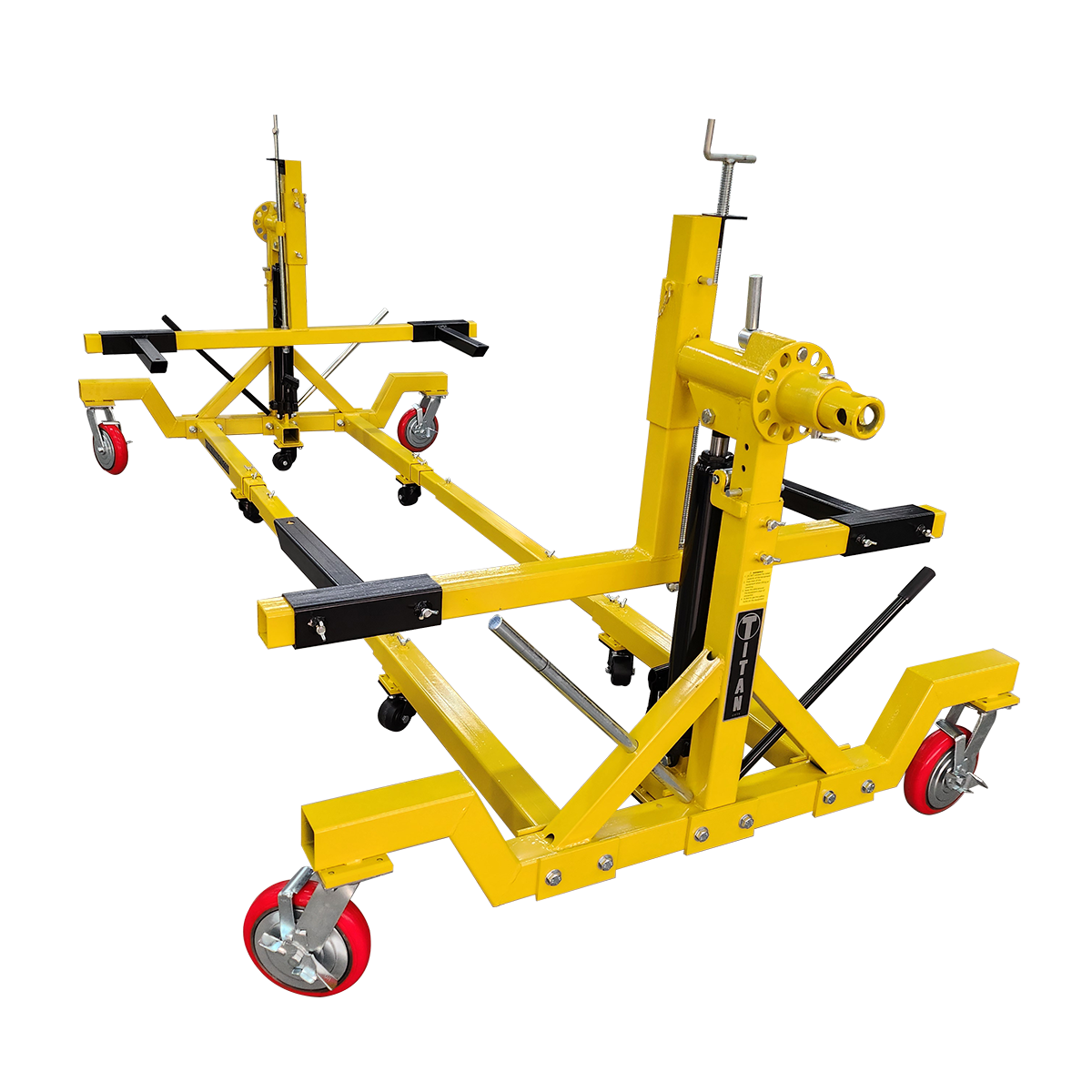

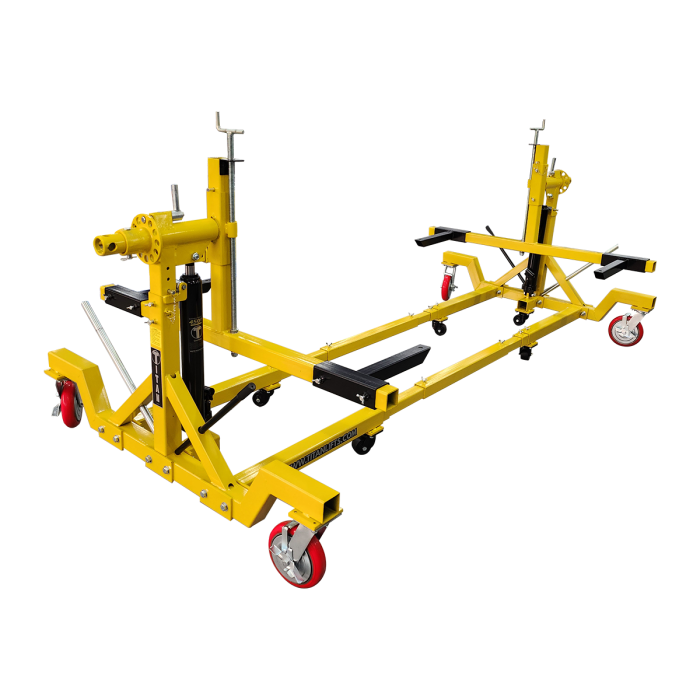

Titan ROT4500-G2 Gen 2 4,500 lb Vehicle Rotisserie
SKU: ROT-4500-G2
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Titan ROT-4500-G2 GEN 2 Automotive Rotisserie is built for serious restoration work, delivering strength, adjustability, and full 360-degree vehicle rotation. Designed to handle a wide range of chassis configurations, this unit provides the flexibility and support needed for bodywork, refinishing, and complete rebuild projects.
Built for Strength & Stability
Engineered with dual connecting rods and a reinforced structure, this rotisserie supports up to 4,500 lbs with confidence. The upgraded design improves load distribution and rigidity, giving you a stable platform when working on vehicle frames and bodies.
Smooth Lifting & Full Rotation
Dual hydraulic cylinders allow you to raise and position your vehicle with minimal effort. Once mounted, the unit enables full 360° rotation, making it easy to access hard-to-reach areas for welding, sanding, or refinishing.
Adjustable for Multiple Projects
With a wide range of length and height adjustments, the ROT-4500-G2 can accommodate various vehicle sizes and chassis types. Optional mounting adapters expand compatibility even further, making it a versatile solution for different builds and restoration needs.
Shop-Friendly Mobility & Safety
Equipped with heavy-duty 8" locking casters, this rotisserie moves easily around your workspace while protecting your floors. For added stability during rotation, an optional leg kit is available to help secure the load during operation.
Durable Finish for Long-Term Use
A rugged powder-coated finish helps protect against wear, corrosion, and shop abuse—ensuring long-lasting performance whether you're a hobbyist or running a professional shop.
Key Features
- 4,500 lb weight capacity for full vehicle builds
- Dual hydraulic cylinders for smooth lifting
- Full 360° vehicle rotation capability
- Reinforced dual connecting rod design for added strength
- Adjustable length and height for different chassis sizes
- Heavy-duty 8" locking casters for mobility
- Optional mounting adapters for expanded compatibility
- Powder-coated finish for durability
- Dual axis pin locks for secure positioning
| Specifications | Details |
|---|---|
| Weight Capacity | 4,500 lb |
| Max Height | 49" |
| Min Height | 21" |
| Max Length | 260" |
| Min Length | 121" |
| Width | 58.5" |
| Width (with Leg Kit) | 81" |
| Length Between Support Arms | 99" – 238" |
| Max Project Width | 80" – 88" |
| Hydraulic Cylinder Travel | 17" |
| Acme Screw Travel | 8.5" |
| Shipping Length | 64" |
| Shipping Width | 41" |
| Shipping Height | 20" |
| Shipping Weight | 615 lb |
| Warranty | 1-Year Parts Warranty (Manufacturer) |
