Choosing the Right 2 Post Car Lift

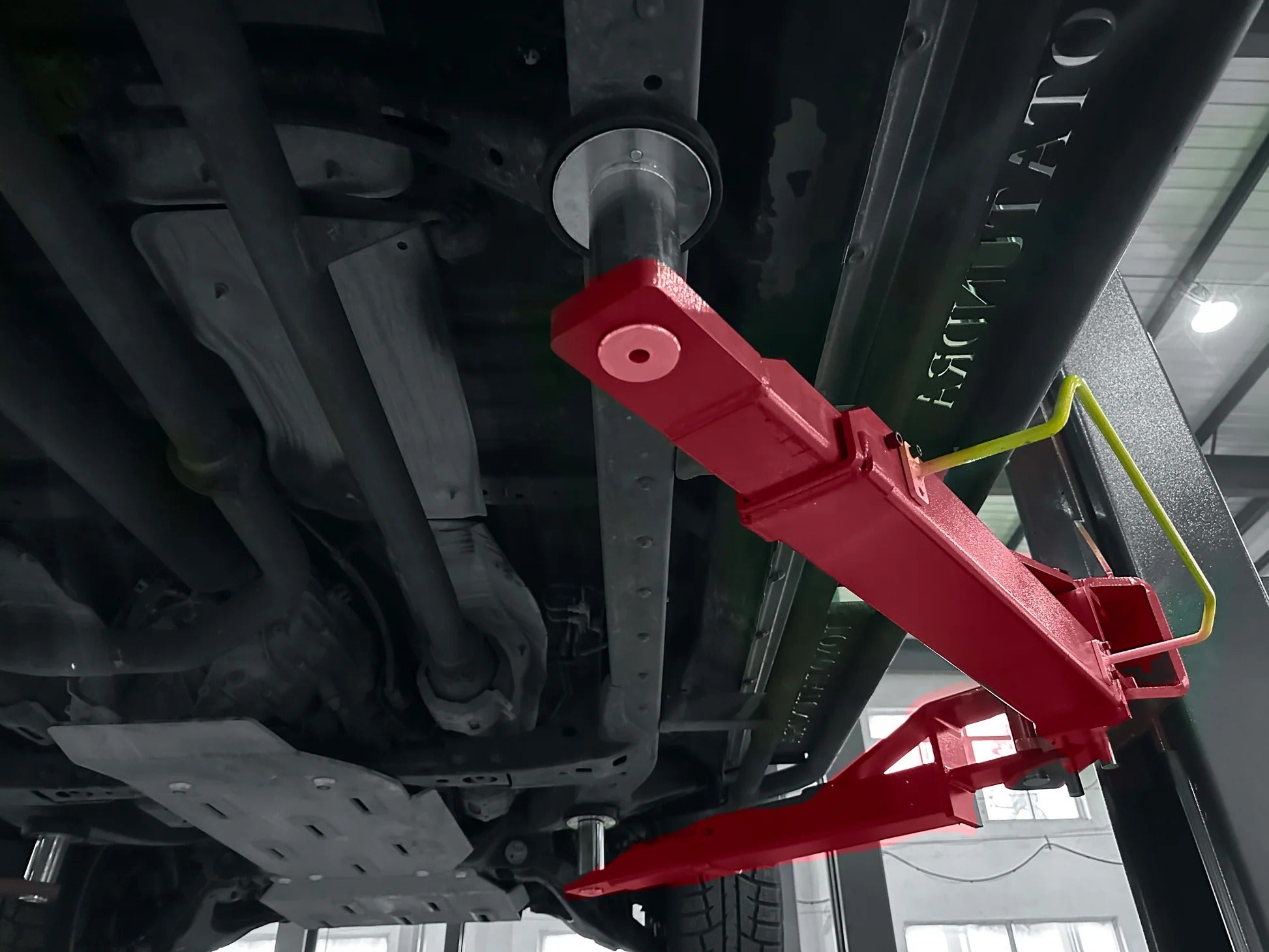

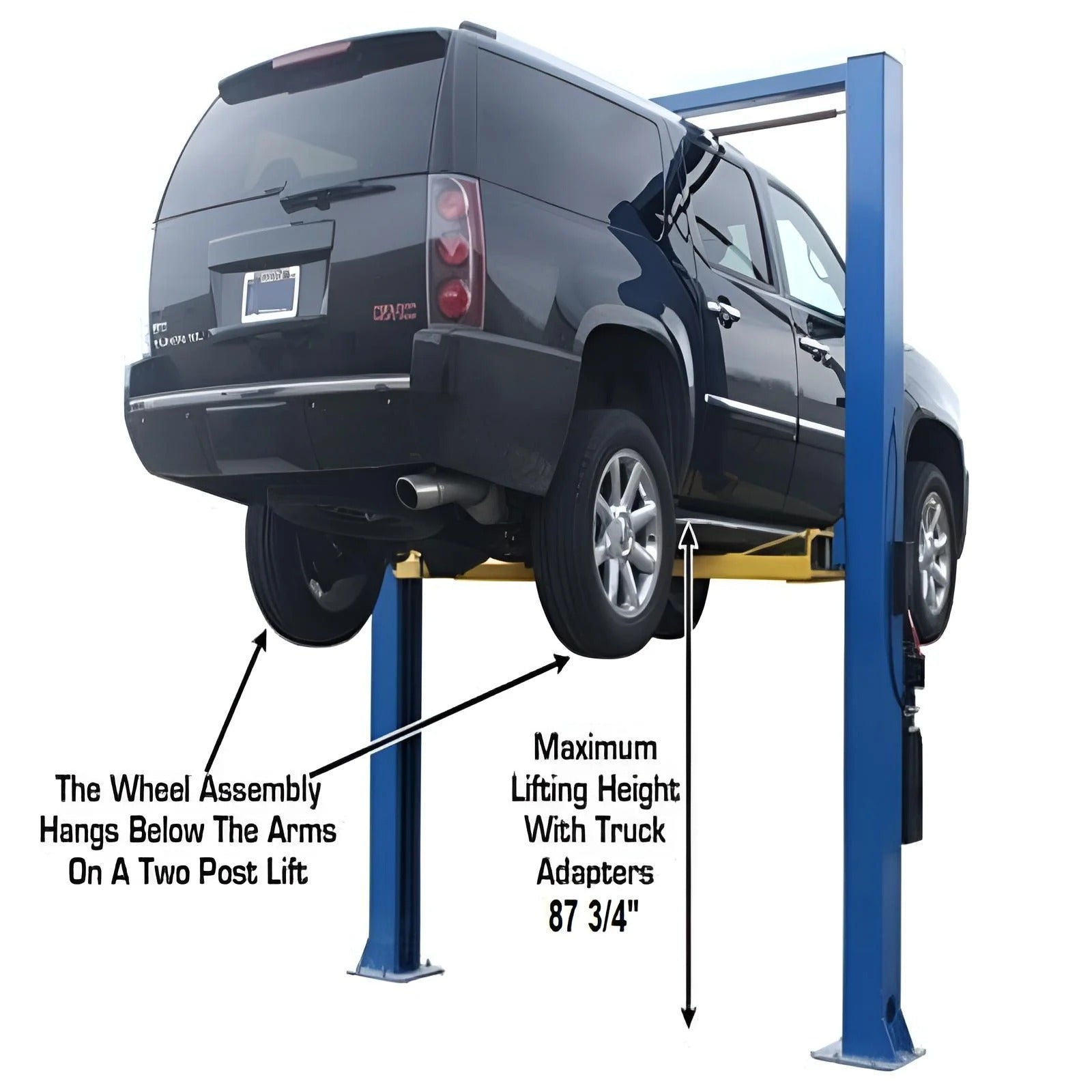

A 2 post car lift raises the vehicle off its wheels for clean, open access to the entire underside, making it the go-to lift for brake jobs, oil changes, exhaust work, and general repair. Because the arms carry the load at the vehicle's factory lift points, a two post lift keeps the wheels and suspension free, unlike a drive-on 4-post lift.

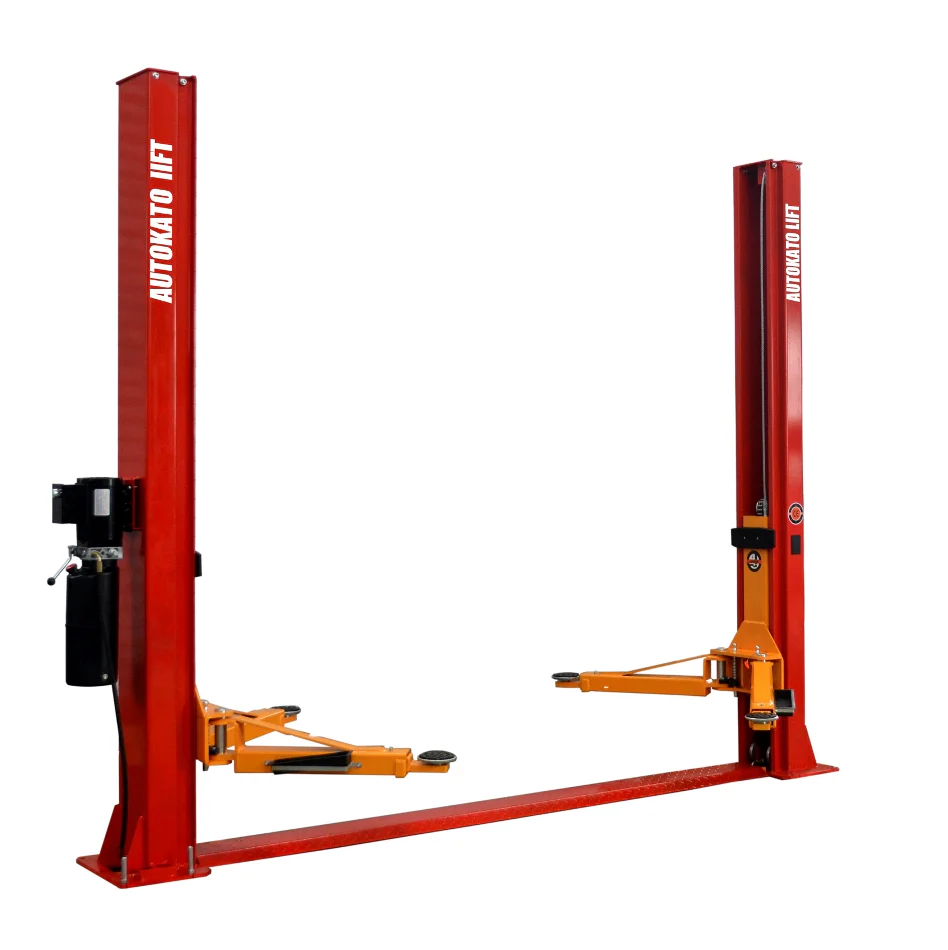

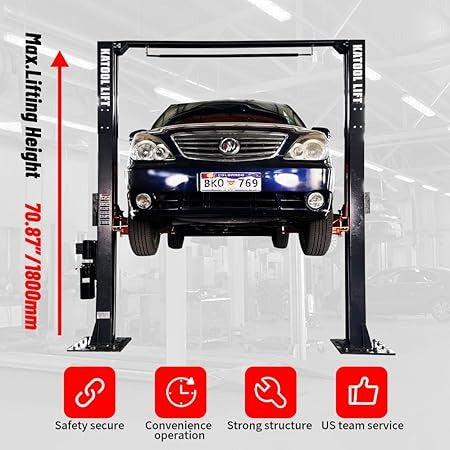

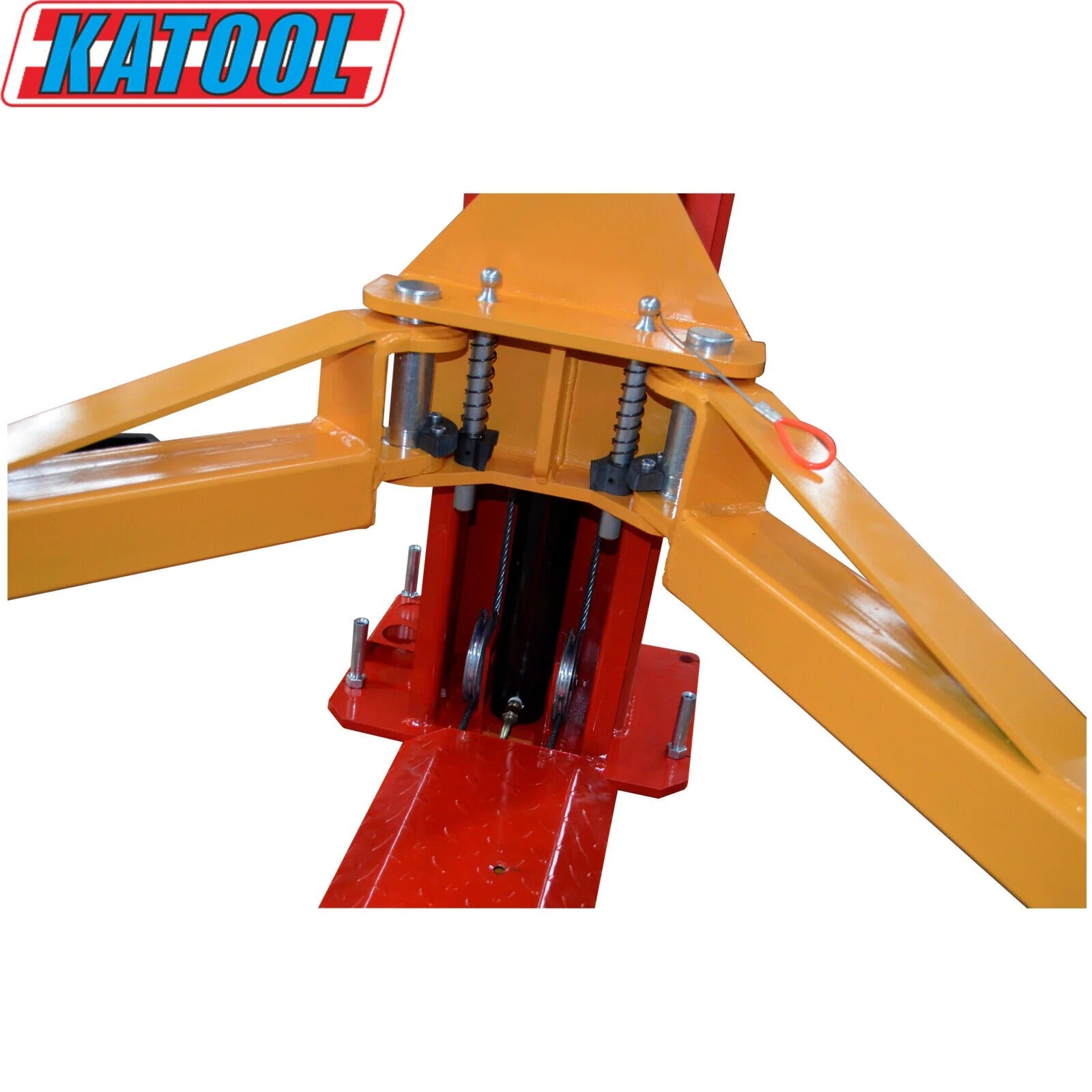

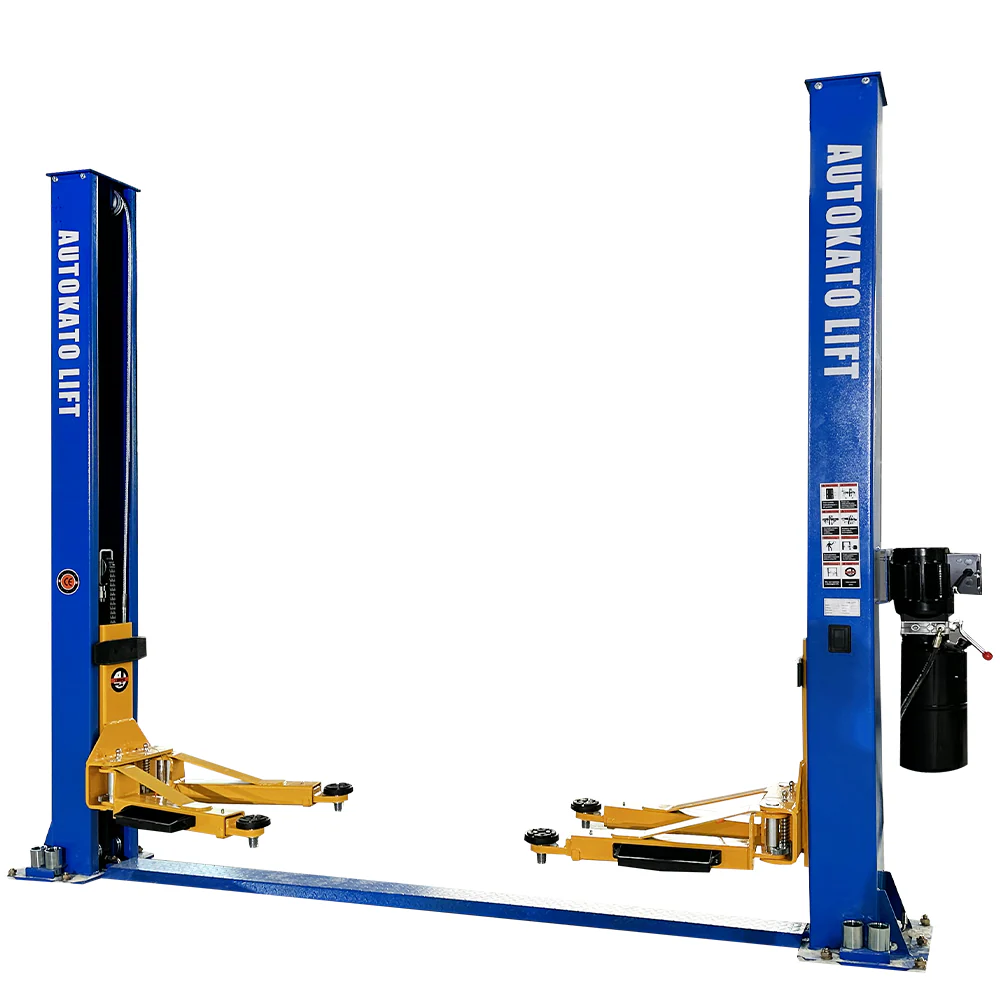

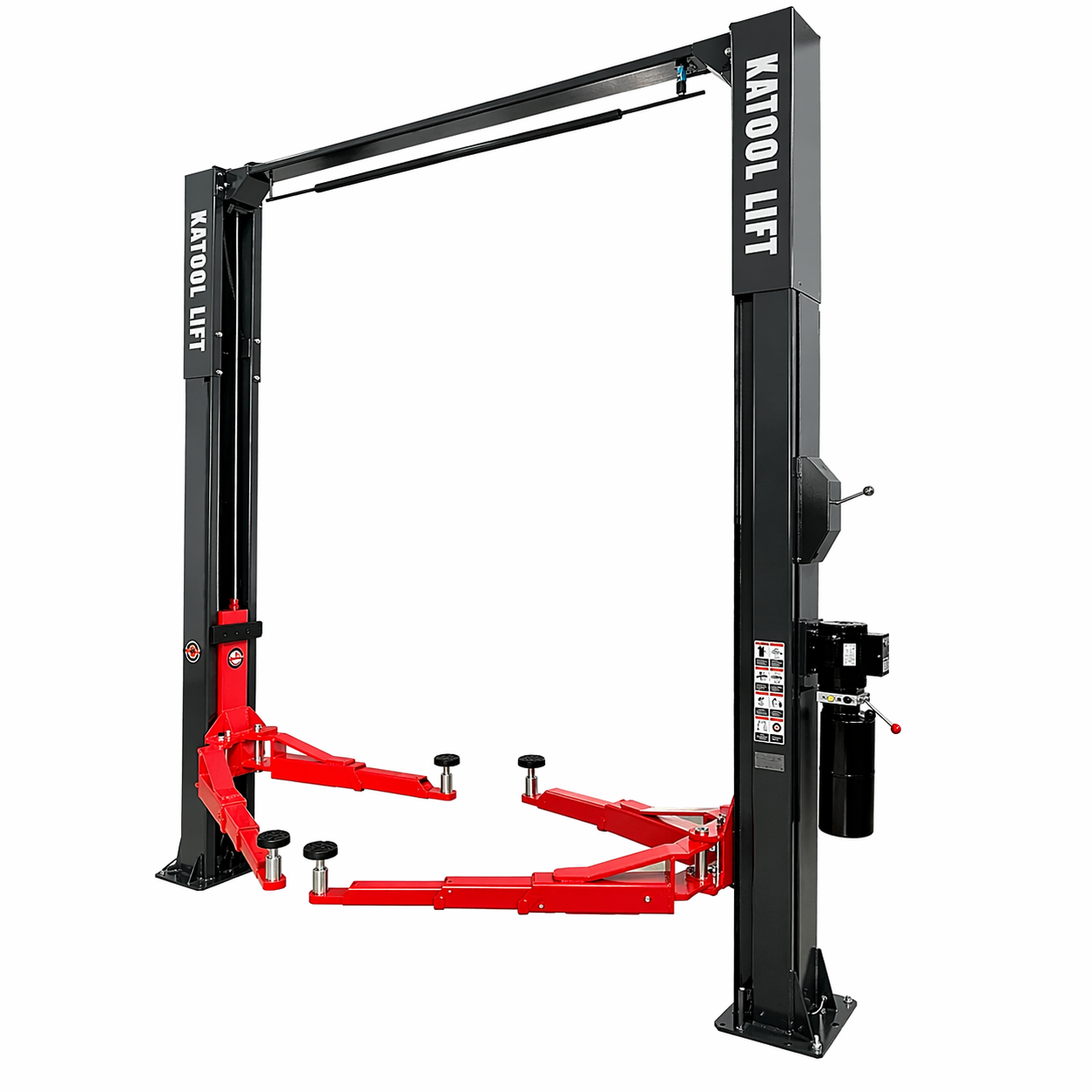

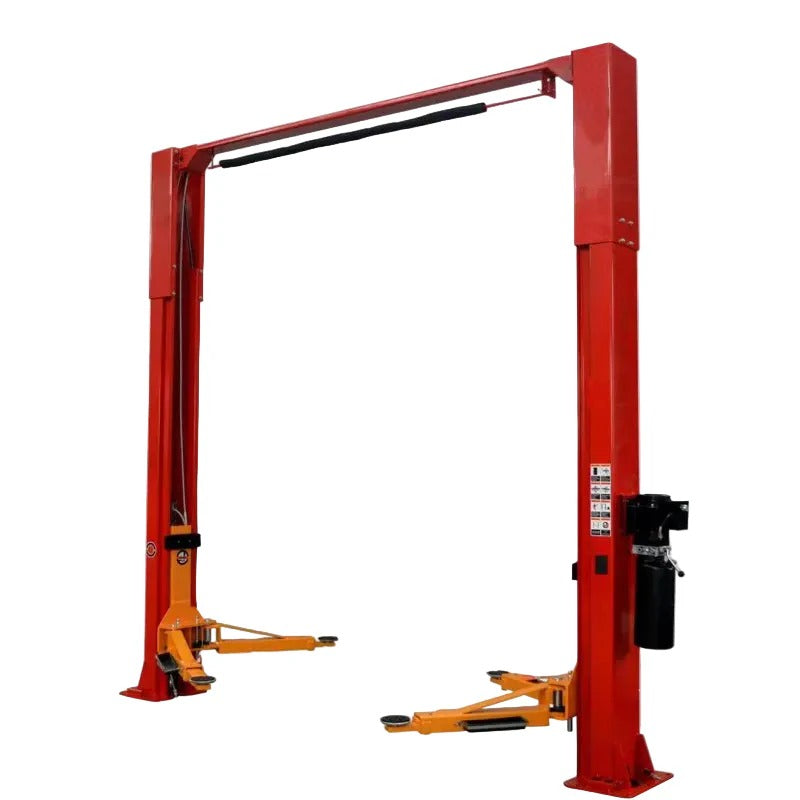

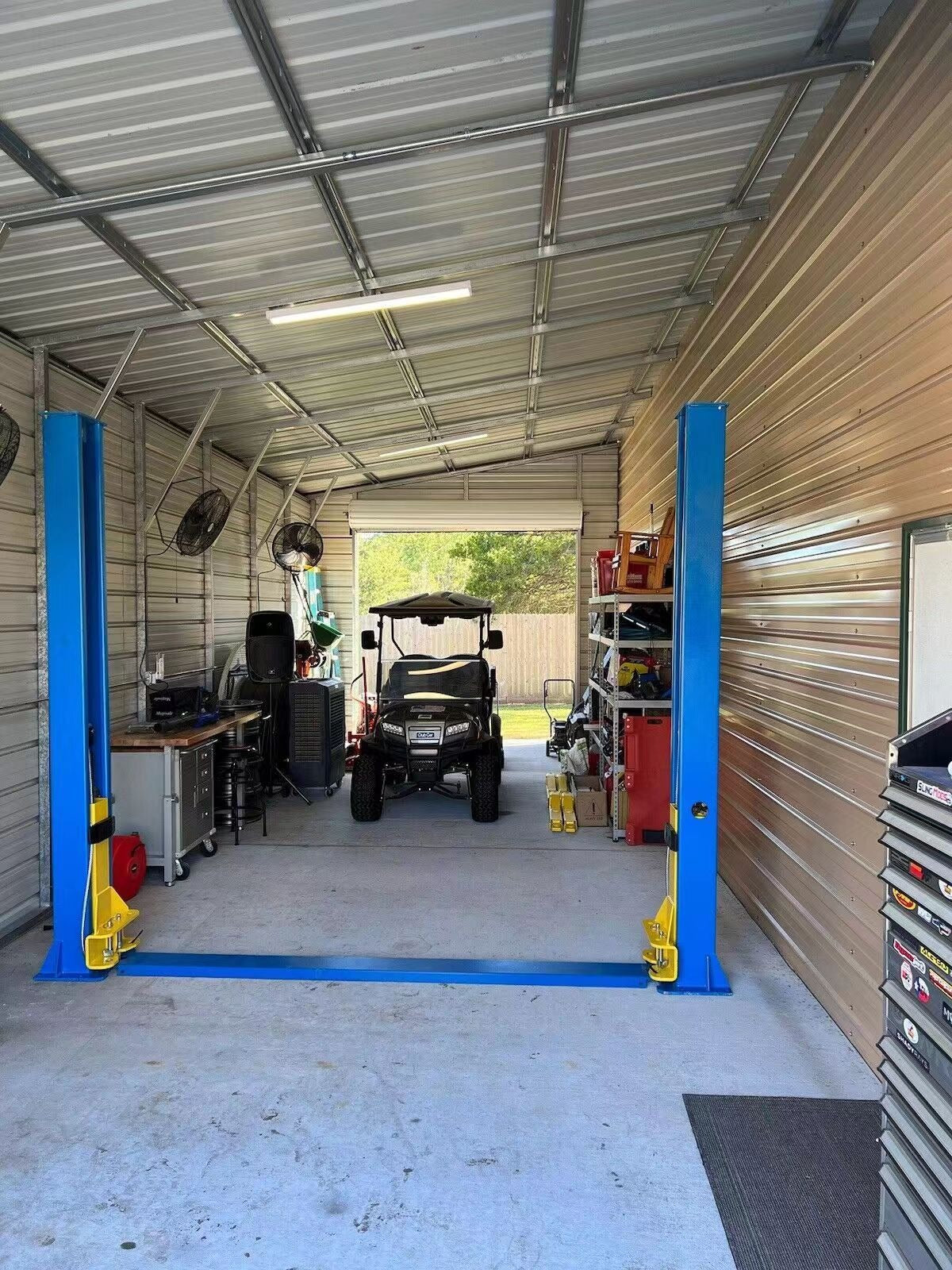

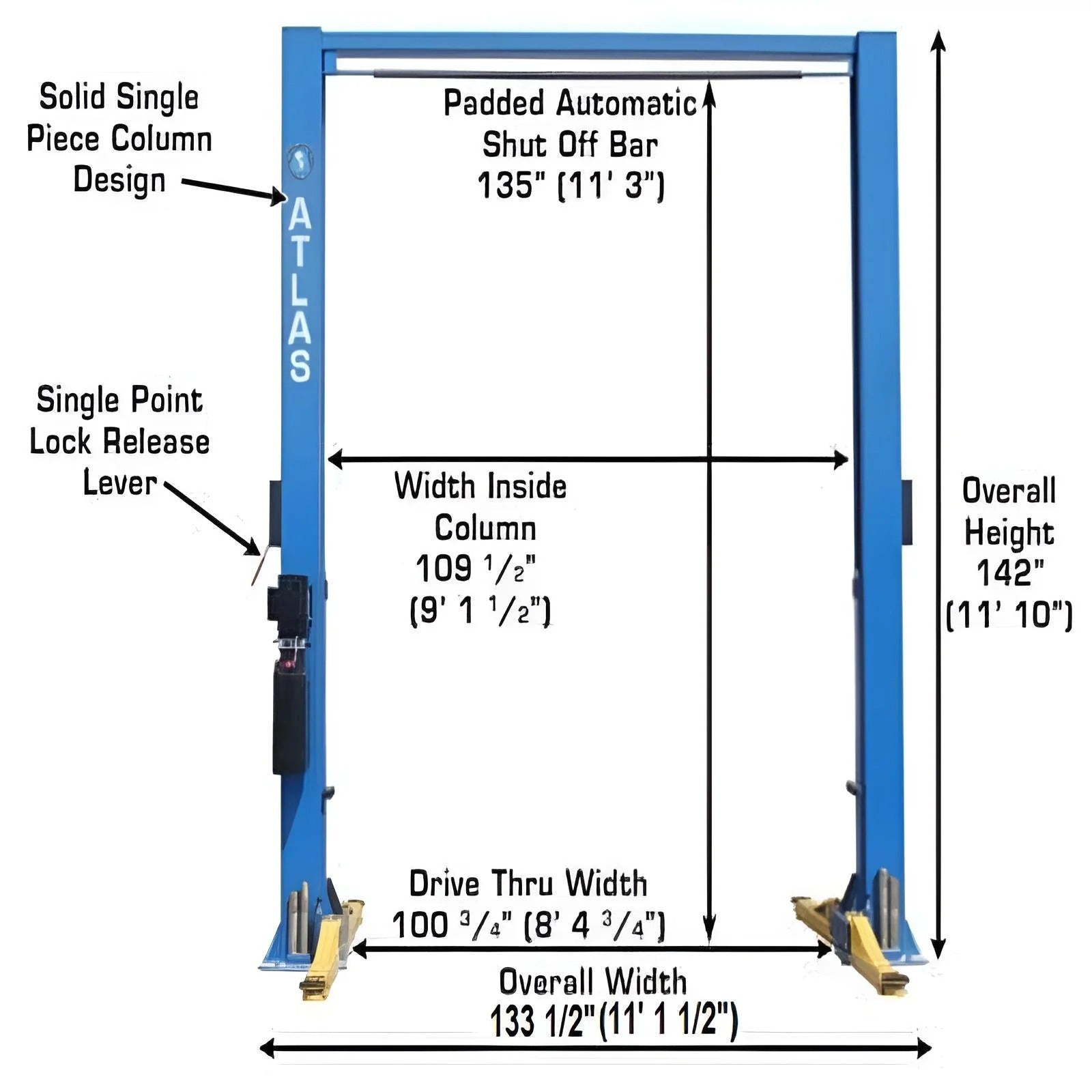

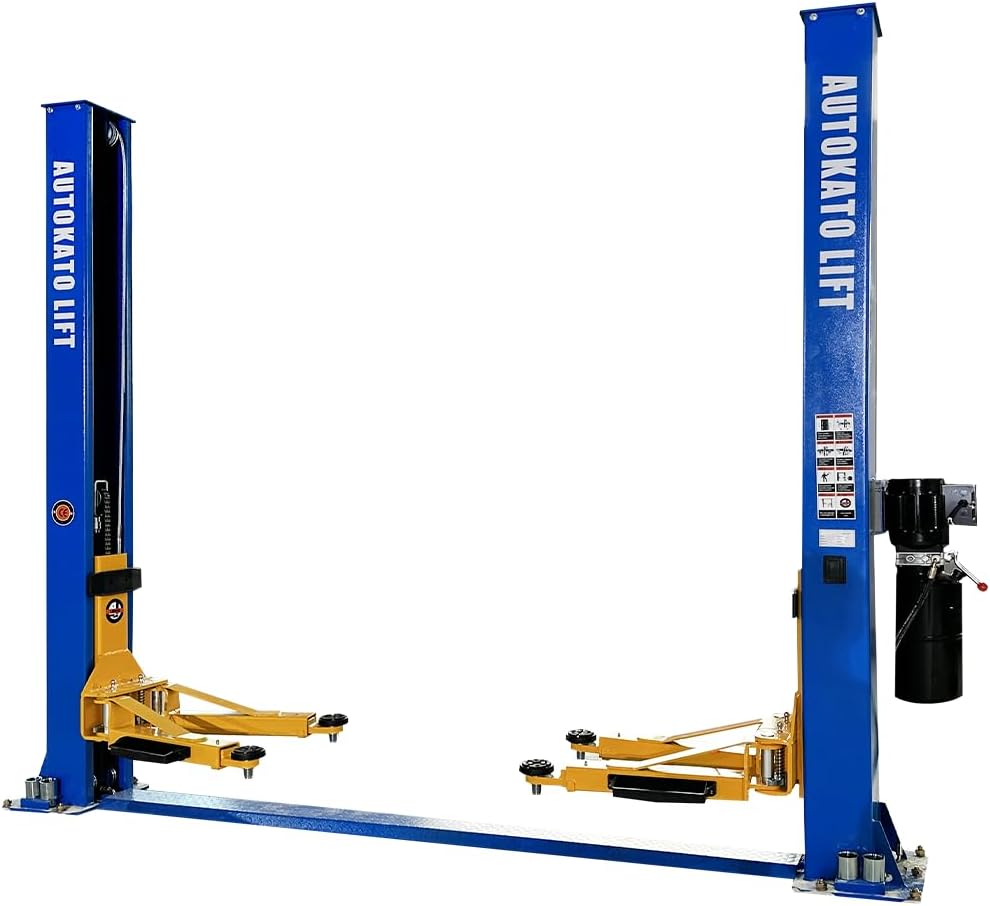

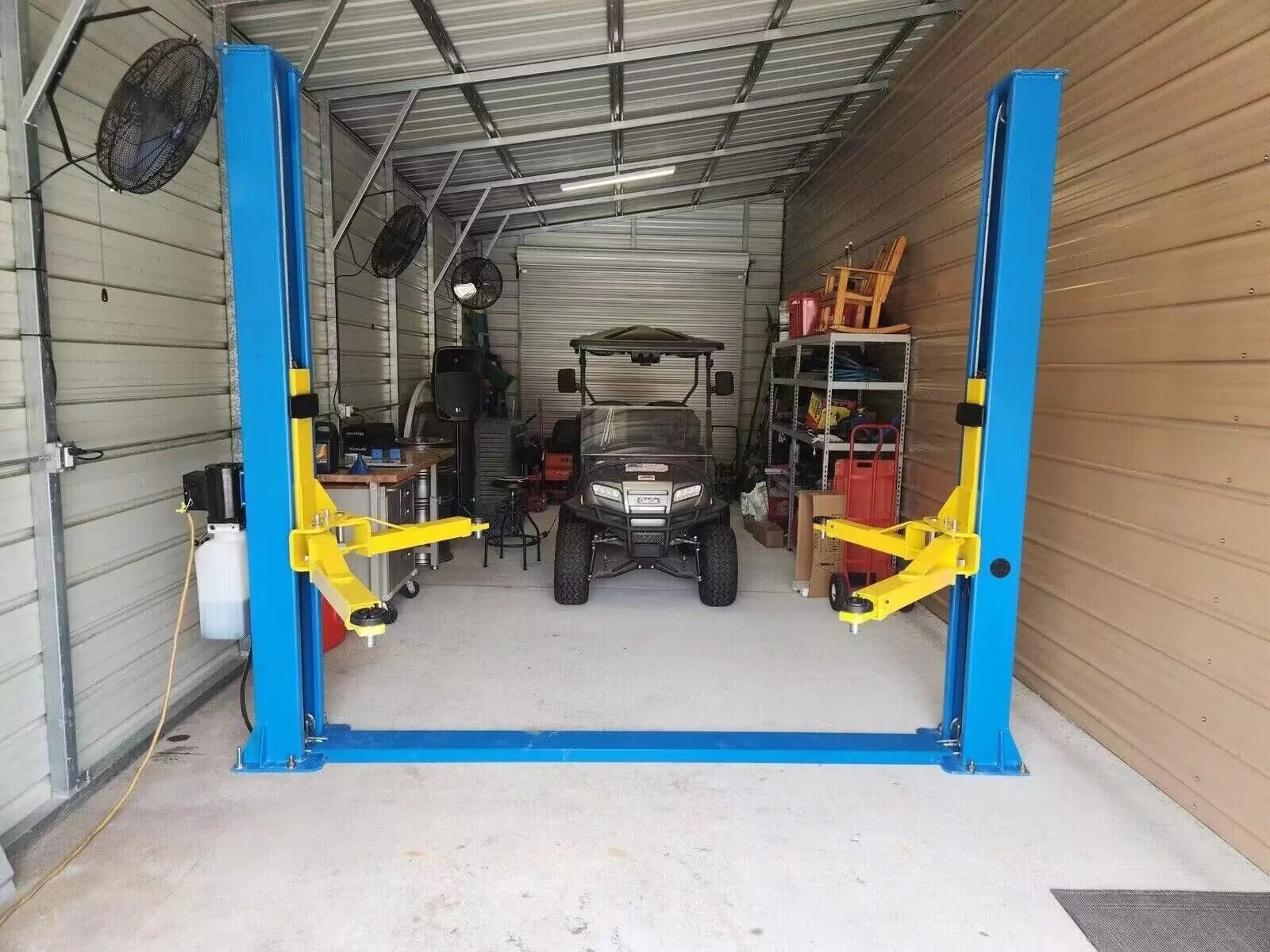

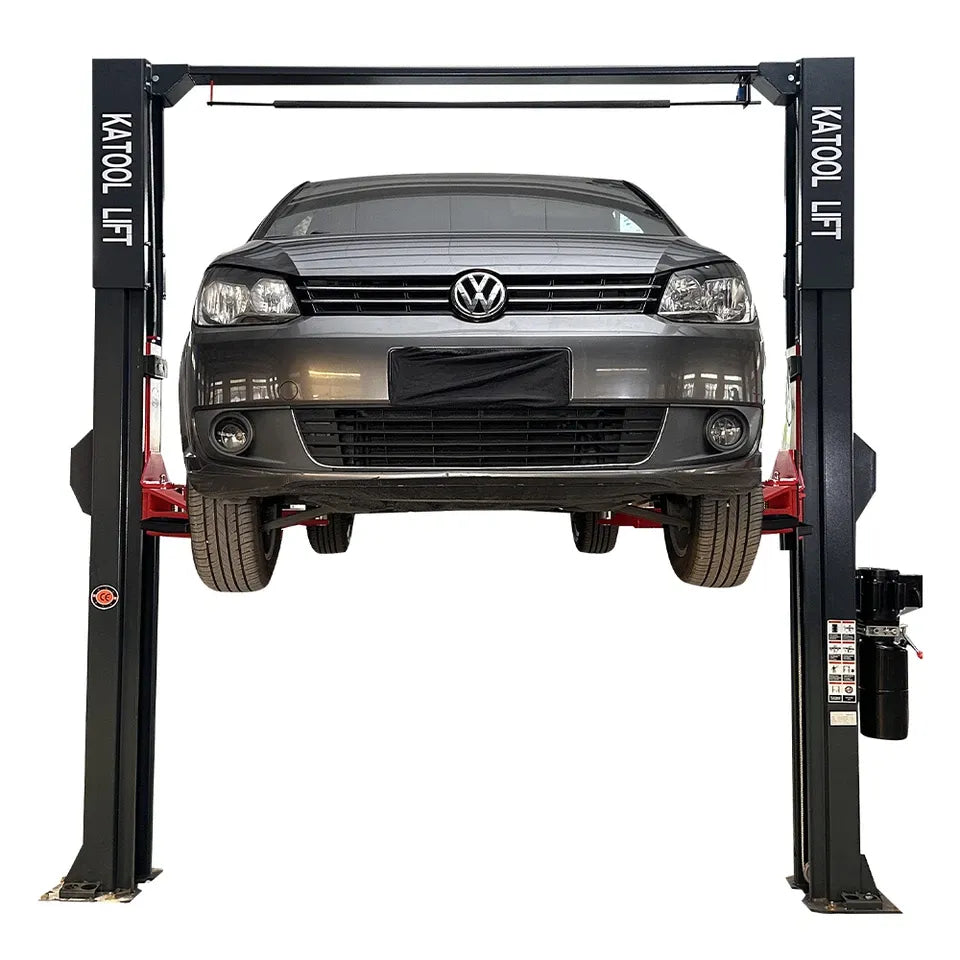

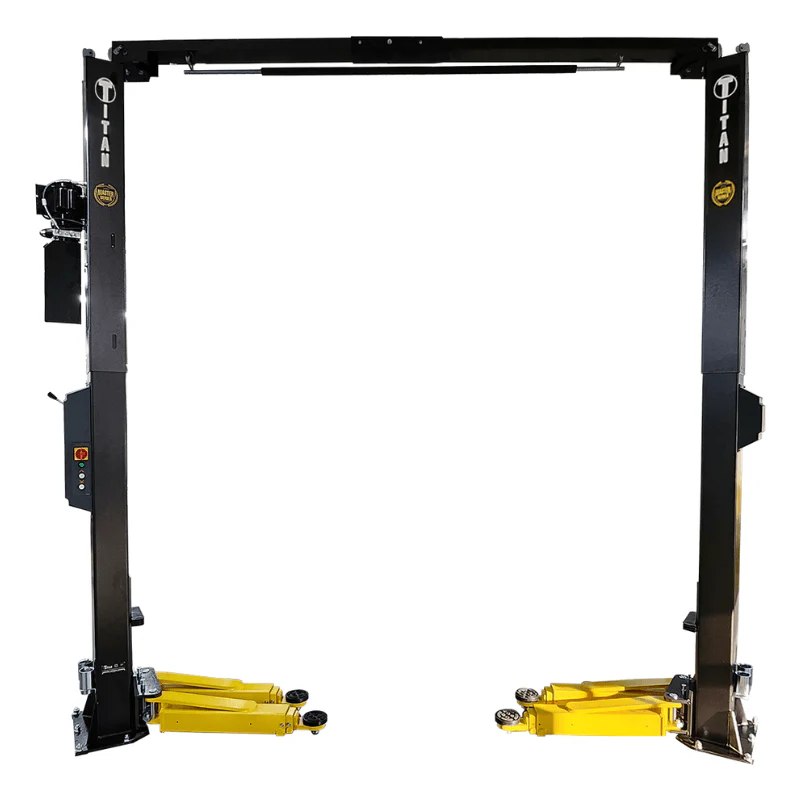

The two main decisions are capacity and column style. Most home garages and light shops are well served by a 9,000 to 10,000 lb 2 post lift, while trucks, vans, and busy commercial shops step up to 12,000, 15,000, or 18,000 lb models. From there you choose between overhead lifts, which run the safety bar across the top, and floorplate lifts, which route it along the ground for lower-ceiling garages.

Symmetric vs. Asymmetric 2 Post Lifts

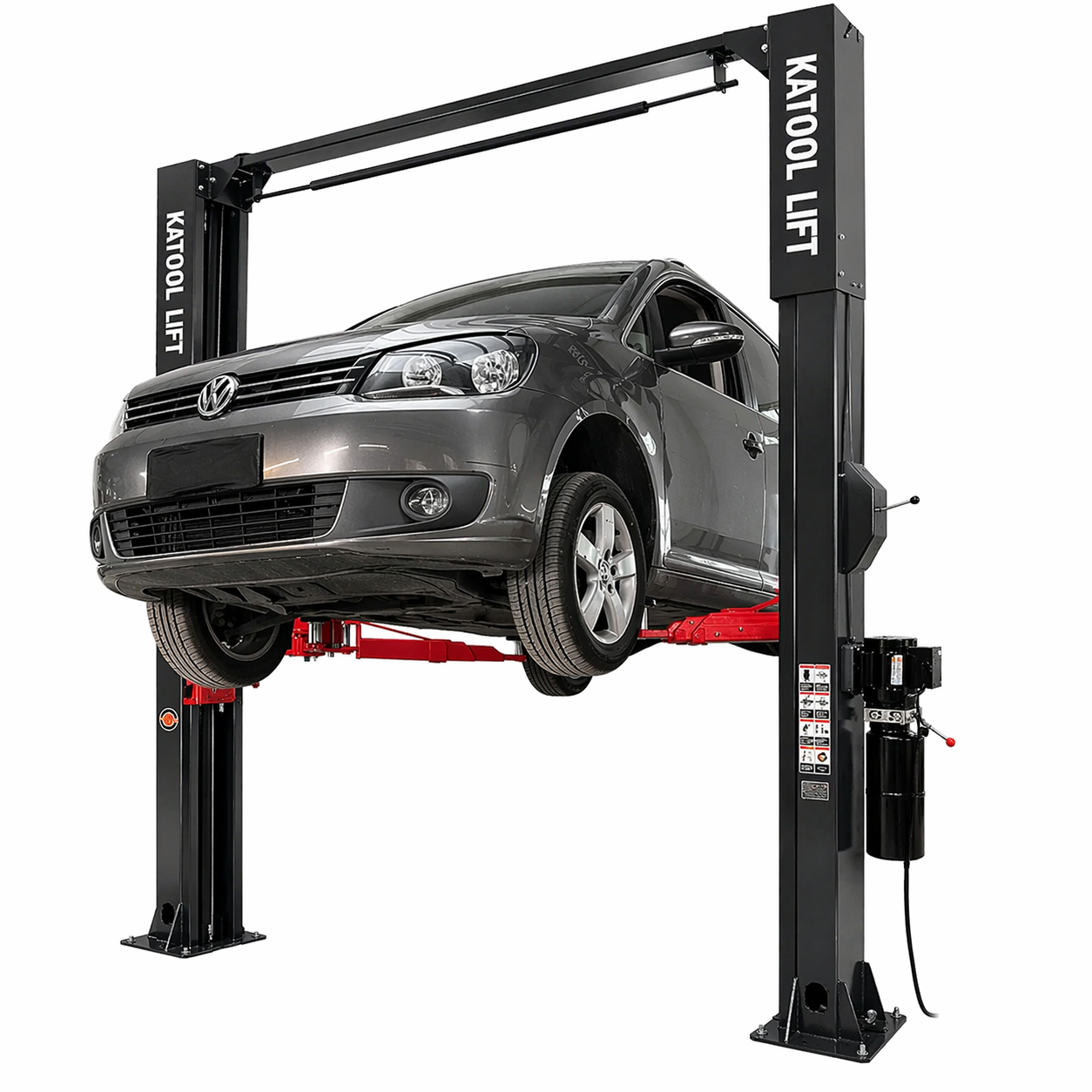

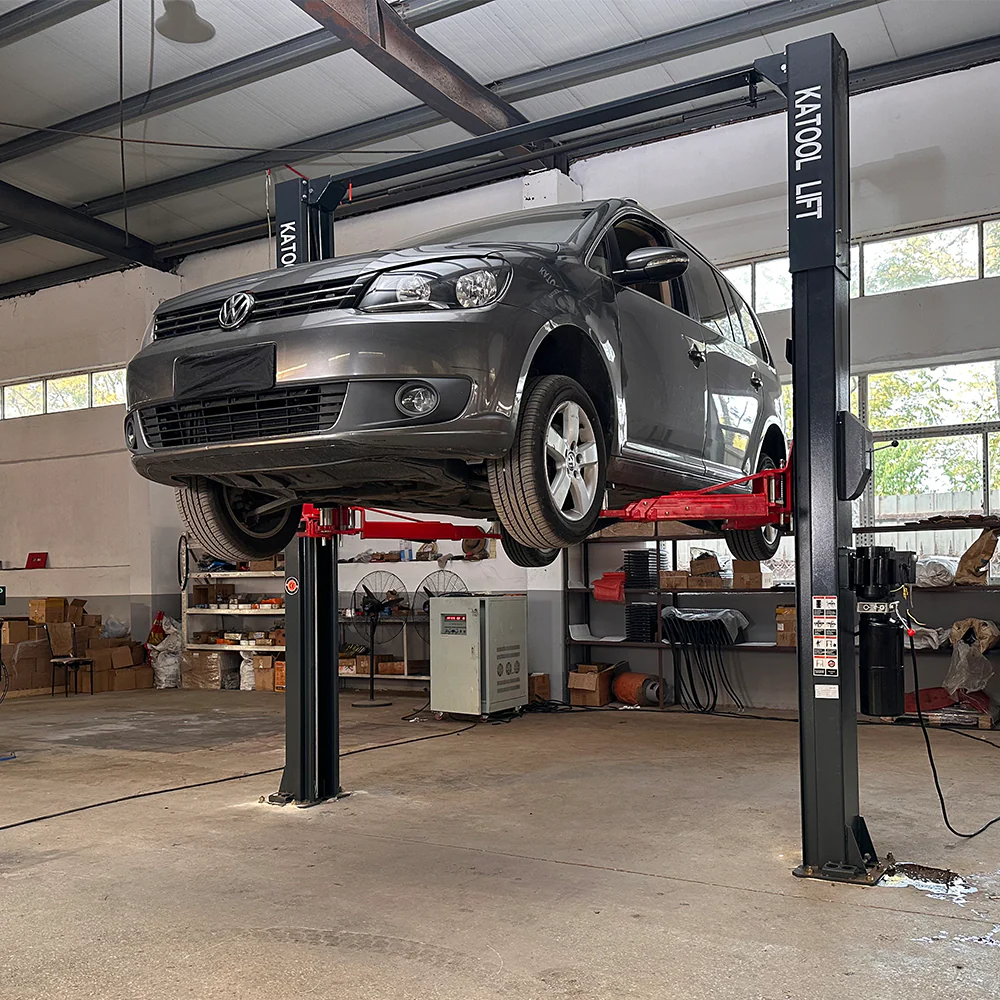

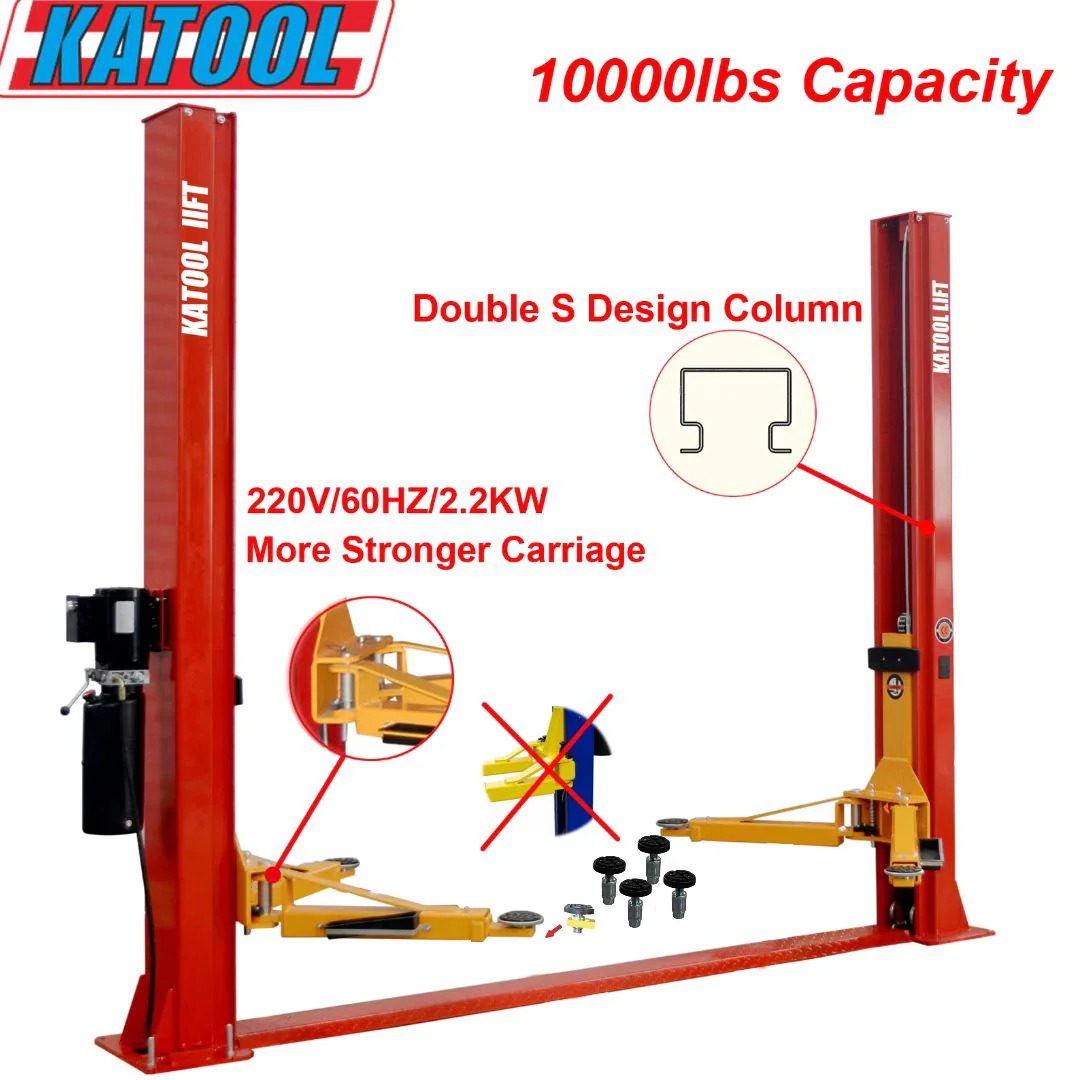

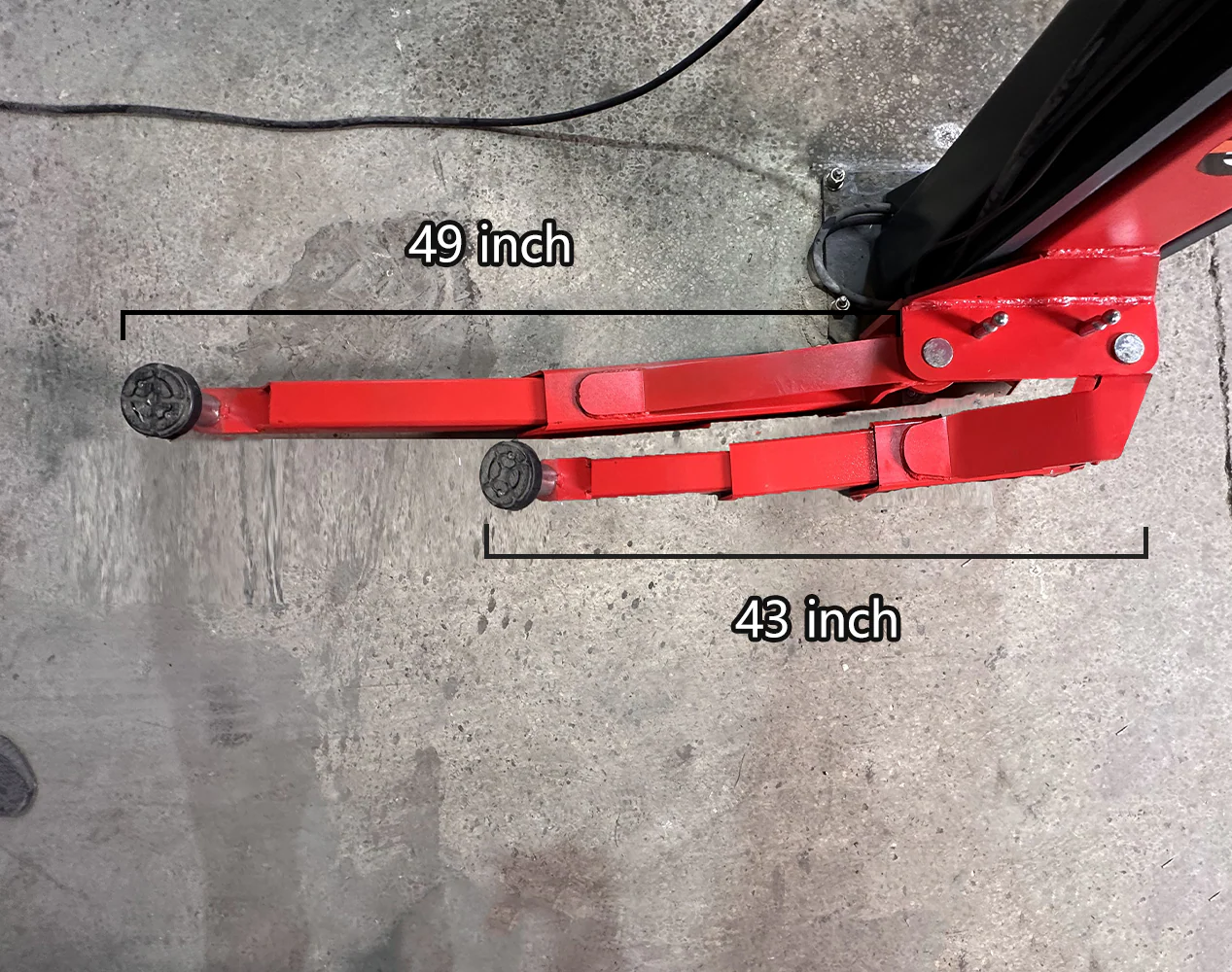

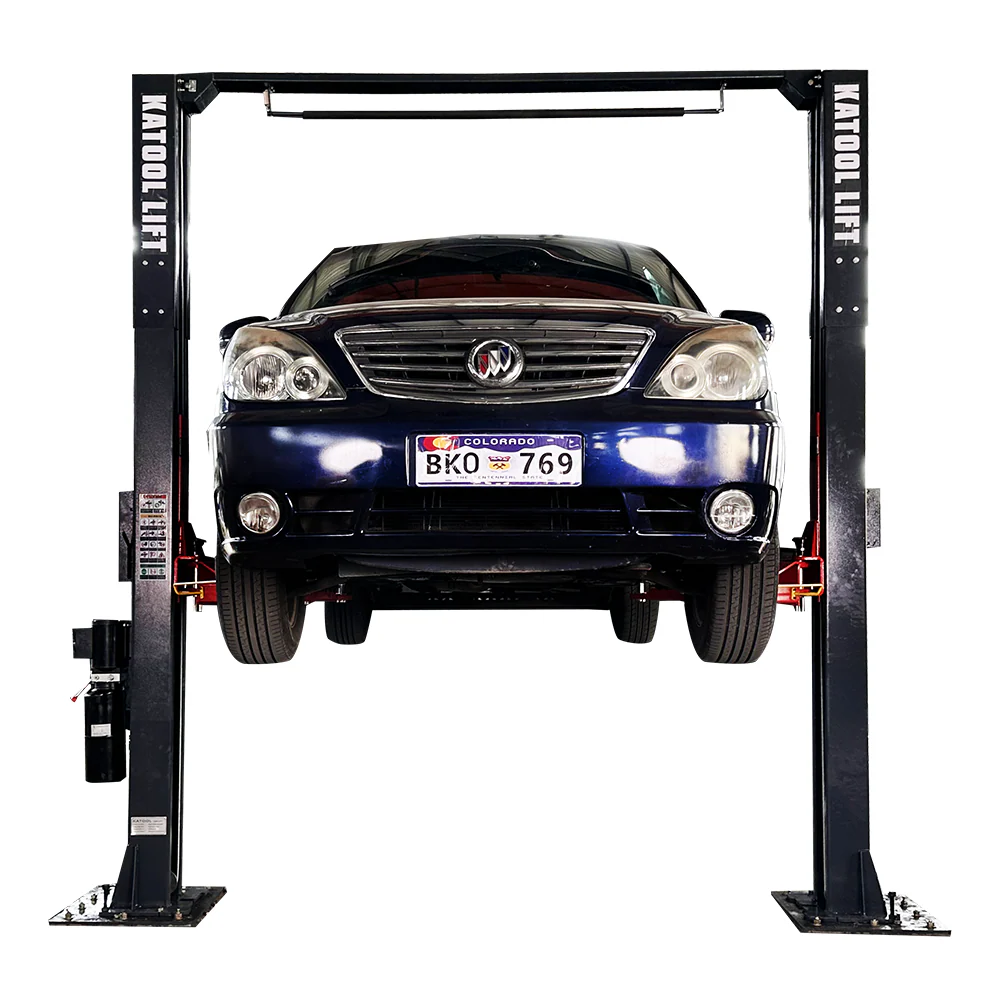

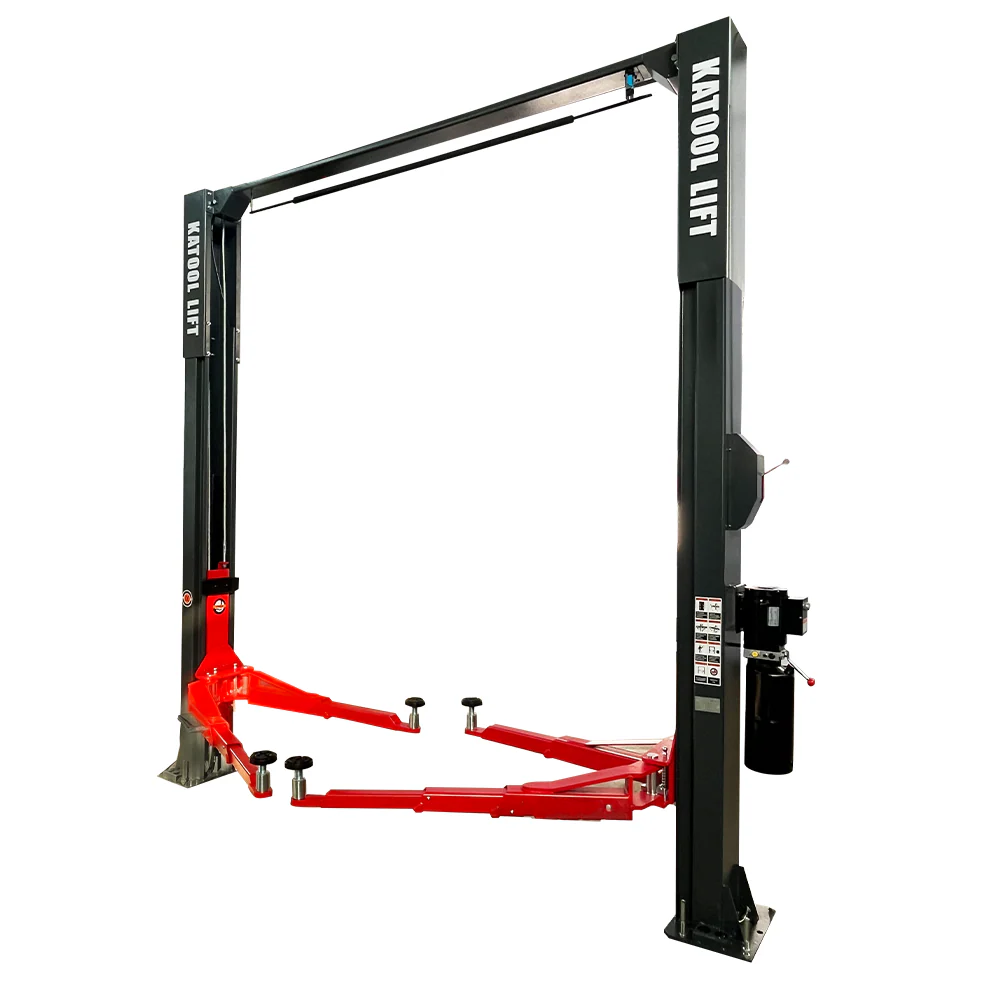

Symmetric 2 post lifts place the columns directly across from each other and split the vehicle weight evenly, which suits trucks and larger vehicles. Asymmetric lifts rotate the columns and use offset arms so the vehicle sits back slightly, giving more room to open the doors, ideal for cars in tighter bays. Many modern lifts are versatile, letting you set the arms either way.

Frequently Asked Questions

How thick does concrete need to be for a 2 post lift?

For most 2 post lifts under 12,000 lb capacity, the minimum is 4 inches of concrete rated at 3,000 PSI or higher. Heavier 12,000 lb and up lifts typically require 6 inches at 3,000 PSI. For a new pour, many shops go with 6 inches of reinforced 3,500 to 4,000 PSI concrete for extra margin. Concrete should be fully cured (about 28 days) before the lift is anchored, and always confirm the exact requirement in your specific lift's manual.

How tall of a ceiling do I need for a 2 post lift?

Most overhead 2 post lifts need roughly 11 to 12 feet of ceiling clearance, while low-ceiling and floorplate models are built for garages closer to 10 feet. Add the height of the tallest vehicle you'll raise to the lift's rise height, and check for obstructions like lights and garage door openers.

How wide is a 2 post lift, and how far from the wall should it sit?

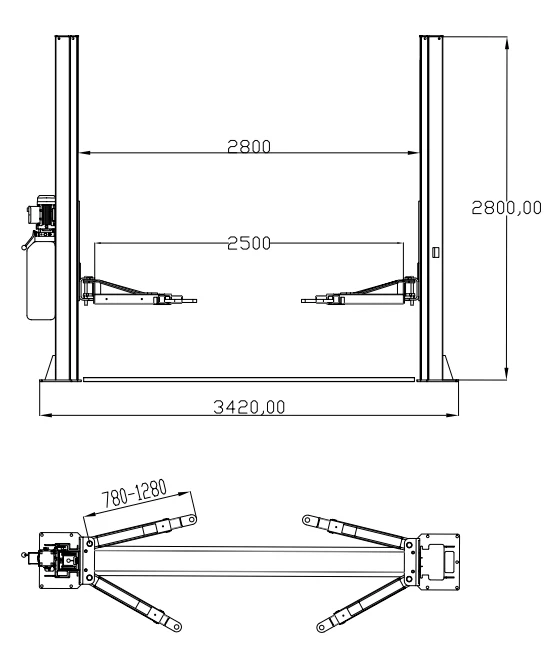

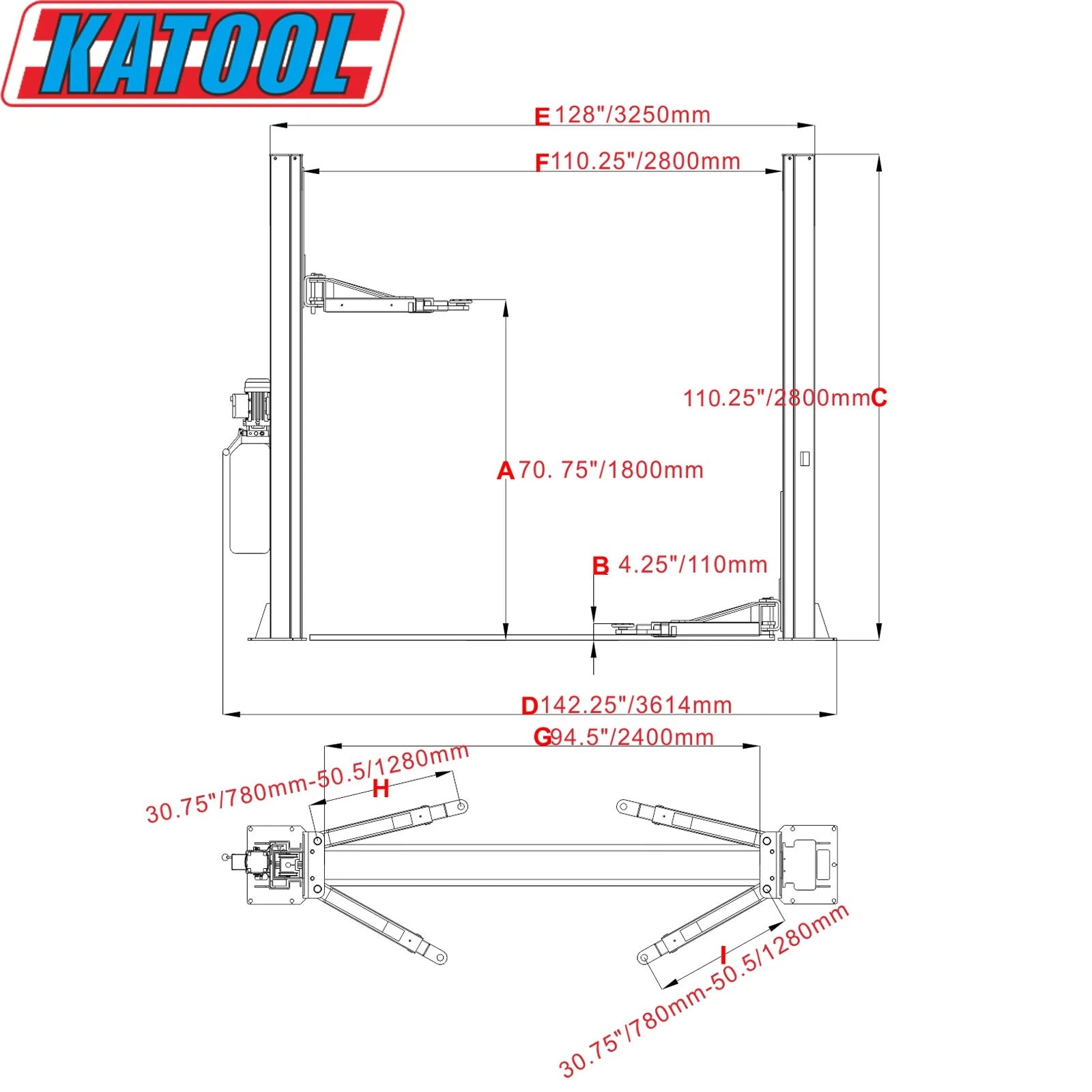

Overall width varies by model but commonly runs about 11 to 12 feet between the outside of the columns. Leave enough space on each side to fully open vehicle doors and move around the lift comfortably. The exact footprint is listed on each product page.

What size 2 post lift do I need for my vehicle?

Match the capacity to the heaviest vehicle you'll service, with a safety margin. A 9,000 to 10,000 lb lift handles most cars and light trucks, a 12,000 lb lift suits 3/4 and 1-ton trucks, and 15,000 to 18,000 lb models are built for heavy-duty and commercial work.

Can you store a car on a 2 post lift?

A 2 post lift is designed for service and repair rather than long-term storage, since the vehicle is held by its lift points on the arms. For parking or storing a second vehicle overhead, a 4 post lift is the safer, more stable choice.

How is a 2 post lift installed?

A 2 post lift is anchored into a qualifying concrete slab, leveled with shims, and wired to the correct power supply (commonly 220V single-phase, though some models offer other options). Because it's heavy, safety-critical equipment, professional installation is recommended. We can help you plan the setup and match a lift to your space.
